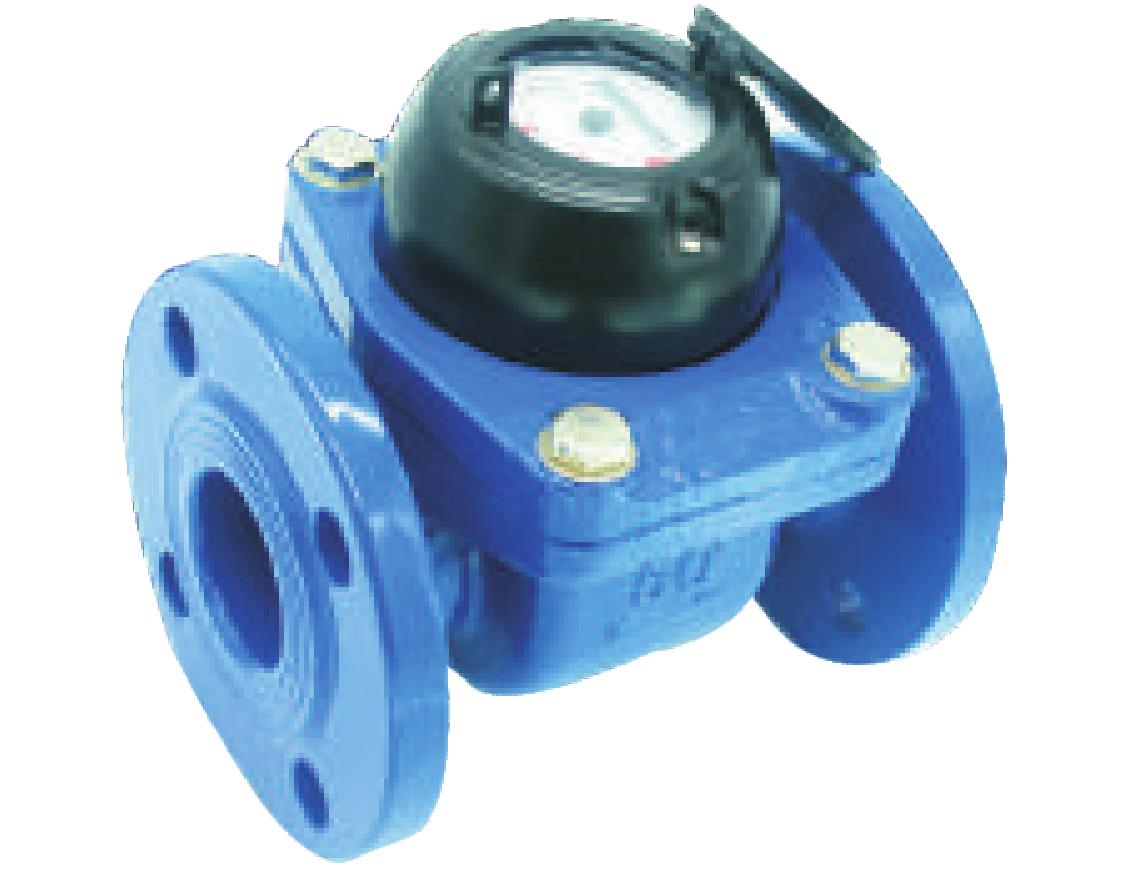

Dry Type Woltman Water Meter - DN50-DN200(Copy)
Tools,Hardware & Instruments Measuring Instruments
MOQ:100 Piece(s)
Payment Method : L/C T/T Western Union Paypal
Keywords:Water Meters woltman water meter dry type water meter DN50 WATER METER
| Product Category: | Tools,Hardware & Instruments > Measuring Instruments | Trademark: | SECK |
| Product Package: | wood carton | Specifications: | each meter in each carton |
| Place of Origin: | China | Port: | NINGBO |
Working condition:
Water temperature≤30; hot water meter 90.
Water pressure≤1MPa (PN:1.6 MPa/16bar)
△P≤0.1MPa
Accuracy:
From minimum flow-rate(qmin) inclusive, to transitional
flow- rate(qt) exclusive: ±5%
From transitional flow- rate(qt) inclusive, to overload flow-
rate(qs) exclusive: ±2%
Diameter （DN） | Overload flow rate(Q4) | Permanent flow rate (Q3) | Transitional flow rate (Q2) | Min flow rate (Q1) | Min Reading | Max Reading |
m3/h | m3 | |||||
50 | 30 | 15 | 3.0 | 0.45 | 0.0005 | 999,999 |
65 | 50 | 25 | 5.0 | 0.75 | 0.0005 | 999,999 |
80 | 80 | 40 | 8.0 | 1.2 | 0.001 | 999,999 |
100 | 120 | 60 | 12 | 1.8 | 0.001 | 999,999 |
125 | 200 | 100 | 20 | 3.0 | 0.001 | 999,999 |
150 | 300 | 150 | 30 | 4.5 | 0.001 | 999,999 |
200 | 500 | 250 | 50 | 7.5 | 0.001 | 999,999 |
250 | 800 | 400 | 80 | 12 | 0.001 | 999,999 |
300 | 1200 | 600 | 120 | 18 | 0.001 | 999,999 |

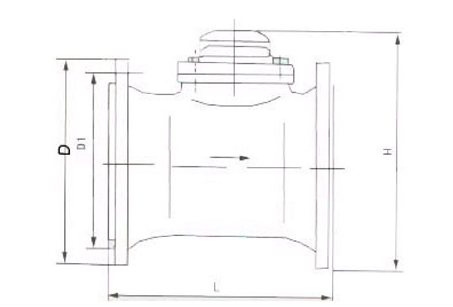

Model | Diameter (DN) | L (mm) | H (mm) | D (mm) | D1 (mm) | Connecting Bolt n-Md | Weight (kg) |
LXLC-50 | 50 | 200 | 247 | 165 | 125 | 4-M16 | 12 |
LXLC-65 | 65 | 200 | 260 | 185 | 145 | 4-M16 | 13 |
LXLC-80 | 80 | 225 | 265 | 200 | 160 | 8-M16 | 15 |
LXLC-100 | 100 | 250 | 272 | 220 | 180 | 8-M16 | 19 |
LXLC-125 | 125 | 250 | 295 | 250 | 210 | 8-M16 | 23 |
LXLC-150 | 150 | 300 | 302 | 285 | 240 | 8-M20 | 30 |
LXLC-200 | 200 | 350 | 359 | 340 | 295 | 8-M20 (1.0MPa) | 42 |
12-M20 (1.6MPa) | |||||||
LXLC-250 | 250 | 450 | 470 | 395 | 350 | 12-M20 (1.0MPa) | 94 |
405 | 355 | 12-M24 (1.6MPa) | |||||
LXLC-300 | 300 | 500 | 492 | 445 | 400 | 12-M20 (1.0MPa) | 97 |
460 | 410 | 12-M24 (1.6MPa) | 114 |
