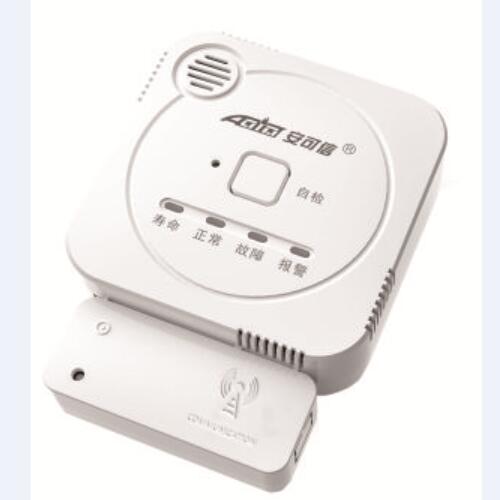

JT-AEC2361c Series Independent Combustible Gas Detector
Tools,Hardware & Instruments Measuring Instruments
MOQ:1 Piece(s)
Payment Method : T/T Paypal
Keywords:gas detector lpg gas detector natural gas detector Wireless Gas Detector WiFi Gas Detector home lpg gas detector combustible gas detector gas alarm detector home gas leak detector gas leak detector
| Product Category: | Tools,Hardware & Instruments > Measuring Instruments | Trademark: | ACTION |
| Product Package: | Conventional carton packaging | Specifications: | 145*125*60mm |
| Place of Origin: | Chengdu,China | Port: | Chengdu |
1. Technical specifications
Principle of detection: Semiconductor
Detection mode: Diffusive
Detectable gases: Natural gas,liquefied gas,
artificial coal gas(H2)
Alarm concentration: Natural gas: 8%LEL
Liquefied gas:8%LEL
Artificial coal gas(H2):600ppm
Response time: ≤10s (t90)
Protection grade: Ip30
Drop height: 1m
Operating voltage: AC187V~AC253V (50Hz±0.5Hz)
Power consumption: ≤3W
Operating environment: temperature: -10℃~+55℃, relative humidity≤93%RH±3%
Output: 2 sets of contact output to adapt to the corresponding linkage equipment. Pulse output DC12V, passive normally open maximum access current 2A, maximum access voltage DC30V/AC250V
Communication method: External module, GPRS/NB-IoT/WiFi/LoRa/Bluetooth and other types are optional
Mounting mode: wall-mounted, ceiling-mounted
2. Major features
Variety of detection gases
The detectable gases are methane, propane, and artificial gas (hydrogen) to meet the monitoring needs of different environments and different gas sources;
Output method
Dual output, control manipulator and other customized equipment (domestic solenoid valve/exhaust fan) to meet the actual needs of different scenarios;
High performance
The sensor filter membrane is installed to resist alcohol and water vapor. By protecting the sensor itself and prolonging the service life, it greatly improves the cost-effectiveness of the product and brings a more stable experience. With outstanding anti-interference performance, only highly sensitive response to natural gas (methane);
High sensitivity
Response time is less than 9s (t90), promptly alarm to ensure the safety of household gas environment;
Communication function
It can be equipped with an external communication module. The module type is GPRS/NB-IoT/WiFi/LoRa/Bluetooth optional to achieve communication requirements in a specific network environment.Data can be transmitted to MSSP platform of ACTION Data monitor center,users can view the operation status of the device through the mobile device terminal;
Data storage
It has a variety of data recording and storage functions. At the same time, it is configured with read interface to realize complete data reading.
3. Ordering
Additional marking |
Gas to be detected |
Communication function |
Output mode | Remarks | |
JT-AEC2361c | / | Natural gas |
External module, GPRS/NB-IoT/WiFi/LoRa/Bluetooth and other types are optional | Dual output: DC12V level + pulse output | Please specify operating voltage, output requirements and output line length (standard length is 25cm) when placing an order. Please refer to the order manual for specific configuration
|
Dual output: DC12V level + passive normally open | |||||
JT-AEC2361c | / | Liquefied gas | Dual output: DC12V level + pulse output | ||
Dual output: DC12V level + passive normally open | |||||
JT-AEC2361c | / | Artificial coal gas(H2) | Dual output: DC12V level + pulse output | ||
Dual output: DC12V level + passive normally open |
