CDP-260 Full automatic Pharmaceutical blister packing and cartoning production line
Manufacturing & Processing Machinery Packaging & Printing Machine
MOQ:1 Set(s)
Payment Method : L/C T/T D/P Western Union Paypal Money Gram Others
Keywords:cartoning machine packing machine packaging machine carton packing machine carton cartoning machine horizontal cartoning machine bottle packaging machine bottle packing machine
| Product Category: | Manufacturing & Processing Machinery > Packaging & Printing Machine | Trademark: | KEDE |
| Product Package: | wooden case | Specifications: | 3700*1350*1900mm |
| Place of Origin: | CHINA,WENZHOU | Port: | NINGBO/SHANGHAI |

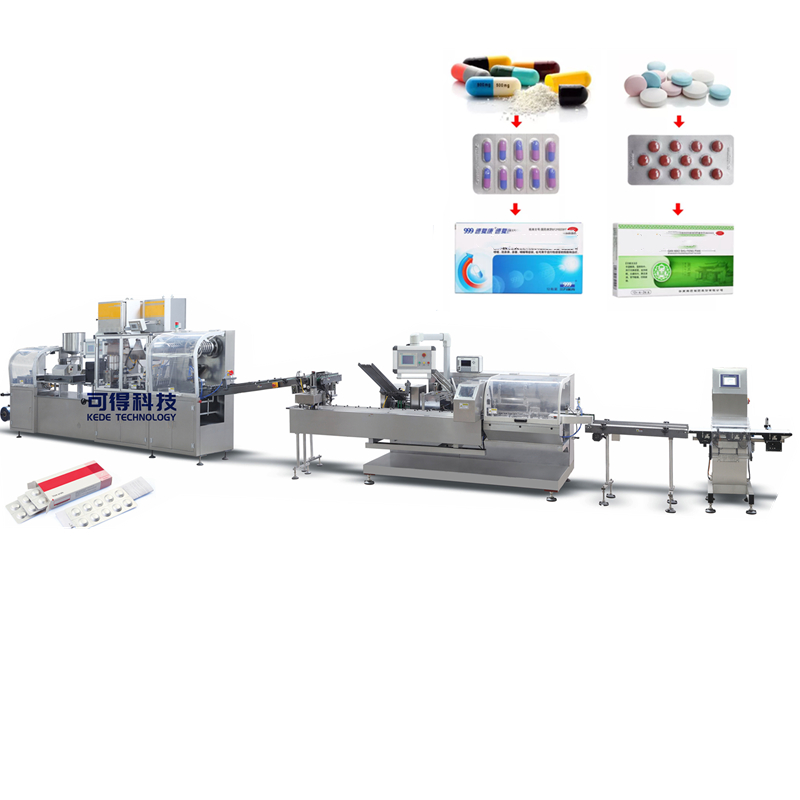

CDZ-800 Full Automatic Cartoning Packing Machine Production Line
The production line can be used for packing and packing of all kinds of capsules, tablets and other drugs (aluminum-plastic/aluminum-aluminum) with bubble caps. It can be connected with baling machine, inspection machine, packing machine and other subsequent equipment to form a complete and efficient drug packing production line.
The design structure of the production line meets the requirements of GMP and GMP standards and the principles of ergonomics. It adopts advanced servo intelligent drive and PCL man-machine interface control.
Feeding camera detection, lack of material detection, etc., to ensure the qualified rate of finished products.
It can be separated into the elevator and the purification workshop after decoration.
技术参数
最大生产能力Max Output： | ≤100盒/分钟 |
最大成型面积和深度Max Forming area and depth： | 245×100×35mm |
说明书尺寸范围说Leaflet size： | （100-260）×（100-170）mm |
纸盒材质Carton material： | 250-350g/m2 |
纸盒尺寸范围Carton Size： | （60-230）×（20-140）×（14-80）mm |
说明书材质Leaflet material： | 50-70g/m2 |
压缩空气压力/总耗气量Air compressor： | 0.6-0.8/Mpa≥0.8m3/min |
电源/总功率Power: | 380V 50HZ 8Kw(220V, 60Hz) |
整机重量Weight: | 5000kg |
