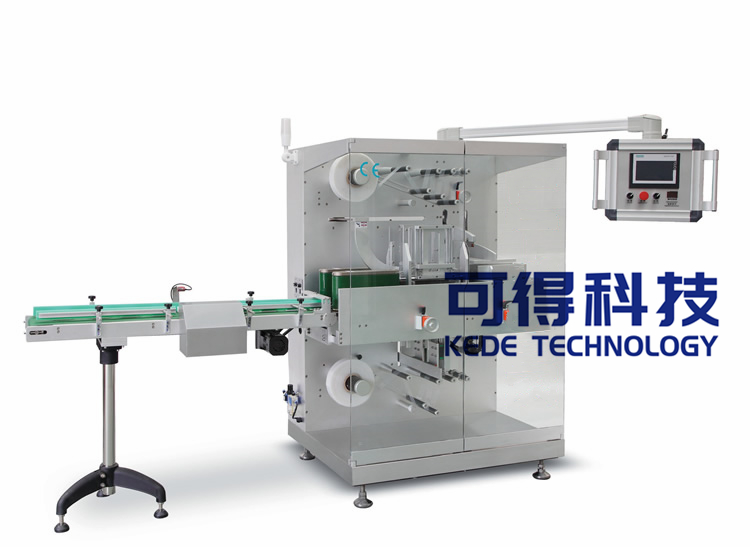

CD-350 Automatic High Speed Cartoning Machine Strapping Machine
Manufacturing & Processing Machinery Corrugated carton packing machine
MOQ:1 Piece(s)
Payment Method : L/C T/T D/P Western Union Paypal Money Gram Others
Keywords:strapping machine cartoning machine
| Product Category: | Manufacturing & Processing Machinery > Corrugated carton packing machine | Trademark: | KEDE |
| Product Package: | wooden case | Specifications: | 1100*800*1600mm |
| Place of Origin: | CHINA, WENZHOU | Port: | NINGBO/SHANGHAI |
CD-350 Automatic High Speed Cartoning Machine Strapping Machine
Equipment features:Automatic Strapping Machine is a new product developed by our company by absorbing foreign technology. It fills the gap of high-speed baling and packing, and can be connected with unpacking, packing and sealing, thus realizing a complete baling production line. The device fuselage and components are used
All aluminum high-end advanced design, using imported electrical components, PLC, man-machine interface operation, so that the operation process of the equipment is more stable and convenient, can be used in medicine, food, cosmetics industry, the equipment in line with the GMP standard.
技术参数Technical parameters
速度 Speed： 15-25包/分钟 box/min
(根据盒子尺寸及码垛方式而定According to the size of the box and the way of stacking).
捆包尺寸Strapping Size： 最大240*150*300mm，最小50*60*90mm
包装尺寸Package Size： PE膜(宽度30-80mm，厚度30-80um
电源 Power supply: 220V/50HZ
总功率 Total power： 1.5kw
气压Air pressure： 0.6-0.8MPa
重量Weight: 500kgs
输送尺寸Transportation Size: 1300*250*800(mm)
连接前端裝盒机Connect the front cartoning machine
机器尺寸Machine Size： 1100*800*1600(mm)
