DPP-250 Automatic Aluminum plastic Blister packaging Packing machine
Manufacturing & Processing Machinery General Industrial Equipment
MOQ:1 Set(s)
Payment Method : L/C T/T D/P Western Union Paypal Money Gram Others
Keywords:Blister packaging machine Blister Packing machine
| Product Category: | Manufacturing & Processing Machinery > General Industrial Equipment | Trademark: | KEDE |
| Product Package: | wooden case | Specifications: | 4200x650x1700mm |
| Place of Origin: | WENZHOU,CHINA | Port: | NINGNO |

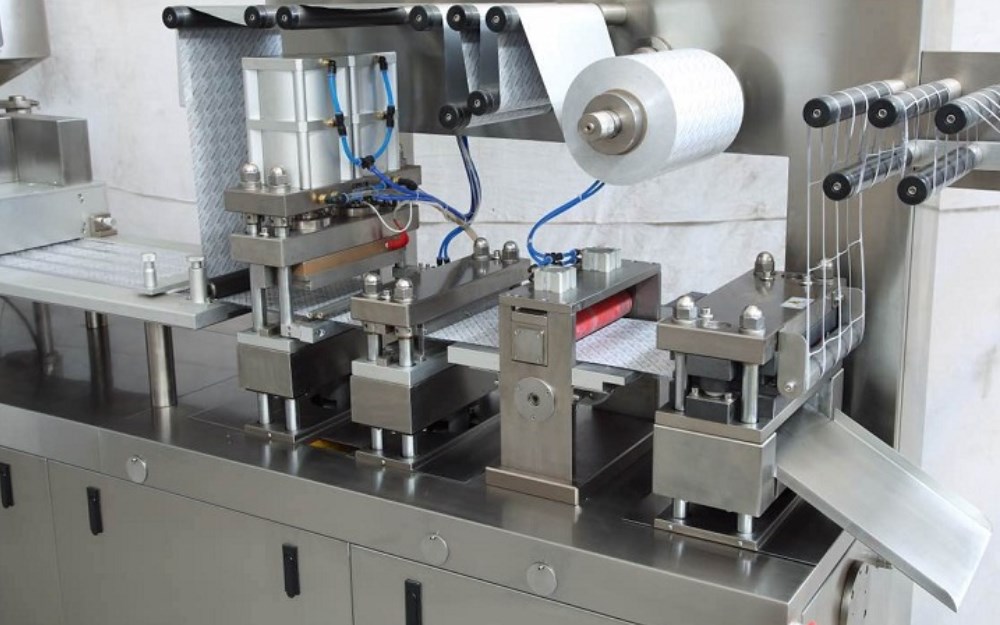

Automatic Pharmaceutical Aluminum Plastic Tablet Blister Packing Machine Pill Soft Gel Capsule Blister Packing Machine
Description:
1. The machine design structure to meet the requirements of GMP standard and ergonomic design principles, using advanced servo intelligent drive and PCL human-machine interface control, all contact parts with drugs are made of strong corrosion resistance SUS316 stainless steel
2. The main motor is controlled by frequency conversion

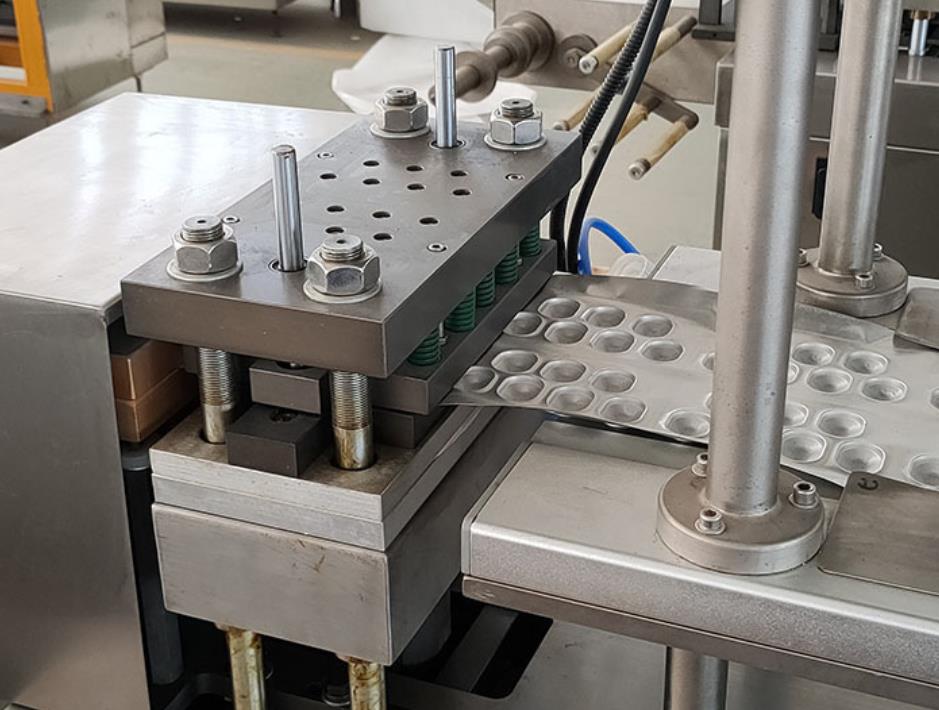

3. The mold and the guide rail are designed independently. The only way to change the mold is to replace the integral guide rail.
4. The modular design of the station structure realizes the digital display control when the station is adjusted. The machine increases the diversified demands of an independent indentation form, and ensures the clarity of indentation and batch number.
5.PVC finished and broken pieces automatically alarm, stop, at the same time equipped with emergency stop safety device, improve the safety of operators in debugging and die change.
6. Adopt safety cover protection device to ensure the safety of operators
optional
1. Photoelectric version
2. Pinhole detection and waste removal system (AL/AL)
3. Online visual detection and rejection system
4. Laser code jet printer
5. Fragment detection and rejection system
6. Chiller cooling system
技术参数
最大冲裁速度Max cutting speed: | 铝塑Aluminum-plastic: 45 次/分钟 times/min 铝铝铝塑Aluminum-aluminum：35次/分钟 times/min |
最大生产能力Max speed: | 铝塑Aluminum-plastic：200版/分钟 pcs/min 铝铝Aluminum-aluminum：140版/分钟pcs/min |
行程可调范围Adjustable range of stroke: | 标准配置Standard configuration≤130mm （可根据用户要求设计）(can be designed according to user requirements) |
最大成形面积Maximum forming area: | 245x130mm |
最大成形深度Maximum forming depth | 22mm (可根据用户要求设计）(can be designed according to user requirements) |
包装材料规格Packing Material Specification: | 药用Medicinal PVC：260x0.25(0.15-0.5)mm |
热封铝箔Heat sealing aluminum foil PTP：260x0.02mm | |
电源接线: | 380V 50Hz (220V 60Hz) 或 or 220V（可按客户要求制作）(can be made according to customer requirements) |
总功率Total power: | 5.7KW |
主电机功率Main motor power: | 1.5KW |
气泵（空压机）Air compressor: | ≥0.38m3/min |

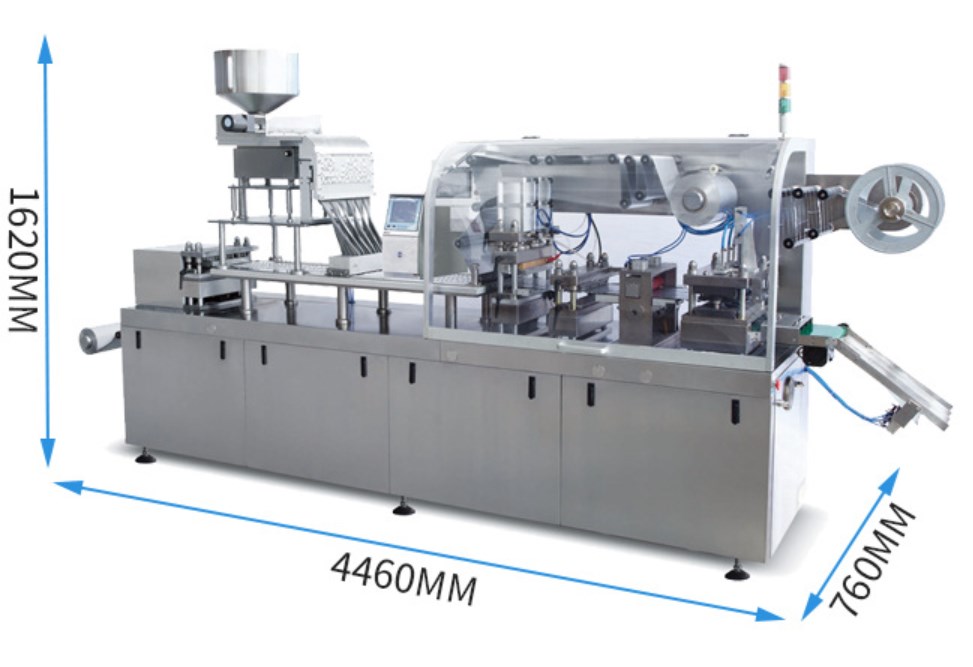

尺寸Dimension: | Automatic Pharmaceutical Aluminum Plastic Tablet Blister Packing Machine Pill Soft Gel Capsule Blister Packing Machine（LxWxH) |
整机重量Weight: | 1500kg |
