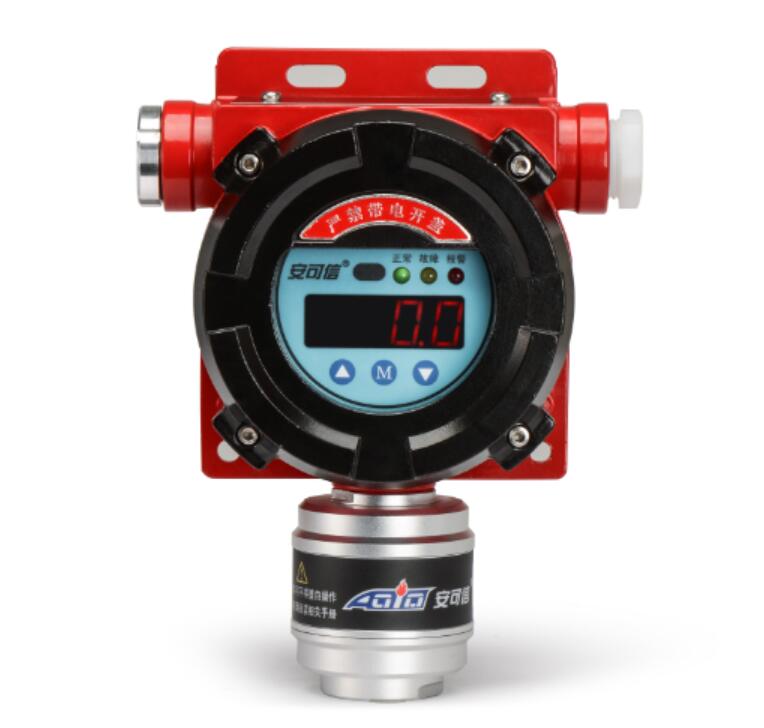

1. Technical specifications

Detectable gases: Combustible gases and steams, toxic and hazardous gases

Detection Mode: Diffusive

Operating Voltage: DC24V±6V

Power consumption: ≤3W (DC24V)

Electrical interface: G3/4＂internal thread

Explosion proof grade: ExdⅡCT6 Gb

Protection grade: IP66

Shell material: Cast aluminum or stainless steel

Dimension:204mm×155mm×70mm (length×width×thickness)

Weight: about 1.5kg (cast aluminum), 4.5kg (stainless steel)

2. Major features

Highly-integrated functional module design

The sensor module integrates a sensor and a processing circuit, to complete all data operation and signal switching of the detector independently. Its unique heating function expands the detector’s low temperature service capability. The detector module is for power supply, communication and output functions;

Overlimit protection for high concentration

In case of overlimit of high concentration gas, the sensor module can cut off power supply automatically. Detection works every 30s until the concentration is normal and power supply is resumed. This function can prevent reduction of the sensor’s service life resulted from being submerged in high concentration gas;

Standardized digital interface

Standard digital interfaces are used between modules. Anti-misplug gold-plated pins are good for on-site hot plug replacement;

Flexible combination and multiple output modes

Multiple detector modules and multiple types of sensor modules can be combined flexibly to form detectors with special output functions and applicable to different targets to meet customers’ customized demands;

Replace a sensor as easy as replacing a bulb

Sensor modules for different gases and ranges can be replaced freely. No calibration is required after replacement. That is, the detector can read ex-factory calibrated data and work immediately. In this way, the product has a longer service life. Meanwhile, detection calibration can be done easily at different sites, avoiding complicated dismantling process and difficult on-site calibration and reducing later maintenance cost;

On-site LED concentration display, and diversified calibration modes

Highlight LED real-time concentration display, with farther and wider visual distance and angle, applicable to industrial environment requirements; the detector can be set/calibrated in different ways, such as by keys or by an IR remote controller or a magnetic bar, and it is easy to operate.

3. Model selection

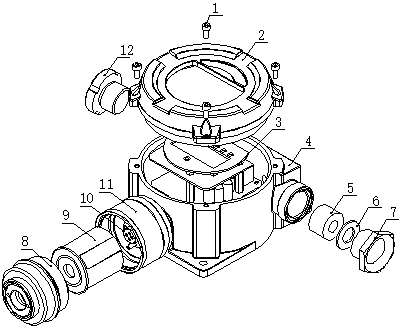

4. Structure

1. Socket head cap screw

2. Top cover

3. Display component

4. Bottom box

5. Explosion-proof washer

6. Sealing washer

7. Stopper

8. Outer cover of the gas collecting head

9. Sensor module

10. Standard digital pin

11. Soleplate of the collecting head

12. Casing cap

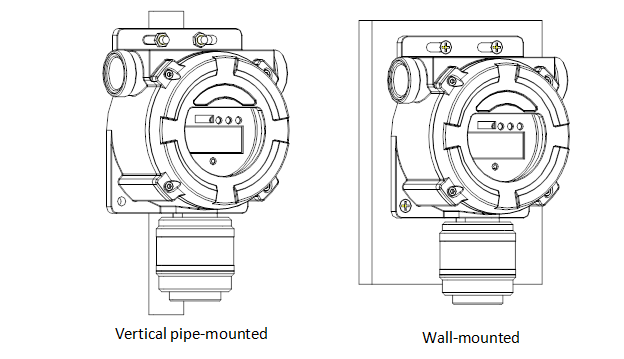

5. Mounting mode

For a horizontal pipe-mounted mode or a ceiling-mounted mode, please specify when ordering. The bottom board (mounting pipe diameter: DN20-DN50) is optional.

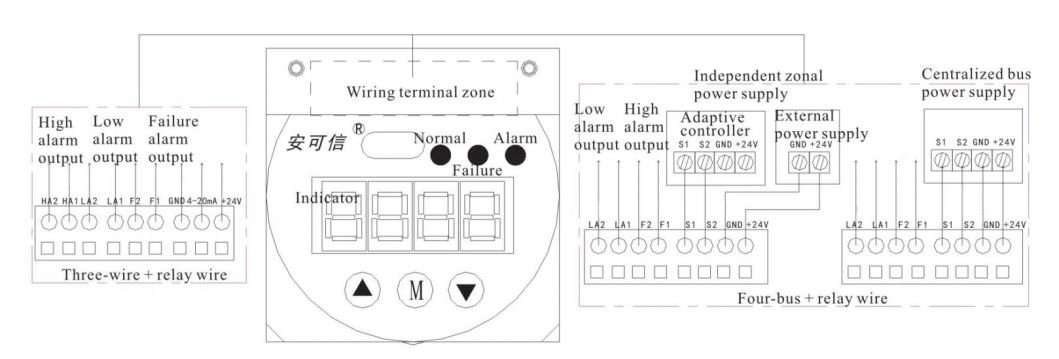

6. Wiring diagram
