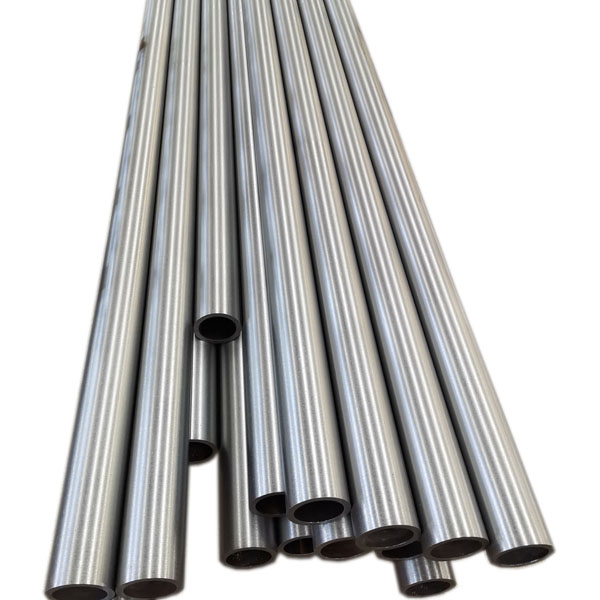

DIN2391 ready to hone BKS Hydraulic using Cold rolled steel tube
Manufacturing & Processing Machinery Pipeline Engineering & Equipment
MOQ:5 Ton(s)
Payment Method : L/C T/T
Keywords:cold rolled steel tube cold drawn steel tube steel tube seamless steel tube
| Product Category: | Manufacturing & Processing Machinery > Pipeline Engineering & Equipment | Trademark: | xinpeng |
| Product Package: | bundle package with the woven bag outside or wooden package for short length ones | Specifications: | different size available, can do customized |
| Place of Origin: | yantai,shandong | Port: | QINGDAO |
Yantai Xinpeng Steel Pipe Have passed ISO9001 verified;
each tube of ours is strictly in quality control that can assure the product quality of Xinpeng. We mainly produce precision tube as cold drawn/rolled tube honed and SRB tube, mainly used in Hydraulic cylinder and machines.
OD | GB/T3639 | DIN2391 (EN10305) | Our Tolerance | Best Quality | |
31-40mm | ±0.15mm | ±0.15mm | ±0.05mm | ±0.03mm | |
41-50mm | ±0.20mm | ±0.20mm | ±0.05mm | ±0.03mm | |
51-60mm | ±0.25mm | ±0.25mm | ±0.08mm | ±0.03mm | |
61-70mm | ±0.30mm | ±0.30mm | ±0.10mm | ±0.05mm | |
71-160mm | ±0.30mm | ±0.30mm | ±0.10mm | ±0.05mm | |
160mm-230mm | ±0.50mm | ±0.50mm | ±0.40mm | ||
Tolerance in WT | ±0.12mm | ±0.10mm | ±0.05mm | ±0.03mm | |
PROCESS | |||||
Process | Diameter | Length | |||
Cold Rolled | 30-100mm | ≤10 m | |||
Cold Draw | 30-250mm | ≤10 m | |||
Honing | 40-500mm | ≤10 m | |||
Skived burnished | 40-400mm | ≤76m | |||
HONED OR SRB TUBE TOLERANCE | |||||
Inner Diameter | H8 | H9 | H10 | ||
30mm | ±0.033 | ±0.052 | ±0.084 | 5-30mm | |
30-50mm | ±0.039 | ±0.062 | ±0.100 | ±0.080 | |
50-80mm | ±0.046 | ±0.074 | ±0.120 | ||
80-120mm | ±0.054 | ±0.087 | ±0.140 | ||
120-180mm | ±0.063 | ±0.100 | ±0.160 | ||
180-250mm | ±0.072 | ±0.115 | ±0.185 | ||
250-315mm | ±0.081 | ±0.130 | ±0.210 | ||
| Contact Name: | Mrs Judy Gao | Contact Email: | in****o@yt-xinpeng.com |
| Contact Job Title: | Manager | Contact Mob: | 189***620 |
| Contact Tel: | 86-535-6835398 | Contact Fax: | 86-535-6835383 |
| Address: | NO 2 BINGLUN ROAD ,ZHIFU DISTRICT, YANTAI SHANDONG PROVINCE ,CHINA | Website: | http://www.yt-xinpeng.com |
Yantai Xinpeng Steel Pipe Co., Ltd. is one of professional steel pipe Supplier in Shandong, China.
Established in 1 9 9 2, with registered capital 5 million yuan, covering an area of 2 0 0 0 0 square meters, our factory is located in a beautiful coastal city Yantai with convenient transportation.
We mainly produce various specifications Hydraulic Cylinder Steel Tube, Cold Drawn Steel Tube, Cold Rolled Steel Tube, honed SRB steel tube, Seamless Steel tube. Our Main Products are widely used in hydraulic and pneumatic cylinder, different machinery, elevator buffer, roll cage and other fields.
Our factory is equipped with cold drawn machine set, cold rolling machine sets, advanced CNC SRB machines, honing machines, combined cold drawn, cold rolling, heat treatment and SRB process to produce the better quality products according to customer requirement.
Our Factory has passed the international Quality System ISO 9 0 0 1: 2 0 1 5 verified. We are equipped with various advanced testing machines which can exhaustive analysis of the products and promise the quality.
We continue to develop new products, update equipment, focus on personnel training, and enhance the ability of enterprises for sustainable development.
Adhere to the business concept of integrity, the Xinpeng Staffs are dedicated to build the brand of Xinpeng with higher quality products, better services and supreme credibility.
We are reliable supplier of precision steel tube. Looking forward to get more cooperation.
