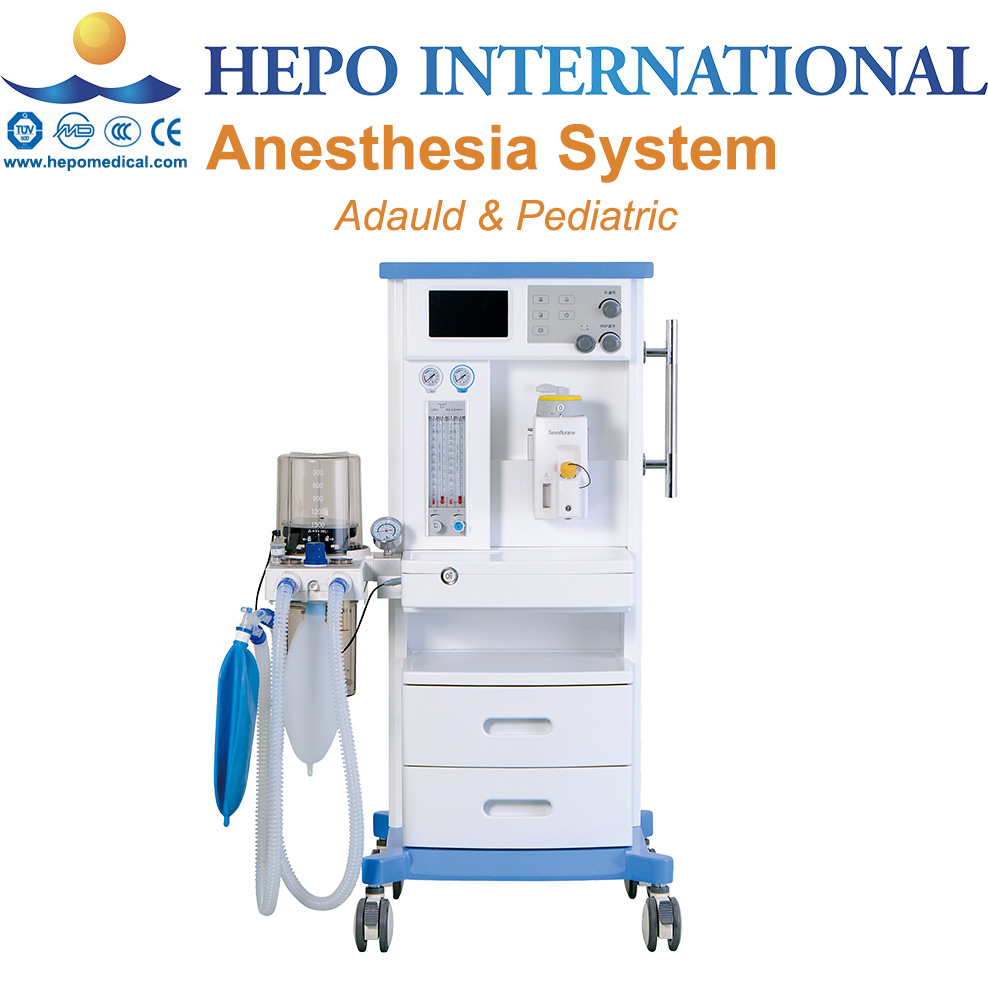

Medical ICU Operation Anesthesia Apparatus Machine
Medical & Health & Beauty Medical Devices
MOQ:1 Piece(s)
Payment Method : L/C T/T Western Union Money Gram
Keywords:Anesthesia Apparatus Anesthesia Machine Breathing,Anesthesia & Emergency Apparatus medical equipment Medical Cryogenic Equipments
| Product Category: | Medical & Health & Beauty > Medical Devices | Trademark: | HEPOBIO |
| Product Package: | Plywood Case | Specifications: | Adault and Pediatric |
| Place of Origin: | China | Port: | SHANGHAI |
Anesthesia Apparatus is consist of anesthesia gas delivery system (included anesthesia gas delivery pipe, flow meter, oxygen fault alarm and protection devices), respiratory system,vaporizer (with temperature, pressure and flow compensation function,it could choose different anesthetics such as Halothane, Enflurane, Isoflurane, Sevoflurane ), anesthesia ventilator, anesthesia gas monitor (optional devices) and frame.
Trust Points | Simplicity: easy to use, easy to move with 4 wheels. | |
Choice: adapt the equipment to your patients and procedures freely | ||
Patient Centered Ventilation: Precision in an anesthesia ventilator, from conventional ventilation to advanced modes, including 3 modes: IPPV; A/C; SIMV. | ||
Designed and manufactured by Darppon Medical with over 23 years experience in this area. | ||
Flexible configurations to suit your needs. | ||
International standard and advanced technology suitable for wide range use. | ||
Compact interface and touch screen give you better operating experience. | ||
Over 2,000 units installed in the world. | ||
Features | 7” TFT LCD screen displays the Ventilation parameters, Alarming information and Waveform. | |
High precision flow meter, instantly know the fresh gas flow to your patient. | ||
Integration breathing circuit design, ensure easy operating and keep tidy. | ||
Multiple working modes such as volume control and pressure limit, adapt to wide range patient. | ||
Vaporizer with temperature, flow compensation and self-lock function (S6100D can only equipped with one vaporizer), keep safety anytime. | ||
Multiple parameters monitoring interface, make every parameter clear, let users know the patient conditions in all aspects; | ||
Real time pressure-time, flow-time loop graphics and high precision O2 concentration detection function included. | ||
Vital sign monitor and Anesthetic gas monitor are optional. | ||
Safety | Three level alarming system, visual and sound alarm information. | |
With lots of alarming, reminding and protection functions. | ||
Advanced power management control technology. | ||
Low O2 pressure alarm and N2O cut-off protection. | ||
Specifications | Ventilation modes | |
Ventilator parameter ranges | ||
Tidal volume(Vt) | 0, 20 mL ~ 1500 mL | |
Frequence(Freq) | 1bpm ~ 100 bpm | |
I/E | 4:1~1:8 | |
PEEP | 0cmH2O ~ 30 cmH2O | |
Monitored Parameters | ||
Frequence(Freq) | 0 /min ~ 100 /min | |
Tidal volume(Vt) | 0 mL ~ 2000 mL | |
MV | 0 L/min ~ 100 L/min | |
Oxygen concentration | 15 % ~ 100 % | |
Graphical display: | Oxygen concentration | |
Size | ||
Wooden case packing size:L 560*W 820*H 1450mm , GW:104KG ; NW:64KG | ||
Alarm and protection | ||
No tidal volume | ≤5Ml within 6s | |
High oxygen concentration alarm | 19%-100% | |
Low oxygen concentration alarm | 18%-99% | |
High Airway pressure alarm | 20cmH2O-100cmH2O | |
Low Airway pressure alarm | 0cmH2O-20cmH2O | |
High Minute Volume alarm | Adult(5L/min-20L/min) Paed(1L/min-15L/min | |
Low Minute Volume alarm | 0-10L/min) | |
Continuous Pressure alarm | (PEEP+1.5kPa) over 16s | |
Suffocation warning | 5s-60s no spontaneous ventilation | |
The maximum limited pressure | <12.5 kPa | |
Fan error | Show on screen | |
Oxygen deficit | Show on screen | |
Working conditions | ||
Gas source | O2,N2O | |
Pressure | 280kPa-600kPa | |
Voltage | 100-240V | |
Power frequency | 50/60Hz | |
Input power | 40VA | |
