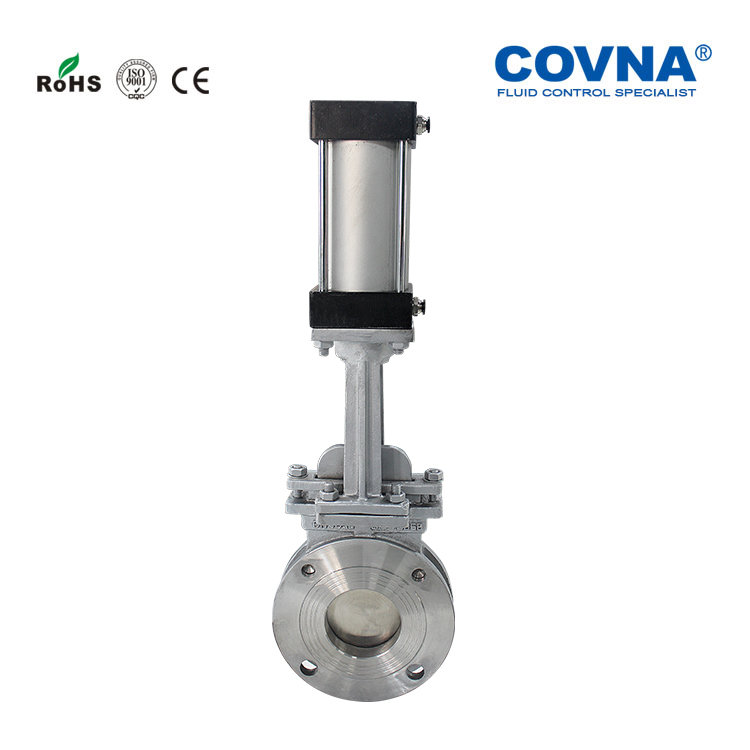

HK59D-D Pneumatic Knife Gate Valve
Manufacturing & Processing Machinery Valves & Pumps & Compressors
MOQ:1 Piece(s)
Payment Method : T/T Paypal
Keywords:pneumatic knife gate valves pneumatic gate valves Pneumatic Valves Knife Gate Valves
| Product Category: | Manufacturing & Processing Machinery > Valves & Pumps & Compressors | Trademark: | COVNA |
| Product Package: | Each pneumatic knife gate valve will be packed in foam and wooden box | Specifications: | |
| Place of Origin: | Guangdong, China | Port: | Shenzhen, China |
Features Of HK59D-D Pneumatic Knife Gate Valve:
● Integral structure, ultra-thin design, full-diameter flow, not easy to leak, easy to disassemble
● Movable sealing structure, good sealing performance, strong wear resistance, automatic compensation, long life
● Fixed guide claw design, replacing the groove structure, not easy to accumulate, and prevent blocking
● Double bearing design, small torque, frequent opening and closing, no vibration, no noise
● Knife-shaped cutting edge, strong cutting force, self-cleaning function, suitable for fiber particle fluid
Technical Parameters Of HK59D-D Pneumatic Knife Gate Valve:
| Actuator Type | Spring Return / Double Acting | Size Range | DN15-DN600 |
| Connection | To folder | Seal Material | PTFE / Metal |
| Medium | Air, water, steam, oil, mud, etc | Working Pressure | 10 / 16 bar (145 / 232 psi) |
| Body Material | Carbon Steel or Stainless Steel 304/316/316L | Temperature Of Media | -10 to 180℃ (14℉ to 356℉) |
Technical Parameters Of Pneumatic Valve Actuator:
| Structure | Rack and pinion pneumatic valve actuator |
| Mounting | ISO5211, NAMUR, DIN3337 |
| Air Supply Pressure | 2.5 to 8 bar |
| Double Acting Type | Air to open, air to close, air supply failure to keep the current position. |
| Single Acting (Spring Return) | Air to open, interrupt air to close, air failure to close. Normally open and normally closed are available. |

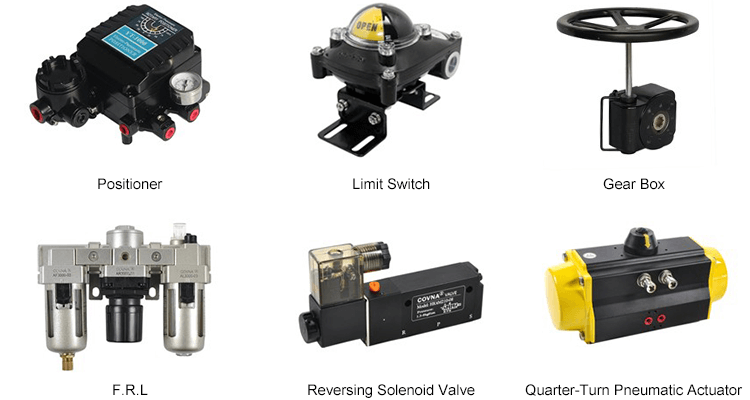

| Optional Accessory | Positioner, Limit Switch, F.R.L, Pneumatic Solenoid Valve, Gearbox |
Welcome to consult us to get a free valve solution and product datasheet!
| Contact Name: | Miss Sherry Wong | Contact Email: | sa****s@covnavalve.com |
| Contact Job Title: | Owner | Contact Mob: | 137***011 |
| Contact Tel: | Contact Fax: | ||
| Address: | Building C, LongChang Micro Chuanyuan, No.26 Hantang Street | Website: | https://www.covnavalve.com |
Dongguan Pneumatic Components Co., Ltd. is a subsidiary of COVNA Industrial Automation Co., Ltd.
We specialized in automated valves with 20 years of experience, such as electric actuated valves, pneumatic actuated valves, and solenoid valves. We dedicated to providing high-quality solutions for global automation applications.
We have CE, ISO, SGS, FDA certificates and more than 30 patents. We are a manufacturer integrating R&D, design, production and sales, providing one-stop procurement solutions for major customers.
