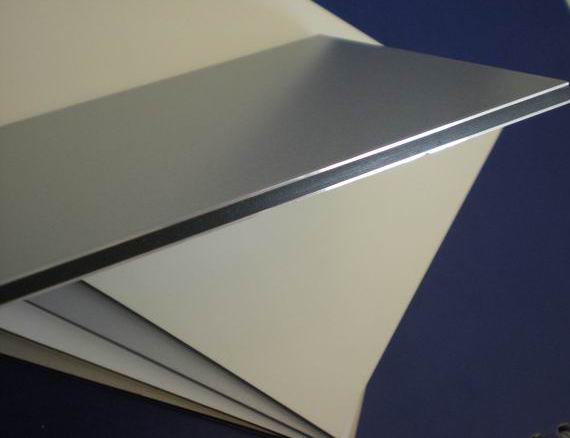

Aluminium composite panel is composed of multi-layer composite materials. The above and below layers are high purity aluminum alloy sheets, between which is non-toxic low density PE core board, and with protective layer on the above shape. Normally KYNAR500 PVDF adopted for the surface coating for outdoor and PE coated for indoor.

Advantages and Characteristics:

·         PE aluminium composite panel are lighter and easy to be worked

·         Good performance of fire-proof: Conforms to GB8624-1997, there is A grade and B1 grade.

·         High toughness, bending don't damage paint, strong resistance to impact

Product Specifications:

Name    Aluminium composite panel

Thickness:       2/ 3/ 4/ 5/ 6mm

Width:     1000/1220/1250/1500/1550/2000mm or customized

Length:   2440/ 3200/4000/5000/6000mm or customized

Thickness of ALU-layer: 0.21/0.25/0.3/0.35/0.4/0.45/0.5mm

Coating:PE

Brand:    ALUCOSUPER,WONDERFUL-WALL, or customized

Export Port:    Ning Bo, Shang Hai, China

Packing: Wooden pallet package or bulk packing in Container Loading

Delivery time:3-4weeks,it depends on the order quantity and difficult
