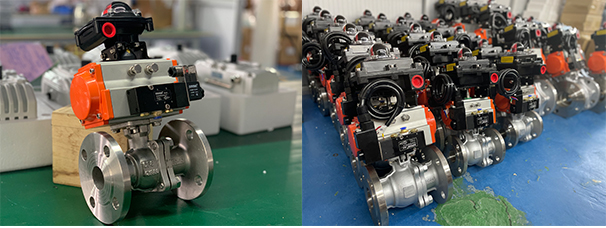

HK55-F Flanged Pneumatic Actuated Ball Valve
Manufacturing & Processing Machinery Valves & Pumps & Compressors
MOQ:1 Piece(s)
Payment Method : T/T Paypal
Keywords:actuated ball valves actuator ball valves automated ball valves pneumatic ball valves pneumatic actuator ball valves pneumatic actuated ball valves air actuated ball valves air control ball valves Pneumatic Valves
| Product Category: | Manufacturing & Processing Machinery > Valves & Pumps & Compressors | Trademark: | COVNA |
| Product Package: | Each flanged pneumatic ball valve will be packed in foam and carton or wooden box | Specifications: | |
| Place of Origin: | Guangdong, China | Port: | Shenzhen, China |
Features Of HK55-F Flanged Pneumatic Actuated Ball Valve:
● Available in single acting and double acting pneumatic actuator type for your choice
● Easy to install and change the number of spring to ensure the output torque
● 1 million lifespans, responsive and safe
● Available in ANSI, JIS, DIN, GB standard
Technical Parameters Of HK55-F Flanged Pneumatic Actuated Ball Valve:
| Actuator Type | Spring Return / Double Acting | Size Range | DN15-DN200 |
| Connection | Flanged (ANSI, JIS, DIN, GB) | Structure Type | Floating Ball Core |
| Medium | Air, water, steam, oil, etc | Working Pressure | 1.0 / 1.6 / 2.0 / 4.0 / 6.4MPa (10 / 16 / 20 / 64 bar) |
| Body Material | Stainless Steel 304/316/316L | Temperature Of Media | -10 to 180℃ (14℉ to 356℉) |
| Applications | Wastewater treatment, power plant, paper and pulp, packing industry, etc | Seal Material | PTFE / PPL |

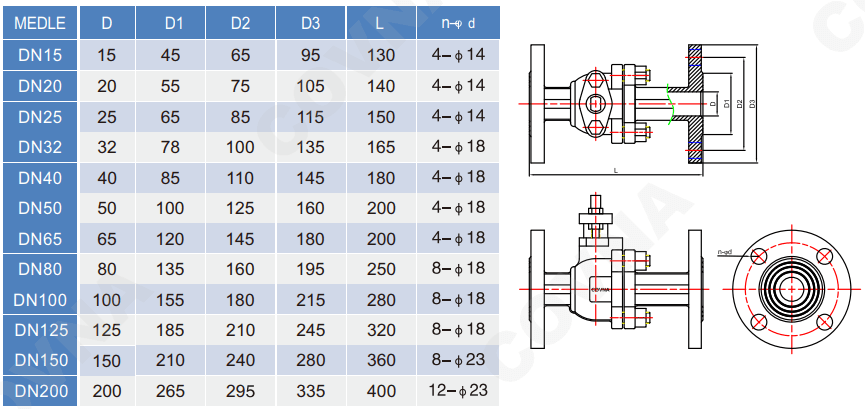

Dimension Of HK55-F Flanged Pneumatic Actuated Ball Valve:
Technical Parameter Of Pneumatic Valve Actuator:
| Structure | Rack and pinion pneumatic valve actuator |
| Mounting | ISO5211, NAMUR, DIN3337 |
| Air Supply Pressure | 2.5 to 8 bar |
| Double Acting Type | Air to open, air to close, air supply failure to keep the current position. Torque range from 8Nm to 4678Nm |
| Single Acting (Spring Return) | Air to open, interrupt air to close, air failure to close. Torque range from 5Nm to 2792Nm |
| Optional Accessory | Positioner, Limit Switch, F.R.L, Pneumatic Solenoid Valve, Gearbox |
