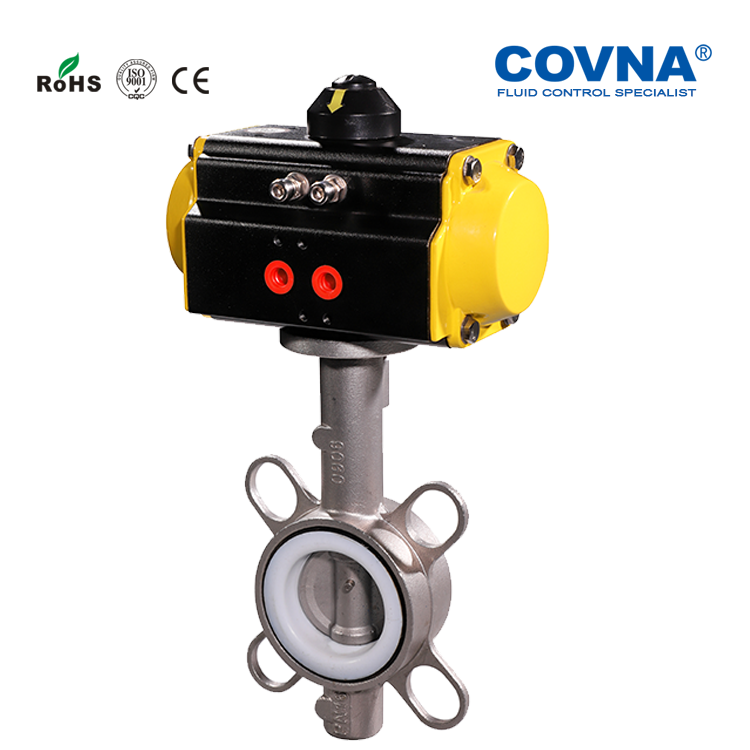

HK59-D-S Pneumatic Wafer Butterfly Valve
Manufacturing & Processing Machinery Valves & Pumps & Compressors
MOQ:1 Piece(s)
Payment Method : T/T Paypal
Keywords:actuated butterfly valves actuator butterfly valves automated butterfly valves pneumatic butterfly valves air actuated butterfly valves air control butterfly valves Pneumatic Valves
| Product Category: | Manufacturing & Processing Machinery > Valves & Pumps & Compressors | Trademark: | COVNA |
| Product Package: | Each pneumatic wafer butterfly valve will be packed in foam and carton or wooden box | Specifications: | |
| Place of Origin: | Guangdong, China | Port: | Shenzhen, China |
Features Of HK59-D Pneumatic Wafer Butterfly Valve:
● Stainless steel material offers a no-rust solution for various applications
● Wafer connection with features easy to install
● 4 versions of seals for your choice to meet your medium's requirements. Such as NBR, EPDM, VITON, PTFE seal
● Widely used in wastewater treatment, packing industry, shipyard, power plant, and other industries
Technical Parameters Of HK59-D Pneumatic Wafer Butterfly Valve:
| Actuator Type | Spring Return / Double Acting | Connection | Wafer |
| Size Range | DN50-DN600 | Structure Type | Midline Structure / A Type |
| Working Pressure | 10 / 16 bar (145 / 232 psi) | Body Material | Stainless Steel or Cast iron |
| Suitable Media | Water, Liquids, Gas, Oil, Air, Steam, Corrosive Medium, etc | Temperature Of Media | -10 to 180℃ (14℉ to 356℉) |
| Disc Material | Stainless Steel 304/316/316L | Stem Material | Stainless Steel 304/316/316L |

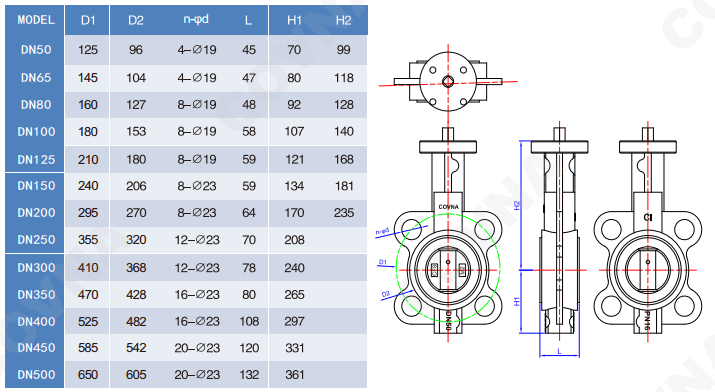

Dimension of HK59-D Pneumatic Wafer Butterfly Valve:

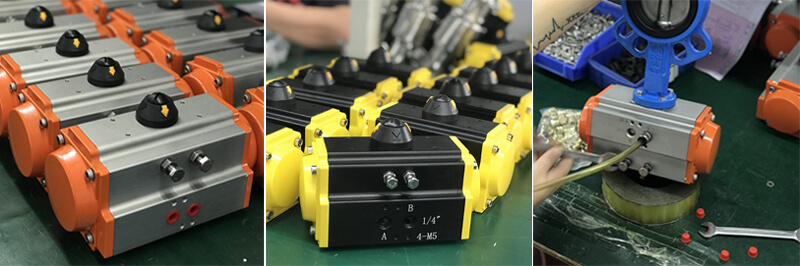

Technical Parameter Of Pneumatic Valve Actuator:
| Structure | Rack and pinion pneumatic valve actuator |
| Mounting | ISO5211, NAMUR, DIN3337 |
| Air Supply Pressure | 2.5 to 8 bar |
| Double Acting Type | Air to open, air to close, air supply failure to keep the current position. Torque range from 8Nm to 4678Nm |
| Single Acting (Spring Return) | Air to open, interrupt air to close, air failure to close. Torque range from 5Nm to 2792Nm |
| Optional Accessory | Positioner, Limit Switch, F.R.L, Pneumatic Solenoid Valve, Gearbox |
| Contact Name: | Miss Sherry Wong | Contact Email: | sa****s@covnavalve.com |
| Contact Job Title: | Owner | Contact Mob: | 137***011 |
| Contact Tel: | Contact Fax: | ||
| Address: | Building C, LongChang Micro Chuanyuan, No.26 Hantang Street | Website: | https://www.covnavalve.com |
Dongguan Pneumatic Components Co., Ltd. is a subsidiary of COVNA Industrial Automation Co., Ltd.
We specialized in automated valves with 20 years of experience, such as electric actuated valves, pneumatic actuated valves, and solenoid valves. We dedicated to providing high-quality solutions for global automation applications.
We have CE, ISO, SGS, FDA certificates and more than 30 patents. We are a manufacturer integrating R&D, design, production and sales, providing one-stop procurement solutions for major customers.
