Glass wool blanket
Construction & Decoration Building Structural Material
MOQ:99999 Piece(s)
Payment Method : L/C T/T D/P Western Union Paypal
Keywords:cheap heat resistant material best wall insulation heat insulation materials construction materials
| Product Category: | Construction & Decoration > Building Structural Material | Trademark: | UET |
| Product Package: | Packing Material: OPP Film Woven Bags | Specifications: | Packing Type: Vacuumed Packing Brand: Authorized OEM |
| Place of Origin: | China | Port: | Tianjin port |

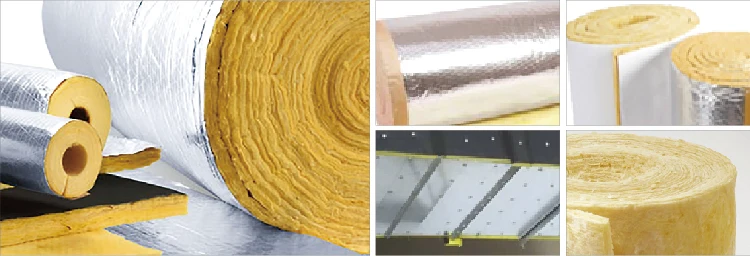

United Insulation HVAC glass wool duct wrap is a lightweight, highly resilient, blanket-type, thermal and acoustical insulation made from glass fibers bonded with a thermosetting phenolic resin.
Our duct wrap solutions offer a wide range of benefits to fit your requirements and needs. Helps air duct system maintain a consistent air temperature, reduces condensation and absorbs draft and system operation noise for improved duct system efficiency.
| Product Code | Density (kg/m³) | Thickness (mm) | Width (mm) | Conductivty (W/m·K) | Packing (pcs/PKG) | PKG/40'HQ (No#) | |
| UET HVWB 2425 | 24 | 25 | 1200 | 0.037 | 1 | Loading Qty, Please consult | |
| UET HVWB 2430 | 24 | 30 | 1200 | 0.037 | 1 | ||
| UET HVWB 2440 | 24 | 40 | 1200 | 0.037 | 1 | ||
| UET HVWB 2450 | 24 | 50 | 1200 | 0.037 | 1 | ||
| UET HVWB 3225 | 32 | 25 | 1200 | 0.036 | 1 | ||
| UET HVWB 3230 | 32 | 30 | 1200 | 0.036 | 1 | ||
| UET HVWB 3240 | 32 | 40 | 1200 | 0.036 | 1 | ||
| UET HVWB 3250 | 32 | 50 | 1200 | 0.036 | 1 | ||
| UET HVWB 4825 | 48 | 25 | 1200 | 0.035 | 1 | ||
| UET HVWB 4830 | 48 | 30 | 1200 | 0.035 | 1 | ||
| UET HVWB 4840 | 48 | 40 | 1200 | 0.035 | 1 | ||
| UET HVWB 4850 | 48 | 50 | 1200 | 0.035 | 1 |
Conductivity Value tested under temperature in 23°C
Consult your local sales representative for other available sizes and specification.
| Tested Content | Tested Method | Tested Value | |
| Density | ASTM C612 | 24kgs/m³ | |
| Thickness | GB/T 13350-2008 | 50mm | |
| Average diameter of fibers | GB/T 13350-2008 | 6.5μm | |
| Coefficient of Heat Conductivity | EN12667 | 0.037W/m·K | |
| Thermal Resistance | ASTM C653 | 1.35m²·K/W | |
| Average NRC | EN ISO 354 | 0.95 | |
| Maximum Service Temperature | ASTM C411 | 170°C | |
| Corrosion Resistance | ASTM C665 | NO Chemical Reaction | |
| Mold Resistance | ASTM C665 | Mildew proof | |
| Moisture Absorption | ASTM C1104 | Less 3% by weight | |
| Humidity veneration Rate | ASTM E96 | Max 0.013g/24Hours·m² | |
| Non-Combustibility | ASTM E84 | Flame Propagation: 25; Flame Diffustivity: 50 |
| Thickness(mm) | 125 Hz | 250 Hz | 500 Hz | 1000 Hz | 2000 Hz | 4000 Hz | NRC | |
| 25 | 0.08 | 0.31 | 0.64 | 0.84 | 0.97 | 1.03 | 0.70 | |
| 40 | 0.10 | 0.47 | 0.85 | 1.01 | 1.02 | 0.10 | 0.85 | |
| 50 | 0.25 | 0.66 | 1.00 | 1.02 | 1.02 | 1.01 | 0.95 | |
| 75 | 0.47 | 0.96 | 1.17 | 1.10 | 1.02 | 1.05 | 1.05 |
GB/T17795-2008, EN ISO 354, EN12667, ASTM C653, ASTM C665
With CE Certificate according to standard EN 13162:2008
• Reduce transmission of exterior sound to the interior of the building
• Absorb reverberating sounds within the building
• Provide thermal efficiency
• Keep the building warmer in winter and cooler in summer
| Keep Cool | Keep Warm | Fire Proof | Moisture Proof | Noise Control | Sustainbility | Save Cost | Health Safe |
 |  |  |  |
