1.Lubricating oil is unnecessary because the DISK COUPLING has no sliding, frictional, or moving parts. Therefore, there is no friction or noise, and energy loss is low, with no dirty oil to cope with.

2.Higher torsion and on backlash.

For the equipment such as machine tools with numercial controllers, indexing systems, and printing machines requiring accruate shaft rotation and phase control.

3.The key point of the DISK COUPLING design is the laminated straight sided flex pack, an assembly of thin stainless steel elements.Please refer to the figure above.

4.When properly installed and if intial conditions remain unchanged, DISK COUPLING has an unlimited service life. Required maintenance consists of a visual inspection of the condition of the element(flexible plate) and of the bolts and nuts when operation is stopped.Should the element be damaged due to overload or accident, a fail-safe mechanism transmitting rotation via washers becomes operational.

5.Fexible couplings prevent problems by absorbing shaft misalignment while transmitting torque; this puts an opposing load on the shaft.

6.Load stress on DISK COUPLING is maintained at very low level, except in special cases. Therefore the service life of these couplings is practically unlimited when operated whinin the acceptable range of allowable misalignment. Couplings can be mounted and unmounted quickly and easily due to their compactness and small number of parts. Excellent reassembly characteristics provide superior speed.

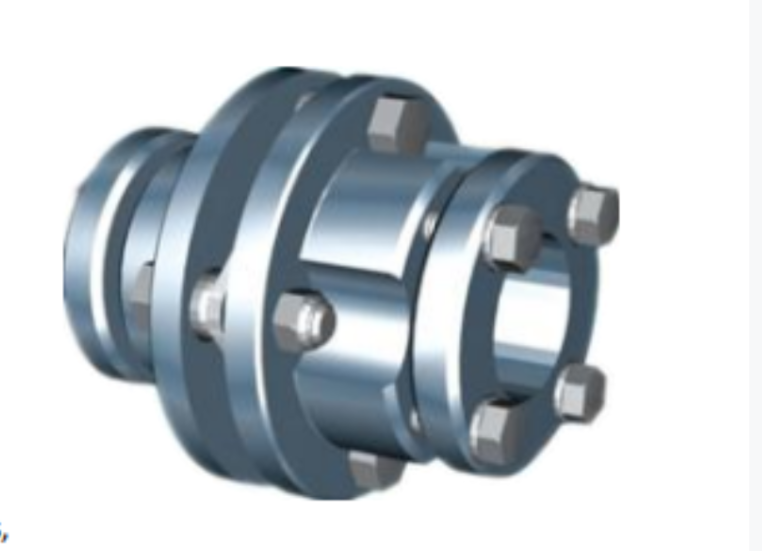

Relative displacement of two connected shafts is compensated by the elastic warping of discs, disc coupling is a kind of high-performance metallic flexible coupling.

Range : Maximum torque up to 17800 Nm

Size & Type : From 00 to 65 Model : A3/Ax,A4/A5/A7/E4/G4/J-AB/J-AZ

Application : Suitable for axial transmission in high temperature, high speed, environmentally corrosive working conditions, widely adopted in axial transmission of various mechanical equipment, such as pumps (especially of big power, pump for chemistry industry), fans, crushers and high-speed power transmission systems, etc.

Industries : Steelworks, mining, construction, printing, automobiles, textiles, chemistry, petroleum, metallurgy, boats & ships, aviation, maritime vehicles,
