Multi heads cnc router machine with cabinets, furniture, mdf wood door making
Manufacturing & Processing Machinery Agriculture & Woodworking Machinery
MOQ:1 Piece(s)
Payment Method : T/T
Keywords:cnc wood router price cnc router for furniture multi head carving machine 1325 wood cutting cnc machine cnc 1325 router wood cnc router supplier 1325 cnc machine woodworking
| Product Category: | Manufacturing & Processing Machinery > Agriculture & Woodworking Machinery | Trademark: | VANZEN |
| Product Package: | Plywood box | Specifications: | |
| Place of Origin: | Shenyang, Liaoning | Port: | Dalian |

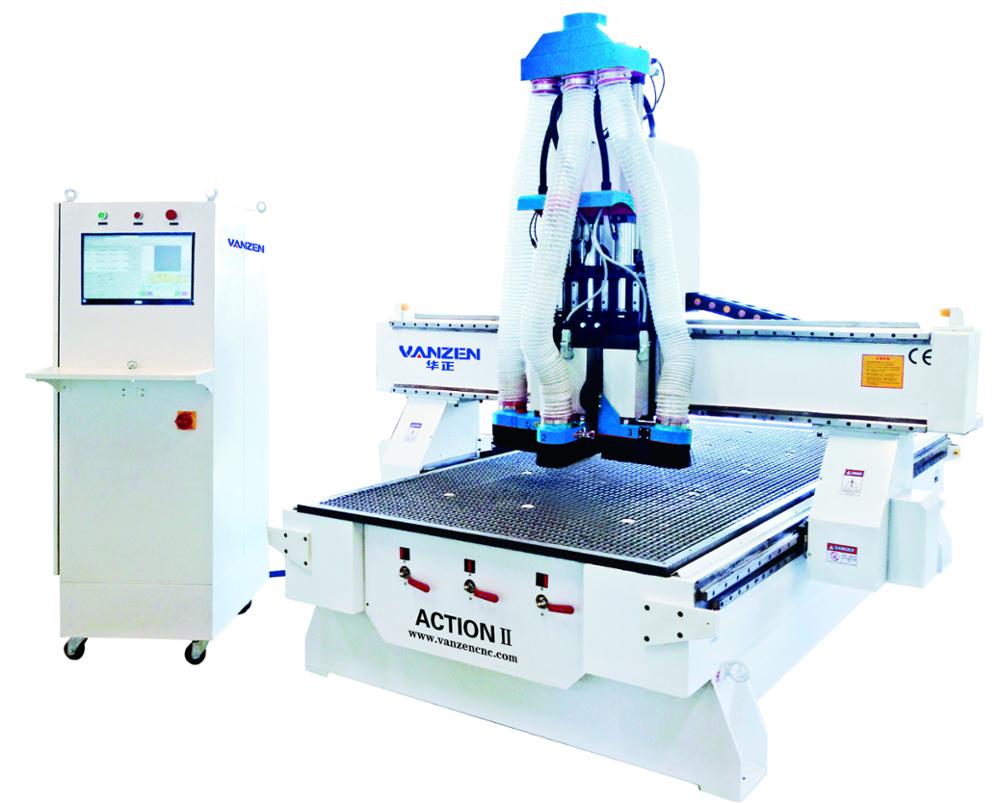

Multi heads cnc router machine with cabinets, furniture, mdf wood door making
Main Technical Parameters
Model | ACTION -C3 |
Machining Area | 1300x2500mm |
Running Speed | 40m/min |
Spindle Motor | Three sets of 6.0kw air cooling spindle |
Z Axis travel | 180mm |
Driving System | Syntron servo drive and motor |
Guide Rail | TAIWAN guiding rail (Y/ X/Z =25mm) |
Rack and pinion | Helical rack and pinion for X and Y axis transmission |
Ball Screw | Taiwan TBI ball-screw for Z axis transmission |
Cutter | 6 ,12.7 |
Power Supply | AC380V/50~60HZ |
Inverter | 7.5kw Inverter 380V 3phase |
Weight | 1800KGS |
Control System | DSP control system: NK105 / (Optional NC Studio 53C control system) |
Table | Vacuum table with T-Slot(Optional aluminum working table ) |
Pump | 5.5kw air pump with stable quality(Aluminum working table without pump) |
Oil supply system | Semi-automatic |
CNC/components Warranty | Spindle motor is for half a year, others for one year. |
Delivery:
Within 15 days after the deposit
Packing:
Wooden case or as your requirement
Payment:
15-30days after down payment or LC
