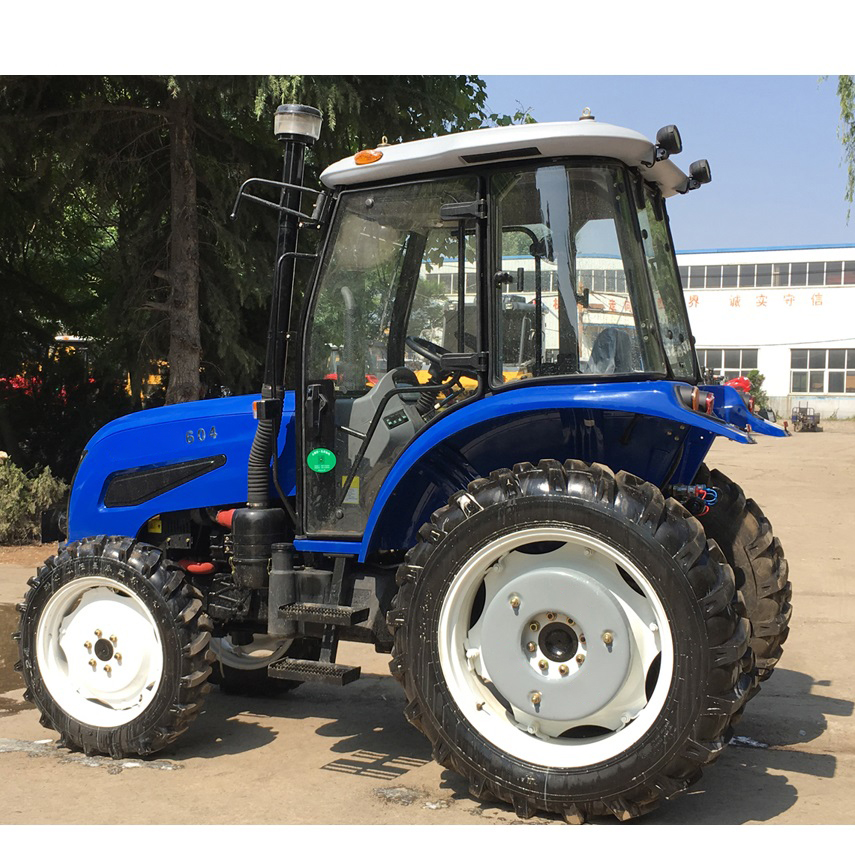

1, Brief Introduction

* Adopt Xinchai diesel engine, good reliability, large reserves of torque, low fuel consumption, high economic efficiency;
* Double-function clutch,10 inches, high transmission capacity, reliable, comfortable manipulation;
* Gearbox using 4 × 3(1 +1) engaging sleeve, shuttle-type gearshift, there are 12 forward gears, 12 reverse gears, reasonable
match between the gears, and have high efficiency;
* Independent power take off device, smooth transmission, large capacity, speed (540/760, 540/1000 r/min) for selection to meet
the different operation requirements;
* Full hydraulic front wheels steering, independent oil circuit for steering system, manipulating flexible, reliable, and save
energy;
* Adopt hydrostatic disc-type brakes, a large braking torque, the braking effect is good;
* Adopt high pressure type lifting device, reliable, easy maintenance, multi-hydraulic output can be optioned;
* Final transmission adopts planetary gear mechanism, compact structure, large reduction ratio;
* New streamlined appearance, generous, modern, fashion;
* Control levers can be mounted at side as optional, more convenient and comfortable.

2, Specification

Drive type: 4WD Grear Drive;

Dimention: 3925*1728*2170mm;

Wheelbase: 2010mm;

Min. Operation Weight: 2656KG;

Speed: 2.33-31.04/2.04-27.21km/h;

Max. Lifting Force: 9.9kN;

PTO: Reat-mounted, semi-independend type;37.4KW;
