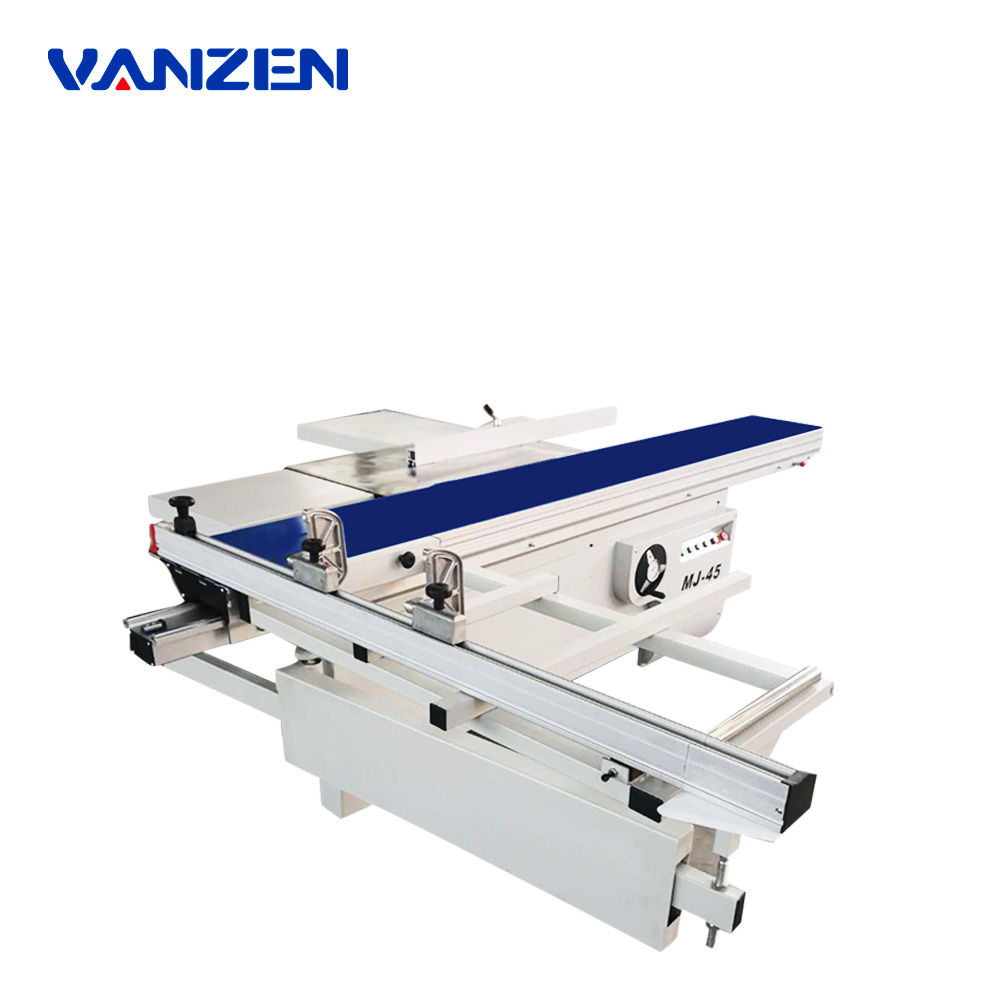

Woodworking machinery panel saw sliding table saw
Manufacturing & Processing Machinery Agriculture & Woodworking Machinery
MOQ:1 Set(s)
Payment Method : T/T
Keywords:sliding table saw table panel saw table saw price wood cutting table saw
| Product Category: | Manufacturing & Processing Machinery > Agriculture & Woodworking Machinery | Trademark: | VANZEN |
| Product Package: | Plywood box | Specifications: | |
| Place of Origin: | Shenyang, Liaoning | Port: | Dalian |
Model | MJ45 |
Working size | 2800*375mm (3200*415mm optional) |
Dimension | 2800*2600*950mm |
Maximum sawing length | 2800mm (3200mm optional) |
Maximum sawing width | 1250mm |
Saw blade diameter | 300mm |
Maximum sawing thickness | 75mm |
Spindle speed | 4500/6000 |
Spindle diameter | 30mm |
Saw blade angle | 0-45 |
Main motor power | 4KW |
Saw saw diameter | 120mm |
Chain saw speed | 8000 |
Secondary shaft diameter | 20mm |
Sub motor power | 0.75KW |
Weight | 650kg |

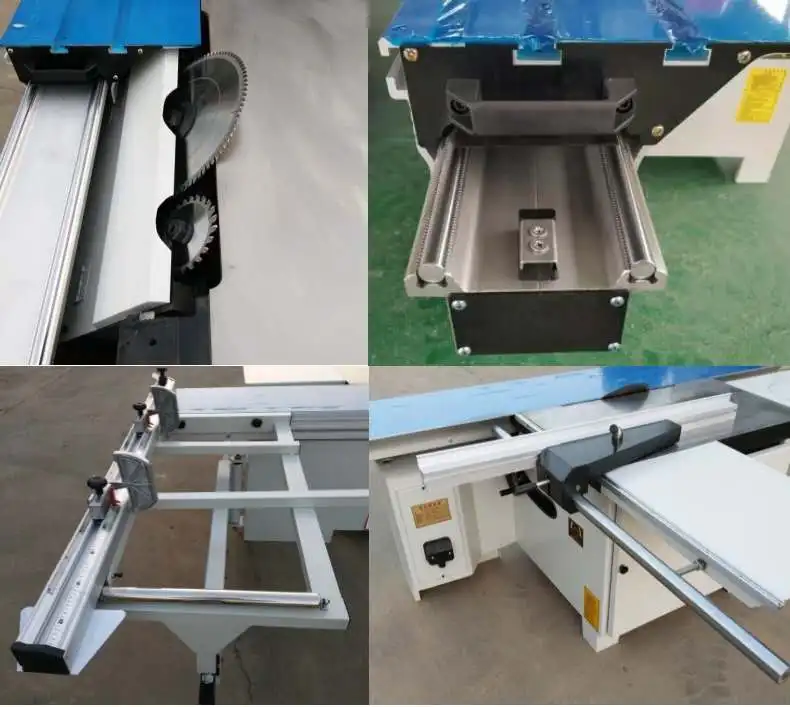

1. Double saw blades structure:
The small saw blade is responsible for marking, the large saw blade is responsible for opening the plate,
and the cut plate does not have chipping and burrs
2. Aluminum push table:
High-strength extruded all-aluminum push-pull double-layer widened inner round bar guide structure,
which can improve the integrity and precision of the whole machine
3. European guiding rule:
The European-style large guiding rule is stable and does not shift, which effectively ensures the precision
of sheet cutting and promoting stability and smoothness
4. Paint body:
The whole frame is lengthened and thickened to effectively ensure the stability of the whole machine,
reduce vibration and improve machine life
5. 45 ℃
The saw blade can cut both 0- 45 ℃; and right-angle. It is widely used and more powerful in different industry
