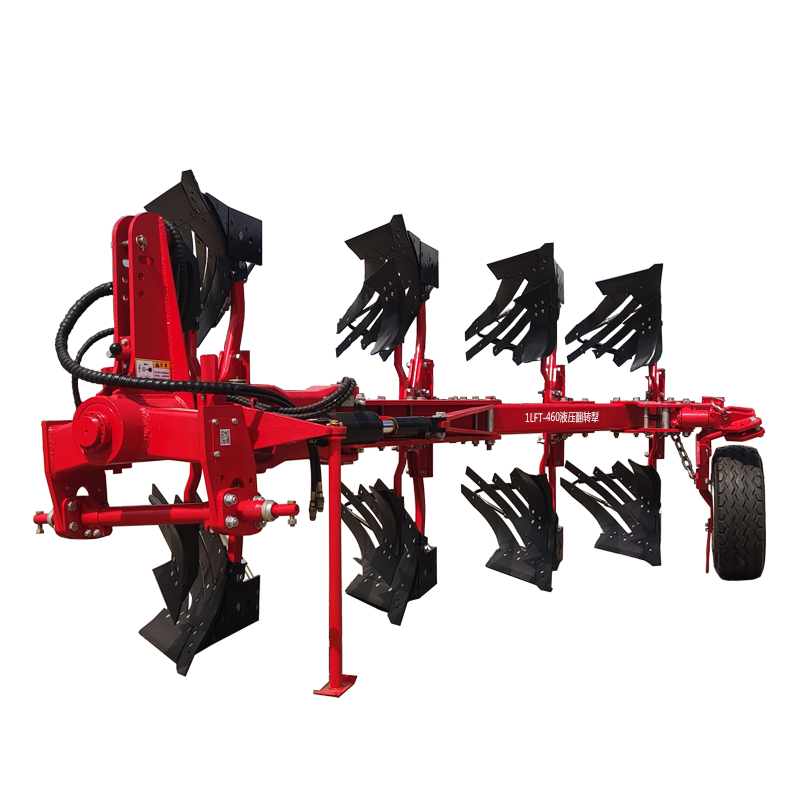

1LTF-460 hydraulic pivot plow

Agricultural Agricultural Machinery

FOB Price:US$ 14,000.00 / Set(s)

MOQ:1 Set(s)

Payment Method : T/T D/P Western Union Paypal

Keywords:power plough hydraulic pivot plow turnover plough

Inquire


Add to Favorites

Product Category: Agricultural > Agricultural Machinery Trademark: DEWO
Product Package: Specifications:
Place of Origin: Heilongjiang of China Port: Dalian

TECHNICAL PARAMETERS

TYPE

INCOTERMS

UNIT

PARAMETERS

1

Model

/

1LTF-460 hydraulic pivot plow

2

Structure

/

Suspension type

3

Dimension (working)(L*W*H)

mm

5200*2400*1850

4

Matching tractor power

kW

139-190

5

Pivot type

/

Hydraulic: All pivot

6

Plow   type

/

Universal type

7

Pivot number

pcs

4*2

8

Plow wide

mm

330、380、440、500

9

Ploughshare type

/

Replaceable share point

10

Moldboard type

/

Grid type

11

Total working width

mm

2120/2400

12

Plow Longitudinal distance

mm

1200

13

Plough wheel type

/

Limit depth and transport wheel

14

Plow number

pcs

1

15

Limit depth wheel adjustment range

mm

0-350

16

Oil cylinder type

/

Turn oil cylinder SCE100/45*255

17

Oil cylinder number

pcs

1

18

Total weight

Kg

1635


1. The plow structure is made of special high-strength alloy steel, the whole machine is light and reliable, has strong impact resistance, and the working width is flexibly adjustable according to actual needs;

2. The plough beam is made of high-quality seamless square pipes with a thickness of 150*10mm according to national standards, and processed by an excellent heat treatment process, with high strength, good rigidity and high impact resistance;

3. The key stress parts are made of high-strength alloy steel, processed by advanced heat treatment technology, and the material has high hardness and toughness;

4. High-strength alloy steel self-sharpening is used for the parts entering the soil, and the cutting edge is welded with high-strength wear-resistant alloy, which has excellent firmness and wear resistance;

5. The unique grid-style plough wall structure is imported from Belota from Spain. It has strong impact resistance, has a wide range of adaptation to the soil, and effectively avoids the clogging of straw, mulch and other debris. It has low resistance and long service life. To a certain extent, reduce the fuel consumption and power of the tractor.

6. The main ploughshare can be adjusted automatically, and the shear bolts are used for overload protection to prevent the plough body from being damaged;

7. The turning hydraulic system has a double-acting steering cylinder, equipped with Italian original imported control valve and hydraulic lock, which is accurate, flexible and reliable for turning and amplitude modulation;

8. The high-strength hydraulic turning shaft with a diameter of 110 can withstand the tractor's traction in the overloaded horsepower section;

9. The auxiliary plough is an optional part, which can be disassembled and connected with the machine quickly and flexibly, and can be applied to different ground conditions;

10. The plow wheel is always an integrated wheel for limited depth transportation, which can easily and quickly change the working state.


Contact Name: Miss CHUNLING HE Contact Email: de****h@126.com
Contact Job Title: Commercial Manager Contact Mob: 186***153
Contact Tel: 0451-86658631 Contact Fax: 0451-86658631
Address: NO.946,HAXI STREET,NANGANG DISTRICT Website:
Heilongjiang DEWO Technology Development Co. Ltd. is a modern-technology manufacturer of economic crop machinery and water-saving irrigation equipment. This company is professional in technology with many well-known domestic experts who have been doing research on agricultural machinery and water-saving irrigation equipment for a long time. It takes the national lead in whole process mechanization of potato and vegetable, water-saving irrigation equipment, finishing machinery, plant protection machinery, etc. with tens of scientific research achievements, of which many have got national, ministry, provincial and industrial scientific research awards. With more than ten years of continuous improvement, DEWO potato production machinery, vegetable production machinery, DYP400 round irrigator, TX series hose reel irrigator and subsoiler are leading domestically. DEWO Technology Corporation is a high-tech company approved by Heilongjiang Provincial Technology Dept., also an institute approved by National Technology Ministry on water-saving irrigation technology and equipment demonstration and popularization. With production base area of 100,000 m2 and more than 200 production staff, it's profound in production with ISO9001 certificate. With rich agricultural technology human resources, advanced agricultural machinery production capability and great advantage in agricultural production resources consolidation, with "Be Virtuous" and “God helps those who help themselves” as concept, “leading both domestically and internationally” as standard, “first-class technology, product and service” as aim and “specialization, informatization and internationalization” as long-term strategic goal, our company strives to serve for modern agriculture with high-quality agricultural machinery and water-saving irrigation equipment in accordance with requirement of agricultural continuous development and farmer increasing yield and revenue.
