EN1092-1 FLANGE PN6 PN10 PN16 PN25 PN40 Type01 Type05 Type11 Type12 Forged Cs Ss

Oil & Gas Piping and valves

FOB Price:US$ 1.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : L/C T/T D/P

Keywords:EN1092-1  FLANGE TYPE01 PLATE TYPE05 BLIND TYPE02 LJ TYPE12 SORF

Add to Favorites

Product Category: Oil & Gas > Piping and valves Trademark: XF
Product Package: PLYWOOD CASE;PALLET Specifications: EN1092-1
Place of Origin: CHINA Port: TIANJIN PORT

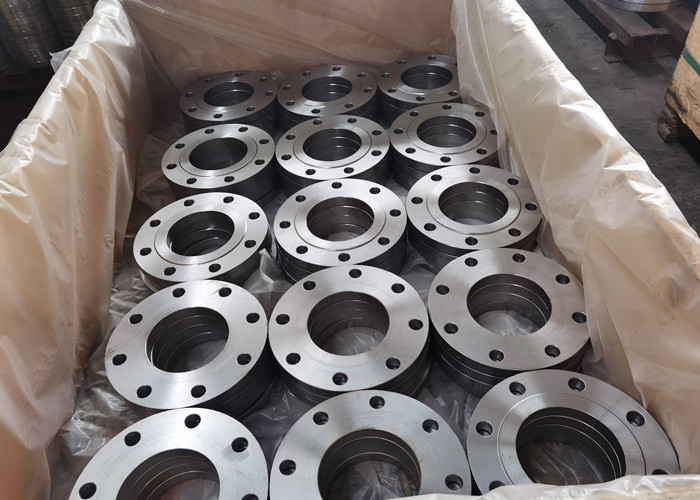

EN1092-1:2007 FLANGE



Type:TYPE01,TYPE02,TYPE05,TYPE11,TYPE12,TYPE13

Kind: WELD NECK /SLIP ON /PLATE /BLIND/LJ

Size: 1/2"-76"

Surface treatment:Yellow Paint, Anit Rust Oil,Hot Dip Galvanized,Cold Galvanized.

Material:S235JR,P245GH,P250GH ,P265GH,P280GH ,RST37.2,Q235

Material: 1.4404,1.4401,F304/304L,F316/316L

Certificate:ISO9001:2015,PED,TUV ,MILL TEST CERTIFICATE (EN 10204-3.1)

XINFENG was founded in 1988.

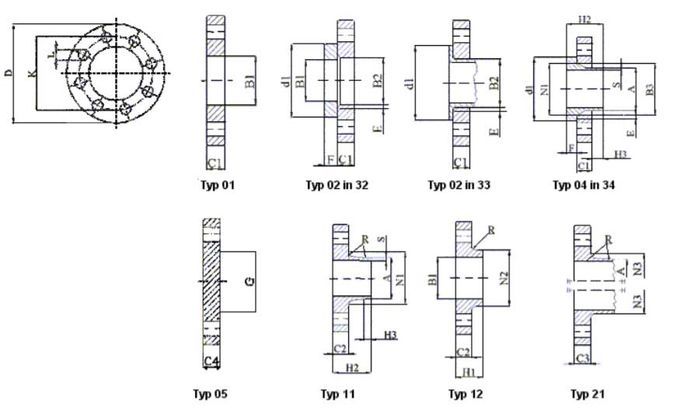

EN1092-1 FLANGE DETAIL:





Typ 01: Plate (slip-on) flange for weldingTyp 13: Hubbed threaded flange
Typ 02: Loose plate flange with weld-on plate collarTyp 21: Integral flange
Typ 04: Loose plate flange with weld-neck collarTyp 32: Weld-on plate collars
Typ 05: Blank (blind) flangeTyp 33: Lapped pipe ends
Typ 11: Weld-neck flangeTyp 34: Weld-neck collars
Typ 12: Hubbed slip-on flange for welding



FLANGES DIN / EN
TypeNormNominal PressureDimension
Welding Neck FlangeEN1092-1 Typ11PN6-PN400DN10-DN2000
DIN 2631 - DIN 2638
Blind FlangesEN1092-1 Typ05PN6-PN400DN10-DN2000
DIN 2527
Flat Flanges for weldingDIN 2573PN6-PN40DN10-DN2000
DIN 2576
EN1092-1 Typ01
Loose Flange + Weld-on CollarsDIN2642PN10-40DN10-DN2000
EN1092-1 Typ02
EN1092-1 Typ32
Loose Flange + Weld Neck CollarsDIN 2673PN10-PN40DN15-DN2000
EN1092-1 Typ04
EN1092-1 Typ34
Threaded FlangesEN1092-1 TYP13PN10-PN40?“-6“



COMPANY INTRODUCTION:

HEBHEI XINFENG HIGH-PRESSURE FLANGE AND PIPE FITTING CO., LTD ( XINFENG) was founded in 1988, specializing in the manufacture of forged flanges and pipe fittings. Covering an area of 12000 square meters, equipped with advanced production lines and inspection instruments, Xinfeng now has become one of the biggest flange and pipe manufactures in Hebei Pro., China, with an annual capacity of 8000 tons. Its main production equipment includes forging hammers, ring-rolling machine, lathes, drillers, pushing machine, presses, shot blasting machine etc. for the production of flanges, elbows, tees, reducers and caps at different size range. Materials available are carbon steel, stainless steel and alloy steel. XINFENG has a group of rich-experienced engineers and technical professionals, making it strong in technical force. Products are manufactured in accordance with international standards such as ANSI,DIN, EN1092, JIS, BS, GOST standards or with customers special requirement and design. XINFENG has obtained ISO 9002 certificate and follows in line with the system in the management and production. Advanced production and inspection equipment, rich experience and strict management systems well ensure its product quality.
