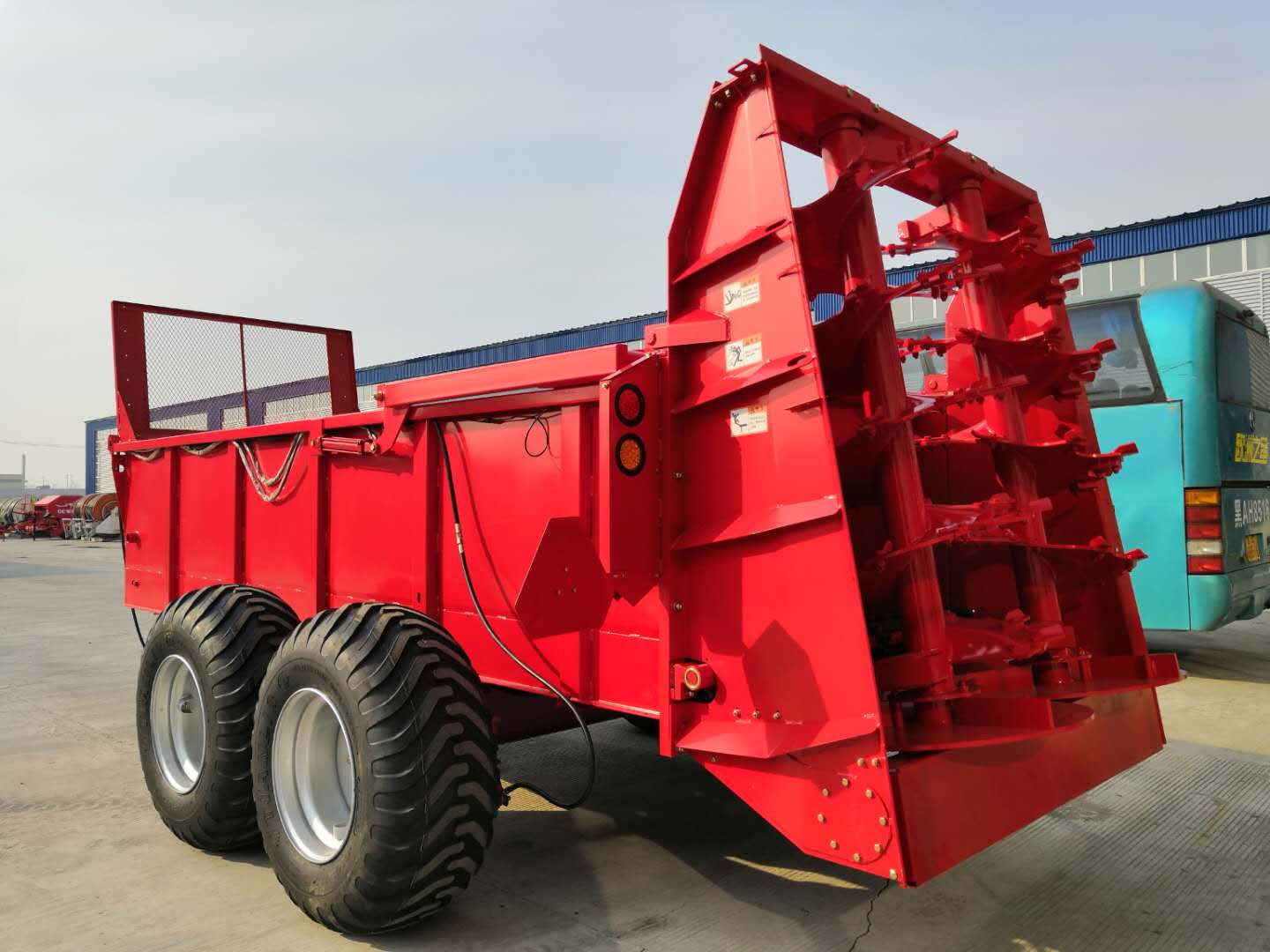

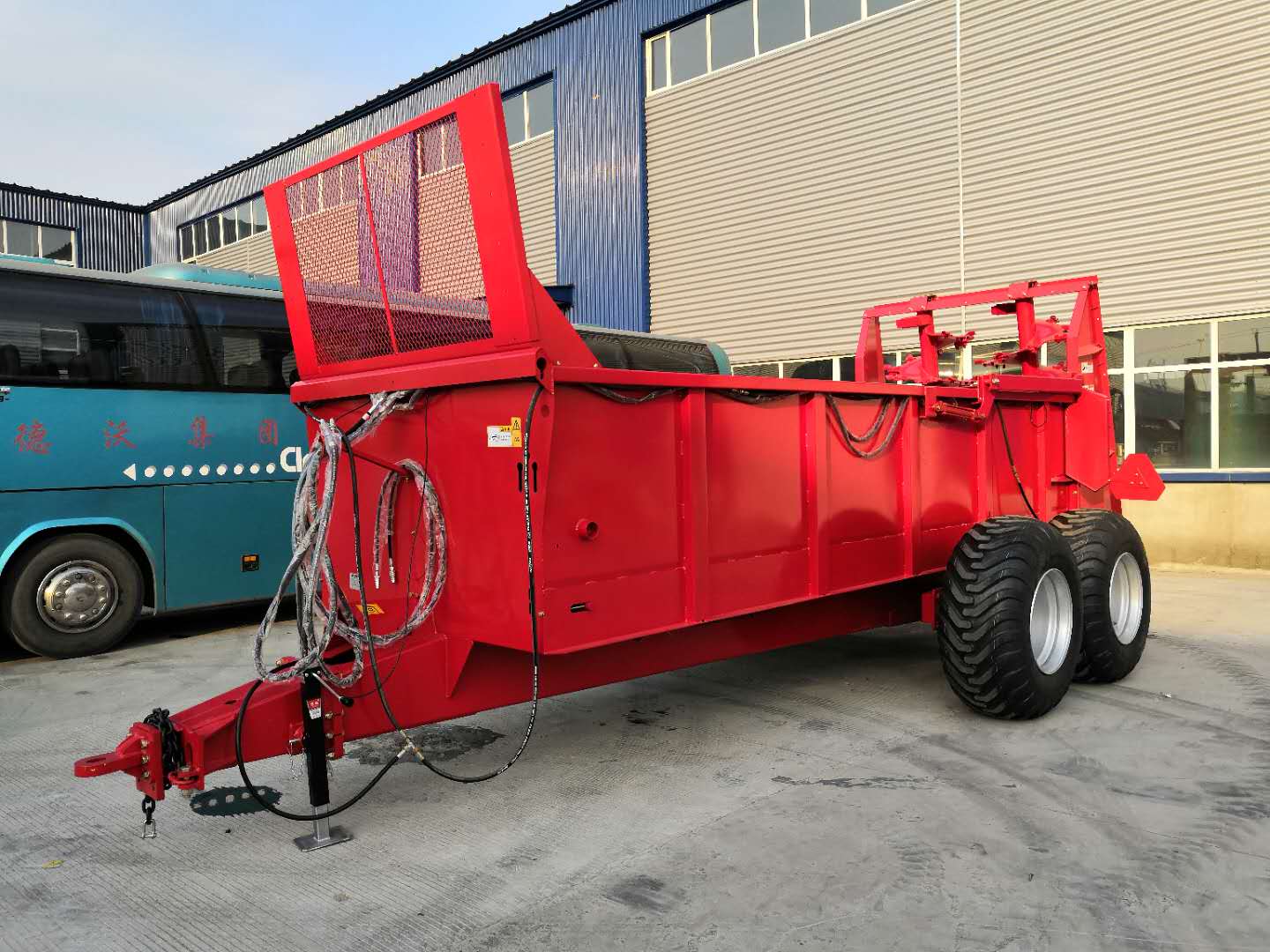

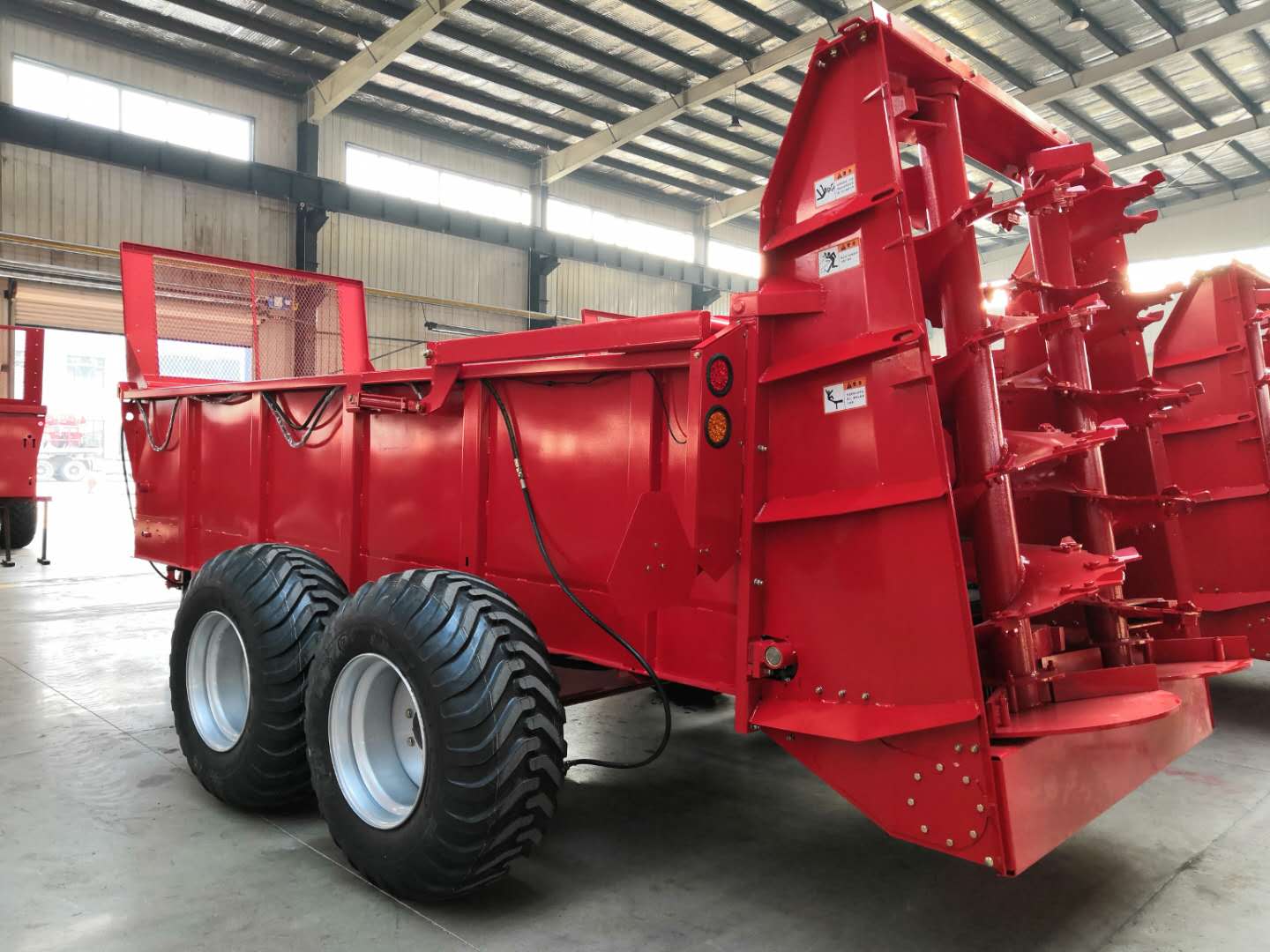

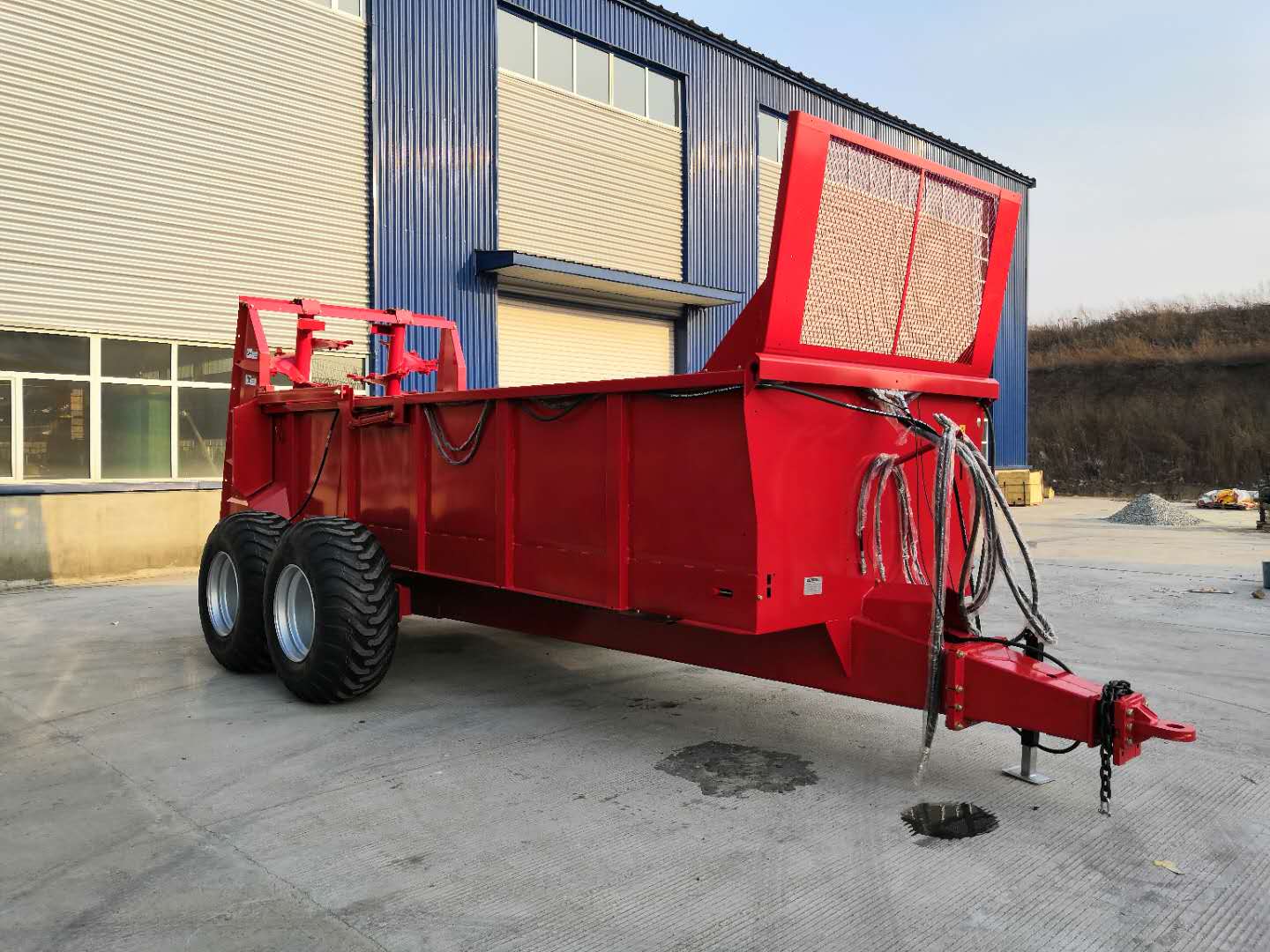

2FJL-9 Vertical manure spreader
Agricultural Agricultural Machinery
MOQ:1 Set(s)
Payment Method : T/T D/P Western Union Paypal
Keywords:manure spreader spreader
| Product Category: | Agricultural > Agricultural Machinery | Trademark: | DEWO |
| Product Package: | Specifications: | ||
| Place of Origin: | Heilongjiang | Port: | Dalian |
Features:
1. Two heavy-duty vertical shaft throwers effectively break up the spilled material and spread it evenly.
2. Replaceable 10mm thick spreader blades, easy to disassemble and replace, easy to replace.
3. The heavy-duty twin-axle chain drive gear box and the fully-enclosed gear box that drives the thrower reduce the overall drive strength.
4. Two pieces of high-density polyurethane tank bottom plate, reduce friction, prevent freezing in winter, long service life.
5. Hydraulic drive chain, through the hydraulic flow control valve installed in the tractor, to control the chain speed, thereby regulating the amount of fertilizer thrown.
6. The steel box is double-strengthened in key parts; the tail baffle is controlled by two hydraulic cylinders.
7. All-steel welded structure provides a solid and stable frame, including a rigid A-shaped structure, to maintain the ratio of each side and the thrower plate, to ensure the integrity of the material box structure.
Model | 2FJL-9 |
Overall size （mm） | 7870×3240×2870 |
Motive power （kW/hp） | 102.9/140～132.4/180 |
PTO speed （r/min） | 1000 |
Tank Volume （m3） | 9.5 |
Full load capacity （m3） | 15.1 |
Travel speed （km/h） | 4～6 |
Sprinkle width （m） | 7.62～9.15 |
