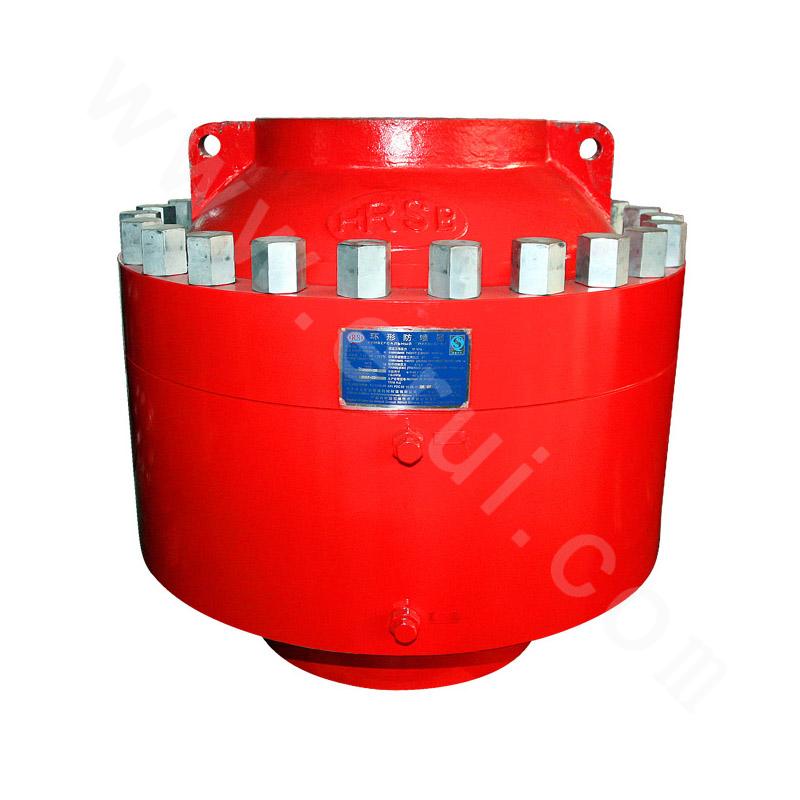

Annual BOP, FH28-35, RS-D 11"-5000|Spherical Packing Element

Oil & Gas Oil and Gas Equipment

FOB Price:US$ Customizable price / Piece(s)

MOQ:1 Piece(s)

Payment Method : L/C T/T D/P Western Union Paypal Money Gram Others

Keywords:BOP API 16A Annual BOP

Add to Favorites

Product Category: Oil & Gas > Oil and Gas Equipment Trademark: ERUI
Product Package: Wooden Package Specifications: API Spec 16A
Place of Origin: CHINA Port: TIANJIN/SHANGHAI/QINGDAO

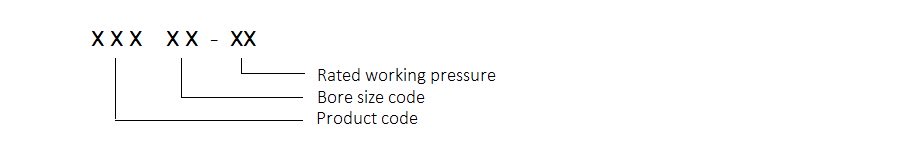

Description of product codes


Product code
RS-D    Annular BOP using the Spherical packing element
RS-A     Annular BOP using the Conical packing element

CHINA Standard Code:
FH     Annular BOP using the Spherical packing element
FHZ   Annular BOP using the Conical packing element


Bore sizeRated working pressure
Bore size code(mm)(in)Pressure code(Mpa)(Psi)
18180 mm7 1/16"3.53.5 MPa500 psi
23230 mm9"77 MPa1,000 psi
28280 mm11"10.510.5 MPa1,500 psi
35350 mm13 5/8"1414 MPa2,000 psi
43430 mm16 3/4"2121 MPa3,000 psi
48480 mm18 3/4"3535 MPa5,000 psi
53530 mm20 3/4"7070 MPa10,000 psi
54540 mm21 1/4"105105 MPa15,000 psi
68680 mm26 3/4"140140 MPa20,000 psi
75750 mm29 1/2"


76760 mm30"

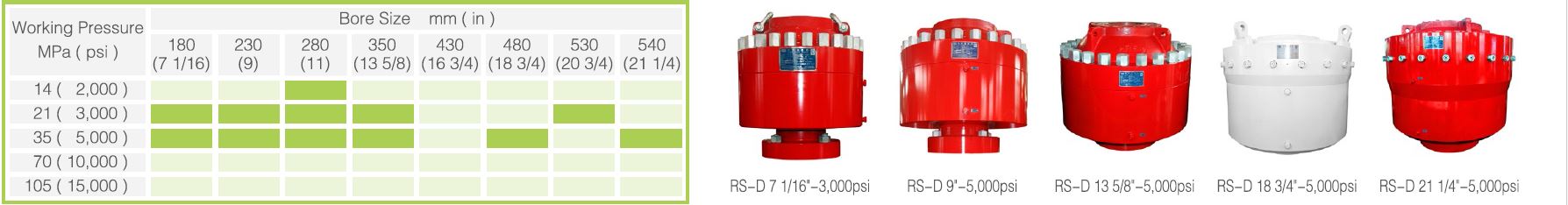

Annular BOP series and Detailed Parameters

Model

RS-D

7-1/16"-3000psi

RS-D

7-1/16"-5000psi

RS-D

9"-3000psi

RS-D

9"-5000psi

RS-D

11"-2000psi

RS-D

11"-3000psi

RS-D

11"-5000psi

RS-D

13-5/8"-3000psi

RS-D

13-5/8"-5000psi

RS-D

18-3/4"-5000psi

RS-D

20-3/4"-3000psi

RS-D

21-1/4"-5000psi

FH18-21FH18-35FH23-21FH23-35FH28-14FH28-21FH28-35FH35-21FH35-35FH48-35FH53-21FH54-35
Part Number (P/N)RS11827RS11168RS11143F9303RS11878RS11150RS11135RS11186F35RS11845RS111100RS11801
Bore Size179.4 mm179.4 mm228.6 mm228.6 mm279.4 mm279.4 mm279.4 mm346.1 mm346.1 mm476.3 mm527 mm539.7 mm
7-1/16"7-1/16"9"9"11"11"11"13-5/8"13-5/8"18-3/4"20-3/4"21-1/4"
Rated Working Pressure21 MPa35 MPa21 MPa35 MPa14 MPa21 MPa35 MPa21 MPa35 MPa35 MPa21 MPa35 MPa
3,000 psi5,000 psi3,000 psi5,000 psi2,000 psi3,000 psi5,000 psi3,000 psi5,000 psi5,000 psi3,000 psi5,000 psi
Operating Chamber Rated Working Pressure14 MPa14 MPa14 MPa14 MPa14 MPa14 MPa14 MPa14 MPa14 MPa14 MPa14 MPa14 MPa
2,000 psi2,000 psi2,000 psi2,000 psi2,000 psi2,000 psi2,000 psi2,000 psi2,000 psi2,000 psi2,000 psi2,000 psi
Recommended Hydraulic Control Working Pressure for Closed Pipe String≤10.5 MPa≤10.5 MPa≤10.5 MPa≤10.5 MPa≤10.5 MPa≤10.5 MPa≤10.5 MPa≤10.5 MPa≤10.5 MPa≤10.5 MPa≤10.5 MPa≤10.5 MPa
≤1,500 psi≤1,500 psi≤1,500 psi≤1,500 psi≤1,500 psi≤1,500 psi≤1,500 psi≤1,500 psi≤1,500 psi≤1,500 psi≤1,500 psi≤1,500 psi
Volume to Open Chamber15 L15 L22.8 L33 L33 L33 L56 L72 L72 L172 L110 L171 L
3.92 Gal.3.92 Gal.6.02 Gal.8.72 Gal.8.72 Gal.8.72 Gal.14.79 Gal.19.02 Gal.19.02 Gal.45.44 Gal.29.06 Gal.45,17 Gal.
Volume to Close Chamber21 L21 L34 L42 L46 L46 L72 L98 L98 L220 L173 L227 L
5.55 Gal.5.55 Gal.8.98 Gal.11.10 Gal.12.15 Gal.12.15 Gal.19.02 Gal.25.89 Gal.25.89 Gal.58.12 Gal.45.70 Gal.59.97 Gal.
Overall Dimension (O.D)745 mm745 mm908 mm1016 mm1013 mm1013 mm1146 mm1271 mm1271 mm1780 mm1375 mm1938 mm
29.33"29.33"35.75"40.00"39.88"39.88"45.12"50.04"50.04"70.08"54.13"76.30"
Overall Dimension (Height)842 mm842 mm838 mm924 mm855 mm873 mm1110mm1176 mm1176 mm1710 mm1293 mm1742 mm
33.15"33.15"32.99"36.38"33.66"34.37"43.70"46.30"46.30"67.32"50.91"68.58"
Approx Weight1433 kg1520 kg2440 kg3050 kg3512 kg3400 kg4716 kg5700 kg6415 kg16320 kg6994 kg20220 kg
3159Lb.3351 Lb.5379 Lb.6724 Lb.7743 Lb.7496 Lb.10397 Lb.12566 Lb.14143Lb.35979 Lb.15419Lb.44577 Lb.

? All BOPs are designed and manufactured in accordance with API Spec 16A.
? Temperature Rating is T20 (-29 ~ 121*C) or as required by contract.
? The resistance to stress corrosion by Hydrogen Sulphide at BOP positions in contact with fluid in the well meets relevant requirements as specified in NACE MR 0175.
? Any questions please contact ERUI engineers.
