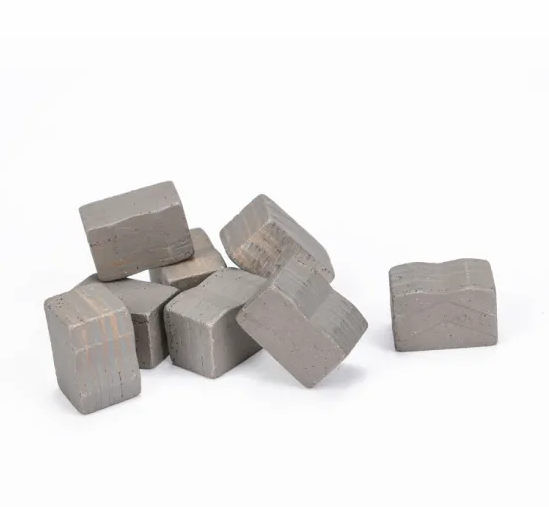

Diamond Segment for Granite

Tools,Hardware & Instruments Construction Tools

FOB Price:US$ 1.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : L/C T/T

Keywords:Segments

Add to Favorites

Product Category: Tools,Hardware & Instruments > Construction Tools Trademark:
Product Package: Specifications:
Place of Origin: Port: Xiamen

Features
1. Unique "V" Shape design of segment side face reduces blade stone interface friction that will make fast diamond exposed and high cuttin efficiency with good debris removal and better cooling.
2. Good cutting result. This special design will not allow easy different thickness slabs or tapered slab etc.

Applications
This products is widely used for cutting stone.

Product
Name
Specification
   (mm)
Core
Thickness(mm)
Segment
Dimension(mm)
Segment
Number
Application
Segment for Block cutting9005.0/5.524x7.0/6.6/6.2x15(20)64Granite
10005.0/5.524x7.0/6.6/6.2x15(20)70
12005.5/6.024x7.8/7.3/6.8x15(20)80
13506.524x8.4/8.0/7.6x15(20)88
16007.024x9.4/9.0/8.6x15(20)104/108
18008.024x10.0/9.5/9.1x15(20)120
20008.0/8.524x10.6/10.8/9.8x15(20)128/132
22008.5/9.024x11.0/10.5/10.0x15(20)132/136
25008.5/9.024x11.4/11.0/10.6x15(20)140
30009.0/9.524x12.5/12.0/11.5x15(20)160
35009.0/9.524x13.5/13.0/12.5x15(20)180
Other specifications are available upon request.
