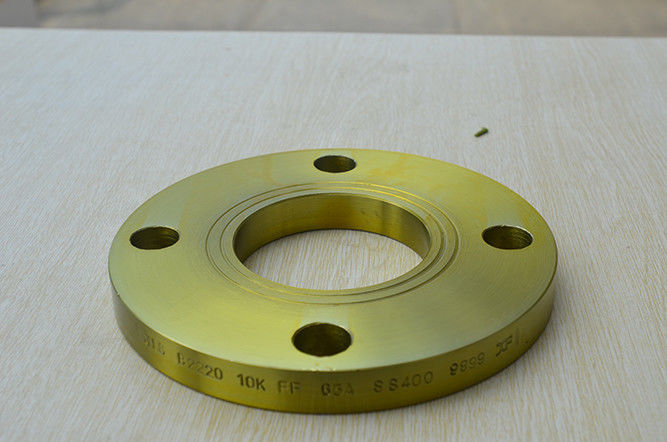

JIS B2220 FLANGE
MOQ:1 Piece(s)
Payment Method : L/C T/T D/P
Keywords:FLANGE JIS 10K 20K
| Product Category: | Oil & Gas > Piping and valves | Trademark: | XF |
| Product Package: | PLYWOOD CASES;PALLET | Specifications: | JIS B2220 FLANGE |
| Place of Origin: | CHINA | Port: | TIANJIN PORT |
“JIS” Stands for Japanese Industrial Standard and are published by the Japanese Standards Association (JSA) which is the equivalent of ANSI in the United States. They are created and updated by the Committee of the Japanese Industrial Standards (JISC). Like JSA to ANSI, the JISC is similar to the American Society of Mechanical Engineers (ASME).
Japan Industrial Standard is yet another option for metric sizes. Provided in JIS5K, JIS10K, JIS15K, and JISK20K pressure classes, we can offer Slip On, Blind, and Weld Neck varieties in Raised Face or Flat Face configurations. These are typically made of 316/L or A105, but as usual, all alloys are available!

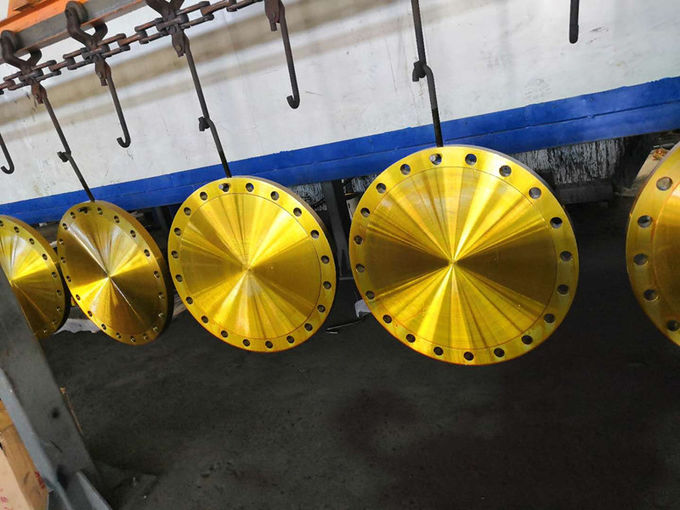

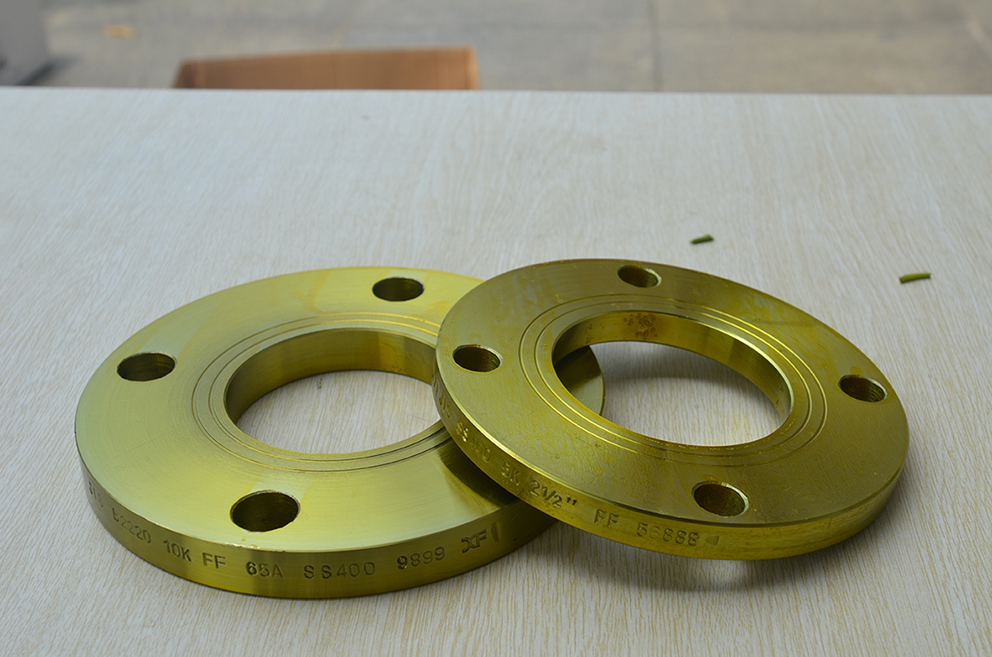

| JIS SO | JIS BLIND |
| 5K,10K,16K,20K | 5K,10K,16K,20K |
| SS400,A182 F304,A182 F316 | SS400,A182 F304,A182 F316 |
Specification
| Specification (Latest edition) | Item Type | Pressure Class | Size Range |
| ASME/ANSI B16.5 | Blind, Weld Neck, Slip-on, Socket Weld, Threaded and Lap Joint Flanges | 150 to 2500LBS | 26“ to 60" |
| 150 to 1500LBS | 26“ to 48" | ||
| ASME/ANSI B16.47 | Orifice Flanges ( Weld neck, Slip-on, Threaded) | 75 to 300LBS | 1/2“ to 12" |
| 400, 600LBS | 26“ to 60" | ||
| 900LBS | 26“ to 48" | ||
| ASME/ANSI B16.36 | Orifice Flanges ( Weld neck, Slip-on, Threaded) | 300 To 2500LBS | 1" to 12" |
| EN 1092-1 / DIN / BS 4504 Flanges | 01 (Plate flange), 02 (Loose plate flange for Types 32—37), 04 (Loose plate flange for Type 34),05 (Blind flange), 11 (Weld-neck flange), 12 (Hubbed slip-on flange), 13 (Hubbed | PN2.5 to PN16 | 10mm to 1800mm |
| PN25 | 10mm to 1000mm | ||
| PN40 | 10mm to 600mm | ||
| PN63 | 10mm to 400mm | ||
| PN100 | 10mm to 350mm | ||
| PN160, PN250 | 10mm to 300mm | ||
| PN320 | 10mm to 250mm | ||
| PN400 | 10mm to 200mm | ||
| BS 10 | Blind, Slip-on and Welding neck flanges | TABLE-A, D, E, F, H, J, K, R, S, T | 15mm to 600mm |
| ASME/ANSI B16.9/MSS SP-43 | Stub end -Type:A, B, C (Short pattern) | S10, S40, S80 | ?” to 24” |
