1000tons Farm Used Corrugated Steel Grain Storage Silos for Sale
Manufacturing & Processing Machinery Agriculture & Woodworking Machinery
MOQ:1 Piece(s)
Payment Method : L/C T/T D/P Western Union Paypal Money Gram Others
Keywords:grain silo silo steel silo corn silo rice silo paddy silo feed silo maize silo wheat silo silo for sale
| Product Category: | Manufacturing & Processing Machinery > Agriculture & Woodworking Machinery | Trademark: | HKB |
| Product Package: | Specifications: | 500ton, 1000ton, 2000ton, 3000ton, 5000ton, 10000ton | |
| Place of Origin: | Jiaozuo, Henan, China | Port: | Qingdao |
1000tons Farm Used Corrugated Steel Grain Harvestore Storage Silos for Sale
Steel silo for grain storage are commonly selected steel silo for grain storage to storage bulk grains and other materials. Large volume storage is its typical feature, the storage volume of this type grain storage silo ranges from 39 m³ to 29726 m³. They are erected on flat or conical concrete foundations for long-term storage of large quantities of grain, seeds, pellets and granular products, etc. The steel silo for grain storage are made of high quality 275g/m2, 300g/m2, 350g/m2 hot-dip galvanizing coating steel sheets. All our steel silo for grain storage are designed, manufactured and installed in accordance with D-4097 or ASTM D-3299 standards.
Steel silo for grain storage are used to store grain, seed, feed, cement, coal and other granular or powdered materials. Popular uses for our procduct include, Temporary Transit, Raw Material, and Grain warehouses. Current applications of the Bolted Steel Silo is to provide efficient and affordable storage solutions for grain warehousing, alcohol plant, flourmill, oil mill, starch factory, feed mill, malt factory, distilleries, seaport, farm, and grain-processing centers, etc.
Automatic-flow unloading;
save resources and costs;

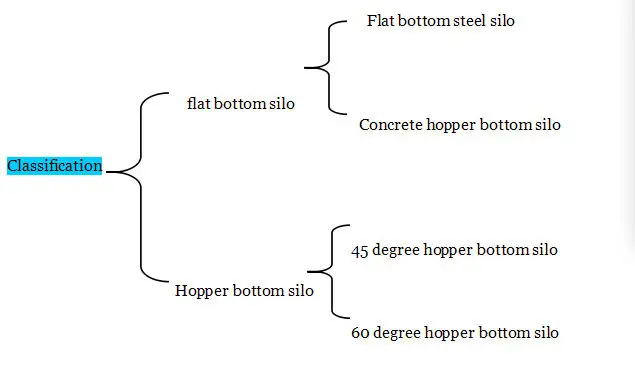

Hopper angles can be 45° and 60°;
Could be movable;
easily to be installed;
Do not need serious concrete, labor, and energy cost;
less grain residues in steel insulated steel silo for grain storage;
Hopper structure prevents loss of time and money during the unloading period.
steel silo for grain storage Technical Specifications | ||||||||
Capacity | 1000 ton | 1500 ton | 2000 ton | 2500 ton | 3000 ton | 5000 ton | 8000 ton | 10000 ton |
Model | TCK 10014 | TCK 10015 | TCK 13715 | TCK 14616 | TCK 15518 | TCK 18321 | TCK 22921 | TCK 26521 |
Diameter(m) | 10.084 | 11.918 | 13.75 | 14.668 | 15.584 | 18.334 | 22.918 | 26.585 |
Total Height(m) | 18.69 | 20.34 | 20.87 | 22.25 | 24.78 | 28.6 | 29.85 | 30.85 |
Volume (m3) Density:0.75ton/m3 | 1335 | 2009 | 2701 | 3278 | 4145 | 6693 | 10640 | 14513 |
1. The Body of steel silo for grain storage
Include the wall plate, column, manhole, roof ladders and so on.
(1) The wall plate of steel silo for grain storage
Our steel is hot galvanized, which makes it durable and weather resistant. Our advanced bolts with spherical washer and the resisting-worn rubber are used to ensure the tightness and using period.
(2) Column of steel silo for grain storage
The column, made by the Z-bar, is used to reinforce the silo body. It is connected by junction panels.
(3) Manhole and roof ladders of steel silo for grain storage
There are inspection door and ladders inside and outside the corn silos body. It is convenient and accessible for any maintenance work.
2. Roof of steel silo for grain storage
steel silo for grain storage roof is made up of radiated beam, roof cover board, tension ring, ventilator scoop, roof cap, etc.
silo delivery and Installation

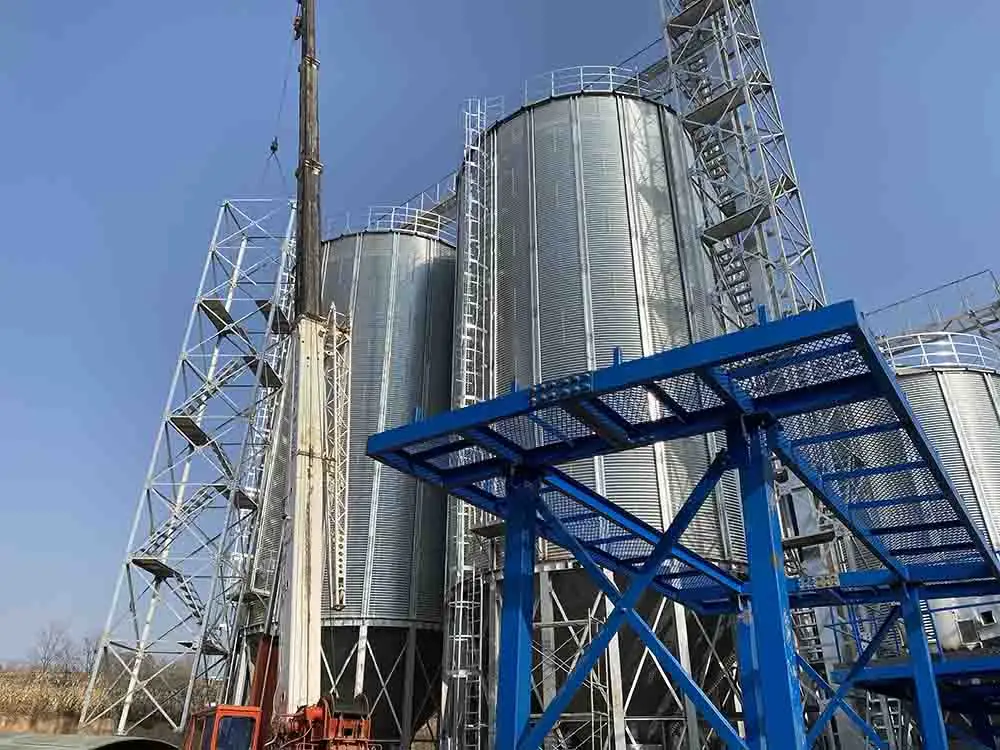

Engineer on-site guidance installation
Henan Haokebang Machinery Equipment Co.,ltd. is a professional supplier of steel silo for grain storage.
HKB have the agent now in South Africa, Austrilia,Bangladesh, Israel;
HKB has the separate research & development, project engineering, manufacturing, sales,installation and services team.
HKB insulated steel silo for grain storage are made as per the Chinese national standard or Austrilian standard, American standard;
HKB steel silo for grain storage have been sold to more than 50 countries, such as Argentina, Australia, America,Chile, China, Cambodia,Ethiopia, Honduras, India, Indonesia,Korea, Malaysia, Myanmar, Pakistan, South Africa, Sudan, Serbia, Thailand, Tanzania,Ukraine, Vietnam, Peru,Newzealand,Mexco,Korea,Philipine,Uganda and so on .
Our company adopt steel plate laser cutting machine, CNC bending machine, carbon dioxide arc welding and argon arc welding, welding scale, rotary automatic welding, electrostatic spraying surface treatment, continuous improvement and innovative models. Our products are not only has good performance, but also easy for installation and maintenance with low cost. The product with advanced technology, reliable quality, and nice appearance has been appreciated by many clients.
Haokebang steel silo for grain storage can offer what you need, and we will give you a solution for storage silo not only the machines;
Welcome to contact with HKB and get more details about steel silo for grain storage system!
