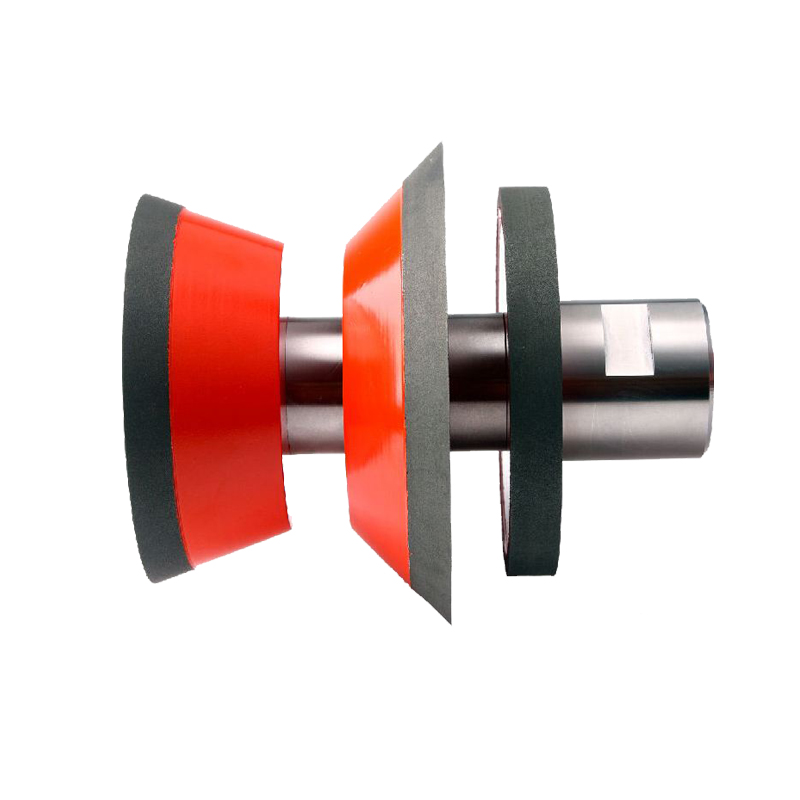

Diamond Grinding Wheel For CNC Tool Grinder
Tools,Hardware & Instruments Power Tools
MOQ:1 Piece(s)
Payment Method : L/C T/T Paypal
Keywords:diamond grinding wheel CNC grinding Wheel CNC tools grinding diamond grinding tools for CNC
| Product Category: | Tools,Hardware & Instruments > Power Tools | Trademark: | Bingotools or OEM |
| Product Package: | Carton | Specifications: | 1A1, 1V1,12V9 |
| Place of Origin: | China | Port: | Xiamen |
Bingotools diamond / CBN grinding wheel for CNC tool grinder is used for tungsten carbide, high speed steel (HSS), stainless drill ,end mill and reamer.

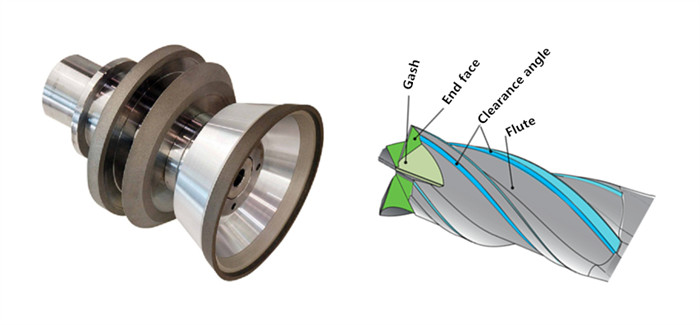

We provide a complete solution for CNC tools manufacturing process, including fluting, gashing and Clear edge, relief angle grinding .
Fluting Grinding: Perfect flute surface quality, Extremely high stock removal, Very low energy consumption
Model | D (mm/ Inch) | T (mm/ Inch) | X (mm/ Inch) | H (mm/ Inch) | Grit | ||||
1A1 | 75 | 3" | 10 12 | 3/8" 1/2" | 5 | 1/4" | 31.75 | 1-1/4" | D64 |
100 | 4" | 6 10 12 | 1/4" 3/8" 1/2" | 5 10 | 1/4" 3/8" | 31.75 | 1-1/4" | D46 D64 | |
125 | 5" | 10 12 16 | 3/8" 1/2" 5/8" | 10 | 3/8" | 31.75 | 1-1/4" | D46 D64 | |
150 | 6" | 12 | 1/2" | 10 | 3/8" | 31.75 | 1-1/4" | D64 | |
1V1 | D (mm/ Inch) | T (mm/ Inch) | X (mm/ Inch) | H (mm/ Inch) | V° | ||||
75 | 3" | 10 | 3/8" | 5 | 1/4" | 31.75 | 1-1/4" | 45 | |
100 | 4" | 10 15 | 3/8" 5/8" | 5 | 1/4" | 31.75 | 1-1/4" | 45 | |
125 | 5" | 6 10 15 | 1/4" 3/8" 5/8" | 5 | 1/4" | 31.75 | 1-1/4" | 45 | |
14F1 | D(mm/ Inch) | U(mm/ Inch) | X (mm/ Inch) | H(mm/ Inch) | R | ||||
100 | 4" | 4 | 1/8" | 6 | 1/4" | 31.75 | 1-1/4" | 2 | |
125 | 5" | 3 | 1/8" | 5 | 1/4" | 31.75 | 1-1/4" | 1.5 | |
150 | 6" | 1/5 | 1/16" 1/4" | 5/7 | 1/4" | 31.75 | 1-1/4" | 0.5 2.5 | |
Gashing and Clear edge:The production of superior tool edge quality , High stock removal, Maintaining wheel profile
Model | D(mm/ Inch) | T(mm/ Inch) | X (mm/ Inch) | H(mm/ Inch) | V° | ||||
1V1 | 100 | 4" | 10 15 | 3/8" 5/8" | 5 10 | 1/4" 3/8" | 31.75 | 1-1/4" | 45 |
125 | 5" | 4 10 15 | 1/4" 3/8" 5/8" | 5 6 10 | 1/4" 3/8" | 31.75 | 1-1/4" | 45 | |
12V9 | D(mm/ Inch) | W(mm/ Inch) | X (mm/ Inch) | H(mm/ Inch) | |||||
75 | 3" | 3 5 | 1/8" 1/4" | 10 | 3/8" | 31.75 | 1-1/4" | ||
100 | 4" | 3 5 | 1/8" 1/4" | 10 | 3/8" | 31.75 | 1-1/4" | ||
125 | 5" | 3 5 | 1/8" 1/4" | 10 | 3/8" | 31.75 | 1-1/4" | ||
Relief angle grinding: Excellent surface finish and the best profile consistency, Excellent edge quality, High stock removal at second relief
11V9 | D(mm/ Inch) | W(mm/ Inch) | X (mm/ Inch) | H(mm/ Inch) | |||||
75 | 3" | 3 | 1/8" | 10 | 3/8" | 31.75 | 1-1/4" | ||
100 | 4" | 2/3 | 1/8" | 10 | 3/8" | 31.75 | 1-1/4" | ||
125 | 5" | 3 | 1/8" | 10 | 3/8" | 31.75 | 1-1/4" | ||
CNC Tools Grinder: Walter, ANCA, EWAG, Farman, Schutte, Schneeberger, Makino, Stuer, Strausak, Cininnati, Griffo, Huffmann, Jungner, CUOGHI, Fehlmann and so on.
Meanwhile, Bingotools also supplies diamond cutting disc for carbide rods cutting, centerless grinding wheel for carbide bars, silicon carbide wheel for dressing CNC grinding wheel (dressing machines: Cleveland , Farman) and so on.
