good quality perforated metal sheet panel mesh punching machine
Manufacturing & Processing Machinery Industrial Processing Machinery
MOQ:1 Piece(s)
Payment Method : L/C T/T Others
Keywords:diamond mesh punching machine perforated metal panel machine perforated metal sheet machine metal panel mesh punch machine metal sheet mesh punch machine punching hole machine metal panel hole punch machine
| Product Category: | Manufacturing & Processing Machinery > Industrial Processing Machinery | Trademark: | laien |
| Product Package: | by request of customers | Specifications: | 1000LE |
| Place of Origin: | China | Port: | Xingang |

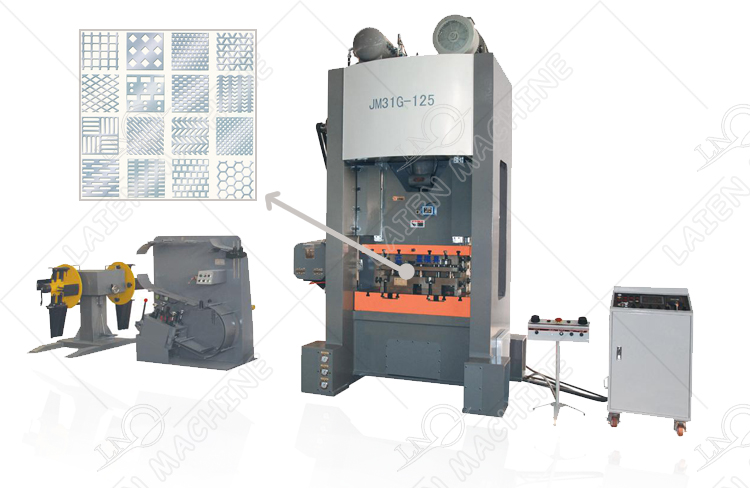

PLC control Laien high quality Plano type perforated metal machine
Expanded mesh metal making Machine manufacturer
?Plano type perforated sheet metal machine is the best choice for making high production of perforated metal,perforated sheet or perforated mesh. We also provide the multi-row punching mould for your choice. It’s very fit for roll to roll,roll to sheet,sheet to sheet production.

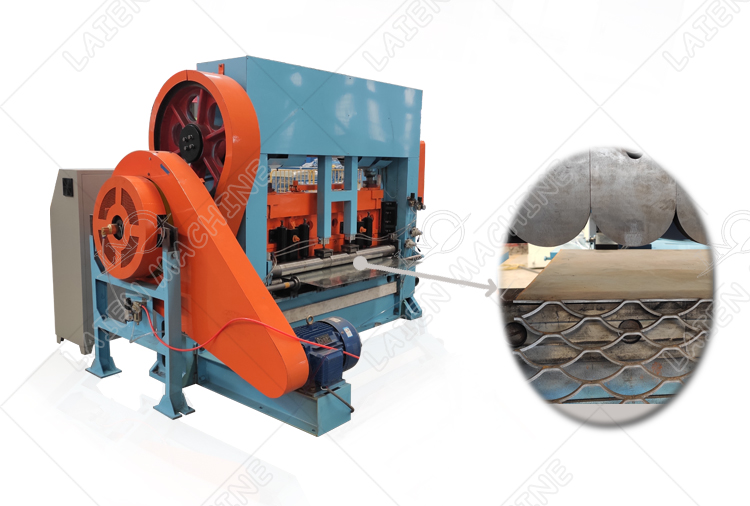

?Expanded metal mesh machine can produce expanded metal mesh which is widely used in construction,
hardware, window and door, machine protection etc.It can be produced max.1000mm and thickness of
metal sheet max. 1mm.The material for expanded metal mesh machine can be low carbon steel plate,
stainless steel plate, aluminum plate, copper plate and so on.
Description | unit | JM31-160 | JM31-200 | JM31-250 | JM31-315 |
Capacity | kN | 1600 | 2000 | 2500 | 3150 |
Slide Stroke | mm | 160 | 180 | 200 | 200 |
SPM | min-1 | 130-170 | 120-160 | 120-150 | 100-130 |
Bolster | mm | 740×1050 | 760×1130 | 800×1200 | 850×1250 |
Main Motor Power | kW | 15 | 18.5 | 22 | 30 |
Outline Size | mm | 2480×1750×3500 | 2570×1810×3610 | 2950×2080×3850 | 3150×2200×4000 |
Net Weight | kg | 16500 | 19500 | 24000 | 29000 |
Type | JQ25-6.3 | JQ25-16 | JQ25-25 | JQ25-40 | JQ25-63 | JQ25-100 | JQ25-160 |
Depth(mm) | 1.0 | 1.0 | 1.5 | 2.5 | 4 | 6 | 6 |
Width(mm) | 600 | 1000 | 1250 | 1500 | 2000 | 2500 | 2500 |
Stroke per min(times/min) | 280-320 | 220-260 | 200-280 | 100-120 | 80 | 75 | 50 |
Distance(mm) | 0-1.5 | 0-10 | 0-10 | 0-10 | 0-20 | 0-20 | 0-20 |
Lenght of Mesh(mm) | 20 | 25 | 40 | 100 | 200 | 200 | 200 |
Motor(KW) | 2.2 | 3 | 4 | 11 | 11 | 15 | 18.5 |
Weight(T) | 0.95 | 2 | 3 | 6 | 10 | 12 | 14 |
Measurement(mm) | 1090*710 | 1800*1320 | 1940*1600 | 2870*1990 | 2400x3500 x2300 | 3600*2500 | 4100*2500 |

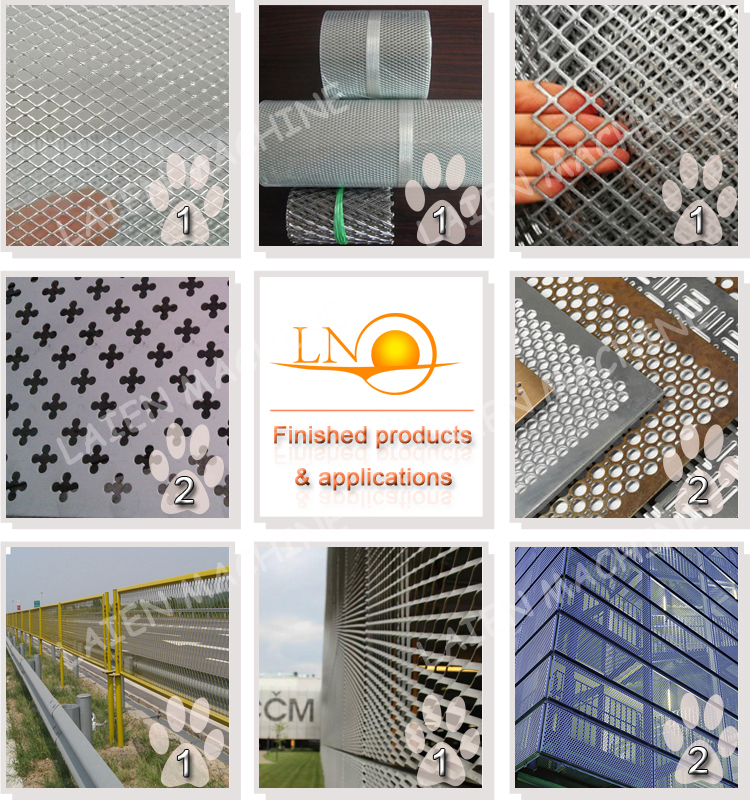

The perforated mesh can be widely used in architectural decoration,noise control,air conditioning,filtration,audio and merchandise displays,etc.
1.Hydraulic Full Automatic Decoiler with a car
2.German Siemens main motor and International PLC brand
3.Highly accurate NC feeding system
4.We will customize the best plan according to your requirements.
New Design Coming this Year for High
Productivity, Laien Suppy all Mesh Weld
and Metal Wire Processing Machine.
![]()
