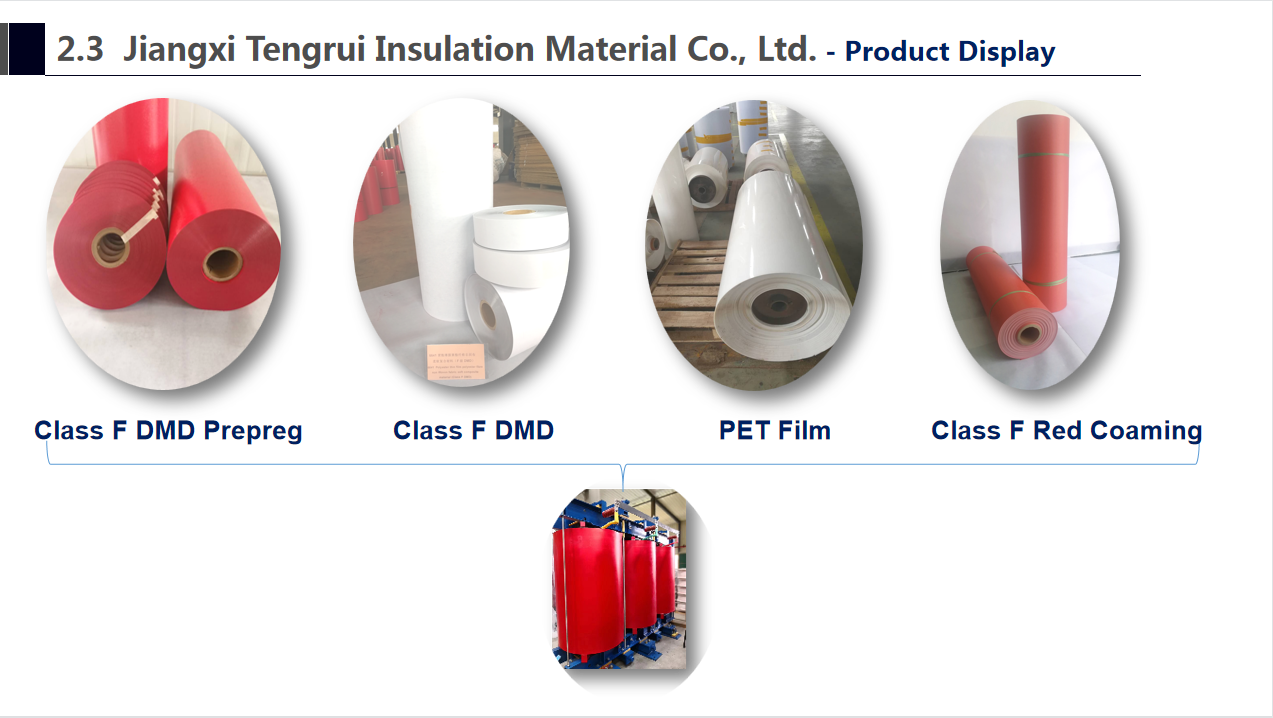

Class F DMD prepreg

Metallurgy,Chemicals & Energy Composite Materials

EXW Price:US$ 6.00 / KG

MOQ:500 KG

Payment Method : L/C T/T

Keywords:Class F Prepreg Class F DMD Prepreg DMD Layer Insulation  DMD End Insulation DMD Epoxy Resin Prepreg (Red) DMD Prepreg DMD Epoxy Resin Prepreg Insulation Endpad DMD Prepreg Class F DMD Prepregs

Add to Favorites

Product Category: Metallurgy,Chemicals & Energy > Composite Materials Trademark: Tengrui
Product Package: Cartons, Pallets Specifications: Ordinary carton boxes, plastic film
Place of Origin: China Port: shanghai port




CLASS F DMD

Class F Epoxy Prepreg for dry type transformer

Product Specification

Class F Epoxy Prepreg used in dry type transformer is made of polyester film polyester fiber non-woven soft composite material impregnated with heat-resistance epoxy resin through baking.

 Feature and Application

The solidified materials have high mechanical strength, outstanding dielectric properties and adhesive properties, heat resistance grade is Class F.
It is applicable to the layer insulation and end insulation of Class F dry type transformers coils or electric reactor, as well as the layer insulation, slot insulation and turn to turn insulation of electrical machinery and electric appliance.


Product Model:   6440

6440(JB/T10942-2010)

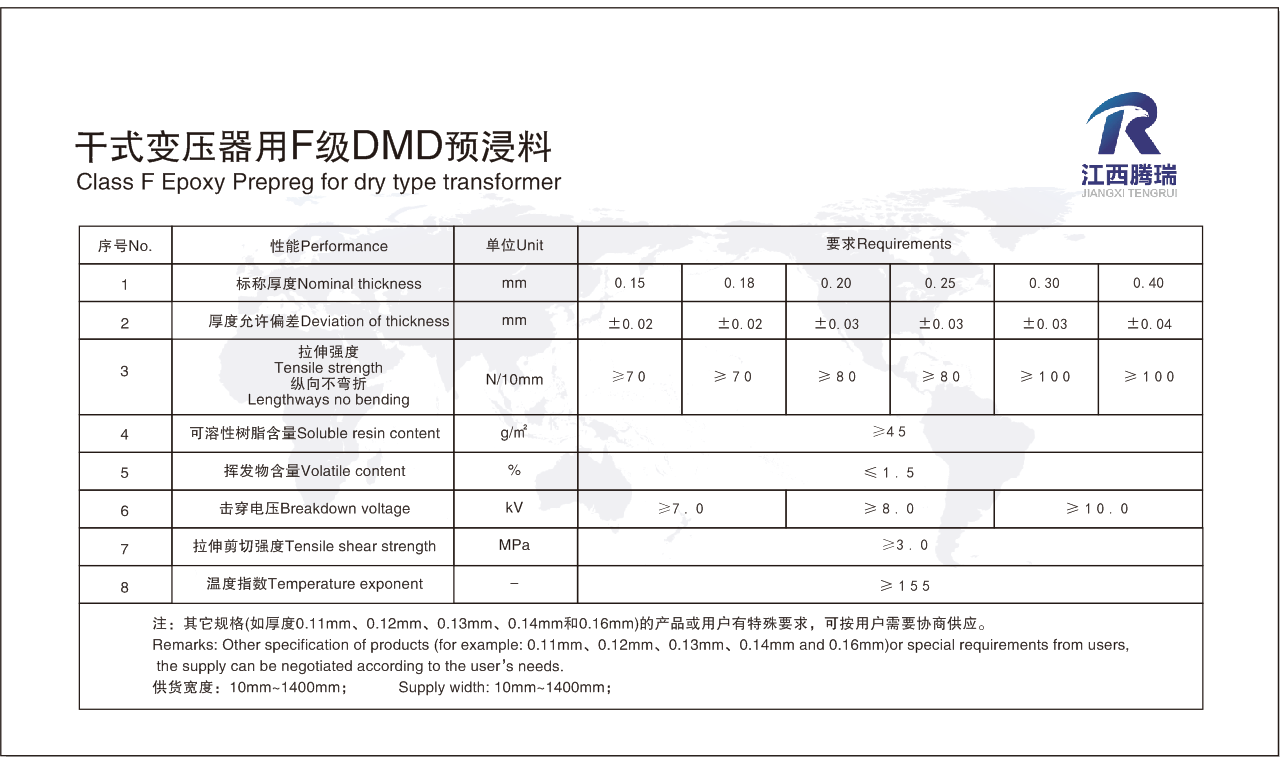

Performance requirements of 6440 Epoxy Prepreg(JB/T10942-2010)




No.

Performance

Unit

Requirements
1
Nominal thickness
mm0.150.180.200.250.300.40
2
Deviation of thickness
mm±0.02±0.02±0.03±0.03±0.03±0.04
3
Tensile strength

Lengthways no bending
N/10mm≥70≥70≥80≥80≥100≥100
4
Soluble resin content
g/≥45
5
Volatile content
%≤1.5
6
Breakdown voltage
kV≥7.0≥8.0≥10.0
7
Tensile shear strength
MPa≥3.0
8
Temperature exponent
-≥155
:(0.11mm,0.12mm,0.13mm,0.14mm0.16mm)
,.
Remarks: Other specification of products (for example: 0.11mm,0.12mm,0.13mm,0.14mm and 0.16mm)
or special requirements from users, the supply can be negotiated according to the user's needs.
:10mm~1400mm;
Supply width: 10mm~1400mm;


()   Application process reference (process condition of coil baked)


Curing temperature

Time
80oC→120oC/120oC0.5h/1h~2h
120oC→150oC/150oC0.5h~1h/4h~8h
150oC→120oC/120oC1h/1h~2h
120oC→80oC/80oC0.5h/1h

Remarks: Due to diversity of production and application of each transformer plant, the above data can be adjusted according to the actual situation of the manufacturer and the size of the workpiece.
