2632 Series Gas Engine & Gensets

Electrical & Power Energy Generators

FOB Price:US$ Customizable price / Set(s)

MOQ:1 Set(s)

Payment Method : T/T

Keywords:Gas Engine generator set

Inquire


Add to Favorites

Product Category: Electrical & Power Energy > Generators Trademark:
Product Package: Specifications:
Place of Origin: Port: qingdao

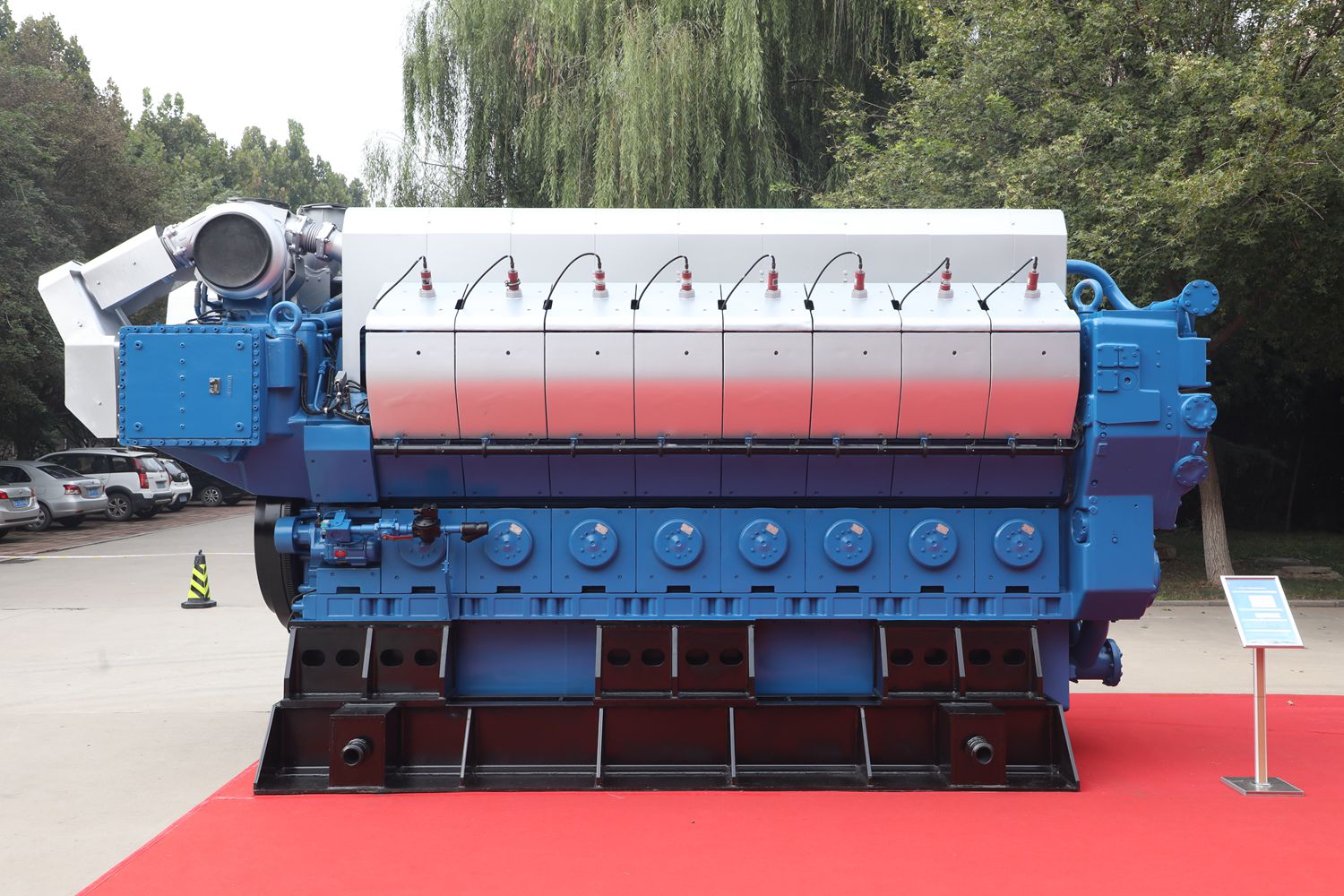

Series 26/32 natural gas engines are high-power natural gas engines with independent intellectual property rights launched by Jichai to meet the demand of national energy conservation and emission reduction projects, such as long distance pipeline compressor driving power, offshore drilling platform power, large gas-fired power station and distributed energy.It has high pressure, high power, high efficiency, low discharge, green, environmental protection and other characteristics.The engine's gas consumption rate is 8500kJ/kW·h, and its thermal efficiency is higher than 44%. Its power performance, economy and reliability have reached the international advanced level.

Product feature
1.Precise control (INTERNATIONAL: 2.1-2.3, Aid: 2.05) to achieve rarefied combustion;
2.High efficiency (international: 42-45%; current test thermal efficiency: 44%), safety (explosion-proof devices, double-wall gas pipe and oil mist detector are installed in each system);
3.High supercharging, strong MILLER, low emission;
4.Detonation control technology and detonation pressure monitoring (or combustion temperature in cylinder);
5.Port Injection engine management system;
6.Optimization control of air intake and air intake time between the main combustion chamber and the pre-combustion chamber;
7.Load balancing (corrected according to the temperature control system in the rear of the cylinder).
8.High pressurization, two stages intermediate cooling
9.Self-cleaning filtration technology
10.The filter element adopts metal filter element, and can realize automatic cleaning, without replacing the filter element.Not only can ensure the engine oil filtration requirements, but also can extend the service life, reduce the use cost and maintenance labor intensity.
Engine seriesEngine modelCylinders & ArrangementCylinder bore,mmPiston stroke,mmRated power ,kWRPM,r/minTotal piston displacement,LHeat consumption ratekJ/kW.hLub. oil consumption rate g/kW.hStart method
2632 Series                 (2835-4200KW)16V26/32T16 cylinders,V type26032042001000272≤8181≤0.6air start
3780900
12V26/32T12 cylinders, V type26032031501000204
2835900
Genset  seriesGenset ModelEngine modelAlternator modelPower kWRPM,r/minVoltage KVFrequency HzPower factorDimension mmWeight kg
2632 Series                 (2000-4000KW)4000GF-T16V26/32TStandard configuration is Leleisemar motor400010006.3/10.5500.89435x2930x417570000
3600GF-T16V26/32T360090013.860
3000GF-T12V26/32T300010006.3/10.5508330x2930x363848000
2700GF-T12V26/32T270090013.860


Contact Name: Miss Xuan Zhang Contact Email: 28****5@qq.com
Contact Job Title: Sales And Marketing Contact Mob: 150***396
Contact Tel: Contact Fax:
Address: No.11966 West Jingshi Rd., Jinan Website: www.jichai.com

CNPC Jichai power company limited is located in the economic development zone of the Jinan city, Shandong province. The company was founded in 1920 and is the only internal combustion engine manufacturing enterprise belonging to CNPC . In 1965, Jichai successfully developed 12V190 high power diesel engine, which filled in gaps of national oil drilling power. In 1988, Jichai produced the first high power gas engine of China.Over 50 years, 190 series diesel engine has occupied more than 90% market share of oil-drilling power, and made a great contribution to national oil industry.



The main business of Jichai is R&D and manufacture of medium and high-power internal combustion engines, compressor and relative power equipment. At domestic advanced level in the same industry. Jichai products are widely used in oil drilling, marine power, power stations, locomotives and military products, etc. At present, Jichai has formed with multi-bore diameter engine products (140mm, 175mm, 190mm, 260mm and 270mm) with medium and high speed to cover the power range of 200~9000kW to meet the customers’ power requirements in different fields.



Jichai product are distributed all over country oil and gas field and 32 provinces and regions, have been exported to over 60 countries and forming a diversified market structure. Jichai has a national-level enterprise technology center, 55 national and industry standard marking rights, and 98 national patents, Jichai is the top 500 machinery manufacturing enterprises in China, and has won the National Quality Management Award, National Customer Satisfaction Enterprise, passed the ISO9001 quality management system, HSE management system and been regarded as 3A class enterprise by CAQ. Jichai products also passed the EU safety certification, and the certification of BV, RS etc.



In 2020, jichai will celebrate its centenary. New era, new journey, new leap. Jichai will adhere to innovation driven, promote high-quality development, and strive to build a world-class power equipment R & D and manufacturing service enterprise!
