CNPC Jichai Power Company Limited

Business Type:Manufacturer

Main Products: Diesel EngineNatural gas EngineBiogas EngineDiesel GeneratorsNatural gas generatorsBiogas GeneratorsCompressors

view on mobile

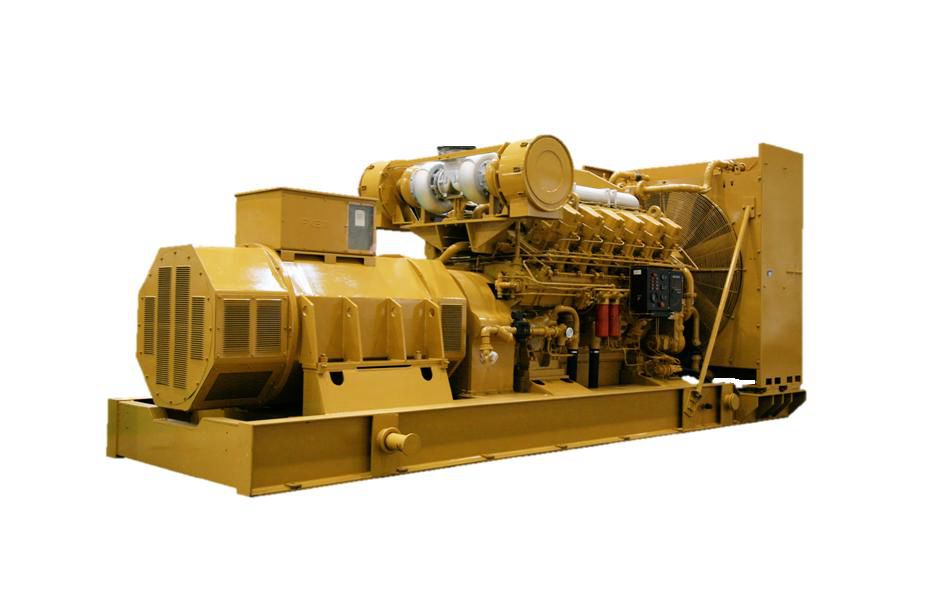

190 Series Diesel Engine& Gensets

Electrical & Power Energy Generators

FOB Price:US$ Customizable price / Set(s)

MOQ:1 Set(s)

Payment Method : T/T

Keywords:Diesel Engine generator set

Inquire


Add to Favorites

Product Category: Electrical & Power Energy > Generators Trademark:
Product Package: Specifications:
Place of Origin: Port: qingdao
On the basis of Z12V190B diesel engine, the 2000 series diesel engine has been greatly improved in terms of improving the reliability, economic performance and power performance of diesel engine, solving three leaks, appearance quality and maintenance, etc., so as to better meet the power requirements of various oil drilling rigs, generator sets and construction machinery.Series 2000 diesel engines can be matched with torque converter sets, coupler sets and diesel generator sets for driving drilling rigs or mud pumps, as well as fire pumps and flood pumps, etc.
Engine seriesEngine modelFuel injection system Cylinders & ArrangementCylinder bore,mmPiston stroke,mmPower factor,kW RPM,r/minTotal piston displacement,LFuel Consumption Rate,g/kW.hLub. oil comsumption,g/kW.hOil pan capacity,LEngine overall dimension mmWeightkg
2000 series 660-990KW)G12V190ZLFour stroke, pressurized intercooled, water-cooled, direct-injection combustor12 cylinders V type19021099090071.45≤209.4≤1.62002692×1560×20705300
G12V190ZL-113 cylinders V type81474071.45≤209.4≤1.6200
G12V190ZL-214 cylinders V type66060071.45≤209.4≤1.6200
G12V190ZL-315 cylinders V type94085071.45≤209.4≤1.6200
AG12V190ZLHigh - voltage common rail ECU electronic control jet16 cylinders V type99090071.45≤202≤1.6200
AG12V190ZL-317 cylinders V type99090071.45≤202≤1.6200
Genset seriesGenset ModelEngine modelAlternator modelPower kWRPM,r/minVoltage VFrequency HzPower FactorGenset Dimension  mmWeight kg


2000 series              (500-800kw)500GF17-2G12V190ZLD1-2IFC series5001000400/6300/10500500.85925×2040×26785000


700GF1-3G12V190ZLD170015007000


800GF4-7G12V190ZLD280015008000


800GFZ-1G12V190ZLD380015008000
















Series 3000 land-used diesel engine is a new generation diesel engine developed by Jichai to meet the demand of the developing petroleum industry and improve the advanced and reliability of our country's drilling equipment.This diesel engine is developed on the basis of 6000 series diesel engines, absorbing foreign advanced structure and technology, and its dynamic and economic indexes have been greatly improved, and its main performance indexes have reached or approached the international advanced level.  Series 3000 land-used diesel engine can meet the demand for power of mechanical drilling rigs and electric drilling rigs of 4000 to 7000 meters.Can be installed in the same chassis with the torque converter, coupling set, used to drive drilling rigs or mud pumps.It can also be used to match the power station composed of single and double supporting generators and the power of fire pump and flood pump.
Engine seriesEngine modelFuel injection system Cylinders & ArrangementCylinder bore,mmPiston stroke,mmPower factor,kW RPM,r/minTotal piston displacement,LFuel Consumption Rate,g/kW.hLub. oil comsumption,g/kW.hOil pan capacity,LEngine overall dimension mmWeightkg
3000
series     (900-1360KW)		A12V190ZLFour stroke, pressurized intercooled, water-cooled, direct-injection combustor12 cylinders,V type1902151200108073.15≤205≤1.02002950×1980×22069300
A12V190ZL-112 cylinders,V type100090073.15≤205≤1.0200
A12V190ZL-212 cylinders,V type90081073.15≤205≤1.0200
A12V190ZL-312 cylinders,V type110099073.15≤205≤1.0200
B12V190ZL12 cylinders,V type1320120073.15≤202≤1.02702950×2280×20699300
B12V190ZL-112 cylinders,V type1160106073.15≤202≤1.0270
B12V190ZL-212 cylinders,V type96087073.15≤202≤1.0270
B12V190ZL-312 cylinders,V type1210110073.15≤202≤1.0270
BH12V190ZL12 cylinders,V type1360123573.15≤202≤1.0270
Genset seriesGenset ModelEngine modelAlternator modelPower kWRPM,r/minVoltage VFrequency HzPower FactorGenset Dimension  mmWeight kg


3000series             (800-1200kw)800GF5A12V190ZL-2IFC series8001000400/6300/10500500.86410×2252×273917200


1000GF2A12V190ZLD1100015006250×2250×273919300


1100GFZA12V190ZLD31100150019300


1200GFBH12V190ZLD120015006006381×2200×263617200
















4000 series long-stroke diesel engines are designed and developed according to the current development of internal combustion engine industry at domestic and abroad, combining with AVL simulation and analysis software of Liszt in Cooperation with domestic universities and research institutions with years product development experience.The dynamic performance, economic performance, reliable performance and other indicators of the product have reached the international level, with compact shape, simple operation and maintenance, high power index characteristics, can match 50Hz and 60Hz frequency-operated motor and meet various power needs.

Engine seriesEngine modelFuel injection system Cylinders & ArrangementCylinder bore,mmPiston stroke,mmPower factor,kW RPM,r/minTotal piston displacement,LFuel Consumption Rate,g/kW.hLub. oil comsumption,g/kW.hOil pan capacity,LEngine overall dimension mmWeightkg
4000
series   (1100-1400KW)		BL12V190ZL-1Four stroke, pressurized intercooled, water-cooled, direct-injection combustor12 cylinders,V type1902551320126086.72≤200≤1.03402950×1980×23129300
BL12V190ZL-212 cylinders,V type1100100086.72≤200≤1.0340
BL12V190ZL-312 cylinders,V type1440136086.72≤200≤1.0340
Genset seriesGenset ModelEngine modelAlternator modelPower kWRPM,r/minVoltage VFrequency HzPower FactorGenset Dimension  mmWeight kg


4000
series             (1000-1100kw)		1100GF8BL12V190ZL1-2IFC series11001000600500.76250×2252×273919000


1000GF6BL12V190ZL-210001000


1000GF7BL12V190ZLD-210001000
















Series 6000 diesel engines is developped by Jichai in corperate with Austria AVL company and domestic well-known colleges and universities, research institutes cooperation, by means of the latest development of internal combustion engine, through the computer aided design, simulation, finite element analysis research of engine combustion process, such as crankshaft torsional vibration, turbocharger matching, into the exhaust system on the basis of the simulation, optimization of design and development6000 series land diesel engine is a cooperation between Jichai and AVL of Austria as well as famous universities and research institutes in China,use the latest development methods for the internal combustion engine, designed and developped through computer aided design, simulation calculation, finite element analysis and research on the engine combustion process, crankshaft torsional vibration, supercharger matching, intake and exhaust system.The advanced technology and mature spare parts of the international high-power internal combustion engine industry are adopted, so that the engine has made great progress in increasing the average effective pressure, reducing fuel consumption and emission, and improving the reliability and safety while expanding the power of the original 190 series diesel engine.Widely used in oil drilling, Marine power, offshore drilling platform, power generation and other fields.
Engine seriesEngine modelFuel injection system Cylinders & ArrangementCylinder bore,mmPiston stroke,mmPower factor,kW RPM,r/minTotal piston displacement,LFuel Consumption Rate,g/kW.hLub. oil comsumption,g/kW.hOil pan capacity,LEngine overall dimension mmWeightkg
6000 series   (1160-2400KW)H12V190ZLFour stroke, pressurized intercooled, water-cooled, direct-injection combustor12 cylinders,V type1902151566150073.15≤200≤1.03653234×1734×22869500
H12V190ZL-112 cylinders,V type1270120073.15≤200≤1.0365
H12V190ZL-212 cylinders,V type1050100073.15≤200≤1.0365
H16V190ZL16 cylinders,V type2180150097.53≤200≤1.04603525×2060×233113000
H16V190ZL-116 cylinders,V type1745120097.53≤200≤1.0460
H16V190ZL-216 cylinders,V type1455100097.53≤200≤1.0460
H16V190ZL-316 cylinders,V type1870130097.53≤200≤1.0460
Genset seriesGenset ModelEngine modelAlternator modelPower kWRPM,r/minVoltage VFrequency HzPower FactorGenset Dimension  mmWeight kg


6000 series             (1500-2000kw)1500GFH12V190ZL
15001500400/6300/10500500.87880×2869×317519100


2000GFZ6H16V190ZLJFG series150015001050019500


2000GFZ9H16V190ZL150015005930×2180×242117000


1500GF2H16V190ZL-1IFC series15001200480/13800607880×2869×317519500


1400GFH16V190ZL-220001000400/6300/10500509060×2869×317524000



Contact Name: Miss Xuan Zhang Contact Email: 28****5@qq.com
Contact Job Title: Sales And Marketing Contact Mob: 150***396
Contact Tel: Contact Fax:
Address: No.11966 West Jingshi Rd., Jinan Website: www.jichai.com

CNPC Jichai power company limited is located in the economic development zone of the Jinan city, Shandong province. The company was founded in 1920 and is the only internal combustion engine manufacturing enterprise belonging to CNPC . In 1965, Jichai successfully developed 12V190 high power diesel engine, which filled in gaps of national oil drilling power. In 1988, Jichai produced the first high power gas engine of China.Over 50 years, 190 series diesel engine has occupied more than 90% market share of oil-drilling power, and made a great contribution to national oil industry.



The main business of Jichai is R&D and manufacture of medium and high-power internal combustion engines, compressor and relative power equipment. At domestic advanced level in the same industry. Jichai products are widely used in oil drilling, marine power, power stations, locomotives and military products, etc. At present, Jichai has formed with multi-bore diameter engine products (140mm, 175mm, 190mm, 260mm and 270mm) with medium and high speed to cover the power range of 200~9000kW to meet the customers’ power requirements in different fields.



Jichai product are distributed all over country oil and gas field and 32 provinces and regions, have been exported to over 60 countries and forming a diversified market structure. Jichai has a national-level enterprise technology center, 55 national and industry standard marking rights, and 98 national patents, Jichai is the top 500 machinery manufacturing enterprises in China, and has won the National Quality Management Award, National Customer Satisfaction Enterprise, passed the ISO9001 quality management system, HSE management system and been regarded as 3A class enterprise by CAQ. Jichai products also passed the EU safety certification, and the certification of BV, RS etc.



In 2020, jichai will celebrate its centenary. New era, new journey, new leap. Jichai will adhere to innovation driven, promote high-quality development, and strive to build a world-class power equipment R & D and manufacturing service enterprise!
