175 Series Diesel Engine&Gensets

Electrical & Power Energy Generators

FOB Price:US$ Customizable price / Set(s)

MOQ:1 Set(s)

Payment Method : T/T

Keywords:Diesel Engine generator set

Add to Favorites

Product Category: Electrical & Power Energy > Generators Trademark:
Product Package: Specifications:
Place of Origin: Port: qingdao

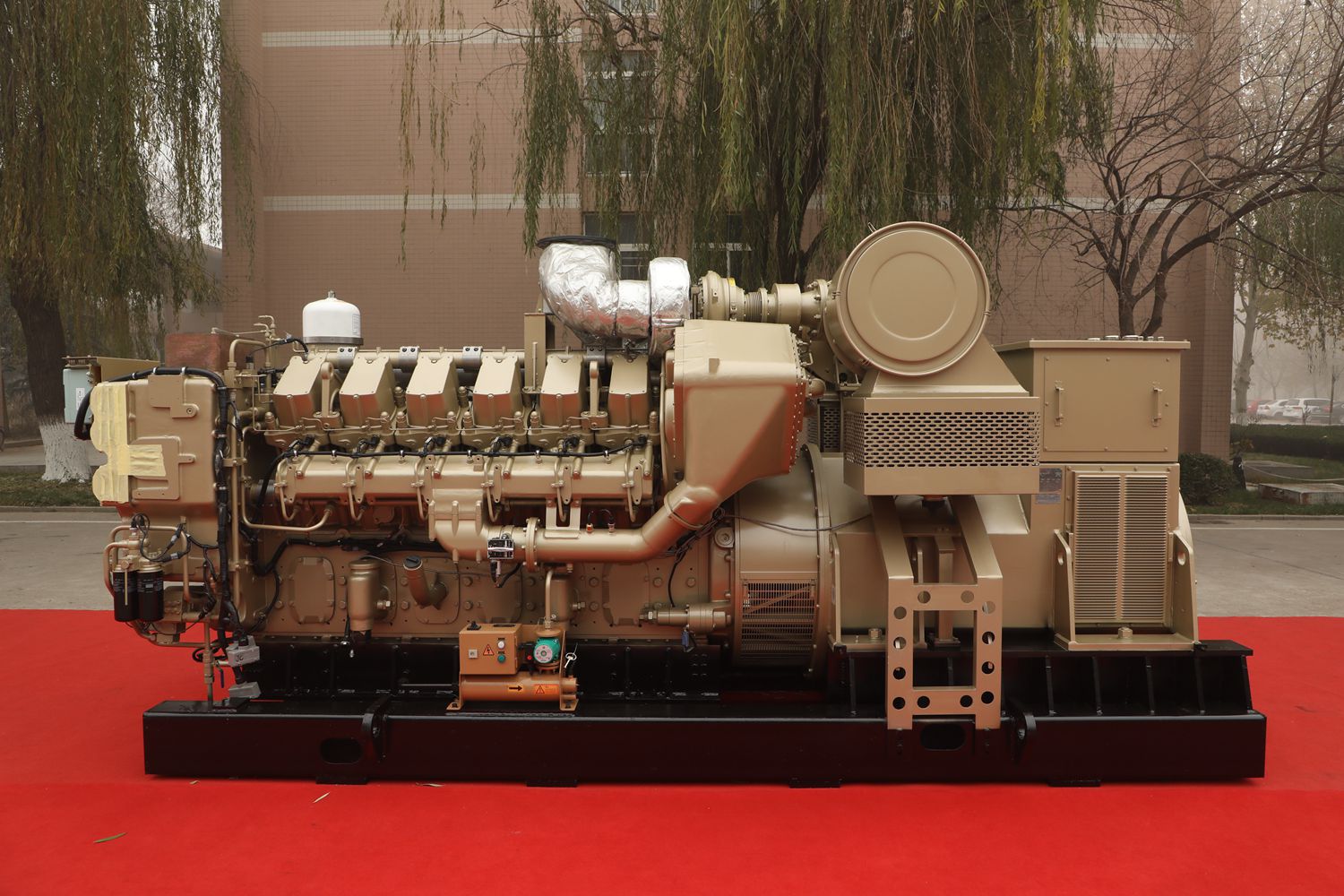

12V175 diesel engine has the characteristics of high supercharging, low energy consumption, high reliability and long life,through the use of electronic control, high pressure common rail, Miller cycle, exhaust after treatment, high efficiency supercharger and other new technologies,Its dynamic performance, economy, reliability and emission index have reached the international advanced level:The average effective pressure of diesel engine reaches 2.0mpa, the first overhaul period reaches 35,000 hours, and the bare engine emission meets GB20891 II.12V175 diesel-oil generator set is a kind of high-performance power set developed for the working condition of electric drilling machine.According to the characteristics of oilfield working conditions, the engine has been designed in terms of starting performance, sudden reduction capacity and continuous working capacity. In order to realize unattended operation, the engine has installed a remote monitoring system, which realizes the real-time recording of the engine's field data and remote monitoring on the Internet.
Engine seriesEngine modelFuel injection system Cylinders & ArrangementCylinder bore,mmPiston stroke,mmPower factor,kW RPM,r/minTotal piston displacement,LFuel Consumption Rate,g/kW.hLub. oil comsumption,g/kW.hOil pan capacity,LEngine overall dimension mmWeightkg
175  series           (1097-1645KW)12V175ZLHigh - voltage common rail ECU electronic control jet12 cylinders V type1751901645180054.81990.62793177×1844×20958300
12V175ZL-113701500198
12V175ZL-210971200200
Genset seriesGenset ModelEngine modelAlternator modelPower kWRPM,r/minVoltage VFrequency HzPower FactorGenset Dimension  mmWeight kg


175 series               (1200-1400kw)1200GF5012V175ZL-1IFC series12001500600500.78286×2800×286116600


1400GF12V175ZL1400180060



Contact Name: Miss Xuan Zhang Contact Email: 28****5@qq.com
Contact Job Title: Sales And Marketing Contact Mob: 150***396
Contact Tel: Contact Fax:
Address: No.11966 West Jingshi Rd., Jinan Website: www.jichai.com

CNPC Jichai power company limited is located in the economic development zone of the Jinan city, Shandong province. The company was founded in 1920 and is the only internal combustion engine manufacturing enterprise belonging to CNPC . In 1965, Jichai successfully developed 12V190 high power diesel engine, which filled in gaps of national oil drilling power. In 1988, Jichai produced the first high power gas engine of China.Over 50 years, 190 series diesel engine has occupied more than 90% market share of oil-drilling power, and made a great contribution to national oil industry.



The main business of Jichai is R&D and manufacture of medium and high-power internal combustion engines, compressor and relative power equipment. At domestic advanced level in the same industry. Jichai products are widely used in oil drilling, marine power, power stations, locomotives and military products, etc. At present, Jichai has formed with multi-bore diameter engine products (140mm, 175mm, 190mm, 260mm and 270mm) with medium and high speed to cover the power range of 200~9000kW to meet the customers power requirements in different fields.



Jichai product are distributed all over country oil and gas field and 32 provinces and regions, have been exported to over 60 countries and forming a diversified market structure. Jichai has a national-level enterprise technology center, 55 national and industry standard marking rights, and 98 national patents, Jichai is the top 500 machinery manufacturing enterprises in China, and has won the National Quality Management Award, National Customer Satisfaction Enterprise, passed the ISO9001 quality management system, HSE management system and been regarded as 3A class enterprise by CAQ. Jichai products also passed the EU safety certification, and the certification of BV, RS etc.



In 2020, jichai will celebrate its centenary. New era, new journey, new leap. Jichai will adhere to innovation driven, promote high-quality development, and strive to build a world-class power equipment R & D and manufacturing service enterprise!
