Electrical Horizontal Centrifugal Water Pump Vertical Inline Pump
Manufacturing & Processing Machinery Valves & Pumps & Compressors
MOQ:1 Piece(s)
Payment Method : T/T
Keywords: Water Pump submersible pump pump end suction pump single satge pump
| Product Category: | Manufacturing & Processing Machinery > Valves & Pumps & Compressors | Trademark: | EAST PUMP |
| Product Package: | Export wooden | Specifications: | |
| Place of Origin: | Nantong | Port: | shanghai |

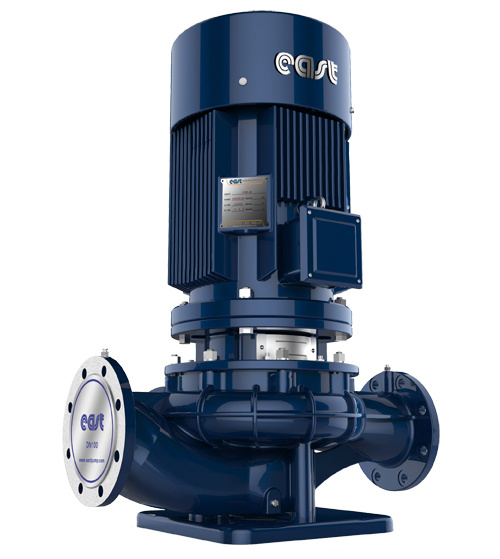

DFG series Single Stage Vertical Centrifugal Pipeline Pumps
1、Operating conditions and range:
| Model | DFG |
| DN(flange) | 80~800mm |
| Capacity | 2~1400m3/h, with 2950RPM, 1450RPM, 980RPM |
| Head | 5~130m |
| Max working pressure | Not be greater than 1.6MPa. In case of inlet pressure greater than 0.8MPa, changes has to be made to the pump body and pump cover material, such as ductile iron QT405-10. |
| Medium Temperature | -15°C~105°C |
| Material | Cast iron-HT200, HT250; SS304, SS316, SS316L, Duplex SS |
| Partical | 80mg/l |
| Motor | 380V, 415V, 660V; IP54, IP55; 50Hz, 60Hz |
| Shaft | Cast steel, 2Cr13 |
| Casing and cover | Cast iron, Nudular cast iron, Cast steel |
| Impeller | Cast iron, Bronze, stainless steel |
| Mouth seal | Cast iron, nudular cast iron, bronze, stianless steel. |
| Shaft seal | Mechanical seal or packing seal |
| Bearing | Closed grease lubricated roller bearing(SKF, NTN) NSK thrust and roll bearing |
| Flange standard | ASME, DIN, GB |
| Seal by | Burgmann mechanical seal or gland packing |
| Main Application | Power plants, water supply, municipal, construction, fire fighting, industrial and mining enterprises and other industries for the transportation of water, of similar physical and chemical properties of water and other media |

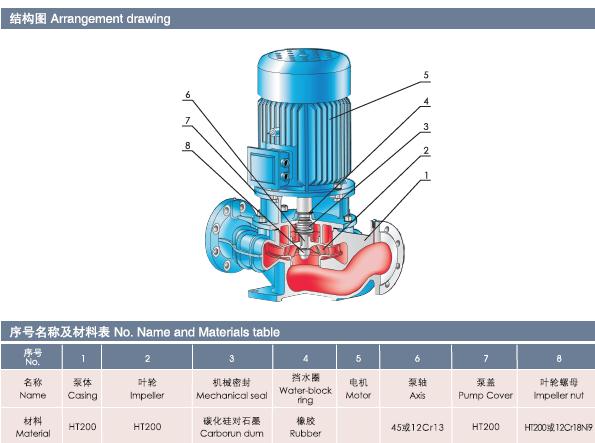

2、Characteristic of Structure:

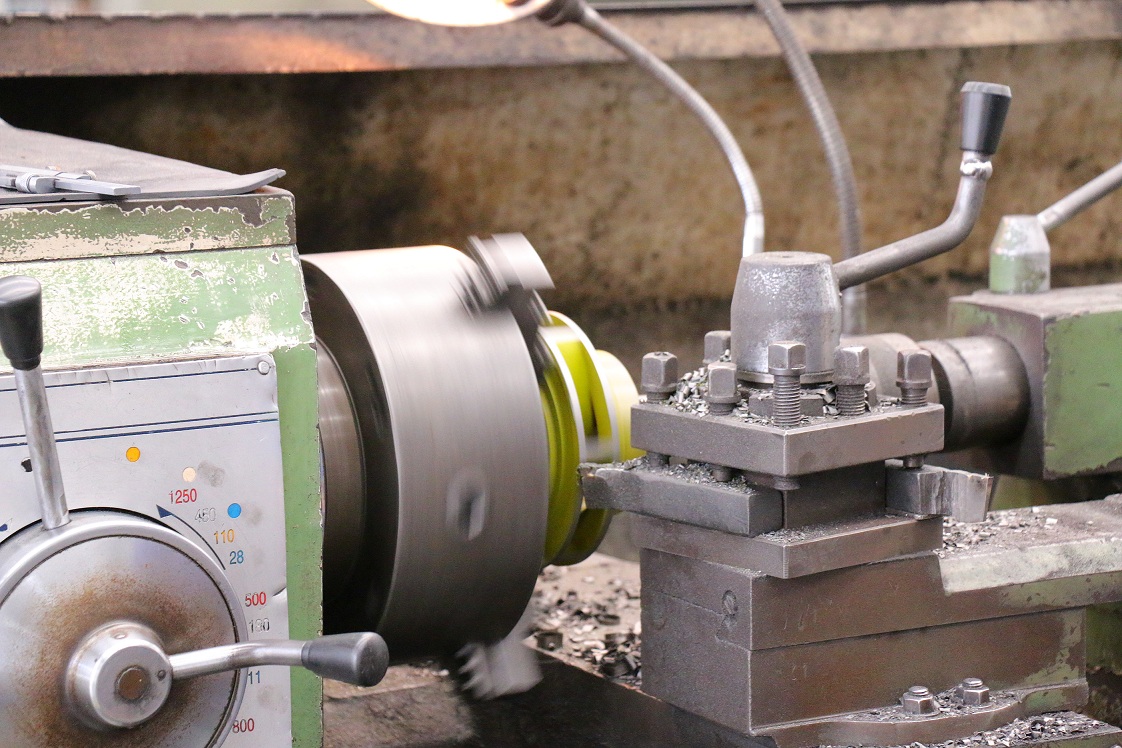

3、Manufacture Display

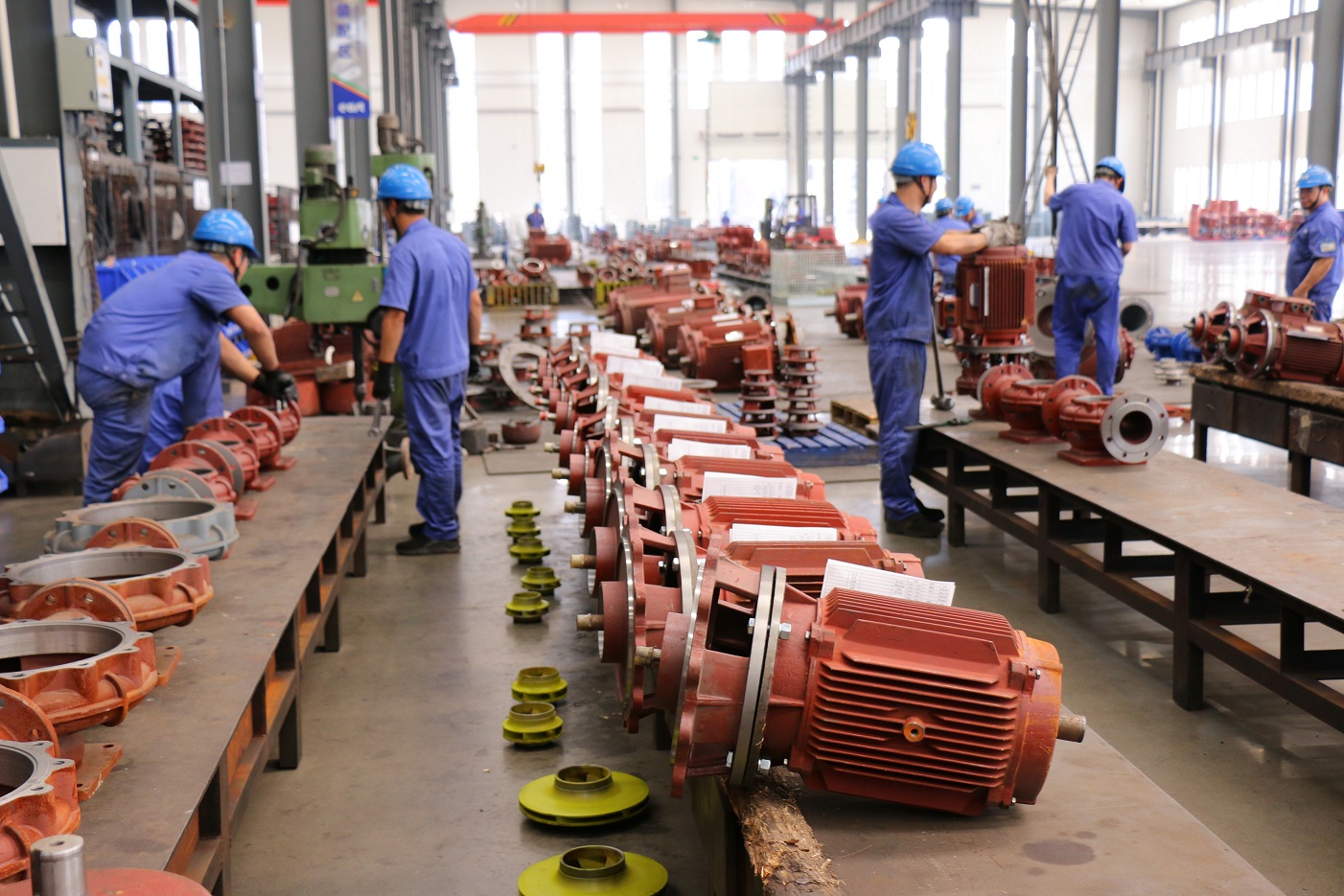

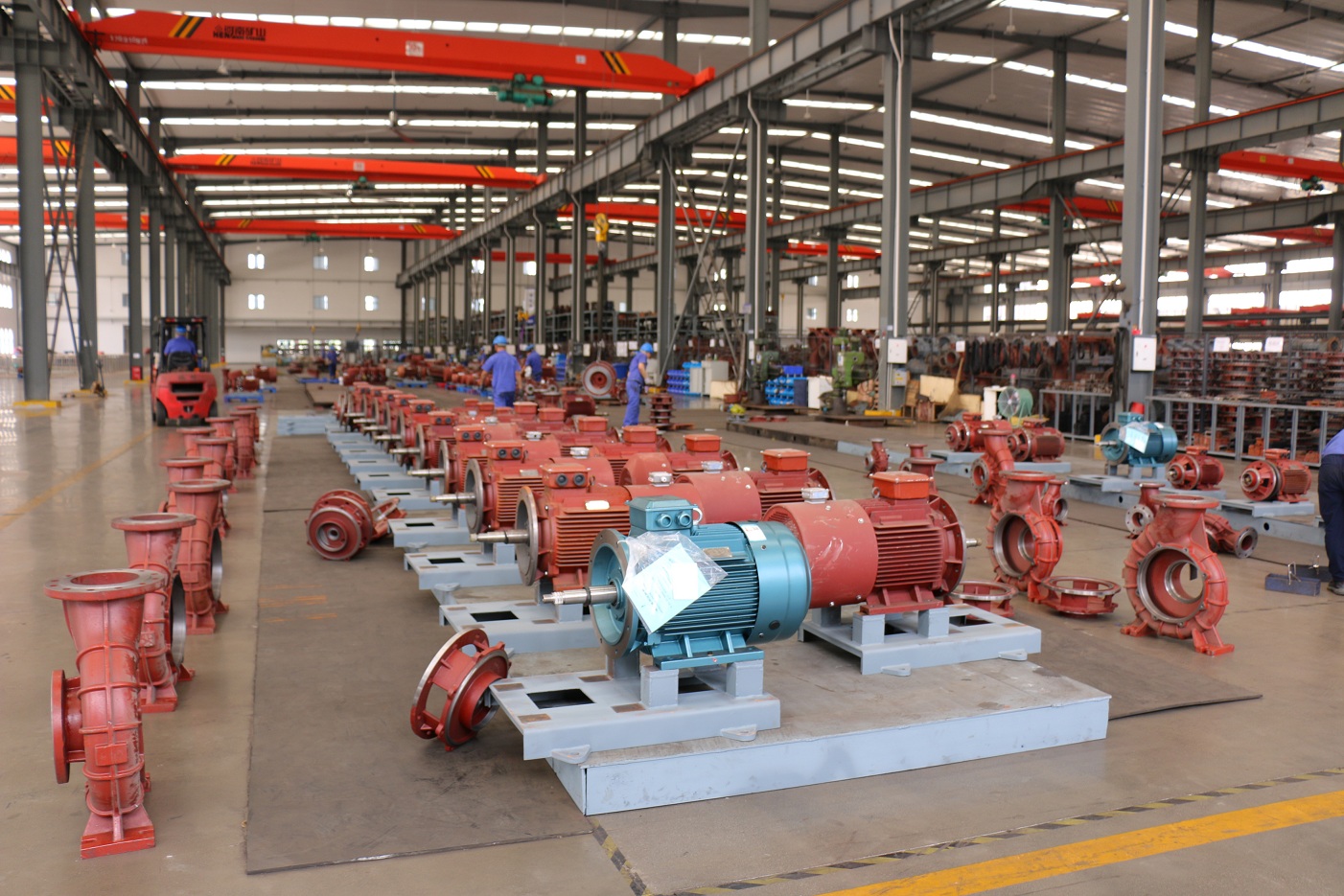

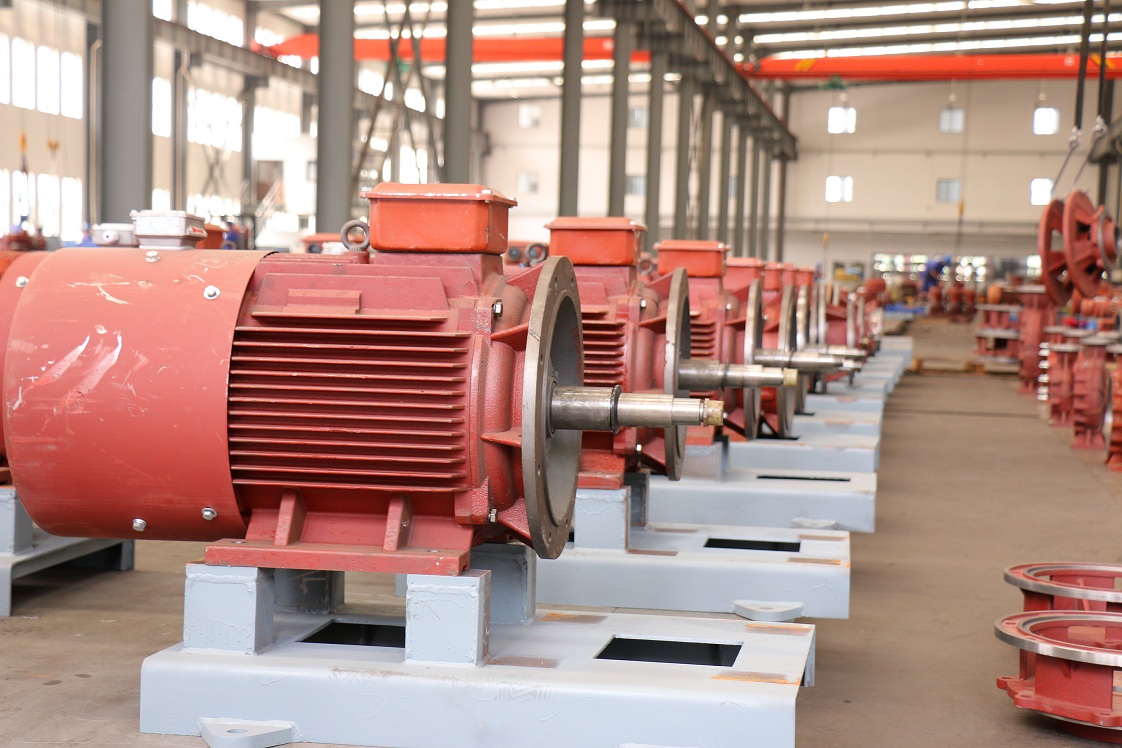

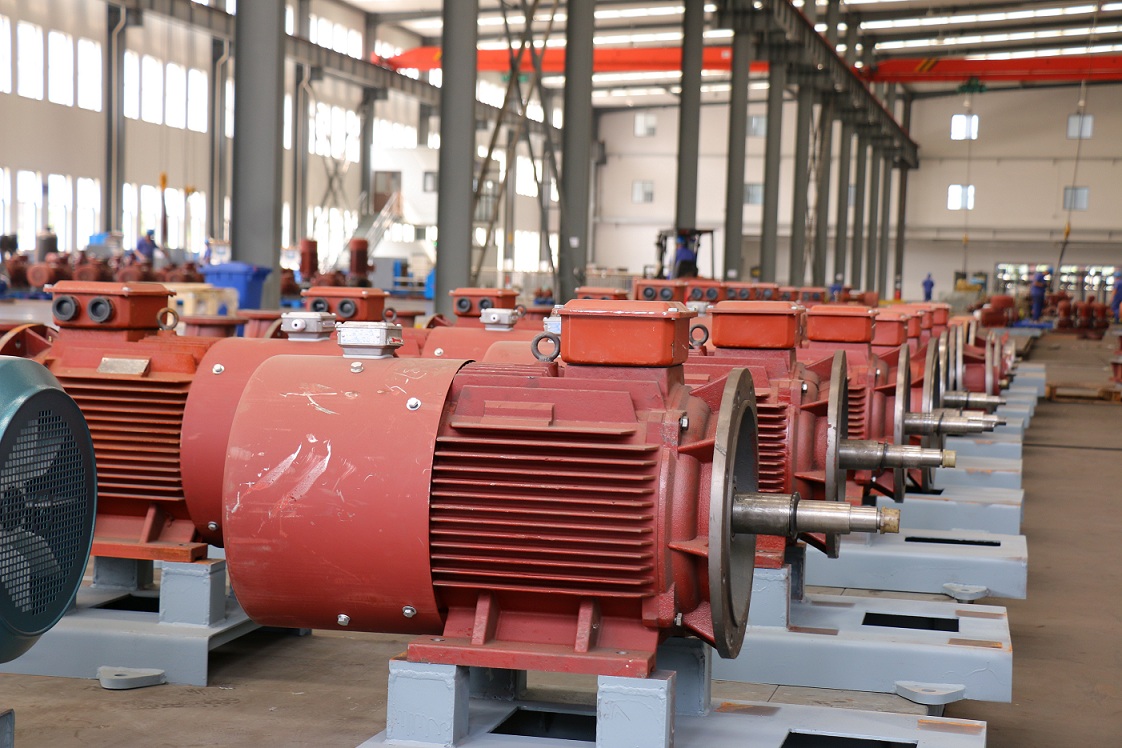

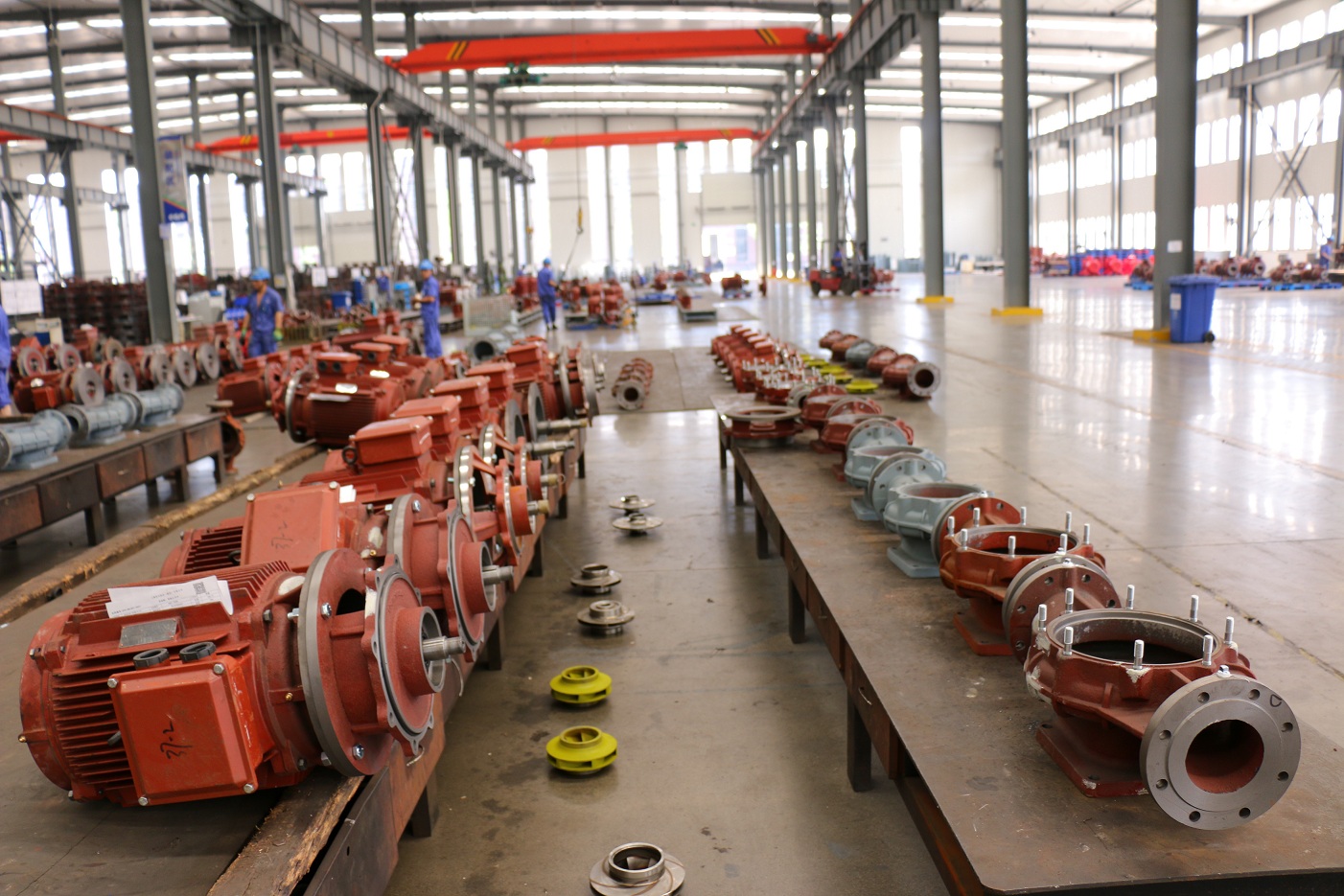

Pump production site:
| Contact Name: | Miss Dora 唐 | Contact Email: | ea****p@163.net |
| Contact Job Title: | Employee | Contact Mob: | 176***448 |
| Contact Tel: | 021-36044018 | Contact Fax: | |
| Address: | No.18 LINGXIAO ROAD ,TONGZHOU DISTRICT,NANTONG,CHINA | Website: | www.eastpump.com |
As a supplier for relevant supporting products and system solution in domestic pump industry, Shanghai East Pump (Group) Co., Ltd. is a large science, industry and trade group specialized in scientific research, manufacture, marketing and service. It has modern pump production, detection base and industry chain in Yangtze River Delta covering an area of more than 1,000 mu. With over RMB 2 billion assets, over 1,000 sets of equipment and over 3,000 employees, it has developed dozens of series products, which are granted hundreds of national patents. With a strong focus on meeting customers’ core interests and value, the Company has established cooperation relationship with over 20 countries and regions. It sticks to management and technological innovation, pursues the latest technology, high quality and satisfactory services by focusing on customers’ demand and is able to supply stable, reliable, and competitive products and services to the fields such as pump, motor, valve, casting, non-negative pressure, complete set of equipment, control system as well as environmental protection and energy conservation fields. With 12 branches and more than 100 domestic and overseas strategic suppliers, the Company will still create value for customers and make contributions to the society.
Our contributions to the society
Create value for customers. The Company meets customers’ production and living demands through the whole process of technical support and marketing service. It is able to provide products high in quality and low in price using its self-owned industry chain to provide stable, reliable, environmentally friendly, energy saving and supporting products and services for water conservancy, municipal works, industry and mining as well as civil building to realize stable production and comfortable life.
Boost the industrial progress. The Company endeavors to create a healthy and sustainable industrial ecological system in the principle of honesty, innovation, cooperation and win-win. By tailoring solutions for customers, it could satisfy the diversified demands. Through improving manufacturing process, strengthening R & D investment and technological innovation and international exchange, etc. constantly, it boosts industrial upgrading.
Boost economic growth, social prosperity and sustainable development. The Company performs social responsibilities seriously. It pays the direct taxes of over RMB 100 million per year, brings the linked development of upstream and downstream industry, promotes social employment, highlights the idea of environmental protection and energy conservation and provides customers with a valuable systematic solution and product from project planning and design to product R & D, manufacturing, delivery and maintenance. In the course of modernization, the Company has fully fulfilled the national “the Belt and Road” strategy and its products have been applied to all livelihood industries stably.
Our persistence and future
By focusing on customers and employees and the idea of “value-oriented and innovation driving”, the Company makes further development by stressing quality. It provides high quality products and services of pump industry so as to make contributions to the industry and the nation!
We’d like to join hands with you to shoulder the holy mission of era by seizing the golden historic chance and create an international brand and a world famous pump group together!
