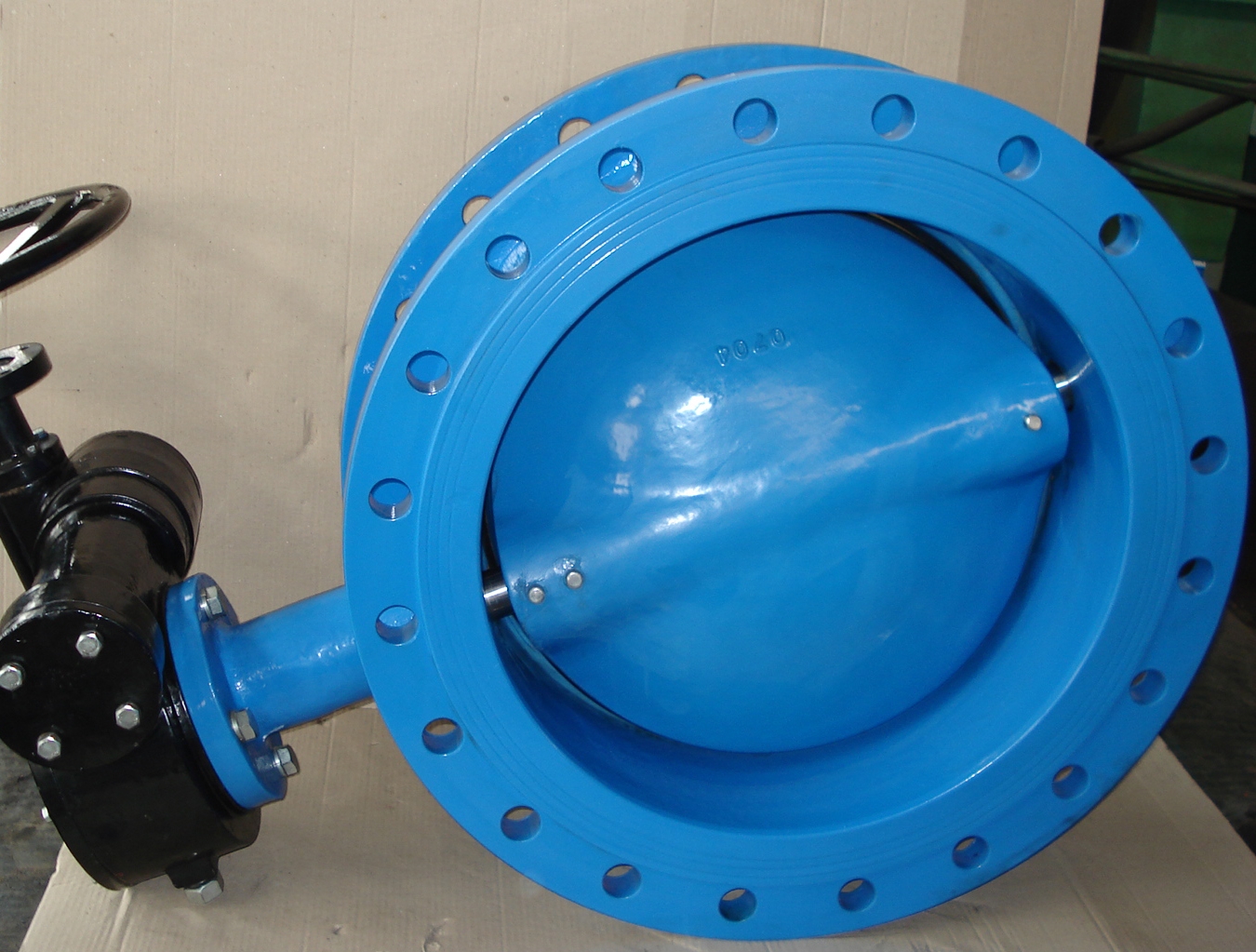

double eccentric (two offset) butterfly valve

Oil & Gas Piping and valves

FOB Price:US$ 135.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : L/C T/T D/P

Keywords:double eccentric two offset  flanged butterfly valve

Add to Favorites

Product Category: Oil & Gas > Piping and valves Trademark:
Product Package: wooden case Specifications: DN50-DN1800
Place of Origin: Tianjin,China Port: XINGANG

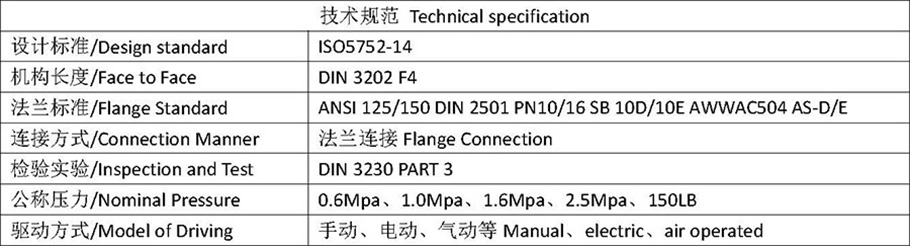

Product name:Double Eccentric Butterfly Valves

Model No: D343X-50-1800-PN10

Size: EN593

General Design: ISO5211

Face To Face: EN558-1 13 14 series

Mounting Pad: EN1092-16

Flange Drilling: EN12266;DIN3230 Part 4

Rated: 16bar


Product features:

Small in size and light in weight

Easy to install and maintain

Simple and compact construction, quick 90_degree on/off operated

Minimized operating torque, energy saving

Flow curve in straight line

Excellent regulation performance

Long working life 30,000 times on/off without leakage

Wide selection of materials, application for various medium



Contact Name: Mr Frank QIN Contact Email: ad****n@yanquan-piping.com
Contact Job Title: Marketing Manager Contact Mob: 151***058
Contact Tel: Contact Fax:
Address: Rm1703,Rongding Tianxia,No.226 Zhonghua North street Website: www.yanquan-piping.com

With nearly 10 years export experience on water pipelines, Shijiazhuang Yanquan I/E Trade company dedicated to provide a one-stop solution for your purchasing requirements on piping systems.

We own a factory to mainly produce butterfly valves,check valves, gate valves,Y strainer,etc, more than a manufacturer, we are always trying to offer you more professional service.

Our mission is to answer your requestments quickly and delivery the quality products in the shortest time to worldwide customers  in the field of water supply,water division and irrigation.

we are located in the area of Beijing-Tianjin-Hebei, with the geographical advantages, there are so much factory resources of cast iron/lost wax foundries, rubber and plastic,metal stamping,pipes and fittings,valves,through our experience and professinal skills, we are confidient to help clients to find the best solution to meet the requirements.

Our main products are as below:
1) Water valves: butterfly valves, check valves, gate valves,knife gate valves,Y strainer, air valves,hydraulic control valves,ball vales,service connection valves,fire hydrant
2) Pipe joint fittings: flange adaptor, coupling,restrained flange adaptor/ coupling, Rubber expansion joint,dismantling joint,MJ gland packs
3) Pipe repairing: Full circle ss band repair clamp,full circle di lug repair clamp, semi-cirle repair clamp, SS coupling, Tapping sleeve tee
4) Pipe fittings: ISO2531 solid flanged/socket/loose flanged/ PVC socket ends ductile iron fittings,BW carbon steel fittings and forged flanges,backing up flanges,stamped loose flanges
5) water meters: multijet /single jet/woltman / ultrosonic water meter
6) Manhole covers and surface box.
7) Threaded fittings: malleable iron fittings, SS plumbing,camlock couplings

Our object is to help customers to become more competitive in their industry.
