6000 Series Extruded Aluminum Pipe Fittings For Material Table
Agricultural Agricultural Machinery
FOB Price:US$ 1.00 / KG
MOQ:500 KG
Payment Method : L/C T/T D/P
Keywords:aluminium pipe aluminium aluminium profiles
| Product Category: | Agricultural > Agricultural Machinery | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | XINGANG PORT,CHINA |

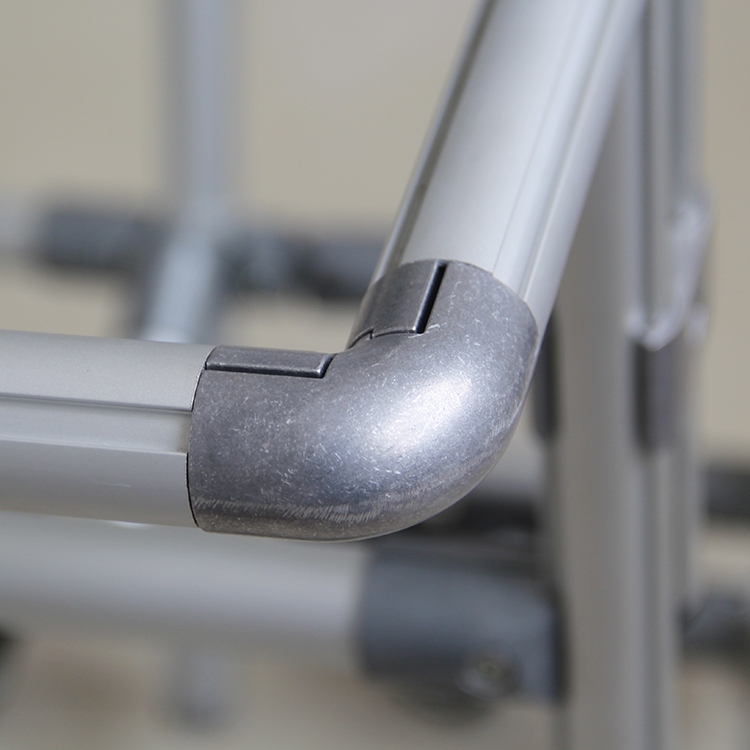

Aluminum Pipe Connector Aluminum Tube Fittings For Material Table with mill finish, anodized
| Langfang Guomei Aluminum Co., Ltd. |  | |||||
| Aluminum Pipe Connector Aluminum Tube | ||||||
| Product Code | Sizes (mm) | Weight/M (kg/m) | Perimetre (mm) | Area(mm2) | Diametre(mm) | Thickness (mm) |
| GM-YXB-01 | D8.9X1.8 | 0.114 | 27.946 | 40.129 | 8.9 | 1.8 |
| GM-YXB-02 | D8.9X1.55 | 0.102 | 27.946 | 35.772 | 8.9 | 1.55 |
| GM-D9X2.0 | D9X2.0 | 0.125 | 28.26 | 43.960 | 9 | 2 |
| GM-NEWZ-D9.5X1.4 | D9.5X1.4 | 0.103 | 29.9242 | 36.161 | 9.53 | 1.42 |
| GM-D10X1.0 | D10X1.0 | 0.081 | 31.4 | 28.260 | 10 | 1 |
| GM-SX-033 | D10X1.2 | 0.095 | 31.4 | 33.158 | 10 | 1.2 |
| GM-GY-82 | D10.6X1.6 | 0.129 | 33.284 | 45.216 | 10.6 | 1.6 |
| GM-11.5x0.8 | D11.5X0.8 | 0.077 | 36.11 | 26.878 | 11.5 | 0.8 |
| GM-HB-06 | D11.8X0.55 | 0.055 | 37.052 | 19.429 | 11.8 | 0.55 |
| GM-D12X0.8 | D12X0.8 | 0.080 | 37.68 | 28.134 | 12 | 0.8 |
| GM-D12X0.9 | D12X0.9 | 0.089 | 37.68 | 31.369 | 12 | 0.9 |
| GM-D12X1.0 | D12X1.0 | 0.098 | 37.68 | 34.540 | 12 | 1 |
| GM-D12X1.2 | D12X1.2 | 0.116 | 37.68 | 40.694 | 12 | 1.2 |
| GM-D12.4X0.8 | D12.4X0.8 | 0.083 | 38.936 | 29.139 | 12.4 | 0.8 |
| GM-NEWZ-D12.7X1.4 | D12.7X1.4 | 0.142 | 39.878 | 49.675 | 12.7 | 1.4 |
| GM-HB-D13X1.4 | D13X1.4 | 0.145 | 40.82 | 50.994 | 13 | 1.4 |
| GM-D13.7X2 | D13.7X2 | 0.209 | 43.018 | 73.476 | 13.7 | 2 |
| GM-D14X0.65 | D14X0.65 | 0.078 | 43.96 | 27.247 | 14 | 0.65 |
| GM-D14X0.7 | D14X0.7 | 0.083 | 43.96 | 29.233 | 14 | 0.7 |
| GM-D14X0.8 | D14X0.8 | 0.095 | 43.96 | 33.158 | 14 | 0.8 |
| GM-D14X0.9 | D14X0.9 | 0.106 | 43.96 | 37.021 | 14 | 0.9 |
| GM-D14X1.2 | D14X1.2 | 0.137 | 43.96 | 48.230 | 14 | 1.2 |
| GM-D14X1.5 | D14X1.5 | 0.168 | 43.96 | 58.875 | 14 | 1.5 |
| GM-D15X0.65 | D15X0.65 | 0.083 | 47.1 | 29.288 | 15 | 0.65 |
| Langfang Guomei Aluminum Co., Ltd. | | |||||
| Aluminum Pipe Connector Aluminum Tube | ||||||
| Product Code | Sizes (mm) | Weight/M (kg/m) | Perimetre (mm) | Area(mm2) | Diametre(mm) | Thickness (mm) |
| GM-D15X0.8 | D15X0.8 | 0.102 | 47.1 | 35.670 | 15 | 0.8 |
| GM-D15X1.2 | D15X1.2 | 0.148 | 47.1 | 51.998 | 15 | 1.2 |
| GM-D15X1.4 | D15X1.4 | 0.170 | 47.1 | 59.786 | 15 | 1.4 |
| GM-D16X0.6 | D16X0.6 | 0.083 | 50.24 | 29.014 | 16 | 0.6 |
| GM-D16X0.8 | D16X0.8 | 0.109 | 50.24 | 38.182 | 16 | 0.8 |
| GM-DLX16 | D16X1.0 | 0.134 | 50.24 | 47.100 | 16 | 1 |
| GM-D16X1.1 | D16X1.1 | 0.147 | 50.24 | 51.465 | 16 | 1.1 |
| GM-RS-03 | D16X1.2 | 0.159 | 50.24 | 55.766 | 16 | 1.2 |
| GM-NEWZ-D16X1.3 | D16X1.3 | 0.171 | 50.24 | 60.005 | 16 | 1.3 |
| GM-D16.5X1.2 | D16.5X1.2 | 0.164 | 51.81 | 57.650 | 16.5 | 1.2 |
| GM-GY-49 | D17X5.9 | 0.586 | 53.38 | 205.639 | 17 | 5.9 |
| GM-D17.5X2.0 | D17.5X2.0 | 0.277 | 54.95 | 97.340 | 17.5 | 2 |
| GM-D18X1.2 | D18X1.2 | 0.180 | 56.52 | 63.302 | 18 | 1.2 |
| GM-D18X1.5 | D18X1.5 | 0.221 | 56.52 | 77.715 | 18 | 1.5 |
| GM-D19X0.7 | D19X0.7 | 0.115 | 59.66 | 40.223 | 19 | 0.7 |
| GM-VT-D19X0.9 | D19X0.9 | 0.146 | 59.66 | 51.151 | 19 | 0.9 |
| GM-DLX-17 | D19X1.0 | 0.161 | 59.66 | 56.520 | 19 | 1 |
| GM-HB-01A | D19X1.1 | 0.176 | 59.66 | 61.827 | 19 | 1.1 |
| GM-NEWZ-D19X1.2 | D19X1.2 | 0.191 | 59.66 | 67.070 | 19 | 1.2 |
| HBHF-405 | D19X1.4 | 0.221 | 59.66 | 77.370 | 19 | 1.4 |
| GM-D19X1.5 | D19X1.5 | 0.235 | 59.66 | 82.425 | 19 | 1.5 |
| GM-NEWZ-D19X1.6 | D19X1.6 | 0.249 | 59.66 | 87.418 | 19 | 1.6 |
| GM-D19X1.85 | D19X1.85 | 0.284 | 59.66 | 99.624 | 19 | 1.85 |
| GM-NEWZ-D19X2.0 | D19X2.0 | 0.304 | 59.66 | 106.760 | 19 | 2 |
| Langfang Guomei Aluminum Co., Ltd. | | |||||
| Aluminum Pipe Connector Aluminum Tube | ||||||
| Product Code | Sizes (mm) | Weight/M (kg/m) | Perimetre (mm) | Area(mm2) | Diametre(mm) | Thickness (mm) |
| GM-RS-01 | D19.2X1.5 | 0.238 | 60.288 | 83.367 | 19.2 | 1.5 |
| GM-D19.3X1.4 | D19.3X1.4 | 0.224 | 60.602 | 78.688 | 19.3 | 1.4 |
| GM-D20X0.7 | D20X0.7 | 0.121 | 62.8 | 42.421 | 20 | 0.7 |
| GM-D20x1.0 | D20X1.0 | 0.170 | 62.8 | 59.660 | 20 | 1 |
| GM-NEWZ-D20X1.2 | D20X1.2 | 0.202 | 62.8 | 70.838 | 20 | 1.2 |
| GM-D20x1.3 | D20X1.3 | 0.218 | 62.8 | 76.333 | 20 | 1.3 |
| GM-D20X1.5 | D20X1.5 | 0.248 | 62.8 | 87.135 | 20 | 1.5 |
| GM-D20X6.85 | D20X6.85 | 0.806 | 62.8 | 282.843 | 20 | 6.85 |
| GM-678 | D20.2X5.8 | 0.747 | 63.428 | 262.253 | 20.2 | 5.8 |
| GM-D21X0.8 | D21X0.8 | 0.145 | 65.94 | 50.742 | 21 | 0.8 |
| GM-XS-04 | D21X2.3 | 0.385 | 65.94 | 135.051 | 21 | 2.3 |
| GM-YJ-01 | D21.9X3 | 0.507 | 68.766 | 178.038 | 21.9 | 3 |
| GM-681 | D21.8X0.8 | 0.150 | 68.452 | 52.752 | 21.8 | 0.8 |
| GM-D22X0.7 | D22X0.7 | 0.133 | 69.08 | 46.817 | 22 | 0.7 |
| GM-D22X0.9 | D22X0.9 | 0.170 | 69.08 | 59.629 | 22 | 0.9 |
| GM-D22X1.0 | D22X1.0 | 0.188 | 69.08 | 65.940 | 22 | 1 |
| GM-D22X1.2 | D22X1.2 | 0.223 | 69.08 | 78.374 | 22 | 1.2 |
| GM-HB-D22X1.4 | D22X1.4 | 0.258 | 69.08 | 90.558 | 22 | 1.4 |
| GM-674 | D22X1.8 | 0.325 | 69.08 | 114.170 | 22 | 1.8 |
| GM-D22X2.0 | D22X2.0 | 0.358 | 69.08 | 125.600 | 22 | 2 |
| GM-D22X2.15 | D22X2.15 | 0.382 | 69.08 | 134.007 | 22 | 2.15 |
| GM-KXZ-67 | D22X2.6 | 0.451 | 69.08 | 158.382 | 22 | 2.6 |
| GM-D22.2X1.1 | D22.2X1.1 | 0.208 | 69.708 | 72.879 | 22.2 | 1.1 |
| GM-RS-02 | D22.8X1.3 | 0.250 | 71.592 | 87.763 | 22.8 | 1.3 |
| Langfang Guomei Aluminum Co., Ltd. | | |||||
| Aluminum Pipe Connector Aluminum Tube | ||||||
| Product Code | Sizes (mm) | Weight/M (kg/m) | Perimetre (mm) | Area(mm2) | Diametre(mm) | Thickness (mm) |
| GM-JM-02 | D23.9X1.0 | 0.205 | 75.046 | 71.906 | 23.9 | 1 |
| GM-680 | D24.1X0.8 | 0.167 | 75.674 | 58.530 | 24.1 | 0.8 |
| GM-D24.8X1.9 | D24.8X1.9 | 0.389 | 77.872 | 136.621 | 24.8 | 1.9 |
| GM-HB-04 | D24.9X1.1 | 0.234 | 78.186 | 82.205 | 24.9 | 1.1 |
| GM-HB-03 | D24.9X1.2 | 0.255 | 78.186 | 89.302 | 24.9 | 1.2 |
| GM-D25x0.8 | D25X0.8 | 0.173 | 78.5 | 60.790 | 25 | 0.8 |
| GM-HB-09 | D25X0.9 | 0.194 | 78.5 | 68.107 | 25 | 0.9 |
| GM-D25X1.0 | D25X1.0 | 0.215 | 78.5 | 75.360 | 25 | 1 |
| GM-D25X1.1 | D25X1.1 | 0.235 | 78.5 | 82.551 | 25 | 1.1 |
| GM-D25X1.2 | D25X1.2 | 0.256 | 78.5 | 89.678 | 25 | 1.2 |
| GM-HB-D25X1.4 | D25X1.4 | 0.296 | 78.5 | 103.746 | 25 | 1.4 |
| GM-D25X1.5 | D25X1.5 | 0.315 | 78.5 | 110.685 | 25 | 1.5 |
| GM-D25X1.75 | D25X1.8 | 0.374 | 78.5 | 131.126 | 25 | 1.8 |
| GM-D25X1.9 | D25X1.9 | 0.393 | 78.5 | 137.815 | 25 | 1.9 |
| GM-D25X2.5 | D25X2.5 | 0.503 | 78.5 | 176.625 | 25 | 2.5 |
| GM-YJ-02 | D25X3 | 0.591 | 78.5 | 207.240 | 25 | 3 |
| GM-D25X5.0 | D25X5.0 | 0.895 | 78.5 | 314.000 | 25 | 5 |
| GM-D25X6.0 | D25X6.0 | 1.020 | 78.5 | 357.960 | 25 | 6 |
| GM-D25X7.3 | D25X7.3 | 1.156 | 78.5 | 405.719 | 25 | 7.3 |
| GM-D25X8.25 | D25X8.25 | 1.237 | 78.5 | 433.909 | 25 | 8.25 |
| GM-LZF-44 | D25X9.1 | 1.295 | 78.5 | 454.327 | 25 | 9.1 |
| GM-D25.4X1.0 | D25.4X1.0 | 0.218 | 79.756 | 76.616 | 25.4 | 1 |
| Langfang Guomei Aluminum Co., Ltd. | | |||||
| Aluminum Pipe Connector Aluminum Tube | ||||||
| Product Code | Sizes (mm) | Weight/M (kg/m) | Perimetre (mm) | Area(mm2) | Diametre(mm) | Thickness (mm) |
| GM-NEWZ-D25.4X1.2 | D25.4X1.2 | 0.260 | 79.756 | 91.186 | 25.4 | 1.2 |
| GM-LZF-D25.4X2.8 | D25.4X2.8 | 0.566 | 79.756 | 198.699 | 25.4 | 2.8 |
| GM-RS-08 | D25.6X1.4 | 0.303 | 80.384 | 106.383 | 25.6 | 1.4 |
| GM-D25.9X1.3 | D25.9X1.3 | 0.286 | 81.326 | 100.417 | 25.9 | 1.3 |
| GM-GY-05 | D26X3 | 0.617 | 81.64 | 216.660 | 26 | 3 |
| GM-6113 | D26X8.7 | 1.347 | 81.64 | 472.601 | 26 | 8.7 |
| GM-RS-07 | D26.2X1.7 | 0.373 | 82.268 | 130.781 | 26.2 | 1.7 |
| GM-GW-05 | D26.3X2 | 0.435 | 82.582 | 152.604 | 26.3 | 2 |
| GM-SX-29 | D27X1.2 | 0.277 | 84.78 | 97.214 | 27 | 1.2 |
| GM-D27X4 | D27X4.0 | 0.823 | 84.78 | 288.880 | 27 | 4 |
| GM-D27.2X4.5 | D27.2X4.5 | 0.914 | 85.408 | 320.751 | 27.2 | 4.5 |
| GM-D27.9X0.55 | D27.9X0.55 | 0.135 | 87.606 | 47.233 | 27.9 | 0.55 |
| GM-D28X0.8 | D28X0.8 | 0.195 | 87.92 | 68.326 | 28 | 0.8 |
| GM-D28X1.0 | D28X1.0 | 0.242 | 87.92 | 84.780 | 28 | 1 |
| GM-JM-10 | D28X1.1 | 0.265 | 87.92 | 92.913 | 28 | 1.1 |
| GM-JL-24 | D28X1.5 | 0.356 | 87.92 | 124.815 | 28 | 1.5 |
| GM-JL-54 | D28X1.8 | 0.422 | 87.92 | 148.082 | 28 | 1.8 |
| GM-D28X3.2 | D28X3.2 | 0.710 | 87.92 | 249.190 | 28 | 3.2 |
| GM-D28X4 | D28X4 | 0.859 | 87.92 | 301.440 | 28 | 4 |
| GM-JM-01 | D28.3X1.0 | 0.244 | 88.862 | 85.722 | 28.3 | 1 |
| GM-KXZ-62 | D28.5X2.2 | 0.518 | 89.49 | 181.680 | 28.5 | 2.2 |
| GM-D28.6X0.8 | D28.6X0.8 | 0.199 | 89.8 | 69.900 | 28.6 | 0.8 |
| Langfang Guomei Aluminum Co., Ltd. | | |||||
| Aluminum Pipe Connector Aluminum Tube | ||||||
| Product Code | Sizes (mm) | Weight/M (kg/m) | Perimetre (mm) | Area(mm2) | Diametre(mm) | Thickness (mm) |
| GM-LZY-20 | D28.7X2.5 | 0.586 | 90.118 | 205.670 | 28.7 | 2.5 |
| GM-QG-20 | D29X1.1 | 0.275 | 91.06 | 96.367 | 29 | 1.1 |
| GM-RS-09 | D29.4X1.7 | 0.421 | 92.316 | 147.863 | 29.4 | 1.7 |
| GM-651 | D29.8X1.9 | 0.474 | 93.572 | 166.451 | 29.8 | 1.9 |
| GM-D30X1.0 | D30X1.0 | 0.260 | 94.2 | 91.060 | 30 | 1 |
| GM-DYR-12 | D30X1.5 | 0.383 | 94.2 | 134.235 | 30 | 1.5 |
| GM-YXB-04 | D30X3.0 | 0.725 | 94.2 | 254.340 | 30 | 3 |
| GM-31x24.5 | D31X3.25 | 0.807 | 97.34 | 283.189 | 31 | 3.25 |
| GM-D31.5x2 | D31.5X2 | 0.528 | 98.91 | 185.260 | 31.5 | 2 |
| GM-D31.5x3 | D31.5X3 | 0.765 | 98.91 | 268.470 | 31.5 | 3 |
| GM-673 | D31.6X1.8 | 0.480 | 99.224 | 168.430 | 31.6 | 1.8 |
| GM-QG-21 | D31.8X1.1 | 0.302 | 99.852 | 106.038 | 31.8 | 1.1 |
| GM-D31.8X2.9 | D31.8X2.9 | 0.750 | 99.852 | 263.163 | 31.8 | 2.9 |
| GM-YXB-03 | D31.8X3.15 | 0.808 | 99.852 | 283.377 | 31.8 | 3.15 |
| GM-D32X0.8 | D32X0.8 | 0.223 | 100.48 | 78.374 | 32 | 0.8 |
| GM-D32X1.2 | D32X1.2 | 0.331 | 100.48 | 116.054 | 32 | 1.2 |
| GM-D32X1.4 | D32X1.4 | 0.383 | 100.48 | 134.518 | 32 | 1.4 |
| GM-D32X1.5 | D32X1.5 | 0.409 | 100.48 | 143.655 | 32 | 1.5 |
| GM-HB-16 | D32X1.6 | 0.435 | 100.48 | 152.730 | 32 | 1.6 |
| GM-D32X2.0 | D32X2.0 | 0.537 | 100.48 | 188.400 | 32 | 2 |
| GM-D32X2.5 | D32X2.5 | 0.660 | 100.48 | 231.575 | 32 | 2.5 |
| GM-621改 | D32X3 | 0.779 | 100.48 | 273.180 | 32 | 3 |
| Langfang Guomei Aluminum Co., Ltd. | | |||||
| Aluminum Pipe Connector Aluminum Tube | ||||||
| Product Code | Sizes (mm) | Weight/M (kg/m) | Perimetre (mm) | Area(mm2) | Diametre(mm) | Thickness (mm) |
| GM-D32X3.2 | D32X3.2 | 0.825 | 100.48 | 289.382 | 32 | 3.2 |
| GM-624 | D32X5 | 1.208 | 100.48 | 423.900 | 32 | 5 |
| GM-D32X7.0 | D32X7.0 | 1.566 | 100.48 | 549.500 | 32 | 7 |
| GM-DYR-11 | D32.6X1.2 | 0.337 | 102.364 | 118.315 | 32.6 | 1.2 |
| GM-BJKT-19 | D33.8X4.8 | 1.246 | 106.132 | 437.088 | 33.8 | 4.8 |
| GM-D34X1.0 | D34X1.0 | 0.295 | 106.76 | 103.620 | 34 | 1 |
| GM-DYR-13 | D34X1.8 | 0.519 | 106.76 | 181.994 | 34 | 1.8 |
| GG-GM-QG-04改34x2 | D34X2 | 0.573 | 106.76 | 200.960 | 34 | 2 |
| GM-D34x3 | D34X3 | 0.832 | 106.76 | 292.020 | 34 | 3 |
| GM-JZMB-D34X4 | D34X4 | 1.074 | 106.76 | 376.800 | 34 | 4 |
| GM-D35X0.6 | D35X0.6 | 0.185 | 109.9 | 64.810 | 35 | 0.6 |
| GM-D35X0.75 | D35X0.75 | 0.230 | 109.9 | 80.659 | 35 | 0.75 |
| GM-D35X1.1 | D35X1.1 | 0.334 | 109.9 | 117.091 | 35 | 1.1 |
| GM-KR-67 | D35X1.5 | 0.450 | 109.9 | 157.785 | 35 | 1.5 |
| GM-D35X1.8 | D35X1.8 | 0.535 | 109.9 | 187.646 | 35 | 1.8 |
| GM-JL-23 | D35X2.0 | 0.591 | 109.9 | 207.240 | 35 | 2 |
| GM-D35x5 | D35X5 | 1.342 | 109.9 | 471.000 | 35 | 5 |
| GM-KXZ-66 | D35X6.5 | 1.658 | 109.9 | 581.685 | 35 | 6.5 |
| GM-6112 | D35X12.3 | 2.499 | 109.9 | 876.719 | 35 | 12.3 |
| GM-D35.2X0.8 | D35.2X0.8 | 0.246 | 110.528 | 86.413 | 35.2 | 0.8 |
| GM-QG-22 | D35.4X1.4 | 0.426 | 111.156 | 149.464 | 35.4 | 1.4 |
| GM-629 | D35.5X0.8 | 0.248 | 111.47 | 87.166 | 35.5 | 0.8 |
| Langfang Guomei Aluminum Co., Ltd. | | |||||
| Aluminum Pipe Connector Aluminum Tube | ||||||
| Product Code | Sizes (mm) | Weight/M (kg/m) | Perimetre (mm) | Area(mm2) | Diametre(mm) | Thickness (mm) |
| GM-629 | D35.5X0.9 | 0.279 | 111.47 | 97.780 | 35.5 | 0.9 |
| GM-629 | D35.5X1.2 | 0.368 | 111.47 | 129.242 | 35.5 | 1.2 |
| GM-GW-07 | D35.8X2 | 0.605 | 112.412 | 212.264 | 35.8 | 2 |
| GM-D36X0.8 | D36X0.8 | 0.252 | 113.04 | 88.422 | 36 | 0.8 |
| GM-D36x1.2 | D36X1.2 | 0.374 | 113.04 | 131.126 | 36 | 1.2 |
| GM-D36.7X1.1 | D36.7X1.1 | 0.350 | 115.238 | 122.962 | 36.7 | 1.1 |
| GM-D37X13.4 | D37X13.4 | 2.830 | 116.18 | 992.994 | 37 | 13.4 |
| GM-D38X1.0 | D38X1.0 | 0.331 | 119.32 | 116.180 | 38 | 1 |
| GM-D38X1.1 | D38X1.1 | 0.363 | 119.32 | 127.453 | 38 | 1.1 |
| GM-NEWZ-D38X1.4 | D38X1.4 | 0.459 | 119.32 | 160.894 | 38 | 1.4 |
| GM-HZX-01 | D38X1.8 | 0.583 | 119.32 | 204.602 | 38 | 1.8 |
| GM-D38X2.5 | D38X2.5 | 0.794 | 119.32 | 278.675 | 38 | 2.5 |
| GM-D38X2.9 | D38X2.9 | 0.911 | 119.32 | 319.621 | 38 | 2.9 |
| GM-NEWZ-D38X3.0 | D38X3.0 | 0.940 | 119.32 | 329.700 | 38 | 3 |
| GM-D38X3.5 | D38X3.5 | 1.081 | 119.32 | 379.155 | 38 | 3.5 |
| GM-D38.1X3.0 | D38.1X3.0 | 0.942 | 119.634 | 330.642 | 38.1 | 3 |
| GM-D38.4X1.1 | D38.4X1.1 | 0.367 | 120.576 | 128.834 | 38.4 | 1.1 |
| GM-D39X1.05 | D39X1.05 | 0.357 | 122.46 | 125.121 | 39 | 1.05 |
| GM-JZMB-63 | D39X4.0 | 1.253 | 122.46 | 439.600 | 39 | 4 |
| GM-D40X1.05 | D40X1.05 | 0.366 | 125.6 | 128.418 | 40 | 1.05 |
| GM-D40X1.5 | D40X1.5 | 0.517 | 125.6 | 181.335 | 40 | 1.5 |
| GM-D40X4.0 | D40X4.0 | 1.289 | 125.6 | 452.160 | 40 | 4 |
| GM-D40X5.0 | D40X5.0 | 1.566 | 125.6 | 549.500 | 40 | 5 |
| GM-D40.5X0.8 | D40.5X0.8 | 0.284 | 127.17 | 99.726 | 40.5 | 0.8 |
| Langfang Guomei Aluminum Co., Ltd. | | |||||
| Aluminum Pipe Connector Aluminum Tube | ||||||
| Product Code | Sizes (mm) | Weight/M (kg/m) | Perimetre (mm) | Area(mm2) | Diametre(mm) | Thickness (mm) |
| GM-40.7X0.75 | D40.7X0.75 | 0.268 | 127.798 | 94.082 | 40.7 | 0.75 |
| GM-628 | D41X0.8 | 0.288 | 128.74 | 100.982 | 41 | 0.8 |
| GM-628 | D41X0.9 | 0.323 | 128.74 | 113.323 | 41 | 0.9 |
| GM-628 | D41X1.2 | 0.427 | 128.74 | 149.966 | 41 | 1.2 |
| GM-41X5 | D41X5 | 1.611 | 128.74 | 565.200 | 41 | 5 |
| GM-D41.8X0.8 | D41.8X0.8 | 0.294 | 131.252 | 102.992 | 41.8 | 0.8 |
| GM-QG-23 | D41.8X2.8 | 0.977 | 131.252 | 342.888 | 41.8 | 2.8 |
| GM-42x1.1 | D42X1.1 | 0.403 | 131.88 | 141.269 | 42 | 1.1 |
| GM-D42x1.2 | D42X1.2 | 0.438 | 131.88 | 153.734 | 42 | 1.2 |
| GM-D42x1.4 | D42X1.4 | 0.509 | 131.88 | 178.478 | 42 | 1.4 |
| GM-LZ-75 | D42X9 | 2.658 | 131.88 | 932.580 | 42 | 9 |
| GM-D43X1.5 | D43X1.5 | 0.557 | 135.02 | 195.465 | 43 | 1.5 |
| GM-JLD-03 | D43X2.0 | 0.734 | 135.02 | 257.480 | 43 | 2 |
| GM-D43X2.5 | D43X2.5 | 0.906 | 135.02 | 317.925 | 43 | 2.5 |
| GM-D43X3 | D43X3 | 1.074 | 135.02 | 376.800 | 43 | 3 |
| GM-D43.3X2.8 | D43.3X2.8 | 1.015 | 135.962 | 356.076 | 43.3 | 2.8 |
| GM-QG-14 | D44X3.2 | 1.168 | 138.16 | 409.958 | 44 | 3.2 |
| GM-D45X1.0 | D45X1.0 | 0.394 | 141.3 | 138.160 | 45 | 1 |
| GM-D45x1.15 | D45X1.15 | 0.451 | 141.3 | 158.342 | 45 | 1.15 |
| GM-D45X1.35 | D45X1.35 | 0.527 | 141.3 | 185.032 | 45 | 1.35 |
| GM-D45X1.6 | D45X1.6 | 0.621 | 141.3 | 218.042 | 45 | 1.6 |
| GM-D45X3.0 | D45X3.0 | 1.128 | 141.3 | 395.640 | 45 | 3 |
| GM-D47X5 | D47X5.0 | 1.879 | 147.58 | 659.400 | 47 | 5 |
| GM-ZGAN-135 | D48X1.5 | 0.624 | 150.72 | 219.015 | 48 | 1.5 |
| Langfang Guomei Aluminum Co., Ltd. | | |||||
| Aluminum Pipe Connector Aluminum Tube | ||||||
| Product Code | Sizes (mm) | Weight/M (kg/m) | Perimetre (mm) | Area(mm2) | Diametre(mm) | Thickness (mm) |
| GM-NEWZ-D48.4X2.6 | D48.4X2.6 | 1.066 | 151.976 | 373.911 | 48.4 | 2.6 |
| GM-D49.5X0.78YG | D49.5X0.8 | 0.349 | 155.43 | 122.334 | 49.5 | 0.8 |
| GM-49.5X1.4 | D49.5X1.4 | 0.603 | 155.43 | 211.448 | 49.5 | 1.4 |
| GM-TZ-71 | D49.5X1.5 | 0.644 | 155.43 | 226.080 | 49.5 | 1.5 |
| GM-NEWZ-D49.7X3 | D49.7X3 | 1.254 | 156.058 | 439.914 | 49.7 | 3 |
| GM-D49.8X1.9 | D49.8X1.9 | 0.814 | 156.372 | 285.771 | 49.8 | 1.9 |
| GM-880A | D50X1.0 | 0.439 | 157 | 153.860 | 50 | 1 |
| GM-D50X1.2 | D50X1.2 | 0.524 | 157 | 183.878 | 50 | 1.2 |
| GM-D50X1.4 | D50X1.4 | 0.609 | 157 | 213.646 | 50 | 1.4 |
| GM-D50X1.5 | D50X1.5 | 0.651 | 157 | 228.435 | 50 | 1.5 |
| GM-D50X2.5 | D50X2.5 | 1.063 | 157 | 372.875 | 50 | 2.5 |
| GM-D50X2.7 | D50X2.7 | 1.143 | 157 | 401.009 | 50 | 2.7 |
| GM-D50X2.8 | D50X2.8 | 1.183 | 157 | 414.982 | 50 | 2.8 |
| GM-NEWZ-D50X3.0 | D50X3.0 | 1.262 | 157 | 442.740 | 50 | 3 |
| GM-D50X3.5 | D50X3.5 | 1.456 | 157 | 511.035 | 50 | 3.5 |
| GM-D50X3.8 | D50X3.8 | 1.571 | 157 | 551.258 | 50 | 3.8 |
| GM-D50X4 | D50X4 | 1.647 | 157 | 577.760 | 50 | 4 |
| GM-QG-02B改 | D50X5 | 2.014 | 157 | 706.500 | 50 | 5 |
| GM-D50X5.5 | D50X5.5 | 2.190 | 157 | 768.515 | 50 | 5.5 |
| GM-653 | D50X9.7 | 3.498 | 157 | 1227.457 | 50 | 9.7 |
| GM-D54X0.7 | D54X0.7 | 0.334 | 169.56 | 117.153 | 54 | 0.7 |
| GM-SX-13 | D54.5X3.2 | 1.469 | 171.13 | 515.462 | 54.5 | 3.2 |
| Langfang Guomei Aluminum Co., Ltd. | | |||||
| Aluminum Pipe Connector Aluminum Tube | ||||||
| Product Code | Sizes (mm) | Weight/M (kg/m) | Perimetre (mm) | Area(mm2) | Diametre(mm) | Thickness (mm) |
| GM-57x4 | D57x4 | 1.897 | 178.98 | 665.680 | 57 | 4 |
| GM-D59.7X3.0 | D59.7X3.0 | 1.522 | 187.458 | 534.114 | 59.7 | 3 |
| GM-D60X0.97 | D60X1.0 | 0.528 | 188.4 | 185.260 | 60 | 1 |
| GM-D60x1.5 | D60X1.5 | 0.785 | 188.4 | 275.535 | 60 | 1.5 |
| GM-D60x5 | D60X5 | 2.461 | 188.4 | 863.500 | 60 | 5 |
| GM-TZ-68 | D63X1.5 | 0.826 | 197.82 | 289.665 | 63 | 1.5 |
| GM-D64X0.8 | D64X0.8 | 0.452 | 200.96 | 158.758 | 64 | 0.8 |
| GM-D70X2.0 | D70X2.0 | 1.217 | 219.8 | 427.040 | 70 | 2 |
| GM-D70X4.0 | D70X4.0 | 2.363 | 219.8 | 828.960 | 70 | 4 |
| GM-D72x0.8 | D72X0.8 | 0.510 | 226.08 | 178.854 | 72 | 0.8 |
| GM-NEWZ-D75X3.0 | D75X3.0 | 1.933 | 235.5 | 678.240 | 75 | 3 |
| GM-D76X0.8 | D76X0.8 | 0.538 | 238.64 | 188.902 | 76 | 0.8 |
| GM-D76X0.9 | D76X0.9 | 0.605 | 238.64 | 212.233 | 76 | 0.9 |
| GM-D76X1.0 | D76X1.0 | 0.671 | 238.64 | 235.500 | 76 | 1 |
| GM-D76X1.2 | D76X1.2 | 0.803 | 238.64 | 281.846 | 76 | 1.2 |
| GM-D76X1.4 | D76X1.4 | 0.935 | 238.64 | 327.942 | 76 | 1.4 |
| GM-D76X1.5 | D76X1.5 | 1.000 | 238.64 | 350.895 | 76 | 1.5 |
| GM-D76X4 | D76X4 | 2.577 | 238.64 | 904.320 | 76 | 4 |
| GM-D89X4 | D89X4 | 3.043 | 279.46 | 1067.600 | 89 | 4 |
| GM-D90X2 | D90X2 | 1.575 | 282.6 | 552.640 | 90 | 2 |
| GM-D95x0.8 | D95X0.8 | 0.674 | 298.3 | 236.630 | 95 | 0.8 |
| GM-D97X1.1 | D97X1.1 | 0.944 | 304.58 | 331.239 | 97 | 1.1 |
| Langfang Guomei Aluminum Co., Ltd. | | |||||
| Aluminum Pipe Connector Aluminum Tube | ||||||
| Product Code | Sizes (mm) | Weight/M (kg/m) | Perimetre (mm) | Area(mm2) | Diametre(mm) | Thickness (mm) |
| GM-D100X4 | D100X4 | 3.436 | 314 | 1205.760 | 100 | 4 |
| GM-D100X5 | D100X5 | 4.251 | 314 | 1491.500 | 100 | 5 |
| GM-D102X0.9 | D102X0.9 | 0.814 | 320.28 | 285.709 | 102 | 0.9 |
| GM-D102X1.0 | D102X1.0 | 0.904 | 320.28 | 317.140 | 102 | 1 |
| GM-D102X2.0 | D102X2.0 | 1.790 | 320.28 | 628.000 | 102 | 2 |
| GM-D108X5 | D108X5 | 4.609 | 339.12 | 1617.100 | 108 | 5 |
| GM-YGF-12015 | D120X2.5 | 2.629 | 376.8 | 922.375 | 120 | 2.5 |
| GM-D120X4 | D120X4 | 4.152 | 376.8 | 1456.960 | 120 | 4 |
| GM-D127X2 | D127X2 | 2.237 | 398.78 | 785.000 | 127 | 2 |
| GM-D133X5 | D133X5 | 5.727 | 417.62 | 2009.600 | 133 | 5 |
| GM-D134X1.4 | D134X1.4 | 1.661 | 420.76 | 582.910 | 134 | 1.4 |
| GM-134X2.4 | D134X2.4 | 2.826 | 420.76 | 991.738 | 134 | 2.4 |
| GM-D150X2 | D150X2 | 2.649 | 471 | 929.440 | 150 | 2 |
| GM-D150X5 | D150X5 | 6.488 | 471 | 2276.500 | 150 | 5 |
| GM-D159X6 | D159X6 | 8.215 | 499.26 | 2882.520 | 159 | 6 |
| Contact Name: | Mr Peter Zhao | Contact Email: | pe****o@guomeilvcai.com |
| Contact Job Title: | Manager | Contact Mob: | 185***968 |
| Contact Tel: | 02227332972 | Contact Fax: | 02227332972 |
| Address: | 2601-1-14 Tianlinyuan,Nankai District Tianjin 300120 China | Website: | http://www.aluminumextrudedprofiles.com/ |
Located in Tianjin,we have been in the export of aluminium profiles for about 30years and our major products include building aluminium profiles,industrial aluminium profiles,standard extrusion profiles,building formwork aluminum profiles,assembly line aluminum profiles,decorative curtain wall alumnium profiles,stage truss aluminium profiles,tents aluminium profiles,vaporzizer aluminum profiles,electric heater aluminum profiles,bus duct aluminium profiles,hotel furniture aluminum profiles,outdoor furniture aluminum profiles,medical equipment aluminum profiles,ladder alumnium profiles,solar mounting system and accessories aluminum profiles,marble hangings aluminum profiles, fishing gear aluminum profiles,wheel chair alumnum profiles,exhibition applicance aluminum profiles,referigeration radiator aluminum profiles,electric radiator alumnium profiles,fire control aluminium profiles,new energy electric vehicles aluminium profiles,walking frame aluminium profiles etc.With the full supply chain,we are sure we could suppy you the better quality at the better and better services.
Products of the same category
