WALE Company Introduction

SHAANXI WALE M&E TECHNOLOGY CO., LTD, established in 2003, focus on roughness, contour, roundness and cylindricity measuring solution research and development.

With professional engineer team, WALE have dozens of patented technology for product and measuring software copyright.

We have full self-own technology in precision air floating bearing spindle research and mass production capacity,

detector design, measuring data collection and analysis software system, abundant stylus, probe, stylus arm, table fixture systems, instrument design and customized services.

With rich experience in client service cases, WALE provides precision measuring solution for various

industry field manufacturing, supporting client production, technology development and various type measuring request.

Right now WALE is the TOP 1 market occupancy in China, also have deep cooperation in foreign market.

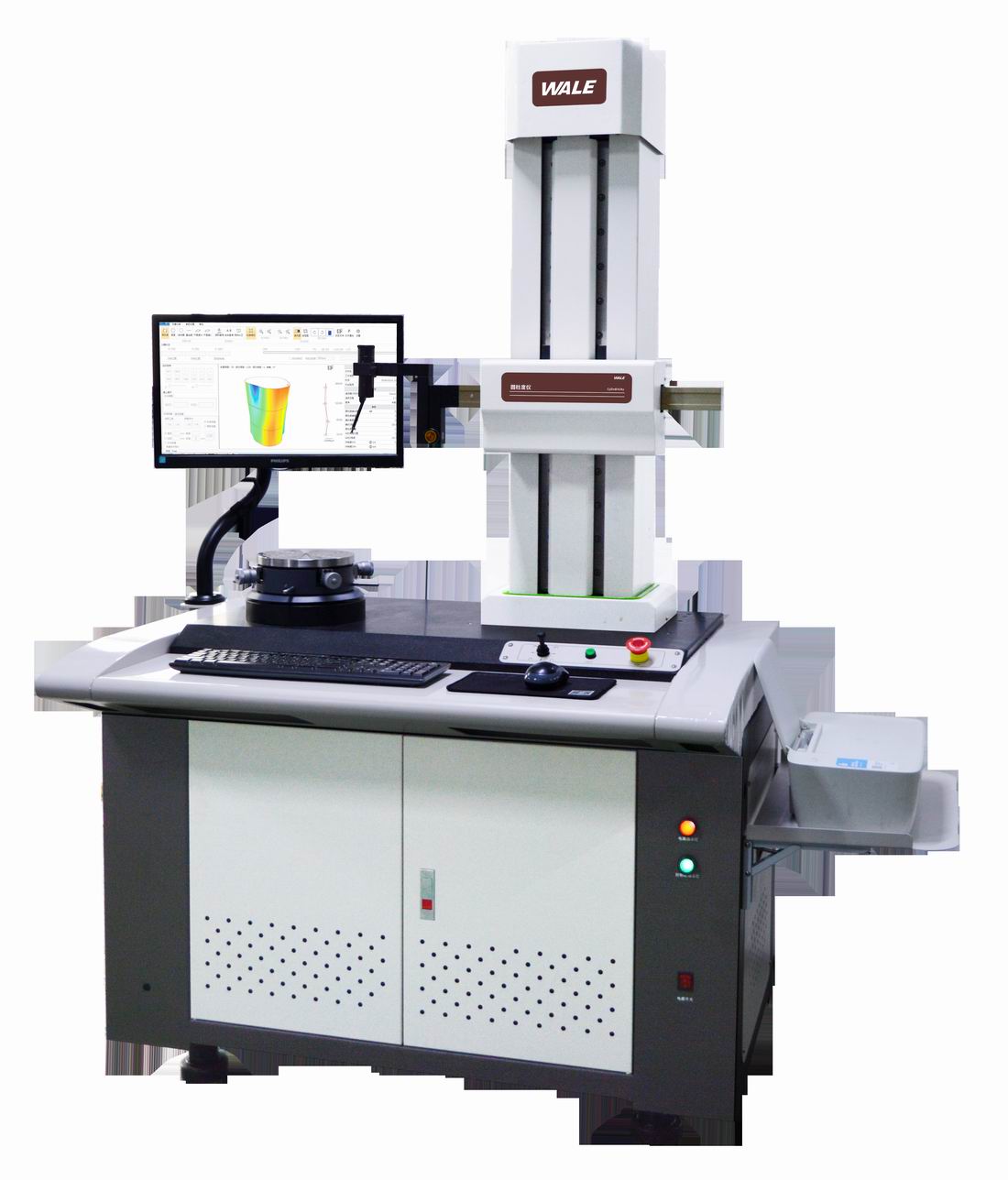

RS2000 Cylindricity measuring system features

---Using dual-axis grating counting, multi-element evaluation method and modular evaluation mode,

    can make a more efficient, automatic and accurate measurement.

---Self designed software can assist in eccentricity and leveling calibration, convenient for operation.

---The software has commutator evaluation function, which can evaluate the single chip runout,

    adjacent chip runout and gap difference between chips.

---The measurement results can be removed automatically or manually.

---Self designed detector, have a more reasonable structure and stable measuring performance.

RS2000 Cylindricity measuring system functions

---Roundness, coaxiality, concentricity, flatness, radial single runout, axial single runout, parallelism, perpendicularity

---Cylindricity module: cylindricity, radial full runout, coaxiality, taper

---Roundness module: roundness, concentricity, radial single runout

---Straightness module: flatness, perpendicularity, straightness

---Single-cut flatness module: axial single runout, perpendicularity, flatness

---Multi-section flatness module: parallelism, axial full runout, perpendicularity, flatness

---Commutator module: single chip runout, adjacent chip runout and gap difference between chips

---Measuring wave band：1-15upr, l-50upr, l-150upr，1-250upr,l-500upr,15-100upr,15-500upr,2-15upr or customized

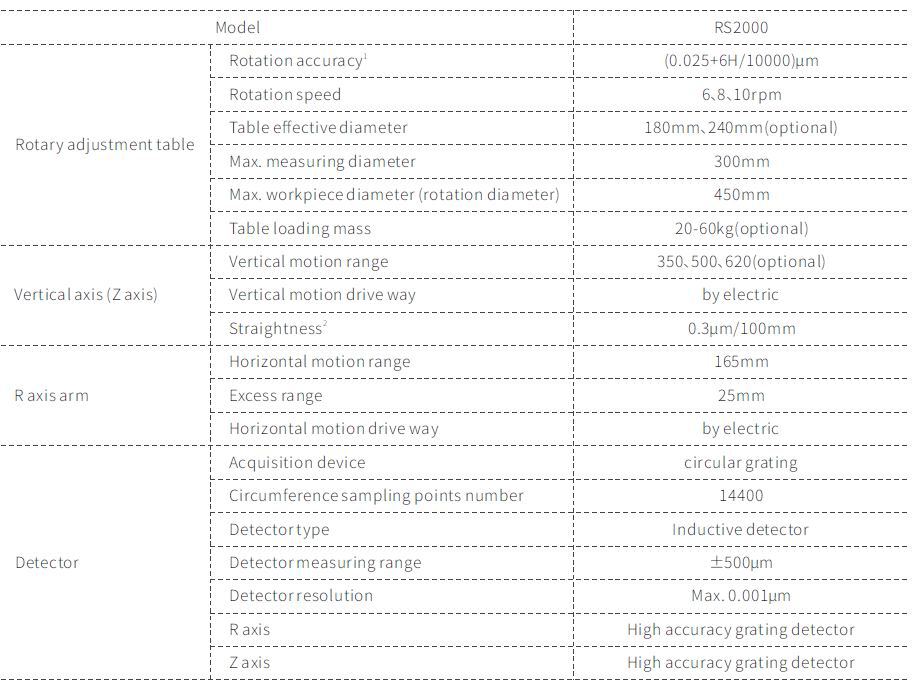

RS2000 Technical Specification

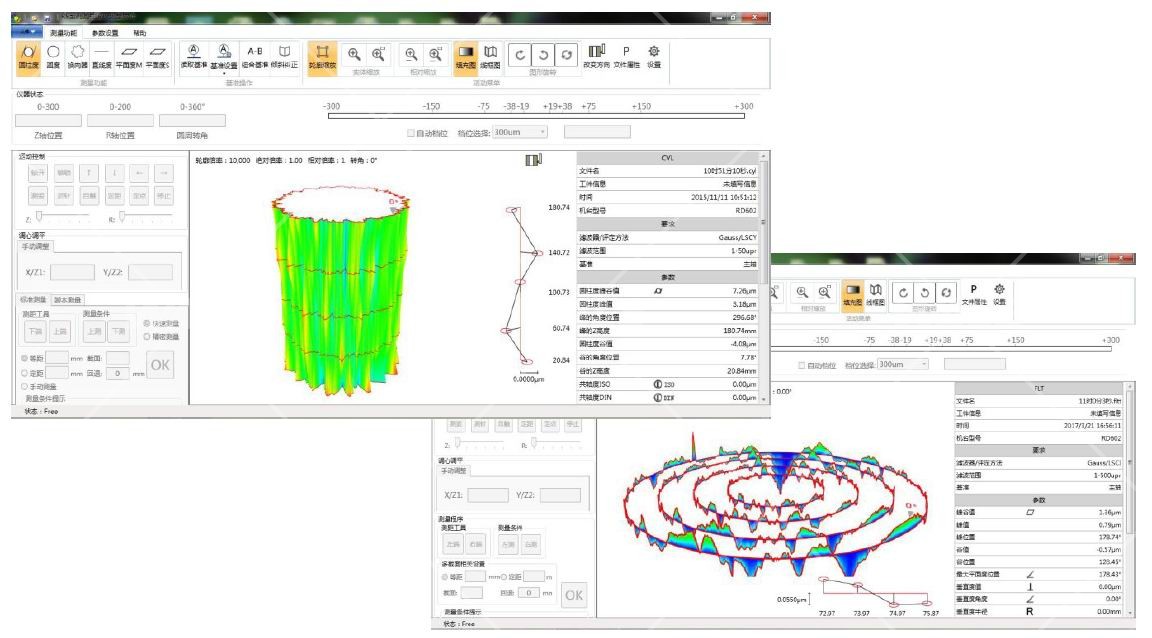

Measuring Software System

With advanced technique design grating for R axis and Z axis, improves automatic operation performance and

provides abundant measuring function.

Use most advanced compensation algorithm for the accuracy of each axis.

The key components are made of special stress-relieving alloy materials and special stress-relieving processing technique,

making sure the measuring accuracy is maintained for long work life.

High-precision data acquisition and operation control system.

The design, production and inspection of all circuits of the control system are according to military standards.

Modular design is adopted to minimize the maintenance cost of users.

Flexible PC configuration, can be customized according to user request.

Self-designed software, supports Chinese and English language, Win XP, Win 7, Win 8 and Win 10 Windows system.

Planeness measurement function supports single section and multiple section measuring.

Straightness measurement function supports horizontal and vertical direction measuring.

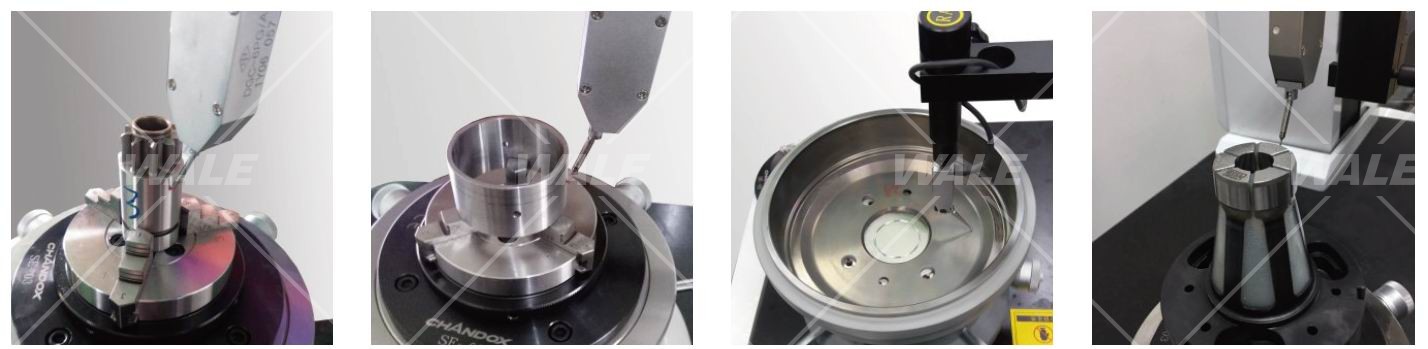

Application Cases
