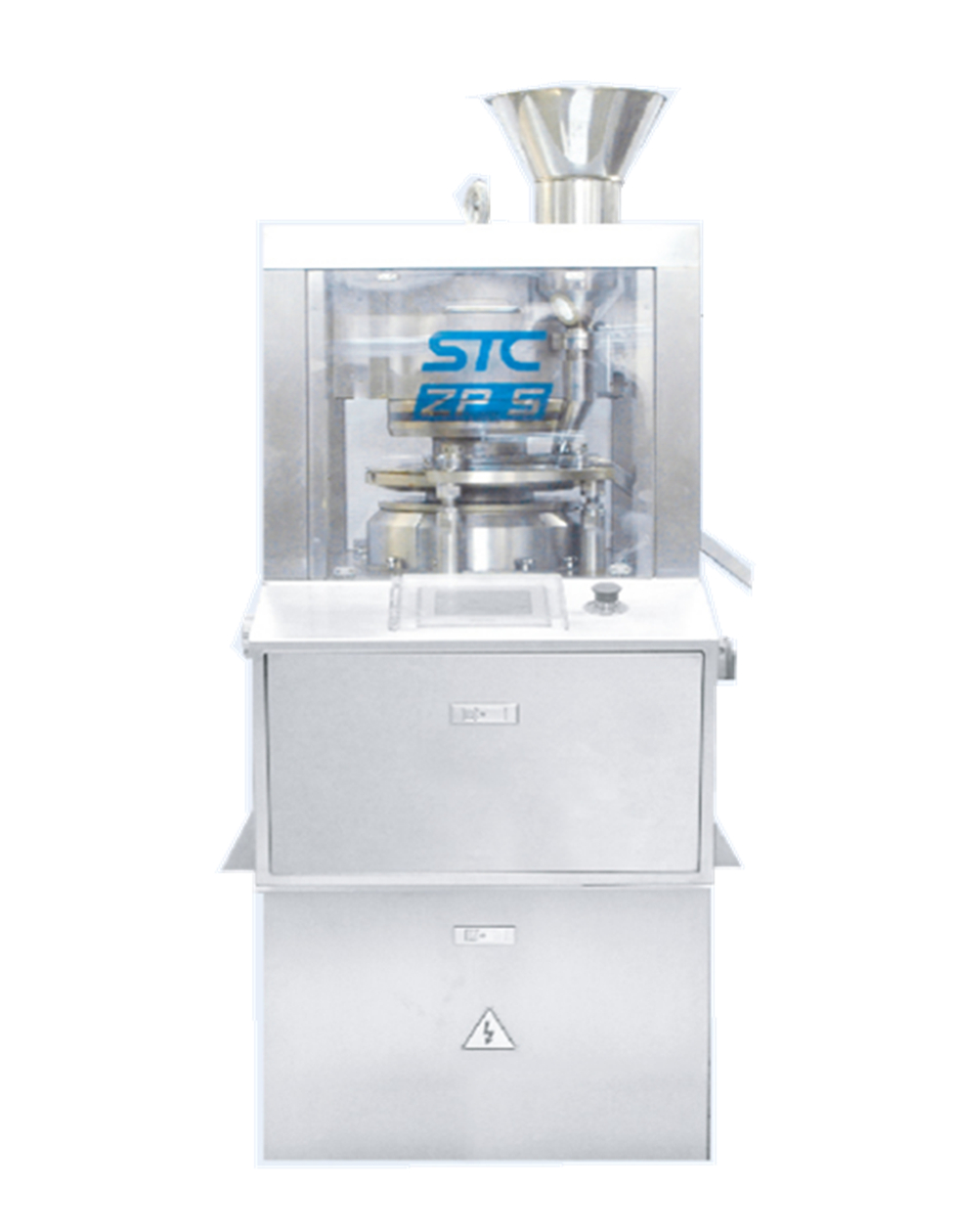

ZPS 8, 16, 24 Tablet press machine

Medical & Health & Beauty Medicine

FOB Price:US$ 10,000.00 / Set(s)

MOQ:1 Set(s)

Payment Method : L/C T/T

Keywords:Medicine tablet Effervescent tablet Vitamin tablet Healthy tablet

Inquire


Add to Favorites

Product Category: Medical & Health & Beauty > Medicine Trademark: STC
Product Package: Wooden case Specifications: ZPS 08, 16, 24 ,punch stations
Place of Origin: Shanghai, China Port: Shanghai

u Standard Functional Configuration

1) maximum working pressure of 60 kN.

2) the GMP pressing area.

3) forced feeder

4) open hopper.

5) Saddle die tightening screw

6) placement operation table, Chinese or English operation signs.

7) main motor frequency conversion speed regulation system.

8) Power: AC 380(V) A.C., three-phase, 50 Hz



u Optional Function Configuration

1) install gate feeder.

2) hopper, outlet nozzle 316 L

3) production according to CE standard.

4) GMP verification data of the machine.

5) power requirements.



u Technical parameters

Series No.

ZP S Series

Model

ZP 24

ZP 16

ZP 8

Number of stations (set)

24

16

8

Maximum main compression force (kN)

60

Maximum pre-compression force (kN)

10

Film force display (kN)

None (or according to user needs)

Yes

Maximum tablet diameter (mm)

13

22

Maximum tablet thickness (mm)

6

7

Maximum filling depth (mm)

15

18

Rotary speed (rpm)

15～30

Diameter of turret (mm)

226

Maximum production capacity (tablet/hr)

21600～43200

14400～28800

7200～14400

Tooling type

TSM 19

(EU 19)

BB

TSM 1'

(EU 1')

D

Main motor power (kW)

2.2

Machine Shape (mm)

(length × width × height)

747×800×1628

Net weight of machine (kg)

810



u Conduct standard

1) National standard "rotary tablet press (GB /T 30748—2014)".

2) The appearance quality of the tablet is in accordance with the 2010 edition of the Pharmacopoeia of the people's Republic of China.

3) Weight difference compliance with :(when the particle used is 16-60 mesh,  fine powder content is no more than 10%).

Average weight of tablets  g

Tablet Weight Difference Limit  %

<0.3

±7.5

>0.3

±5
