Shanghai Tianxiang & Chentai Pharmaceutical Machinery Co Ltd

Business Type:Manufacturer

Main Products: Tablet compression machineMilk tablet press machineMedicine tablet press machine

view on mobile

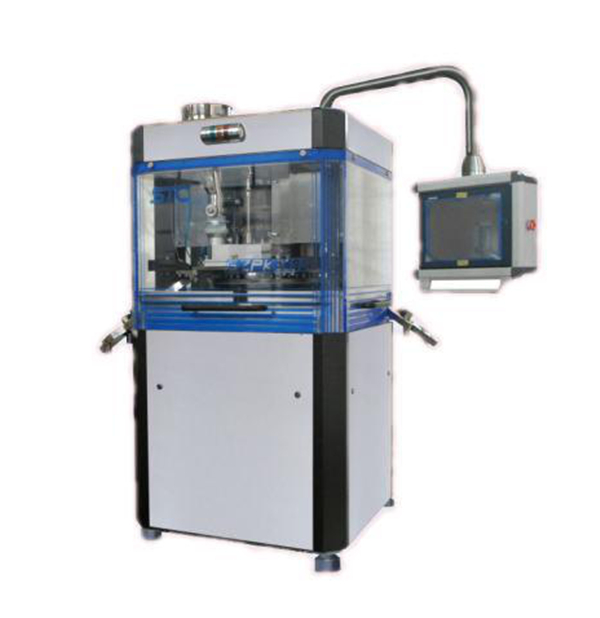

GZPK3500 Tablet press machine

Manufacturing & Processing Machinery General Industrial Equipment

FOB Price:US$ 35,000.00 / Set(s)

MOQ:1 Set(s)

Payment Method : L/C T/T

Keywords:tablet Tablet Press Equipment tablet press machine milk tablet effervescent tablet candy tablet

Inquire


Add to Favorites

Product Category: Manufacturing & Processing Machinery > General Industrial Equipment Trademark: STC
Product Package: wooden case Specifications:
Place of Origin: Shanghai Port: Shanghai

 Technical parameters

No. of Punch stations

37

45

55

59


TSM or EU standard D type die

TSM or EU standard B type die

TSM or EU standard BB type die

TSM or EU standard BBS type die

Maximum tablet diameter

25

16

13

11

mm

mm

mm

mm

TSM or EU standard D type die

TSM or EU standard B type die

TSM or EU standard BB type die

TSM or EU standard BBS type die

Maximum turntable speed

15~77

15~80

r/min

r/min

TSM or EU standard D/B/BB type die

TSM or EU standard BBS type die

Maximum production capacity

341,880

415,800

528,000

566,400

Tablet s /h

Tablet s /h

Tablet s /h

Tablet s /h

TSM or EU standard D type die

TSM or EU standard B type die

TSM or EU standard BB type die

TSM or EU standard BBS type die

Maximum main pressure

100

kN


Maximum prepressure

20

kN


Max. filling depth

18

mm


Fill-in rail specifications

0.5~6

3.5~9

6.5~12

9.5~15

12.5~18

mm

mm

mm

mm

mm

Select the function

Standard function

Standard function

Select the function

Select the function


Contact Name: Mr Justin Ro Contact Email: ju****6@163.com
Contact Job Title: Sales Manager Contact Mob: 182***805
Contact Tel: Contact Fax:
Address: No.4619, Caoan Hwy Road, Jiading District, Shanghai, China Website: www.stc-pm.com
Shanghai Tianxiang&Chentai Pharmaceutical Machinery Co., Ltd. formerly known as the Shactory with Cgebtuafacal Machinery Factory. It was specialized in the R&D and manufacturer of tablet press. In 1992, a joint venture-Shanghai Tianxiang&Chentai Pharmaceutical Machinery Co.,Ltd., was set up by the Chentai Machinery Co.,Ltd. of Singapore. Our products are High speed rotary(single & double side) tablet press machine , Medimum speed tablet press machine, Low speed tablet press machine , Tablet press machine used for Labotary and Intelligent mode machine.
