30m3/h capacity trailer concrete mixer pump diesel hydraulic portable concrete mixer with pump
Manufacturing & Processing Machinery Engineering & Construction Machinery
MOQ:1 Set(s)
Payment Method : L/C T/T D/P Western Union Paypal Money Gram Others
Keywords:trailer concrete mixer pump concrete mixer with pump concrete mixer pump concrete mixer and pump concrete mixer pump diesel c3 diesel concrete mixer pump mini concrete mixer pump mobile concrete pump mixer mixer with concrete pump concrete pump with mixer
| Product Category: | Manufacturing & Processing Machinery > Engineering & Construction Machinery | Trademark: | MINLE |
| Product Package: | in nude package | Specifications: | 15-40m3 |
| Place of Origin: | CHINA | Port: | Qingdao |

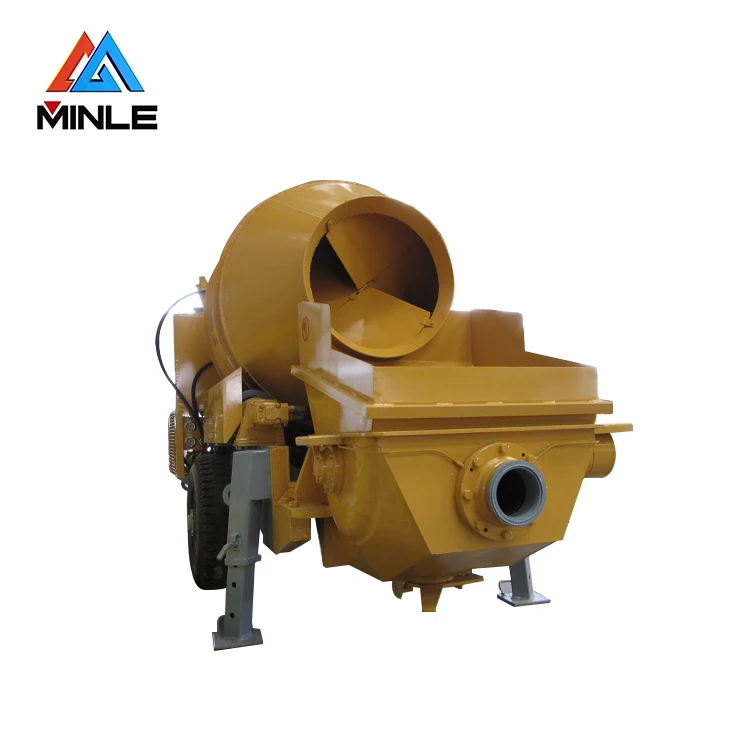

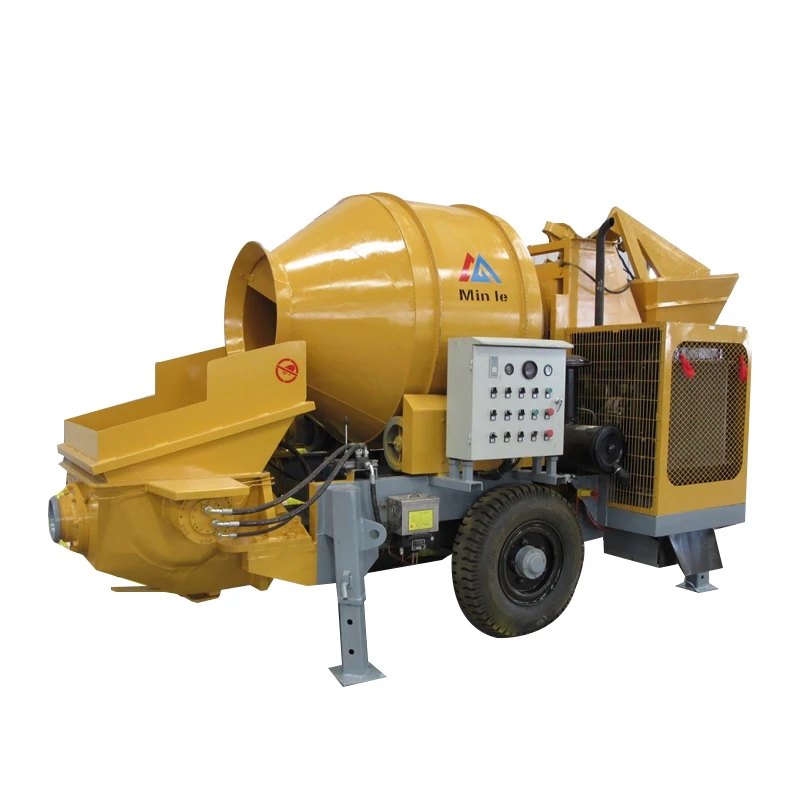

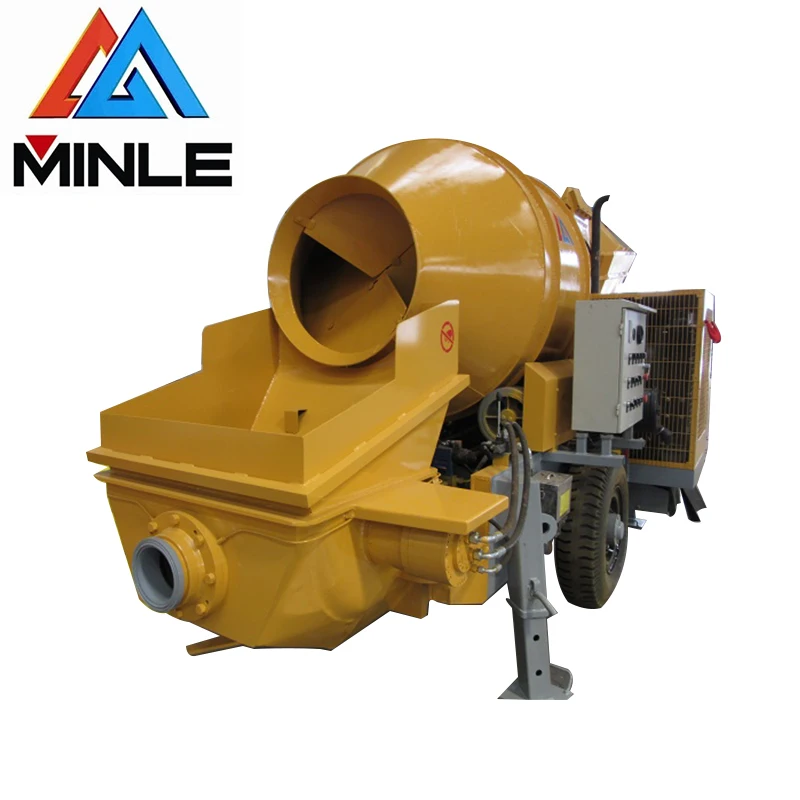

30m3/h capacity trailer concrete mixer pump diesel hydraulic portable concrete mixer with pump
mobile/wechat/whatsapp 86-15866001919
Choose MINLE as partner,let us make every effort to support your custruction works!

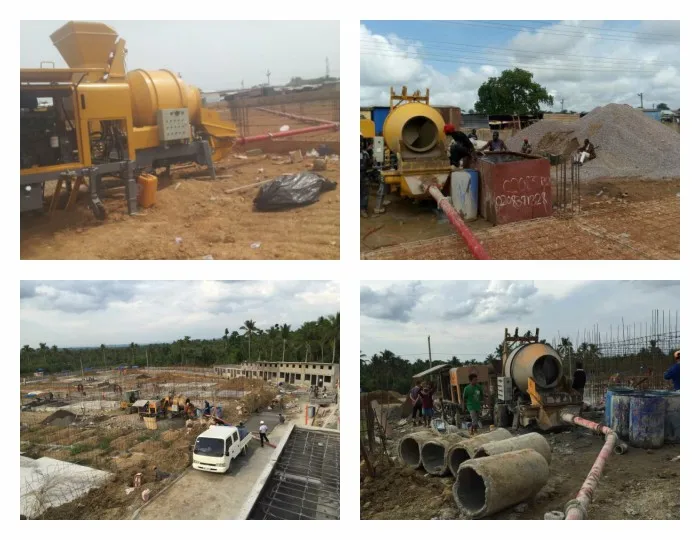

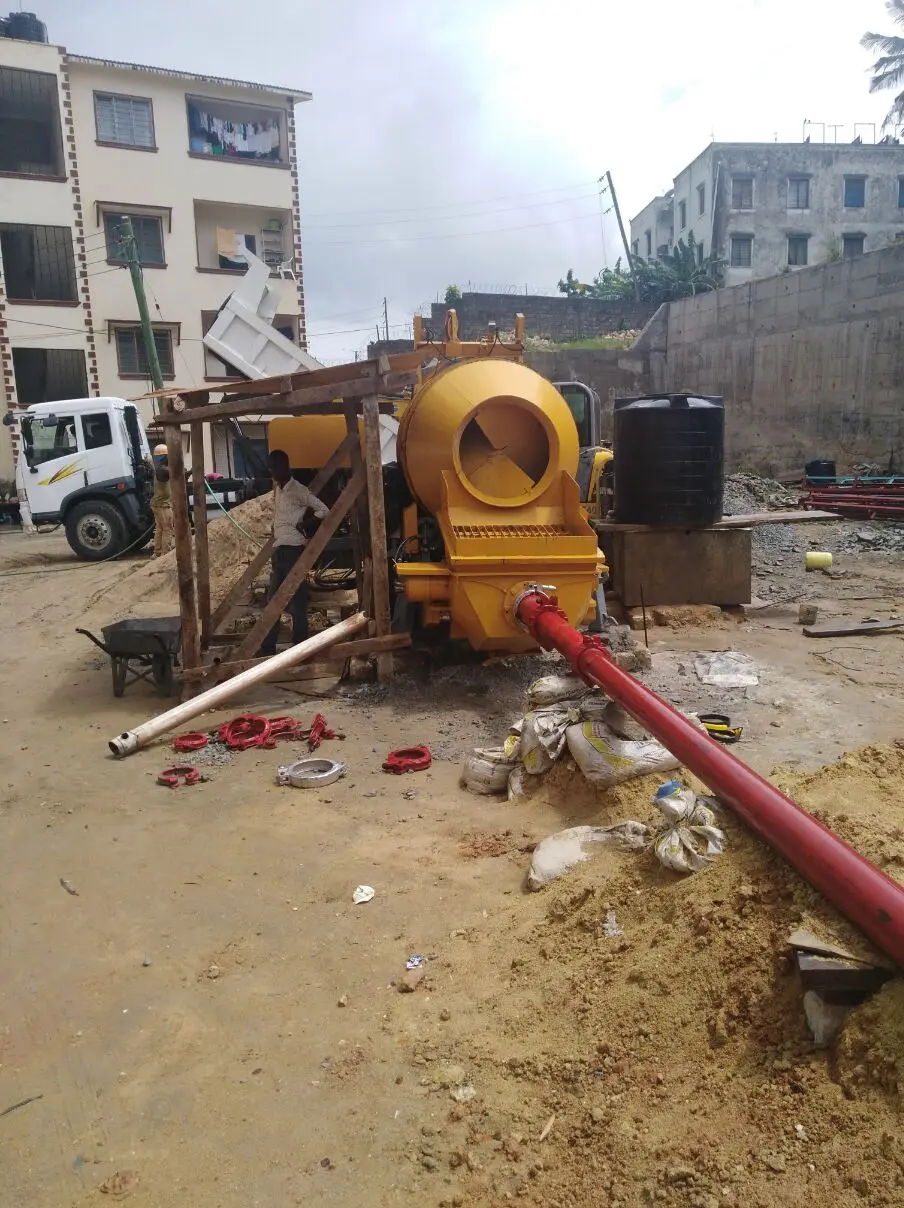

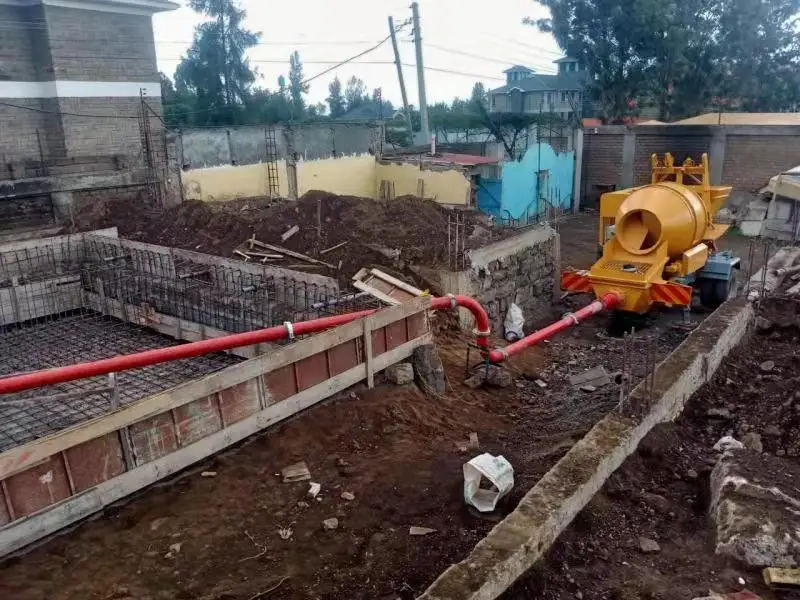

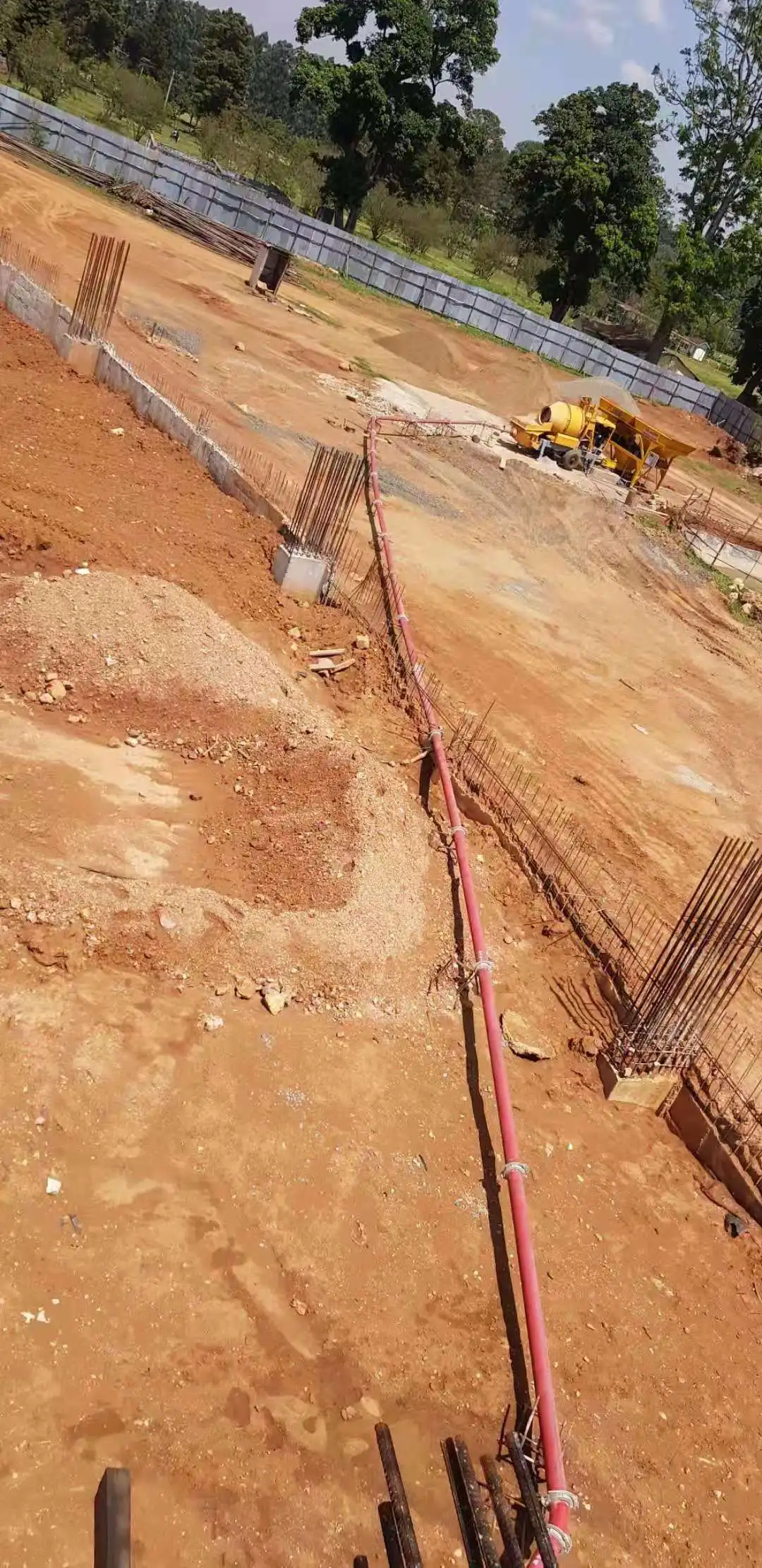

trailer concrete mixer pump is the newest products patented by our company, it is combined by thetraditional concrete pump and the mixer together, it is the most suitable for usein four to six floor buildings,especially in the group buildings, bridges, and the spread of small construction sits where need theconcrete mixer at the scene.
trailer concrete mixer pump into one, simple to operate, easy to move, flexible, and stable performance. The pump construction operation system used in all automated, all material mixing, high pressure pumping as one; Double cylinder hydraulic pumping system, hydraulic system greatly enhance the the stirring Concrete pump overall reliability ensure pump strive foolproof work under harsh conditions.
Technical parameters of trailer concrete mixer pump :
| Item | HBTS30-10-78R |
| Theoretical concrete output M3/h | 30 |
| Theoretical maximum pumping pressure Mpa | 10 |
| The form of distribution valve | The S tube placed valve |
| Duct diameter mm | 125 |
| Theoretical maximum transmission distance horizontal / vertical | 150/500 |
| Concrete Bore × stroke mm | 180/1000 |
| Maximum aggregate size mm | 30 |
| The concrete slump degrees range mm | 120-230 |
| feeding capacity L | 560 |
| discharge capacity L | 350 |
| Cleaning method | High pressure water washing |
| Dimensions (L × W × H) mm | 5800*2150*2600 |
| Weight kg | 4500 |

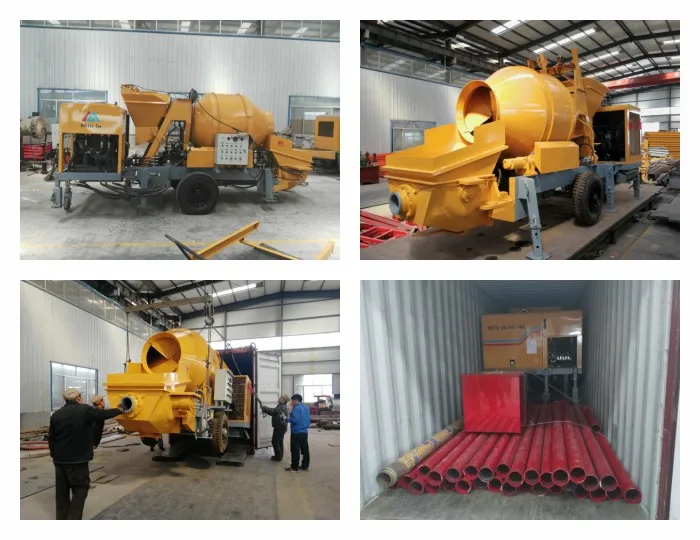

More pics

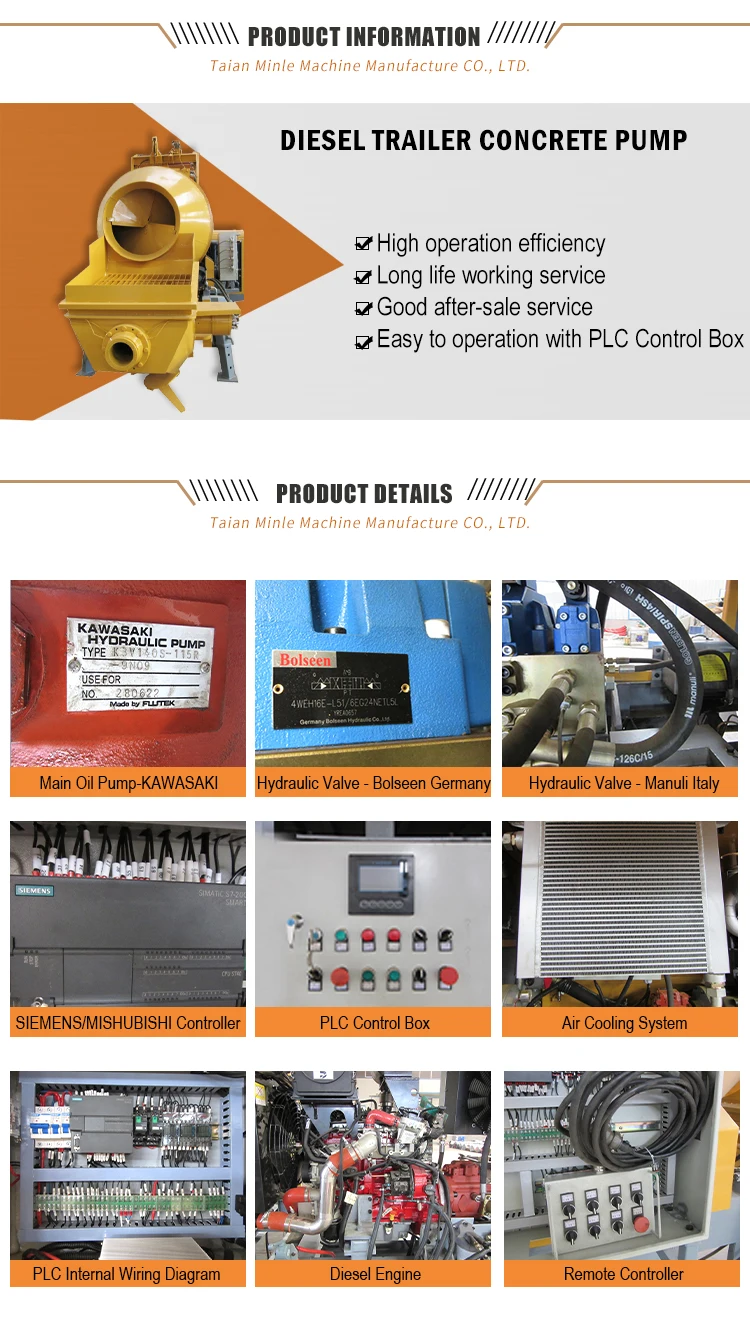

1.Power system trailer concrete mixer pump
Hydraulic oil pump: Germany Rexroth or Japan Kawasaki are adjusted.Diesel power: Germany Deutz, Weichai, Yuchai, Cummins .etc
2.Electronic control trailer concrete mixer pump
Japan Mitsubishi Programmable Logic Controller (PLC) electronic control system.
Main electric elements are imported original Schneider, Siemens, OMRON, LG etc.
3.Hydraulic system trailer concrete mixer pump
The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are guaranteed.
4.Pumping system trailer concrete mixer pump
Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the condition.
5.Lubrication System trailer concrete mixer pump
The patented central automatic lubrication system comes with a piston grease-pump, features high pressure and reliability, which can realize automatic lubrication of piston. The filters at the outlet and the inlet of oil ports as double protections guarantee the system reliability.
6.Cooling System trailer concrete mixer pump
Compulsory air-cooled heat exchanger keeps the temperature of the hydraulic oil below 60 degree,that ensures the whole hydraulic system works at normal status.
contact: sara mobile/wechat/whatsapp:86-15866001919
Our service
12 months warranty of mini concrete pump mixer
We guarantee for free replacement or repair the key componentd which is ineffcient function or performance caused by poor material or technique.
(Damage caused by improper use and natural aging are not covered under the guarantee. )
l serve worldwide clients with high-quality products,devoted professional services
honorable credibility to meet customers' requirements
l supply you 24 hoursa day and 7 days a week after-sale services.
FAQ
Q1: Are you trading company or manufacturer?
A: We are factory. We can design and manufacture products with our patent.
Q2: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: What is your payment method?
A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery. We also support L/C, Western Union.
Q4: How many types of trailer concrete mixer pump you have?
A: The motor ,diesel or electric.
If you need electric motor one, please let us know your power situation, such as in China, it is 380Voltege & 50 HZ.
If you need diesel motor concrete mixer pump, the brand of diesel engine you like, it is Cummins or Deutz or Chinese Weichai,yuchai?
Q5: What is the capacity of your concrete mixer pump?
A: We have 30m-40m3/h.
Q6: How long and high you want to pump?
A: Please let us know the vertical and horizontal delivery distance should reach. Or please let me know the tall building's total height.
Q7: The aggregate size that you usually use?
A: Pebble 40mm, crushed stone 30mm.
