jbt30 concrete mixer pump machine diesel price in india
Manufacturing & Processing Machinery Engineering & Construction Machinery
MOQ:1 Piece(s)
Payment Method : L/C T/T Western Union Paypal Money Gram Others
Keywords:concrete mixer pump concrete mixer pump machine concrete mixer pump diesel
| Product Category: | Manufacturing & Processing Machinery > Engineering & Construction Machinery | Trademark: | |
| Product Package: | one set should load in one 40'HQ with 100m pipe | Specifications: | 30m3/h concrete output |
| Place of Origin: | China | Port: | Qingdao port |
jbt30 concrete mixer pump machine diesel price in india
Item | JBTS30-10-78R |
Max Theoretical Concrete Output (m3/h) | 30 |
Max Concrete outlet Pressure (Mpa) | 10 |
Concrete slump (mm) | 100-200 |
Aggregate Size (mm) | gravel≤30 |
Powder (KW) | Diesel motor 78 |
Speed (r/min) | 2200 |
Conveying Cylinder Diameter (mm) | 110/1000 |
Concrete Cylinder Diameter (mm) | 180/1000 |
Hopper Capacity (m3) | 0.4 |
Fuel Tank Capacity (L) | 150 |
Filling Height (mm) | 1400 |
Max Conveying Distance (vertical Height/Horizontal Distance) (m) | 150/500 |
Pumping working pressure(Mpa) | 23 |
Hopper mixing working pressure(Mpa) | 14 |
Pipe Cleaning Mode | Washing |
Overall Dimension (mm) | 5000×2000×2260 |
Total Weight (kg) | 4500 |

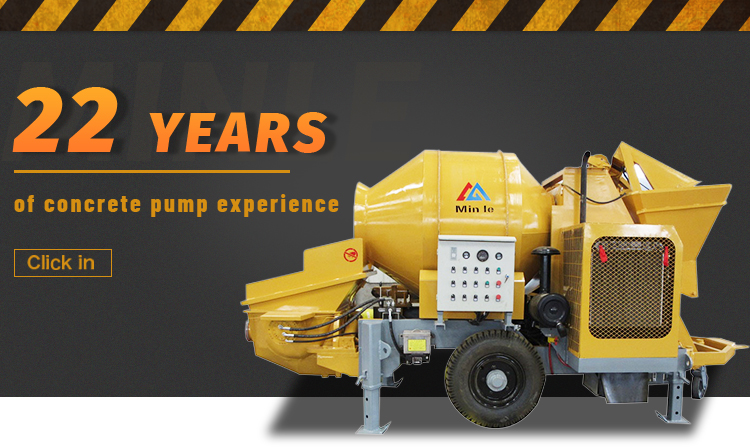

Concrete mixer pump integrates concrete feeding, mixing and conveying functions seamlessly in one concrete pump machine, the concrete mixer pump can be driven by diesel engine. It is widely used for continuously concrete mixing and conveying through high hydraulic pressure along the pipeline in such applications as housing building, bridge or tunnel construction. MINLE brand concrete mixer pump is made with high wear and strong corrosion resistant chrome alloy steel to greatly improve the product performance, and is optimized by the electric proportional control buffering, pressure difference sensing and reversing technology to decrease high pressure oil pump reversing time. Our concrete mixer pump is intelligently controlled to achieve the perfect and high efficient concrete mixing and conveying, it features compact structure, stable concrete pumping, energy saving, high efficiency, flexible movement and easy operation, etc.
The drum type concrete mixer pump can be split and used. We can use the mixing function of the mixer alone or the pumping function alone. Realize one machine and three uses.
Please note:

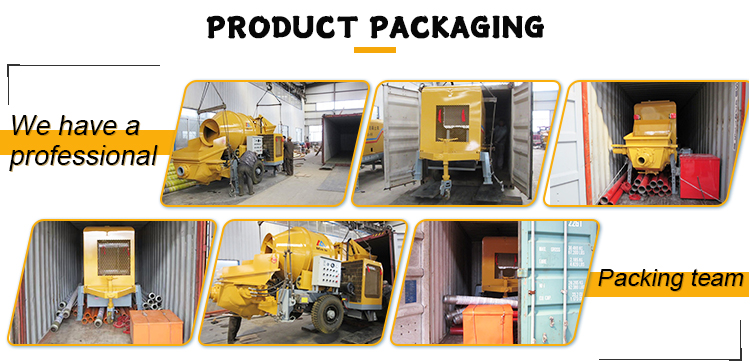

Concrete trailer pumps: 1*20'GP can load one set with 100m pipe.
Concrete mixer pumps: 1*40'HQ can load two sets with 200m pipe.
