Dingkun 30KN/30KN Soil Reinforcement PET Geogrid Polyester Geogrid

Construction & Decoration Building Structural Material

FOB Price:US$ 0.78 / Square Meter(s)

MOQ:1 Square Meter(s)

Payment Method : L/C T/T Others

Keywords:Polyester Geogrid 30KN/30KN Polyester Geogrid Soil Reinforcement Geogrid

Add to Favorites

Product Category: Construction & Decoration > Building Structural Material Trademark: Dingkun
Product Package: white fabric bag or black PE bag outside or as required Specifications: Roll Width: 2/3.95/4.0/5.9/6m
Place of Origin: China Port: Qingdao
Product Description

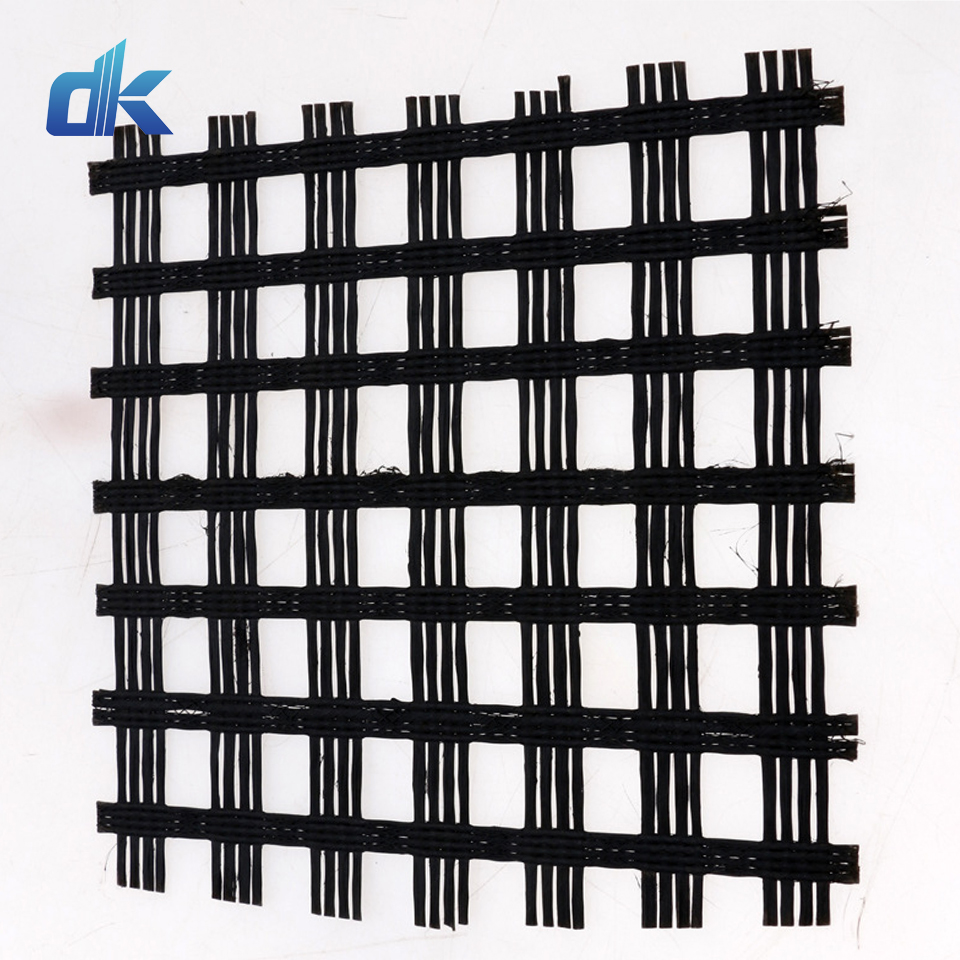

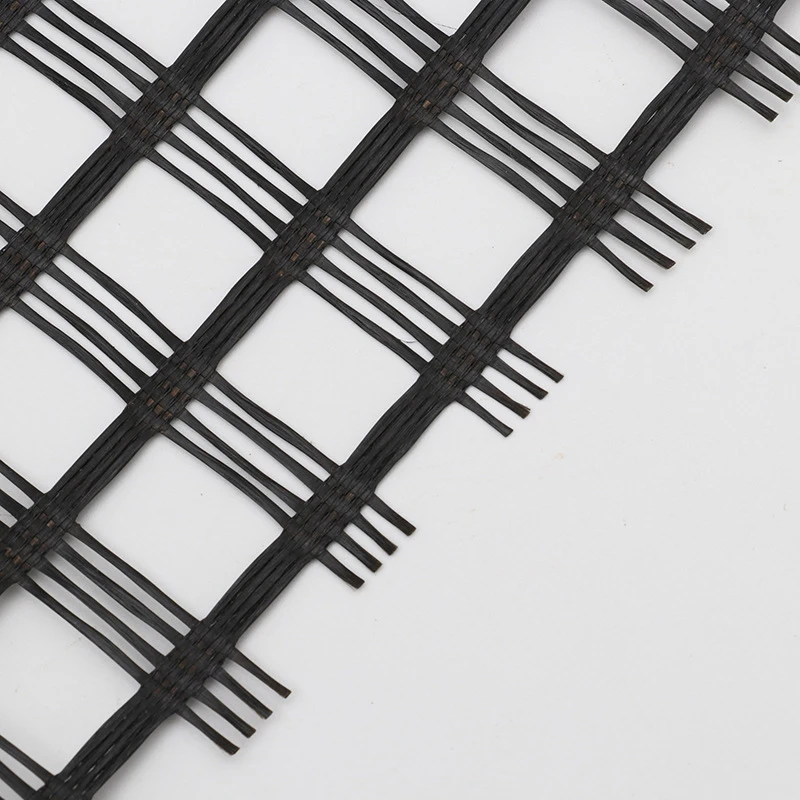

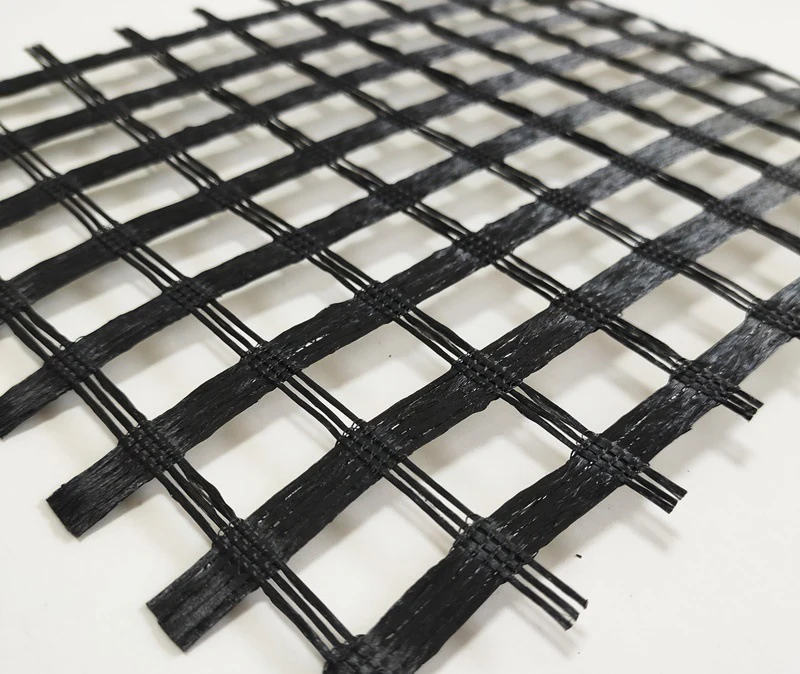

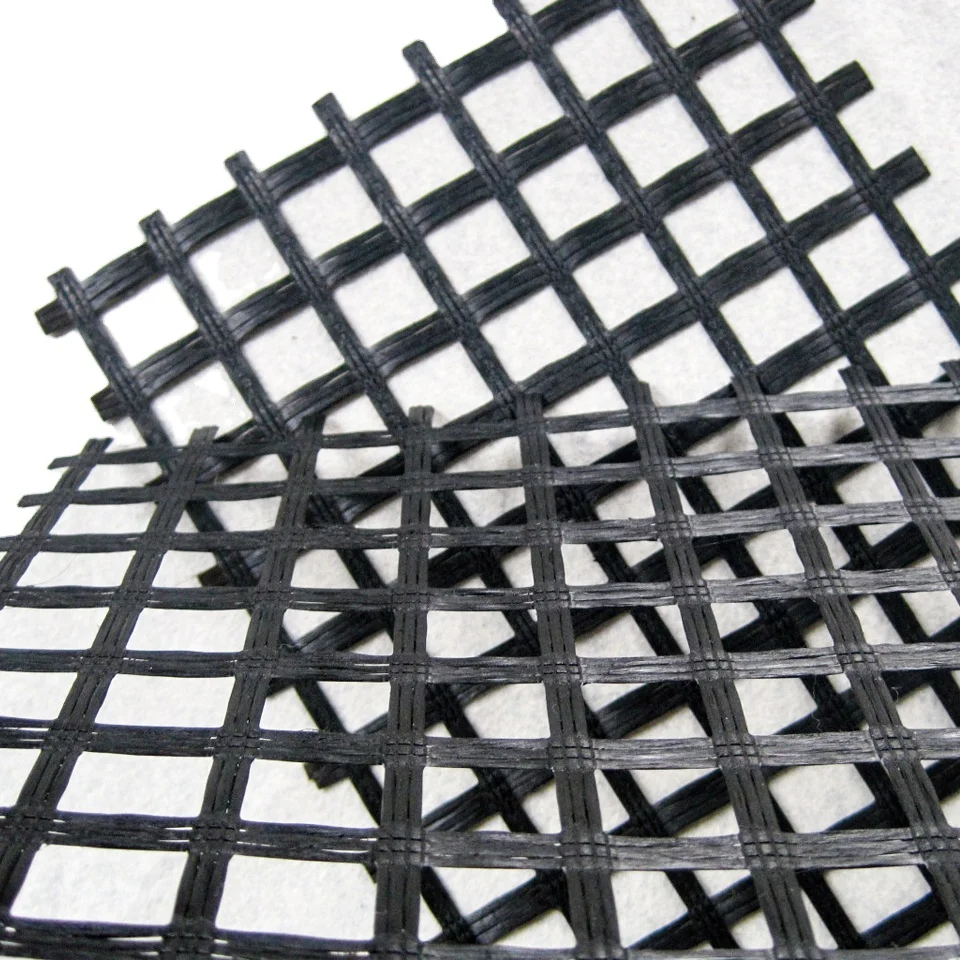

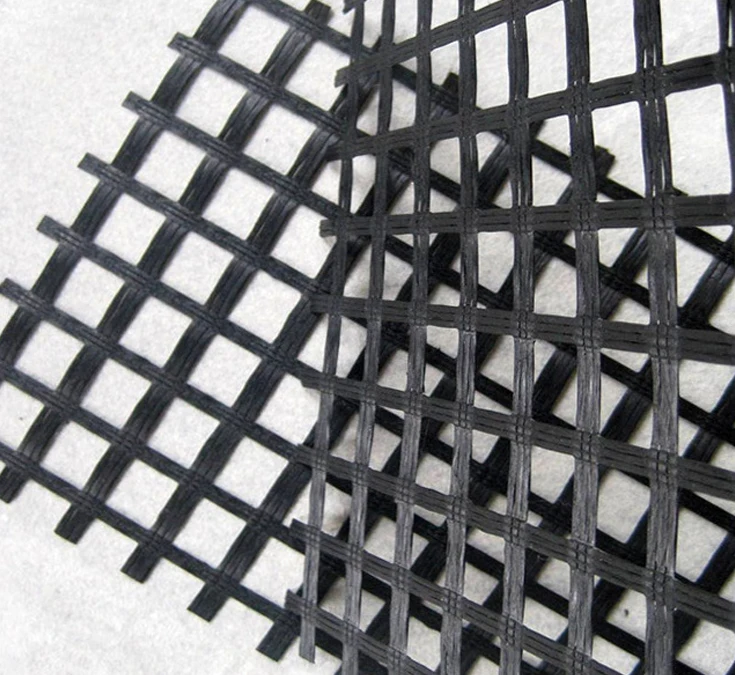

Polyester Geogrid For Road Construction

Geogrid is woven by polyester yarn as per desired mesh sizes coating water soluble or oil soluble PVC and strength from 15 kN/m to 1200 kN/m(Biaxial type),35-30KN/m to 1000-50KN/M(Uniaxial type)


high intension and tenacity,oclusive force with soil
gravel, erosion resistant, water drainage, light weight.


Reinforce soft soil roadbed, rib side slope of embankment, enhance isolation, inhibit ground deformatio prevent crack by reflection, increase strength of roadbed.
Polyester Biaxial Geogrid Specification
Performance
/Specification
PET 20-20
PET 30-30
PET 40-40
PET 50-50
PET 80-80
PET 100-100
PET 120-120
Elongation (%)
3%
Tensile Strength
warp
20
30
40
50
80
100
120
(KN/m)
waft
20
30
40
50
80
100
120
Mes size(mm)
12.7X12.7, 25.4X25.4, 40X40
Roll Width(m)
1-6
Roll Length(m)
50-200
Polyester Uniaxial Geogrid Specification
Performance
/Specification
PET 40-25
PET 50-35
PET 60-30
PET 80-30
PET100-30
PET 120-30
Tensile Strength
warp
25
50
30
30
30
30
(KN/m)
waft
40
35
60
80
100
120
Performance
/Specification
PET 150-30
PET 180-30
PET 200-30
PET 300-30
PET 400-30
PET 500-30
Elongation (%)
3%
Tensile Strength
warp
30
30
30
30
30
30
(KN/m)
waft
150
180
200
300
400
500
Mes size(mm)
12.7X12.7, 25.4X25.4, 40X40
Roll Width(m)
1-6
Roll Length(m)
50-200
Product Application

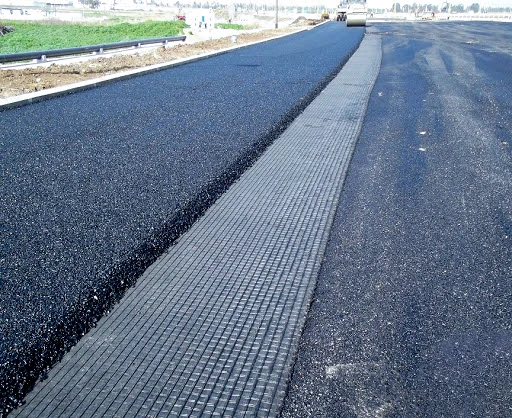

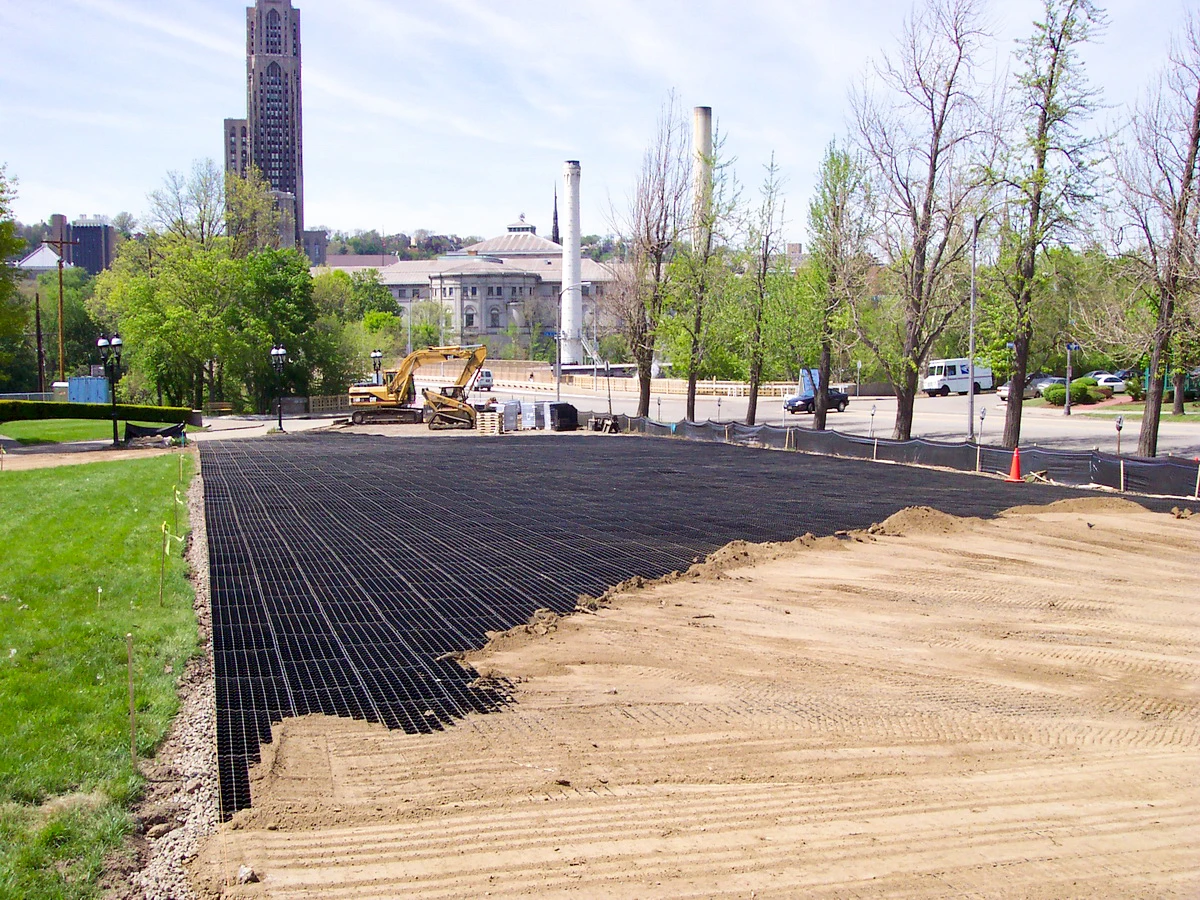

roadbed reinforce of road and railway,
crack prevent, increase roadbed strength

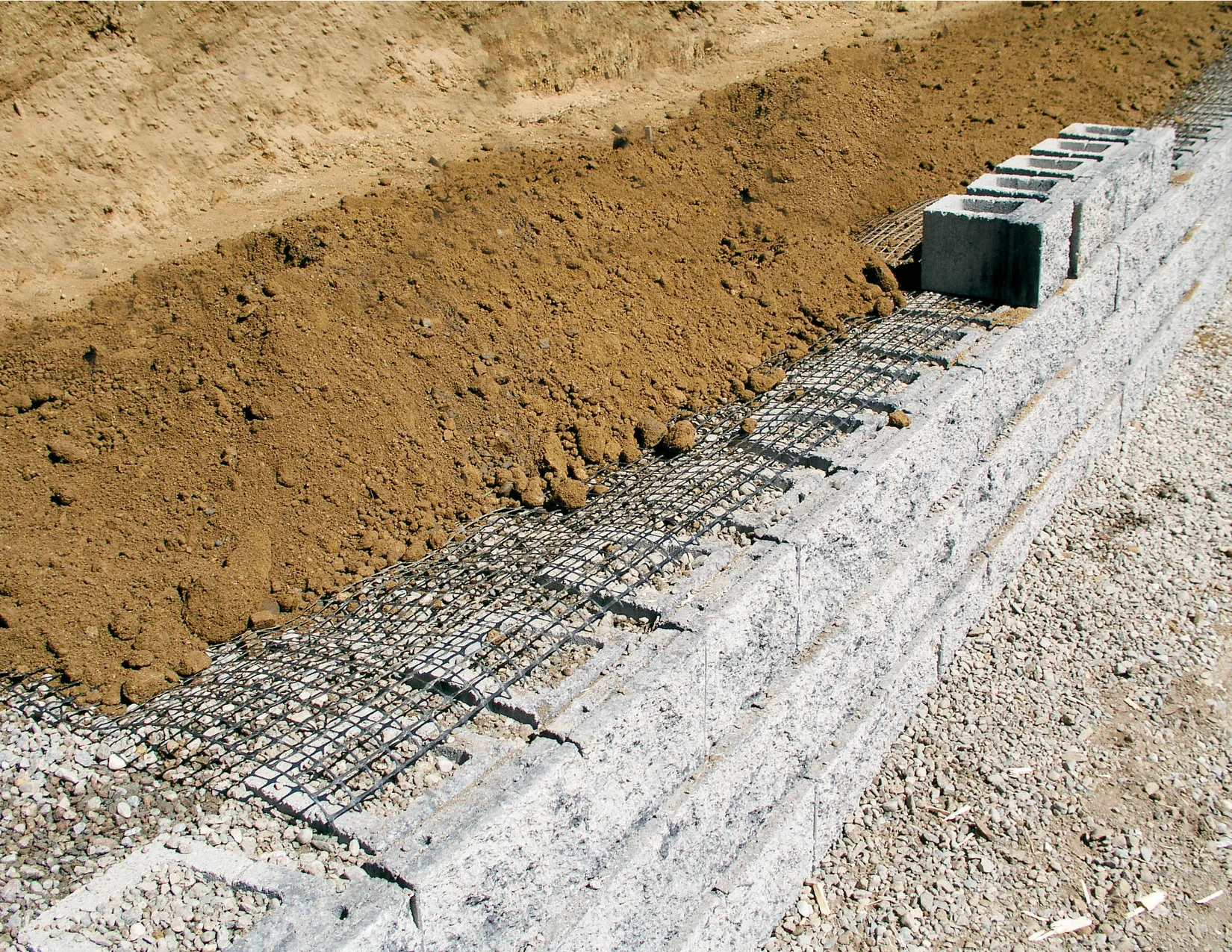

reinforcement and stabilization of riverside, embankment and side slope


dyke reinforcement on soft ground for stress evenness, sedimentation adjustment

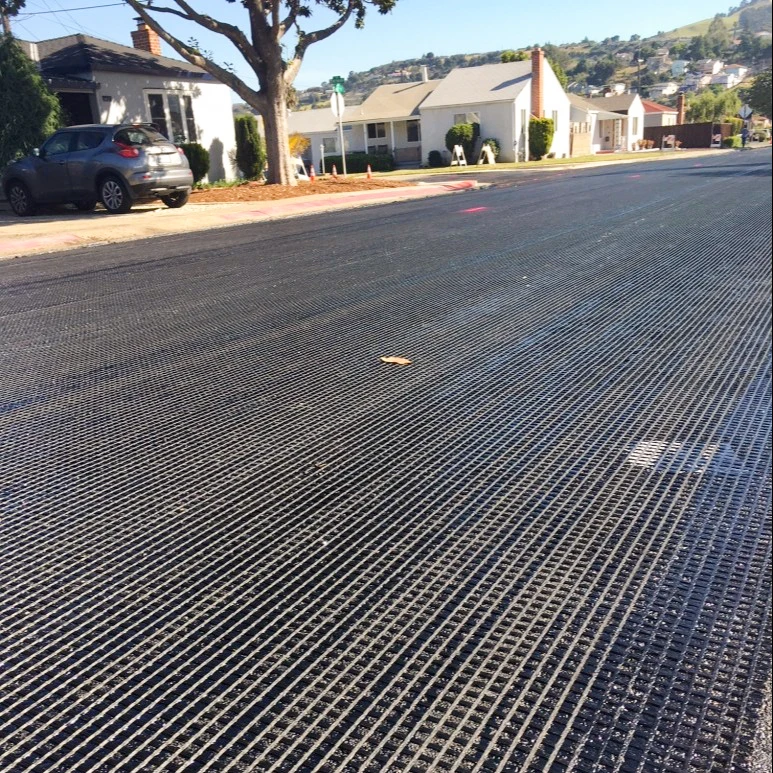

reinforcement of the surface of road and bridge,increase of stablity and loading capacity of fundus

Packing & Delivery

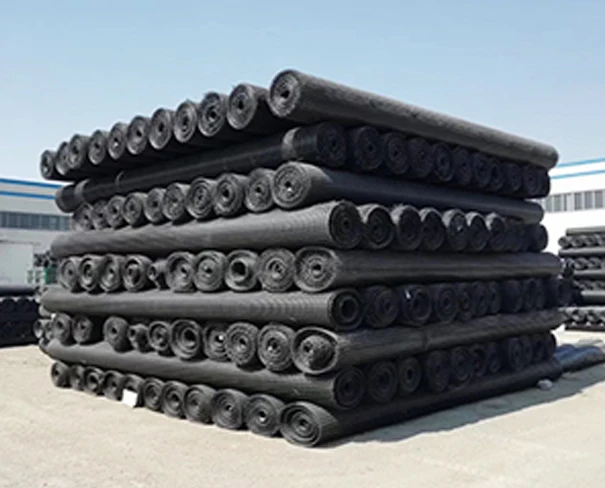

Package

Standard package or according to your requirement

Packaging size and container capacity vary according to product specifications.

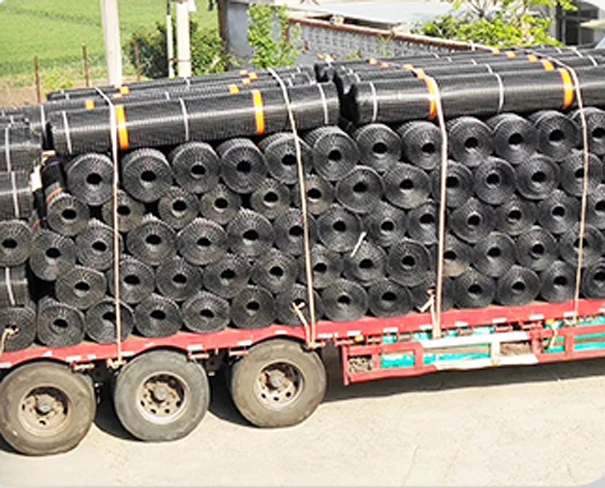

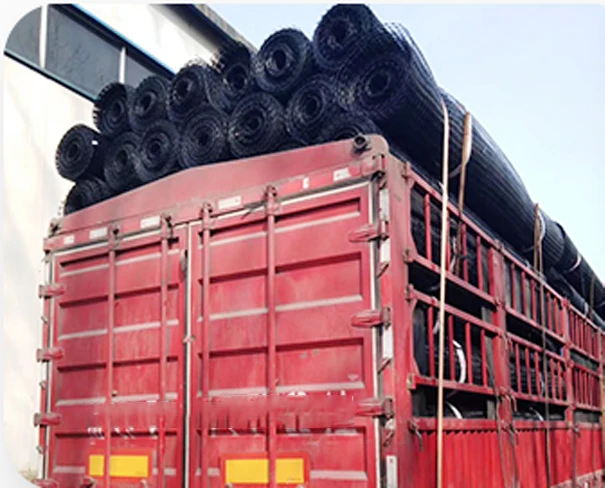

           Transport


 we can package and transport the products according to the requirements of the customers. please contact us if you need.

FAQ

Q1. Can you do OEM?
A1. Yes.of course.We can produce the products as your requests.
It would be better if you could provide us with samples.
Q2. If I want to order a small quantity goods,can you do it?
A2. If the product you need we have stock available,that would be great,you can choose the instock goods. but if not, don't worry, we can take your order with our other clients' order to be produced together.But it needs to wait some time .
Q3. Can I get a sample from your company?Should I pay for the express fee?
A3. If you can accept our available sample,we can offer free sample to you.
After confirming your order, the sample's freight cost will be deducted from your order's total cost.
Q4. How will you follow my order?
A4. When the goods are started to produce,we will take photos for the goods and send it to you.
If you find any production deficiencies,please contact us to correct it.
