SHANDONG YINENG HEAVY INDUSTRY CO.,LTD

Business Type:Manufacturer

Main Products: Wheel loaderOff-road forkliftExcavatorUnderground Trackless Tyred Vehicle

view on mobile

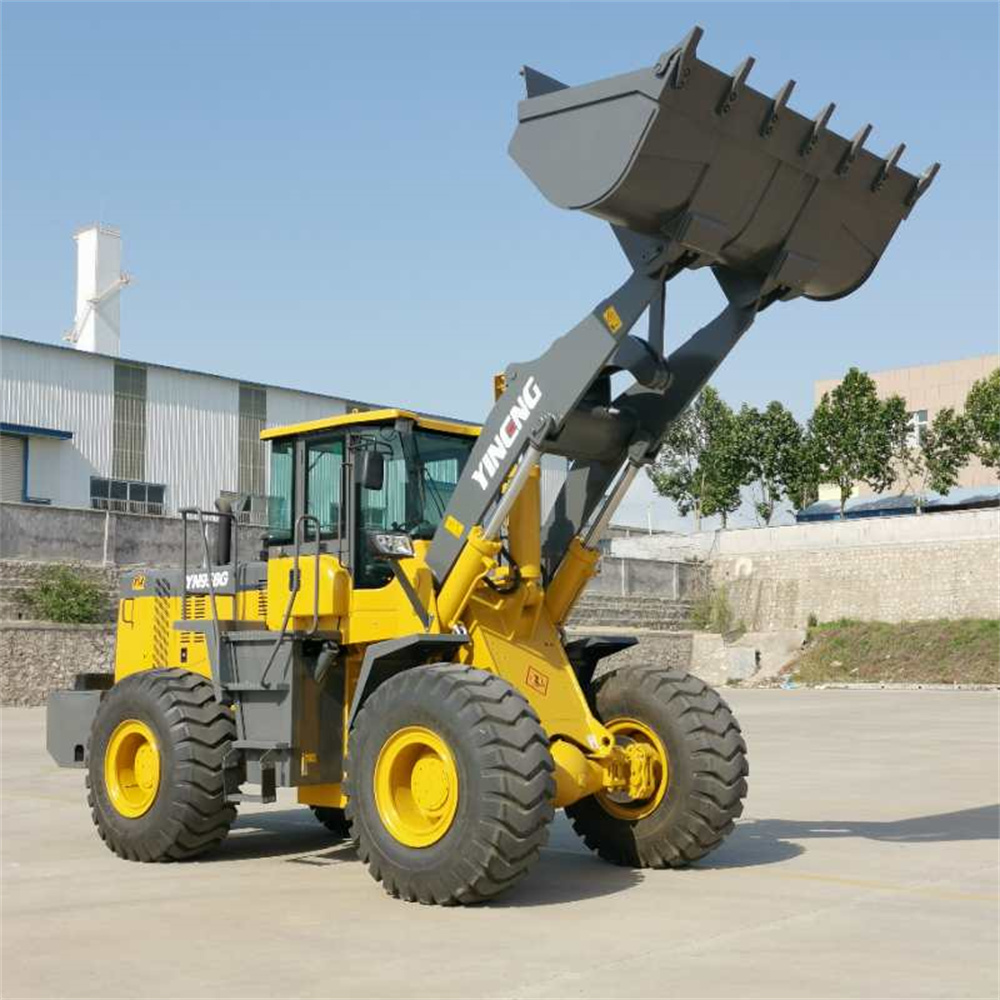

YN958G wheel loader

Manufacturing & Processing Machinery Engineering & Construction Machinery

FOB Price:US$ 43,600.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : L/C T/T D/P Western Union Money Gram

Keywords:wheel loader loader shovel loader 5 ton loader

Inquire


Add to Favorites

Product Category: Manufacturing & Processing Machinery > Engineering & Construction Machinery Trademark: YINENG
Product Package: Nude Specifications:
Place of Origin: Shandong, China Port: Qingdao

1.  Features:

* Shangchai Caterpillar tech SC11CB220G2B1 engine is adopted, large torque backup and strong power.

* Single stage, 4 elements, twin turbo ZL50 torque converter and planetary gearbox from Hangzhou Advance Gearbox Group, compact structure and high reliability.

* Gear-shift with 2 forward and 1 reverse controlled by flexible shaft eases much labor.

* Strengthened axles owning large bearing capacities and high reliability.

* Twin pump merging hydraulic system makes lower consumption and excellent performance.

* The coaxes flow-amplified, hydraulic compensated steering makes operation easy and performance reliable.

* Both travel system and working hydraulic system are forced-cooled, improving the efficiency obviously.

* Air over hydraulic brake system; eight caliper disc brakes.

* Air break control, expand hoof type parking brake and emergency brake.

* Working device with automatically leveling ability at high position.

* Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.

* Integral, luxury instrument board.

* New, luxury cabin

2.  Parameters:











Performance

1

Rated load

5000kg

2

Overall weight

17000kg

3

Rated capacity

3m3

4

Max. Tractive force

150KN

5

Max. Breakout force

≥170KN

6

Max. Grade ability

28°

7

Dumping height

3100mm

8

Max. Dumping reach

1248mm

9

Overall dimension

7960x3070x3560mm

10

Min. Turning radius

6630mm





Engine

11

Model

Weichai  Styer Engine

WD10G220E21

12

Type

Inline/Turbocharged

13

No. of cylinder-bore/stoke

6-121x152mm

14

Rated   power

162kw-2200r/min

15

Max.   torque

860N.m

16

Min Fuel-consume ratio

≤220g/kw.h



Transmission

17

Model

Hangchi   Advance ZL50

18

Gear shift

2 forward, 1 reverse.

19

Max. speed

37km/h





Axle

20

Type of main reducer

Bevel gear grade 1 reduction

21

Type of final reducer

Planetary reduction, grade 1

22

Wheel base

3200mm

23

Wheel tread

2250mm

24

Min. ground clearance

478mm

Hydraulic

system

25

System working pressure

17MPa

26

Boom lifting time

6.5+0.2s

27

Total time

11.8+0.5s

28

Fuel tank capacity

300L

29

Hydraulic tank capacity

300L

Break system


30

Service brake

Air over hydraulic disc brake on 4 wheels

31

Parking brake

Air break control expand hoof type



Tyre

32

Type

23.5-25

33

Front tyre pressure

0.39Mpa

34

Rear tyre pressure

0.34Mpa

3.  Optionals:

A/C

Joystick control

Dongfeng Cummins 6CTA8.3-C215 engine

WG180 gearbox WG180

WG200 gearbox WG200

Quich-Hitch

Fork

ROPS

4. Other：

Packing: 1 pieces disassembled, naked within 1 x 40GP container.

Delivery time: 40 days

Guarantee: 12 months.


Contact Name: Mr wei Liu Contact Email: me****y@yinengchina.com
Contact Job Title: Manager Contact Mob: 150***358
Contact Tel: 0086-538-8365669 Contact Fax:
Address: JINGHUA ROAD,YOUTH STARTUP ZONE, DAIYUE DISTRICT, TAIAN CITY, SHANDONG PROVINCE, P.R. CHINA Website: www.yinengchina.com

Founded in 1999, Shandong Yineng Heavy Industry Co., Ltd (Taian Luneng Machinery Co., Ltd.) is a large-scale construction and agricultural equipment manufacturing enterprise integrating R&D, production and sales. The company has more than 400 employees, 8 senior engineers and 12 professional technicians. The products cover wheel loaders, underground mining machine, grass grabber, off-road forklift and etc, with 7 series, more than 100 models and equipment in total. Yineng has passed the ISO9001:2000 international quality management system certification and assessment of State Engineering Machinery Quality Supervision & Testing Center.

The company has been invited to participate in large-scale international exhibitions such as the Canton Fair, the Hanover Agricultural Machinery Exhibition in Germany, and the Bauma Fair for more than ten years. With first-class technical standards, top-notch manufacturing processes and personalized customization services, Yineng has established a broad customer network around the world, with customers all over Germany, Russia, Brazil,  Saudi Arabia, Australia, Thailand, South Africa, etc. More than 40 Many countries and regions.
