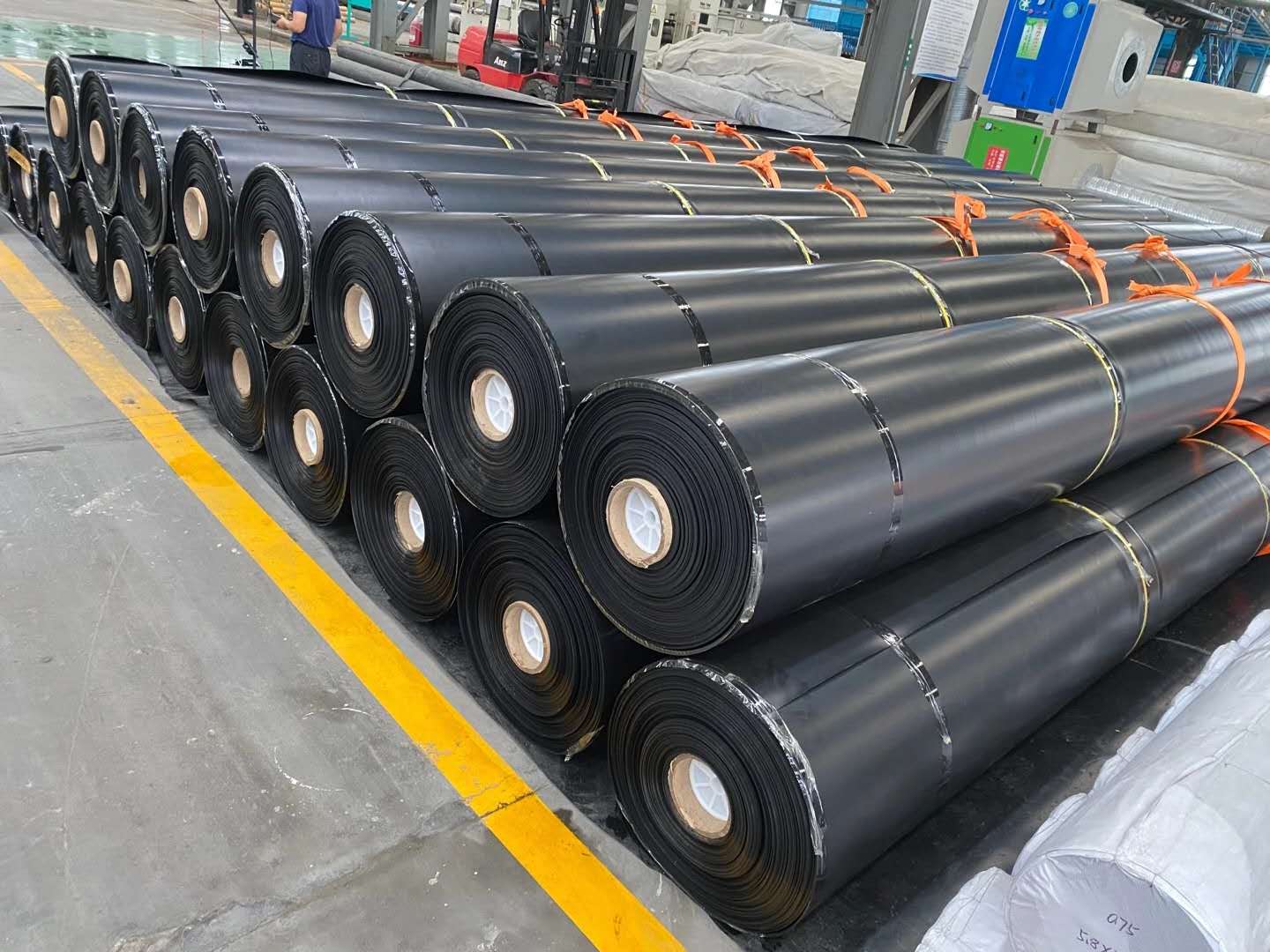

0.75mm ASTM fish farm pond liner HDPE geomembrane
MOQ:3000 Square Meter(s)
Payment Method : L/C T/T Western Union Paypal Money Gram
Keywords:Geomembranes hdpe geomembrane geomembrane pond liner fish farm liner ldpe geomembrane lldpe geomembrane eva geomembrane 1.0mm geomembrane 0.5mm geomembrane 0.3mm geomembrane
| Product Category: | Agricultural > Fisheries | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | qingdao |
HDPE Geomembrane Specification :
0.75mm ASTM fish farm pond liner HDPE geomembrane
| Thickness | 0.12mm-4.0mm |
| Length | 50m/roll,100m/roll,150m/roll or as your choice |
| Width | 5.0m-7.0m or as your choice |
| Color | White/Black/Blue/Green,mainly black |
| Material | HDPE |
| Delivery port | Qingdao |
| Package: | woven bag or as customers' requests |
| Product time | 2-20 days |
| Features | 1.Good physical and mechanic performance |
| 2.High tearing resistance, strong deformation adaptability | |
| 3.Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance | |
| 4.Good adaptability to high and low temperature, non-toxicity, long service life | |
| 5.Good waterproof, drainage, anti-seepage and damp proof effects | |
| 6.Complete width and thickness specifications, low cost and easy installation. | |
| Note | We can do as your demand,please feel free to contact us for more information |
Geomembrane Usage
1.landfill,sewage or control the waste residue seashores seepage.
2.Lake dam,tailings dams,sewage dam and reservoir,channel,storage of liquid pools(pit,ore)
3.The subway ,tunnel,anti-seepage lining of basement and tunnel.
4.To control the roadbed and other foundation saline seepage.
5.Dike,the front of the sam foundation seepage prevention bedding,level of vertical impervious layer , construction cofferdam,waste field.

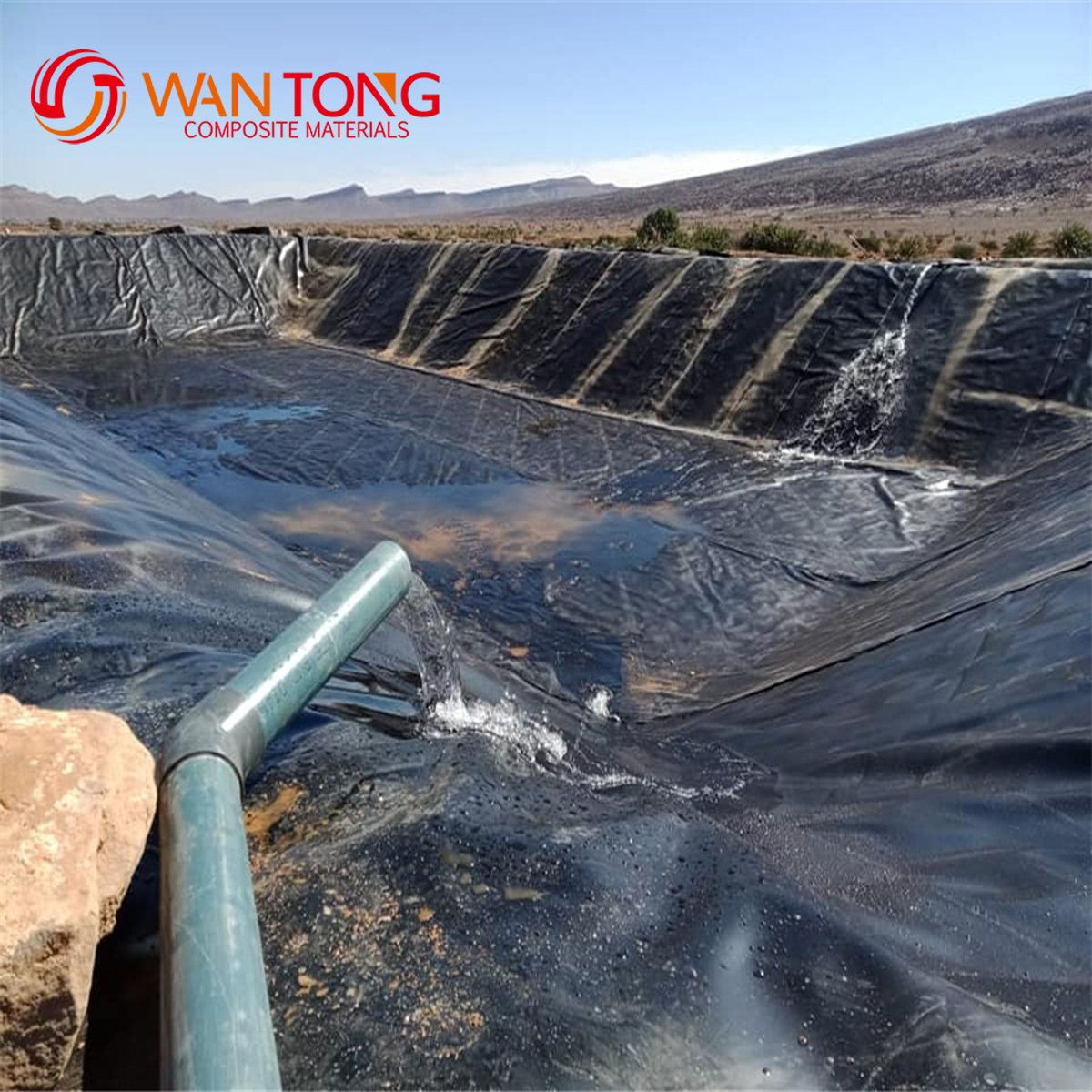

6.Seawater,freshwater fish farms.
7.Highway,the foundations of the highway and railway;the expansive soil and collapsible loess of the waterproof layer.
8.Anti-seepage of roofing
HDPE geomembrane liner technical of ASTM test GM 13 standard
No. | Item | Test Value | |||||||
0.75mm | 1.0 mm | 1.25 mm | 1.5 mm | 1.8mm | 2.0mm | 2.5 mm | 3.0mm | ||
1 | Minimum Density(g/cm3) | 0.94 | |||||||
2 | Strength at yield,N/mm | 11 | 15 | 18 | 23 | 27 | 30 | 38 | 45 |
3 | Strength at break ,N/mm | 21 | 28 | 33 | 43 | 51 | 57 | 71 | 85 |
4 | Elongation at yield,% | 13 | |||||||
5 | Elongation at break,% | 700min | |||||||
6 | Tear Resistance N | 93 | 125 | 156 | 187 | 219 | 249 | 311 | 373 |
7 | Puncture Resistance N | 263 | 352 | 440 | 530 | 618 | 703 | 881 | 1059 |
8 | Stress Crack Resistance, hrs | 400 | |||||||
9 | Carbon Black Content, % | 2.0-3.0 | |||||||
Carbon Black Dispersion | 1 or 2 | ||||||||
10 | Standard OTI Min | 100 | |||||||
High Pressure OTI Min | 400 | ||||||||
11 | Impact Cold Crack at -70°C | Pass | |||||||
12 | Water vapor permeability (g.cm/cm2 .s.Pa) | ≤1.0×10-13 | |||||||
13 | Dimensional Stability (%) | ±2 | |||||||
| Contact Name: | Mr. Vivian Song | Contact Email: | vi****n@wtgeosynthetics.com |
| Contact Job Title: | Sales Manager | Contact Mob: | 132***391 |
| Contact Tel: | Contact Fax: | ||
| Address: | Fangcun Industrial Zone, High-tech District, Taian, Shandong, China | Website: | http://www.wtgeomembrane.com |
Tai'an Wantong Composite Material Co., Ltd. established in 2 0 1 5, is a professional manufacturer engaged in the research, development, production, sale and service of geogrid, geotextile, geomembrane, geocell, geosynthetic clay liner, geomat, geonet,drainage board,composite drainage net, geobag,non woven fabric, tree watering bag and fiberglass chopped strand mat.
we have obtained I S O 9 0 0 1 certificate. Our products are widely applied in many fields, such as road, highway, airway, coal mine, water and soil conservation, water conservancy and basic construction.
Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Vietnam,Thailand, Indonesia, Ukraine, Russia, Colombia, Canada, Georgia, Romania, and Yemen We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements
