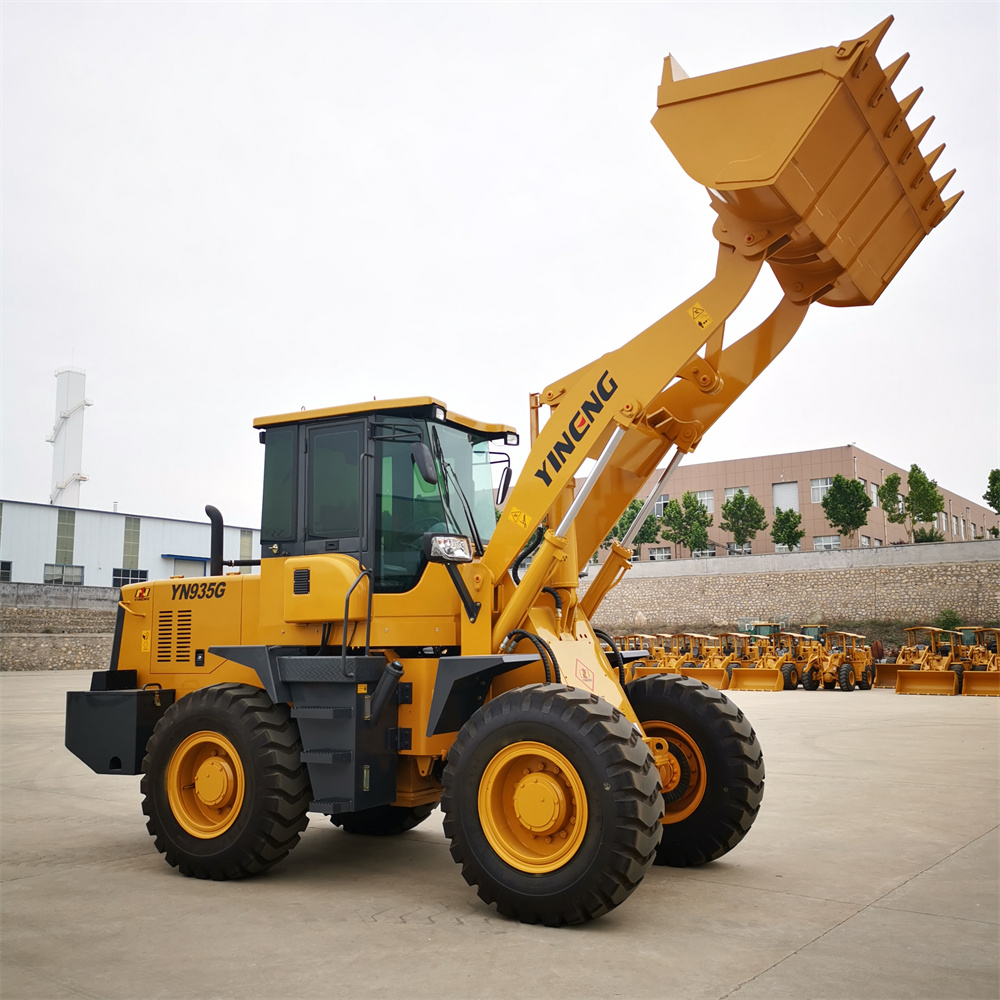

YN935 Wheel Loader

Manufacturing & Processing Machinery Engineering & Construction Machinery

FOB Price:US$ 26,000.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : L/C T/T D/P Western Union

Keywords:wheel loader 3T wheel loader

Add to Favorites

Product Category: Manufacturing & Processing Machinery > Engineering & Construction Machinery Trademark:
Product Package: Specifications:
Place of Origin: Port: Qingdao

FEATURES:



The most cost-effective

*Adopt Deutz WP6G125E23 engine, large power storage.

*Torque-converter and gearbox, the separated structure makes easy maintenance.

*Main articulated points take sealed, lubricated, double dust-proof layers, which owns good durability.

*Doubly sealed hydraulic pipeline joints with 24° awl and O ring of international standard, avoided the oil leakage effectively;

*Air over hydraulic disks on four-wheel brakes.

*Working device with automatically leveling ability at high position.

*Integral, luxury instrument board.

*New, luxury cabin.



OPTIONALS

? DongFeng Cummins engine

 (Model 6BT5.9-C130, from DongFeng Cummins Co.)

? Air Condition,

? Joystick

.   ? Quick Hitch & Fork

? Grapple



2-STANDARD SPECIFICATIONS:



Item

Parameter

Item

Parameter

Capacity

2.0 m3

Turning radius

(outside of   rear wheel)

5160mm

Rated load capacity

3500 kg

turning angle

35o each direction

Dumping Height

3050 mm

Min. ground clearance

410mm

Dumping reach

1105 mm

wheel base

2600mm

Bucket lifting time

5.5 S

wheel tread

1800mm

Total cycle time

10 S

Engine

Deutz engine WP6G125E23

Max. speed

38km/h

Engine power

92kW/2300rpm

Max.breakforce

120 kN

Tyre size

17.5-25

Max.drawing force

90 kN

Overall   Dimensions

(length*wide*height)

7090*2425*3270mm

Max. gradeability

30°

Whole operating weight

10200kg


Contact Name: Mr wei Liu Contact Email: me****y@yinengchina.com
Contact Job Title: Manager Contact Mob: 150***358
Contact Tel: 0086-538-8365669 Contact Fax:
Address: JINGHUA ROAD,YOUTH STARTUP ZONE, DAIYUE DISTRICT, TAIAN CITY, SHANDONG PROVINCE, P.R. CHINA Website: www.yinengchina.com

Founded in 1999, Shandong Yineng Heavy Industry Co., Ltd (Taian Luneng Machinery Co., Ltd.) is a large-scale construction and agricultural equipment manufacturing enterprise integrating R&D, production and sales. The company has more than 400 employees, 8 senior engineers and 12 professional technicians. The products cover wheel loaders, underground mining machine, grass grabber, off-road forklift and etc, with 7 series, more than 100 models and equipment in total. Yineng has passed the ISO9001:2000 international quality management system certification and assessment of State Engineering Machinery Quality Supervision & Testing Center.

The company has been invited to participate in large-scale international exhibitions such as the Canton Fair, the Hanover Agricultural Machinery Exhibition in Germany, and the Bauma Fair for more than ten years. With first-class technical standards, top-notch manufacturing processes and personalized customization services, Yineng has established a broad customer network around the world, with customers all over Germany, Russia, Brazil,  Saudi Arabia, Australia, Thailand, South Africa, etc. More than 40 Many countries and regions.
