High Strength Geogrid Steel Plastic Biaxial Geogrid For Slope Stabilization
Construction & Decoration Building Structural Material
MOQ:1000 Square Meter(s)
Payment Method : L/C T/T D/P Western Union Paypal Money Gram Others
Keywords:Steel plastic geogrid geogrid
| Product Category: | Construction & Decoration > Building Structural Material | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | Qingdao |

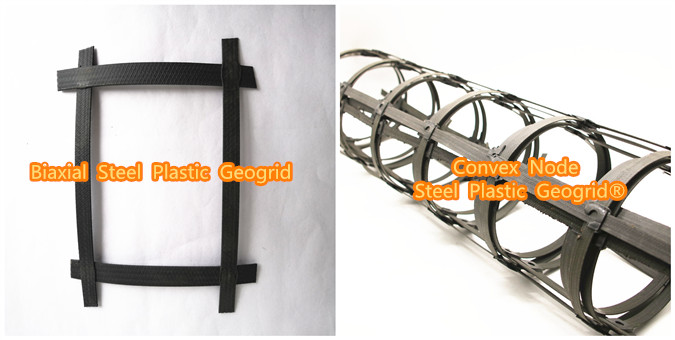

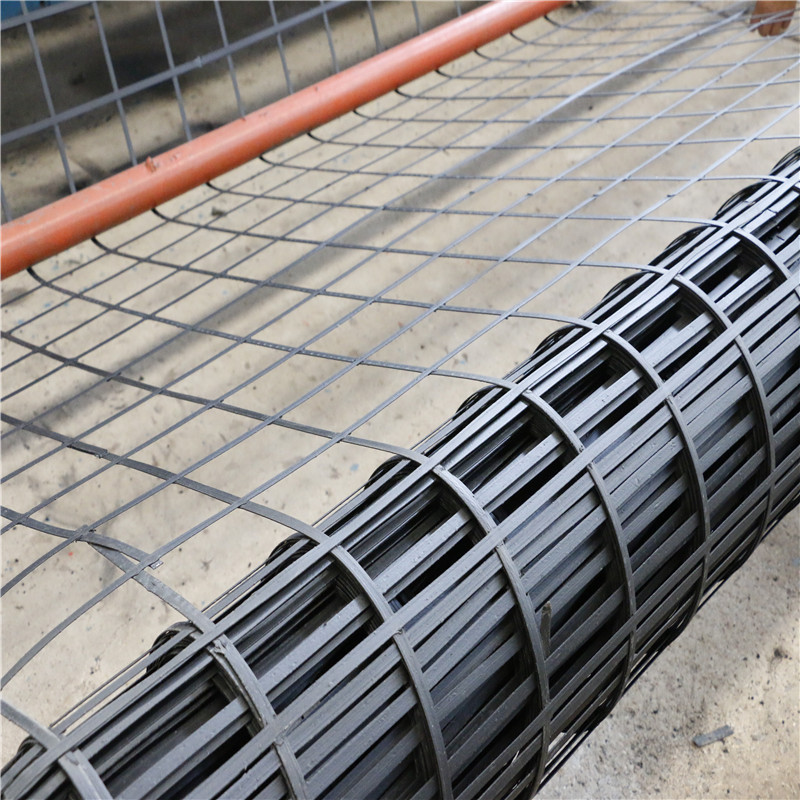

The steel plastic composite geogrid uses high tensile steel wire(or other fiber) specially handled and polyethylene (P.E) with other assistants. Then squeeze it out and make it become composite high-strength anti-pull belt and the horizontally using this single belt and welding the joint using a special welding technology to molding is reinforcement geogrid.
Product Name | Steel plastic geogrid |
Standard | ASTM/GB |
Raw material | Steel plastic |
| Color | Black |
Tensile strenghth | 20-1500Kn |
Mesh size | 128mm*128mm |
| Width | 6m |
Length | 50-100m |
Port | Qingdao |
geogrid 3030 geogrid 3030 geogrid 3030 geogrid 3030 shop online geogrid shop online geogrid shop online geogrid
| Biaxial Steel-Plastic Geogrid | |||||||
| Index | Specification | ||||||
BP 30-30 | BP 50-50 | BP 60-60 | BP 70-70 | BP 80-80 | BP 100-100 | BP 120-120 | |
| MD/TD ultimate tensile strength KN/m | ≥30 | ≥50 | ≥60 | ≥70 | ≥80 | ≥100 | ≥120 |
MD/TD elongation at ultimate tensile strength % | ≤3 | ||||||
Connection point ultimate separation strength N | ≥300 | ≥500 | |||||
| Heterotypic biaxial steel plastic geogrid | |||||||
| Index | Specification | ||||||
BP 50-30 | BP 60-30 | BP 80-30 | BP 80-50 | BP 100-50 | BP 120-50 | BP 180-50 | |
| MD ultimate tensile strength KN/m | ≥50 | ≥60 | ≥80 | ≥80 | ≥100 | ≥120 | ≥180 |
| TD elongation at ultimate tensile strength KN/m | ≥30 | ≥60 | ≥30 | ≥50 | ≥50 | ≥50 | ≥50 |
| MD/TD elongation at ultimate separation strength% | ≤3 | ||||||
| Connection point ultimate separation strength N | ≥300 | ≥500 | |||||

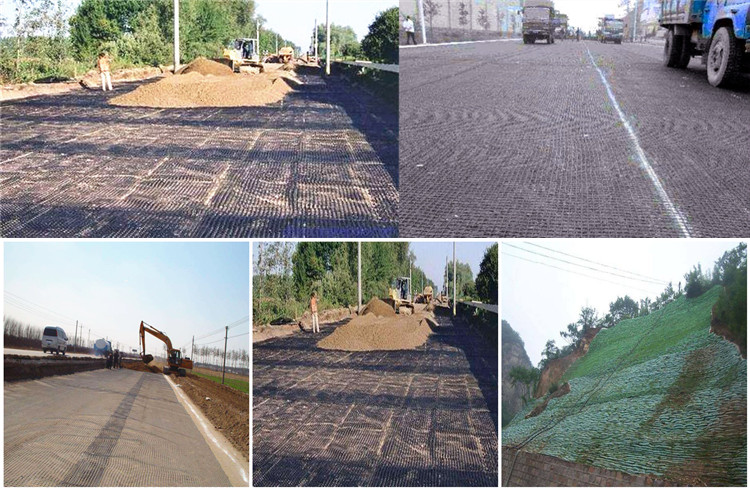

Applications of Fiberglass Geogrid
--- Reinforcement for road pavement
--- Reinforcement for railway basement
--- Reinforcement for Tunnel Steel Plastic Geogrid Steel Plastic Geogrid Steel Plastic Geogrid
--- Reinforcement for Slope
--- Reinforcement for embankment
---Soft soil reinforcement, improve road whole bearing capacity and prevent crack
Delivery Details : 7-15 days after receive the advance payment.

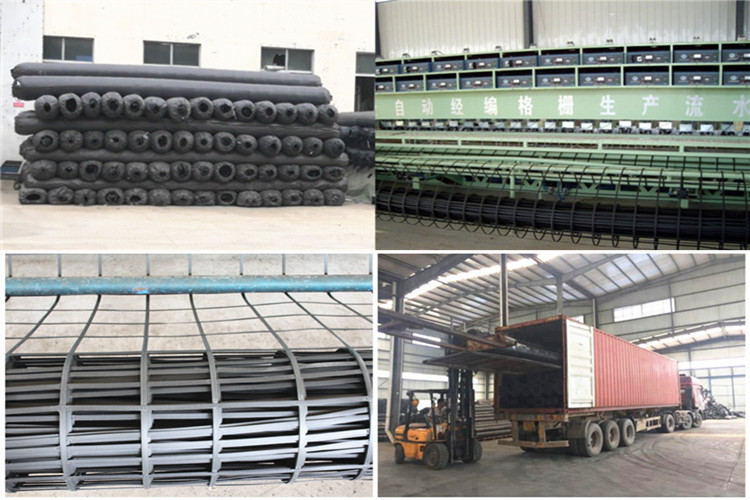

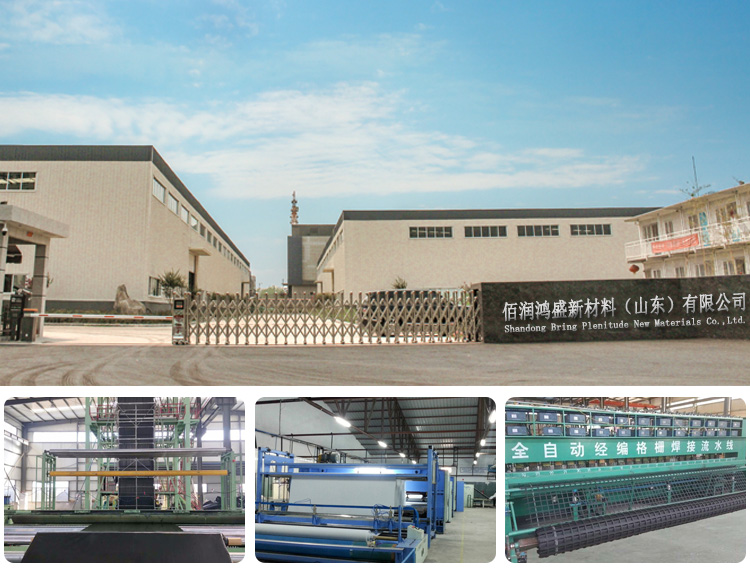

Shandong Bring Plenitude New Materials is located in Tai'an, Shandong ,China. which is a high tech enterprise specializing in designing and manufacturing of geosynthetic materials. It covers up 33000 square meters, and have geotextile, steel and plastic geogrid, geomembrane, geocell and other total five production lines, more than 110 employees, annual output of new materials more than 12,000 tons.Main products include geogrid, non woven geotextile, geomembrane, waterproof board/sheet, geocell, composite geotextile and so on. The company has passed ISO9001 / ISO14001 / OHSAS18001 and CE certificate. The products are widely used in reinforcement of railway, highway construction, water conservancy, electric power construction, municipal engineering, port works etc., The products are also exported to Southeast Asia, Japan, Korea, North America , Australia and other 20 countries.
