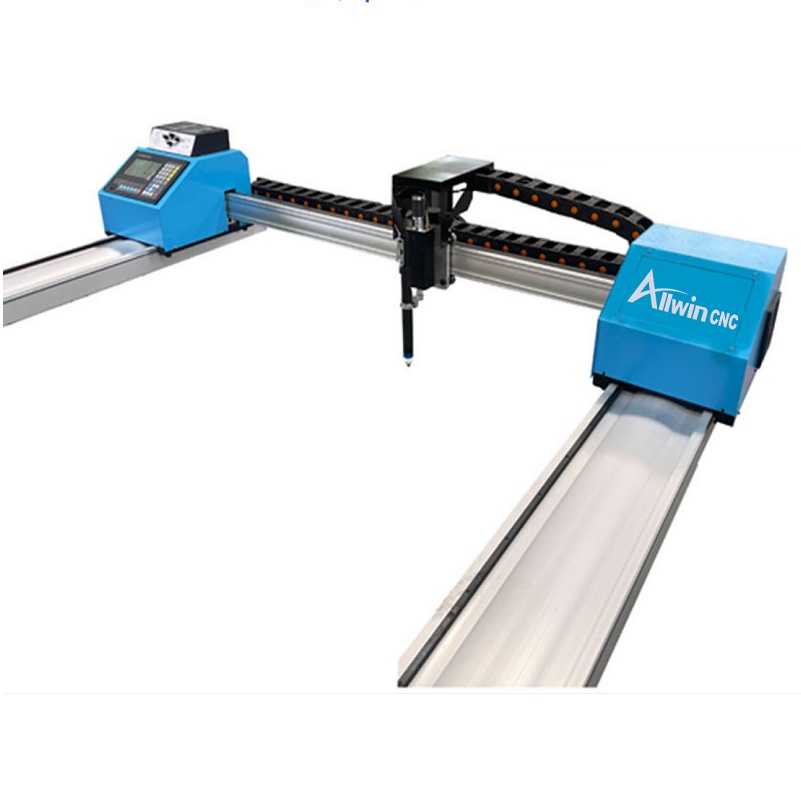

CNC Plasma Gantry cutter Machine Features

The light gantry plasma cutting machine adopts aluminum alloy as a whole, adopts H-shaped structure, and is driven in both directions. this gantry plasma cutter is more stable than a portable plasma cutting machine driven by a single arm. When cutting large-format steel plates, this fast cnc plasma is also much stronger than ordinary plasma cutting equipment.   Although the cutting accuracy is slightly lower than the heavy-duty gantry cnc plasma,this plasma cutter is lighter than the heavy-duty gantry plasma cutting machine and is easy to move. This plasma  machine, in the gantry plasma cutting machine, this plasma  equipment  is the best-selling CNC cutting machine in 2021, and customer feedback and evaluation are also very high. The length of the longitudinal arms is 3m, 4m, 5m, 6m, 8m and other specifications. The standard horizontal range is 4 meters. Effective cutting range: 3.2m. The length of the longitudinal rail can be customized. This CNC cutting machine can be equipped with either oxygen cutting or plasma cutting. Flame cutting can automatically ignite. Flame cutting is also called CNC gas, oxy fuel cutting machine. The flame cutting method can cut the cutting range between 6mm and 300mm. Plasma cutting is also called fast cut Cnc, air plasma cutter, etc., the thickness of the cutting material, according to the plasma power source, can cut 30mm, 40mm, 50mm, 60mm, up to 100mm. Therefore, it is also called cut 40 plasma cutter, cut 50 plasma cutter, and cut 60 plasma cutter. However, considering the cutting effect and economy, it is generally recommended to cut materials with a thickness of less than 50mm. Therefore, this plasma cutting equipment can be adapted to most enterprises and small business companies, and is also suitable for school teaching. At the same time, the cutting equipment is also a diy CNC plasma cutting machine, which is very attractive to iron art enthusiasts.

Features of Light Gantry Plasma Cutting Machine:

1The horizontal x-axis and the vertical Y-axis are all made of aluminum alloy structure, servo motors are driven by both sides, and precision linear guides are used to ensure that the overall weight of the machine is light, convenient to move, and the cutting accuracy and stability are relatively good.

2. Wide range of applications. Plasma cutting machine has a very wide range of applications and can cut various metals, including carbon steel, cast iron, stainless steel, copper, aluminum, etc. Suitable for large machinery, automobiles, shipbuilding, military industry, boilers, pressure vessels, steel structures and other metal cutting industries.

3. This CNC PLASMA is the best-selling gantry plasma cutter machine in 2021. Because the lightweight gantry plasma cutting equipment has a simple structure and is easy to assemble, the overall volume is small, which can greatly reduce shipping costs. Favored by the majority of customers.

4. High cost performance, the machine is low in price and stable in performance. In terms of cutting quality, performance, price and other factors,this fast cut cnc machine is the first cutting machine for customers.

5 Simple operation, easy maintenance, only need simple training for workers to get started. The maintenance is relatively simple.

 Portable  CNC Plasma Gantry cutter  Technical specification

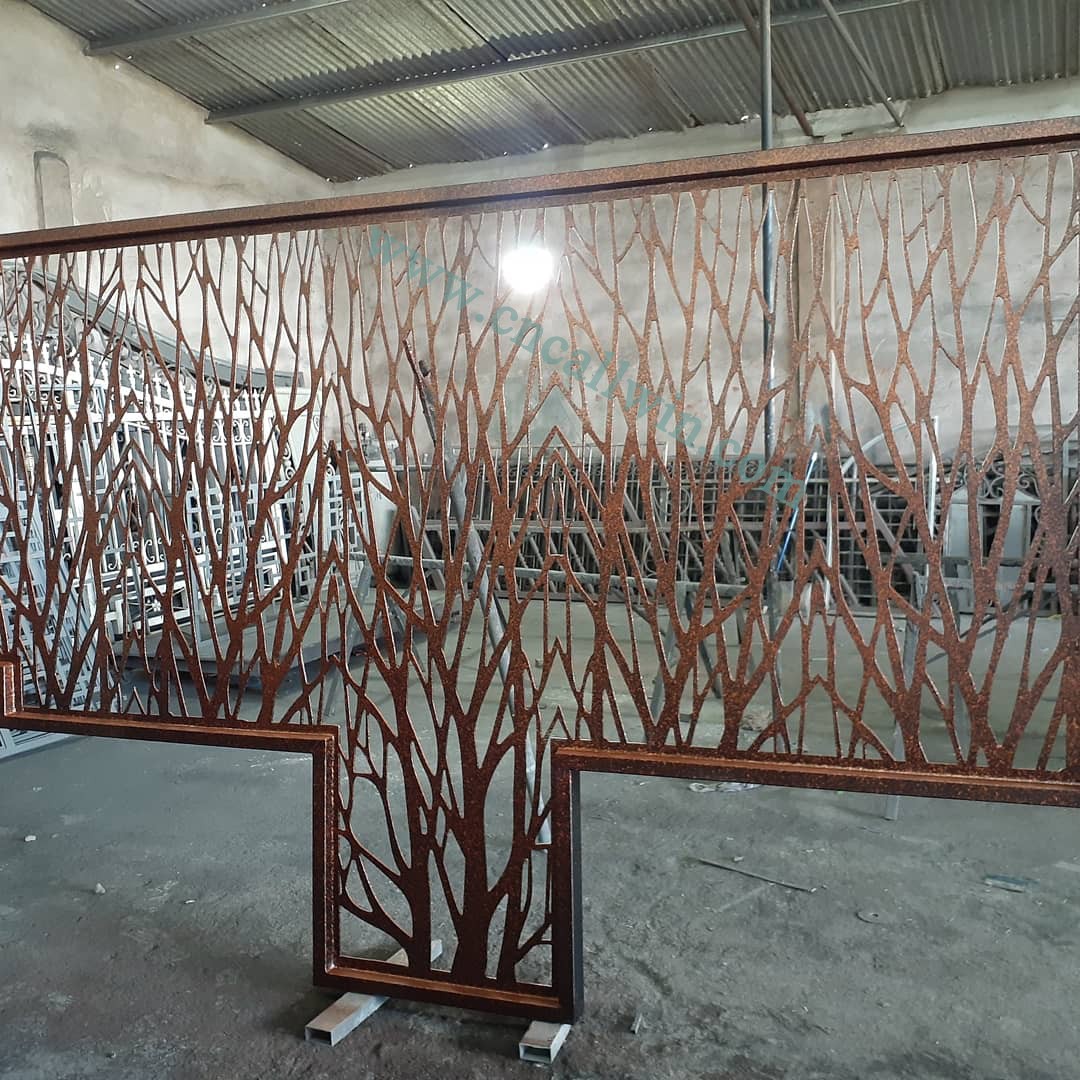

PLASMA CUTTER  Applications

Allwin Gantry plasma cutting machine is  suitable for large-scale construction machinery, boiler manufacturing, power equipment, three-dimensional storage, shipbuilding enterprises, automobile manufacturing, steel structures and other metal processing industries.

View More Information Click Here

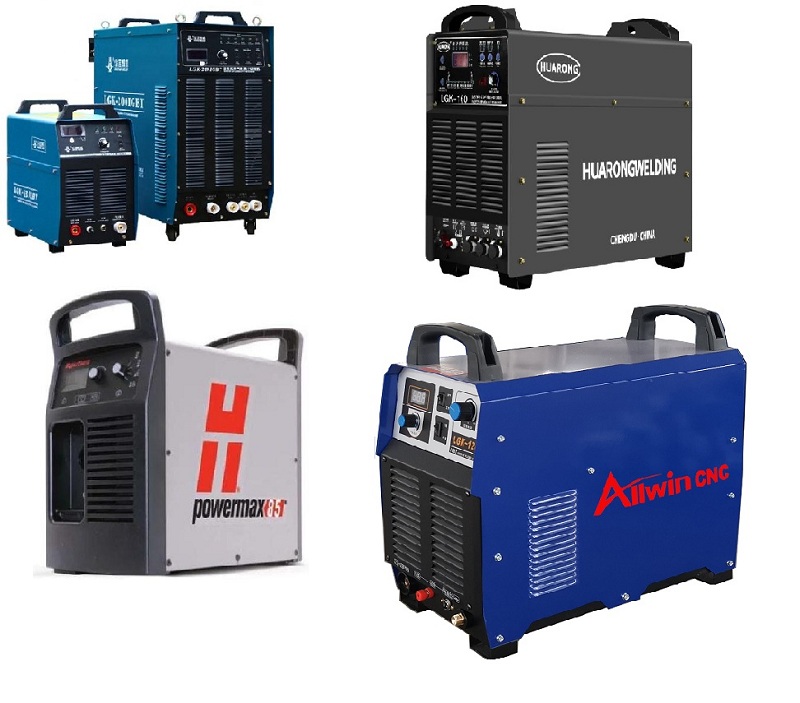

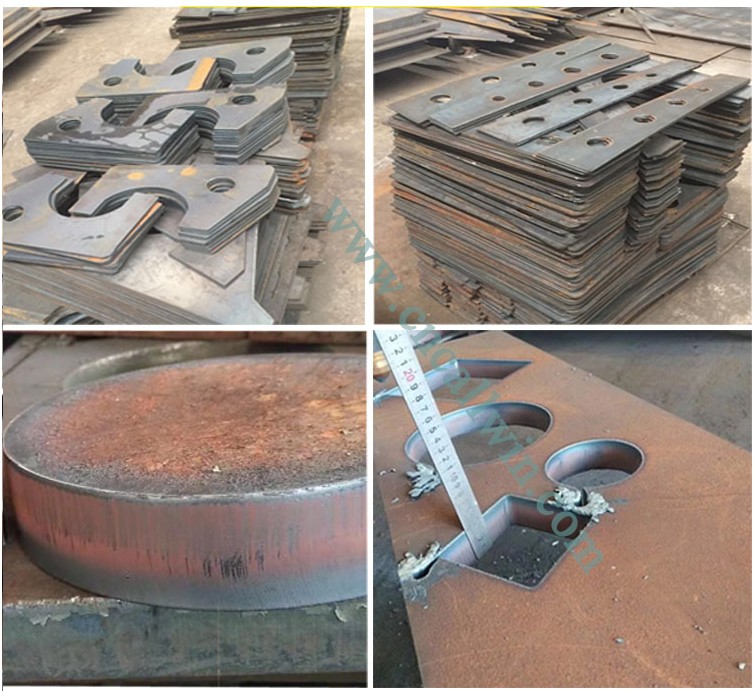

Plasma Cutting Capacity of  portable Plasma cutter

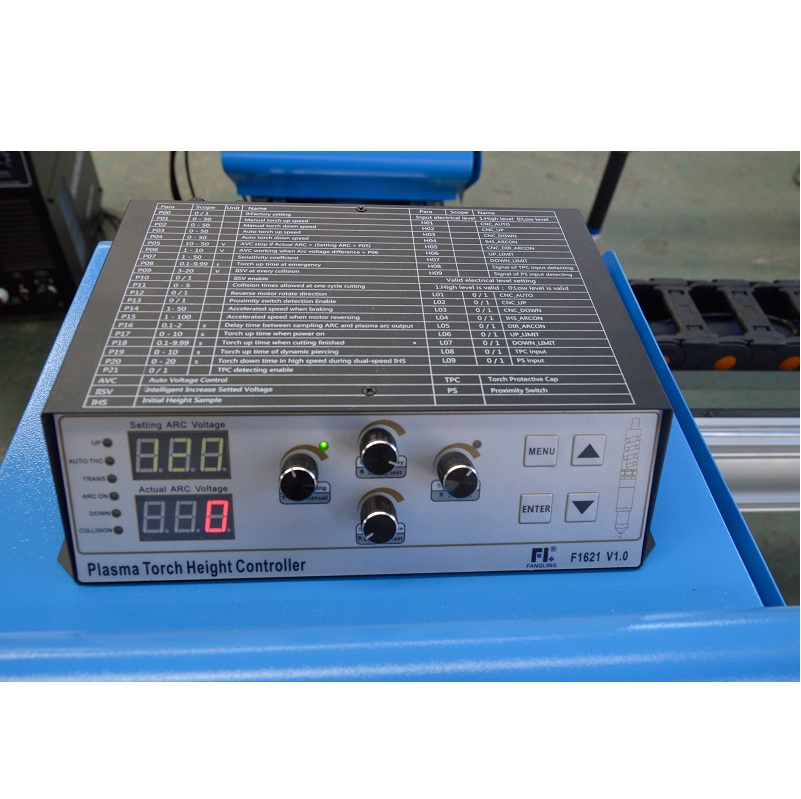

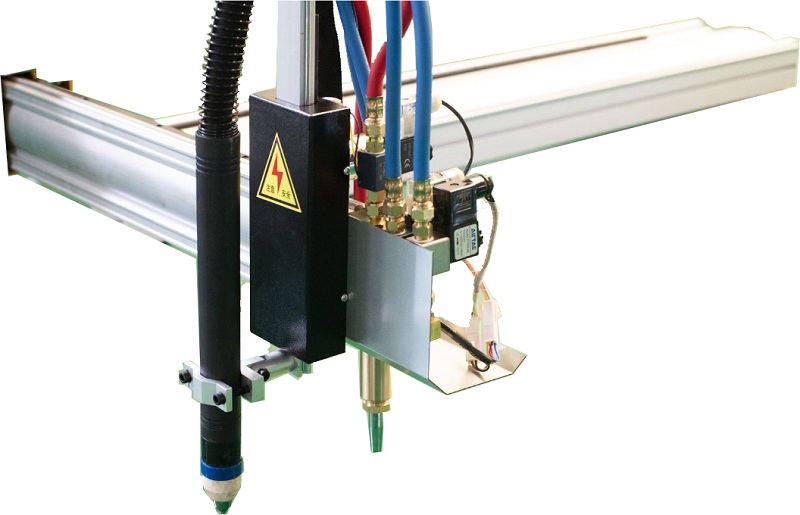

Portable cnc Plasma cutter Details
