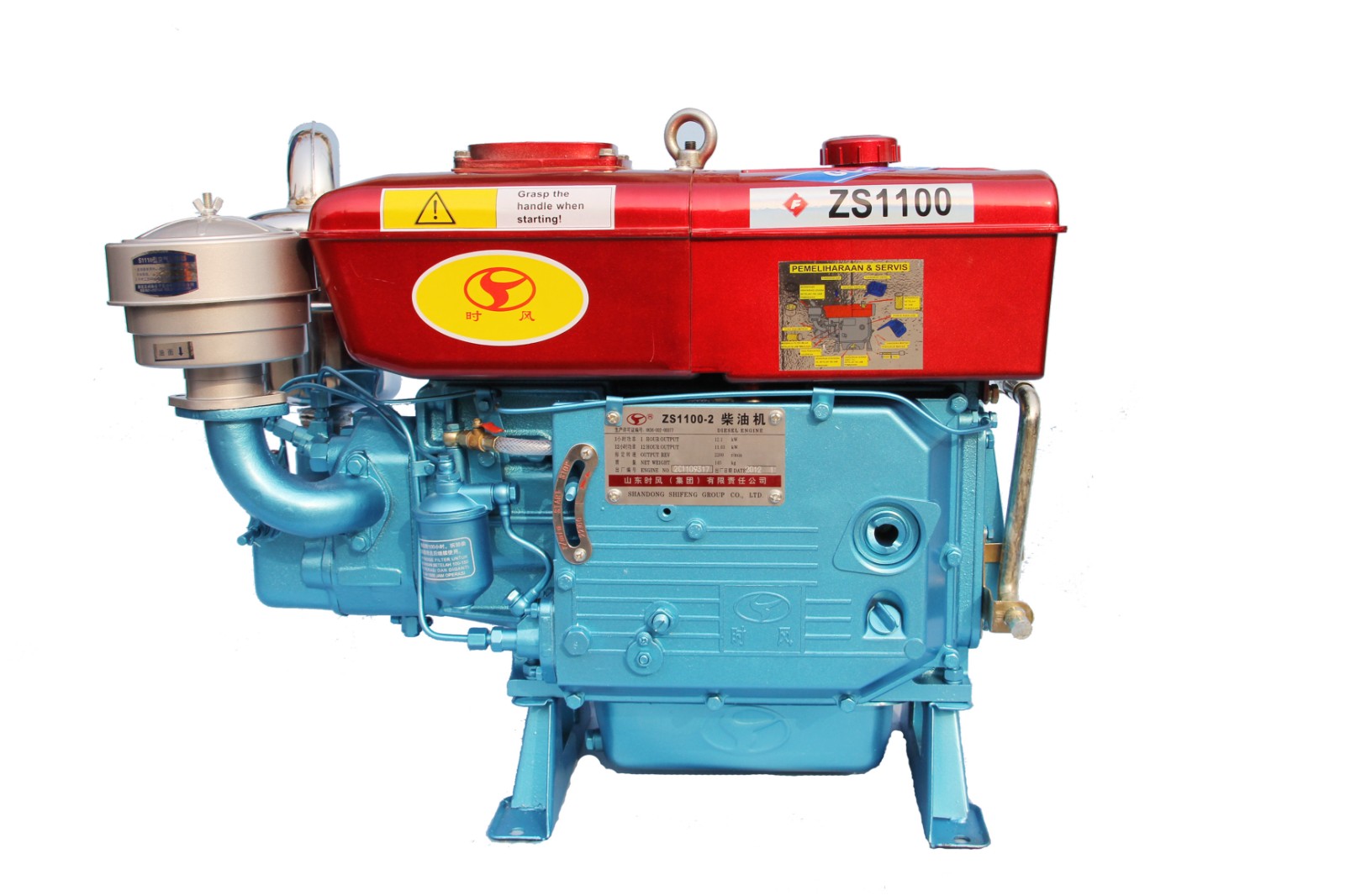

diesel engine/ single cylinder diesel engine/diesel engins
Auto,Parts & Accessories Vehicles Engine & Chassis Parts
MOQ:96 Set(s)
Payment Method : L/C T/T
Keywords:diesel engine small diesel engine Single Cylinder Engine
| Product Category: | Auto,Parts & Accessories > Vehicles Engine & Chassis Parts | Trademark: | SHIFENG |
| Product Package: | packed in woodenboxes | Specifications: | ZS1100/ZS1105/ZS1110/ZS1115/ZS1125/ZS1130 |
| Place of Origin: | LIAOCHENG | Port: | QINGDAO |

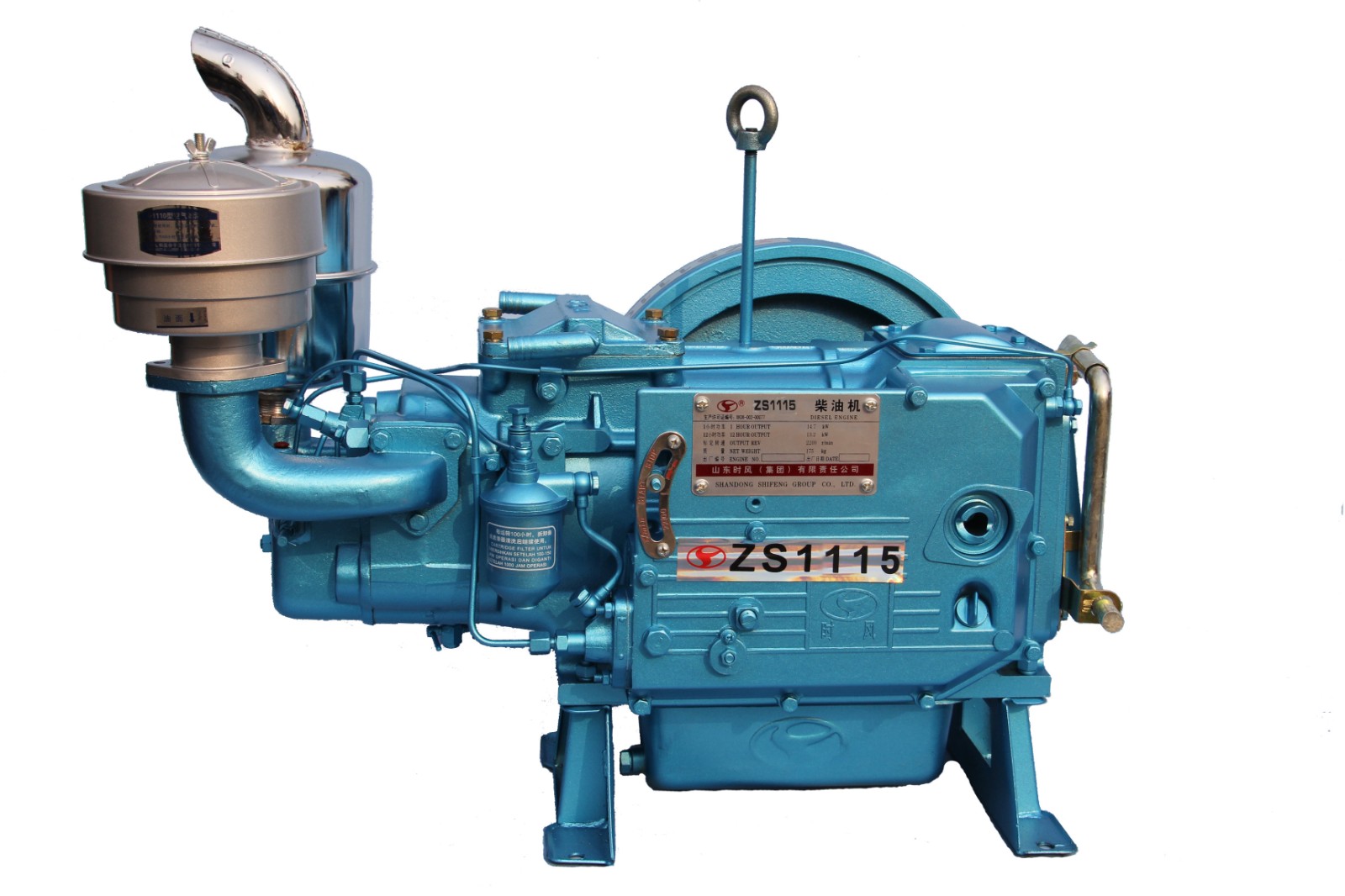

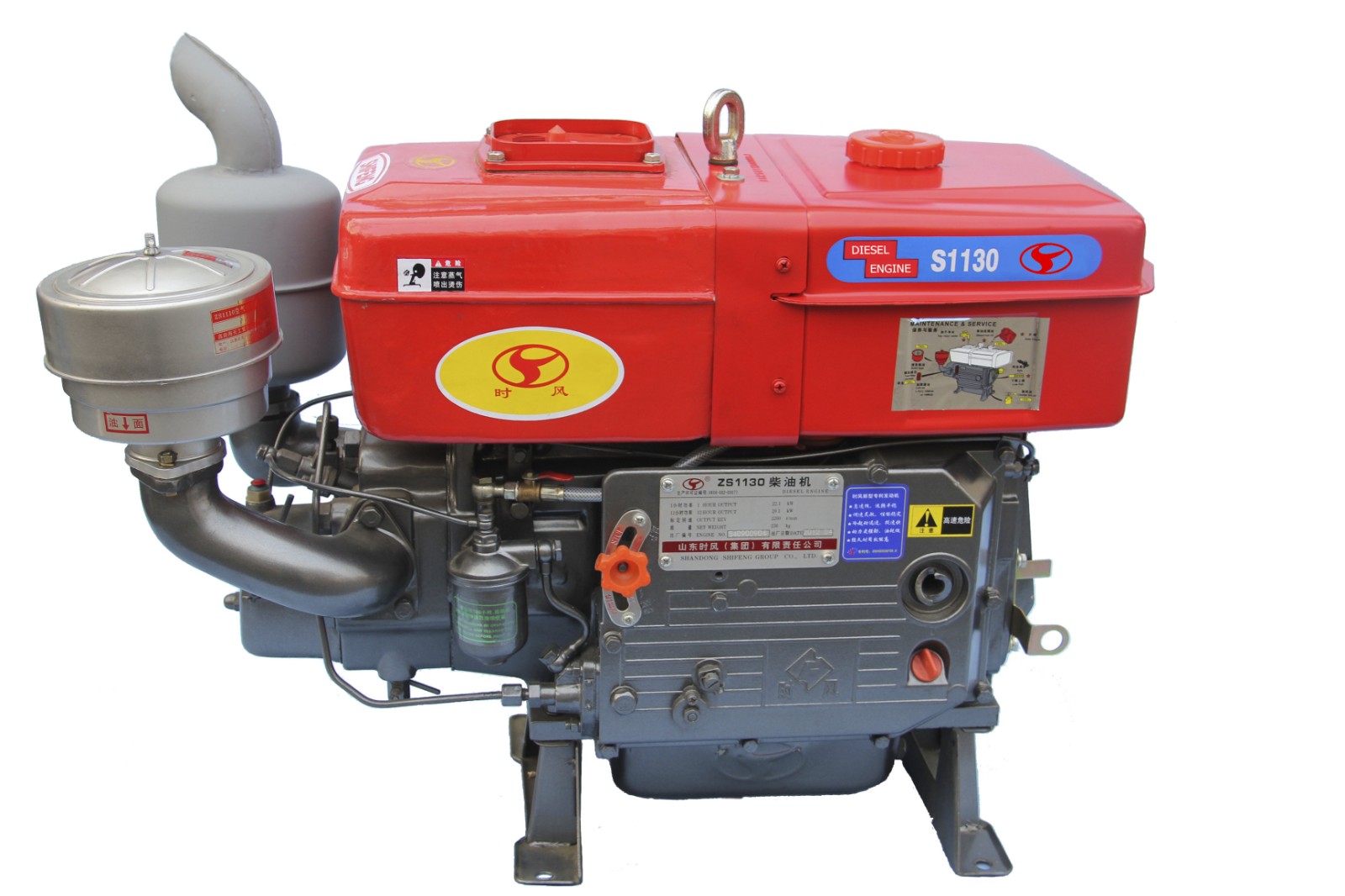

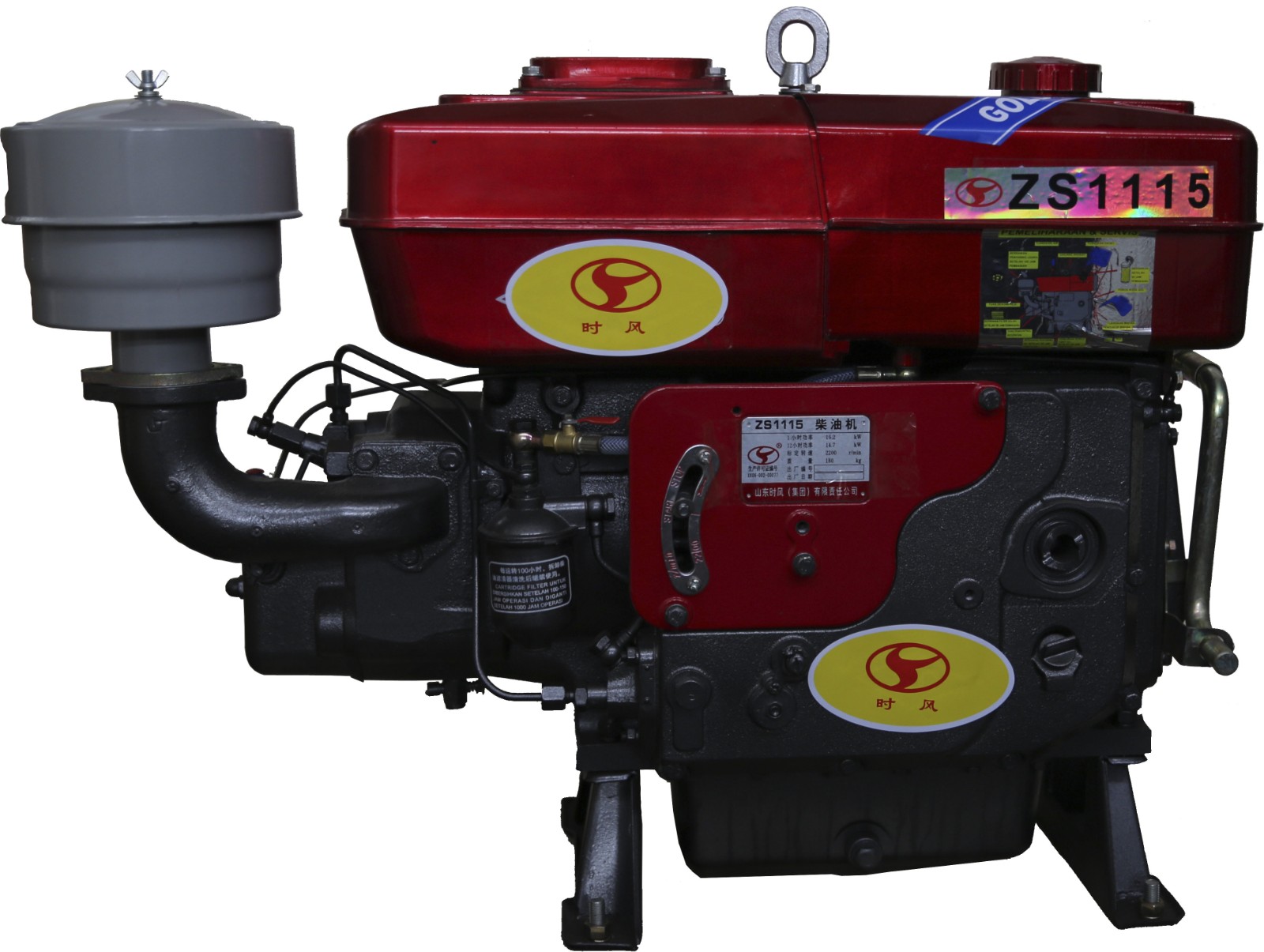

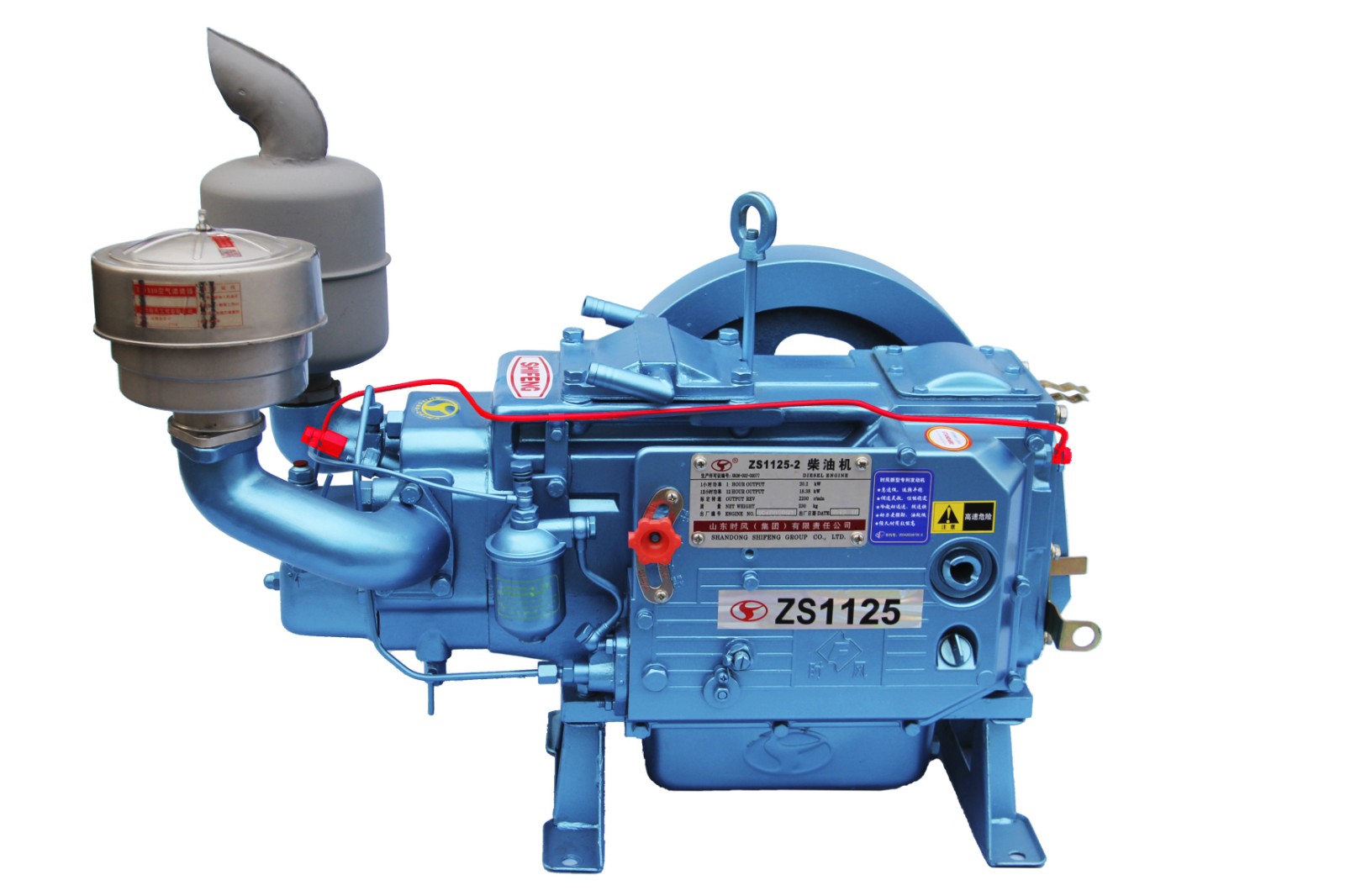

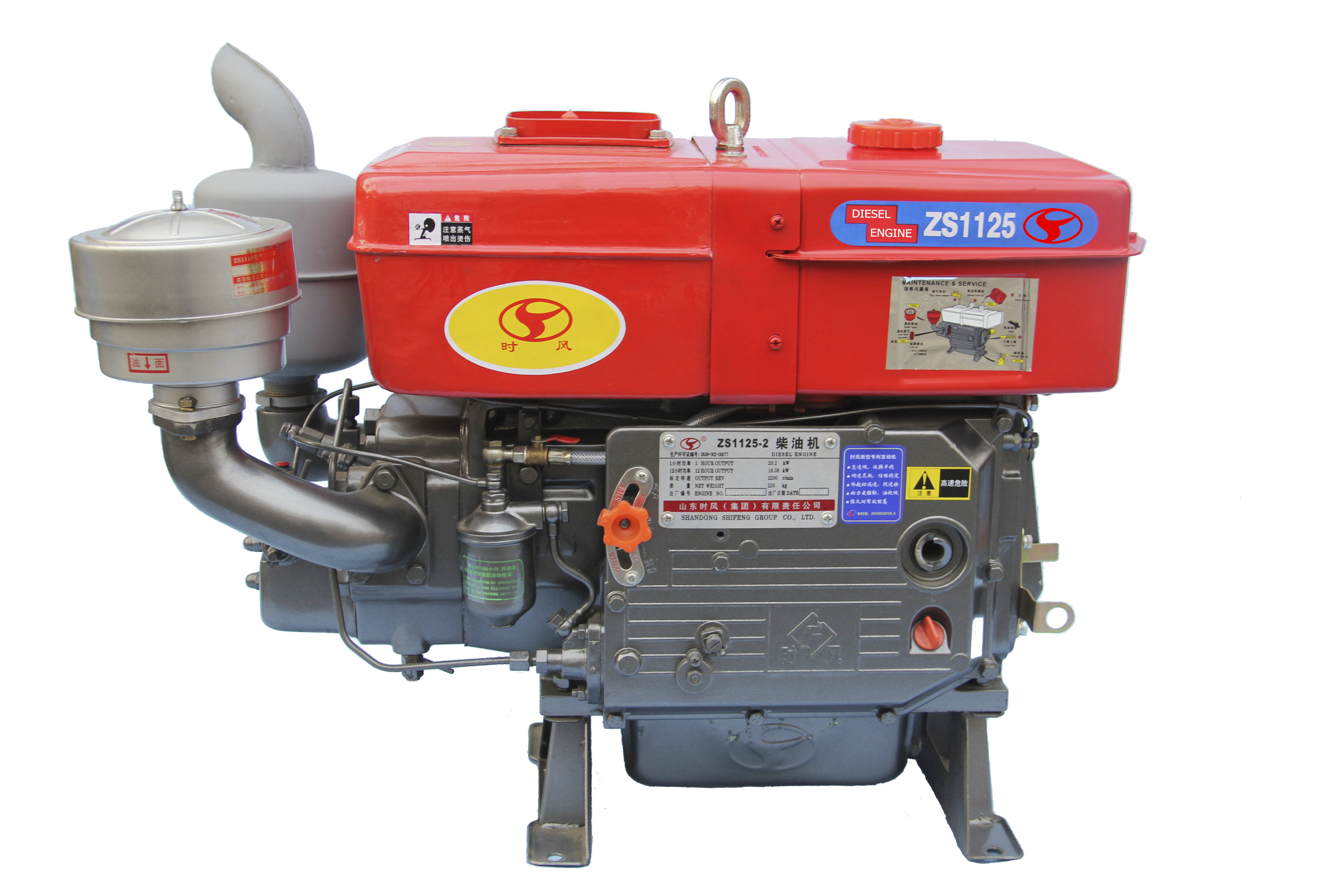

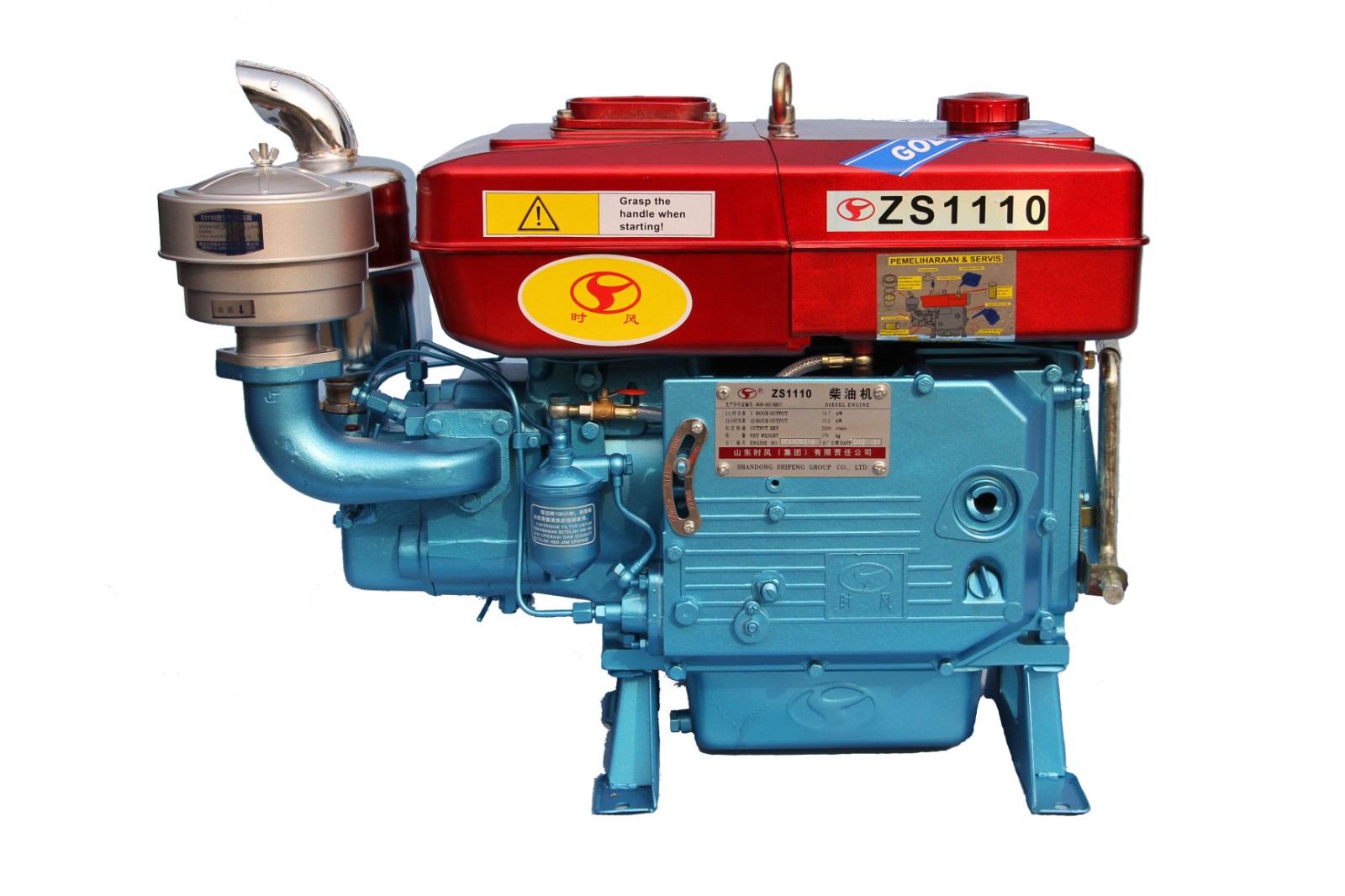

It is single –cylinder, horizontal and direct injection type with the largest power in China.
With the advantage of beautiful appearance, novel construction, large power, stable and reliable running, lower fuel, less water consumption, easy staring, board application and simple maintenance etc.
| MODEL | ZS195(NM) | ZS1100(NM) | ZS1105(NM) | ZS1110(NM) | ZS1115(NM) | S195 | S1100 | ||
| TYPE | SINGEL CYLINDER HORIZONTAL ,4-CYCLES | ||||||||
| COMBUSTION SYSTEM | DIRECT INJECTION COMBUSTION CHAMBER | SWIRL COMBUSTION CHAMBER | |||||||
| BORE*STROKE(MM) | 95*115 | 100*115 | 105*115 | 110*115 | 115*115 | 95*115 | 100*115 | ||
| TOTAL DISPLACEMENT(L) | 0.815 | 0.903 | 0.996 | 1.09 | 1.19 | 0.95 | 0.903 | ||
| COMPRESSION RATIO | 17.5 | 17.5 | 17.5 | 17.3 | 17.3 | 20 | 19.5 | ||
| 1-H RATED OUTPUT(KW) | 10.6 | 12.1 | 13.3 | 14.6 | 16.2 | 10.6 | 12.1 | ||
| 12-HOUR RATED OUTPUT(KW) | 9.8 | 11.3 | 12.1 | 13.2 | 14.7 | 9.8 | 11.3 | ||
| ROTATE SPEED(R/MIN) | 2200 | ||||||||
| SPECIFIC FULE OIL CONSUMPTION(g/kw/h) | 235 | 233 | 231 | 231 | 228 | 250 | 250 | ||
| SPECIFIC LUBE CONSUMPTION(g/kw/h) | ≤2.04 | ≤2.04 | ≤2.04 | ≤2.0 | ≤2.0 | ≤2.04 | ≤2.04 | ||
| MAX TORQUE (N.M) | ≥51.0 | ≥58.9 | ≥63.0 | ≥68.8 | ≥76.6 | ≥52.3 | ≥59.3 | ||
| MAX TORQUE SPEED (N.M) | ≤1760 | ≤1840 | |||||||
| COOLING SYSTEM | EVAPORATION/WATER /CONDENSITION RADIATOR | ||||||||
| LUBRICATION SYSTEM | COMBINED PRESSURE AND SPLASHING | ||||||||
| STRAT METHOD | HAND CRANKING / ELECTRIC STARTER | ||||||||
| GOVERNING METHOD | GENERAL TIMING PANEL/ SHIFENG PATENT TIMING SYSTEM | ||||||||
| NET TWEGHIT (kg) | 145 | 150 | 155 | 175 | 180 | 145 | 155 | ||
| Contact Name: | Mr Tony Niu | Contact Email: | 13****3@163.com |
| Contact Job Title: | Manager | Contact Mob: | 135***993 |
| Contact Tel: | Contact Fax: | ||
| Address: | Website: |

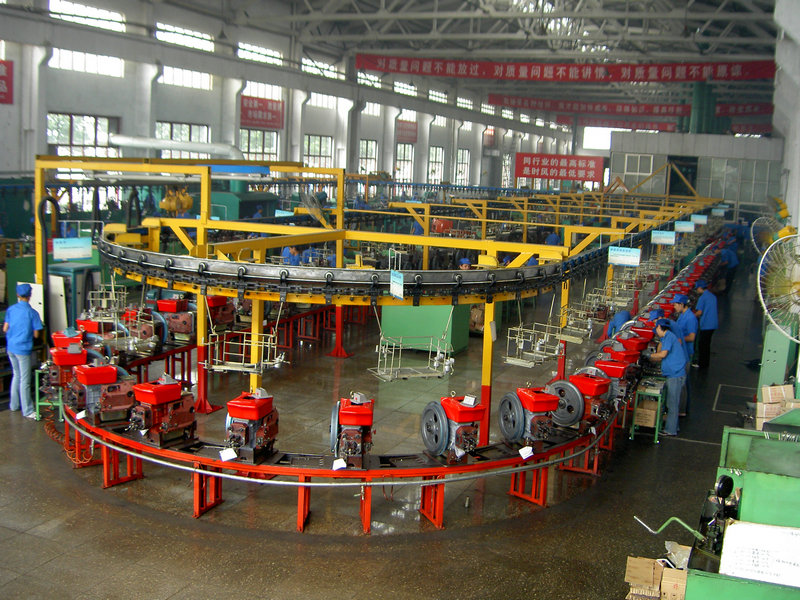

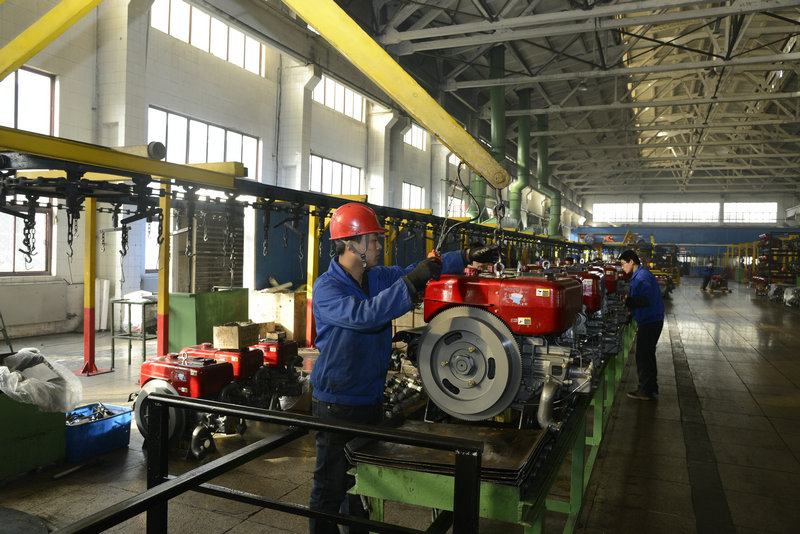

Shifeng Group was established on 18th May, 1993.The group covers an area of 333 hectares, its total assets is 6 billion Yuan RMB and it has 30,000 employees. The leading products includes 3-wheel trucks, low-gear trucks, light trucks, electric automobiles, tractors, engines, combined harvester and tyre in 5 industry gardens. We exported our products to more than 50 countries in Africa, Europe and America. For example, USA, Mexico, Indonesia, Pakistan, Bangladesh and Albania, etc.
