CNC plasma metal cutting machine with the best cutting effect and the highest precision
Manufacturing & Processing Machinery Industrial Processing Machinery
MOQ:1 Piece(s)
Payment Method : L/C T/T D/P Western Union Paypal
Keywords:cnc plasma cutter cnc plasma cutting machine plasma cutter cnc portable plasma cutter plasma metal cutter metal cutting machine Stainless steel cutter plasma cutter prices
| Product Category: | Manufacturing & Processing Machinery > Industrial Processing Machinery | Trademark: | Allwin cnc |
| Product Package: | plywood boxes | Specifications: | 1530/2060 |
| Place of Origin: | Jinan China | Port: | Qingdao |
welcome visit our website www.cncallwin.com

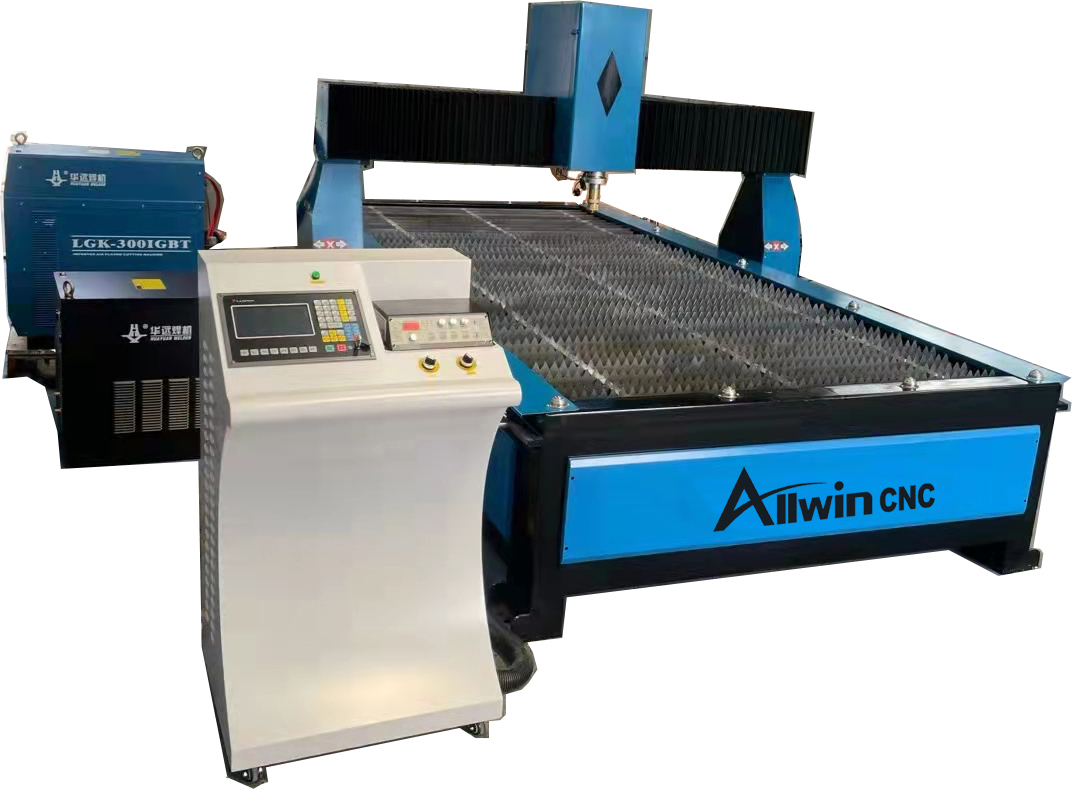

CNC plasma metal cutting machine Features
The desktop plasma cutting machine adopts a box-type welding structure as a whole, with an overall quenching treatment, which has a stable structure and is not easy to deform; it has high cutting accuracy, especially suitable for industries that require high cutting accuracy. The main features of the THC desktop plasma cutter are as follows.
1. The desktop plasma cutting machine adopts thick square tube welding, the whole is quenched, and the appearance is atmospheric and beautiful.
2. The structure is stable, the running speed is fast, and the cutting precision is high, which can meet the requirements of high cutting precision industries.

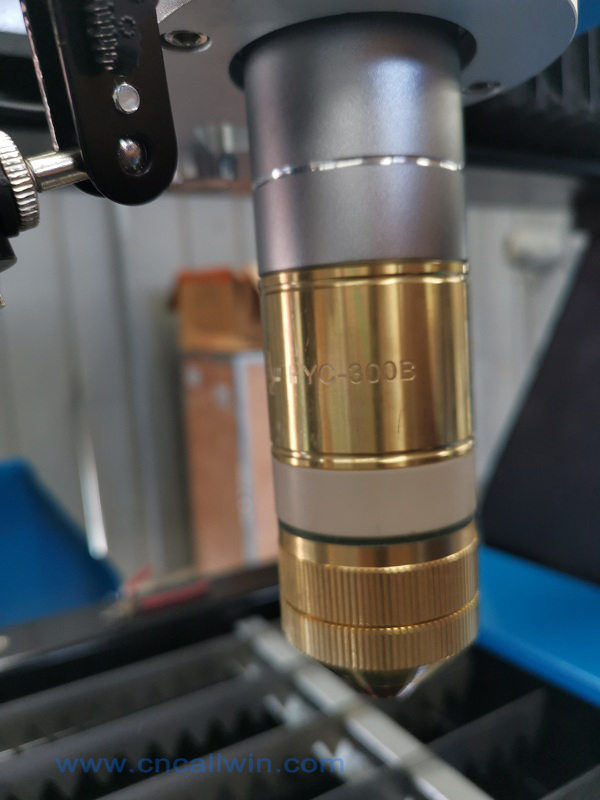

3. The cutting torch of the plasma cutting machine supports two cooling methods: air cooling and water cooling (optional). The water-cooling method can ensure that the material is not deformed, and the cutting surface is smooth and burr-free.
4.table automatic height controller plasma cutter Have an independent automatic identification system. It can automatically adjust the distance between the nozzle and the metal sheet which according to the condition of the material to maintain the best cutting distance.
5. plasma power of the plasma cutting machine can automatically adjust the current according to the thickness of the material to maintain the best cutting effect. we have the best quality with stable plasma source made in china at same time we also have hypertherm power brand.

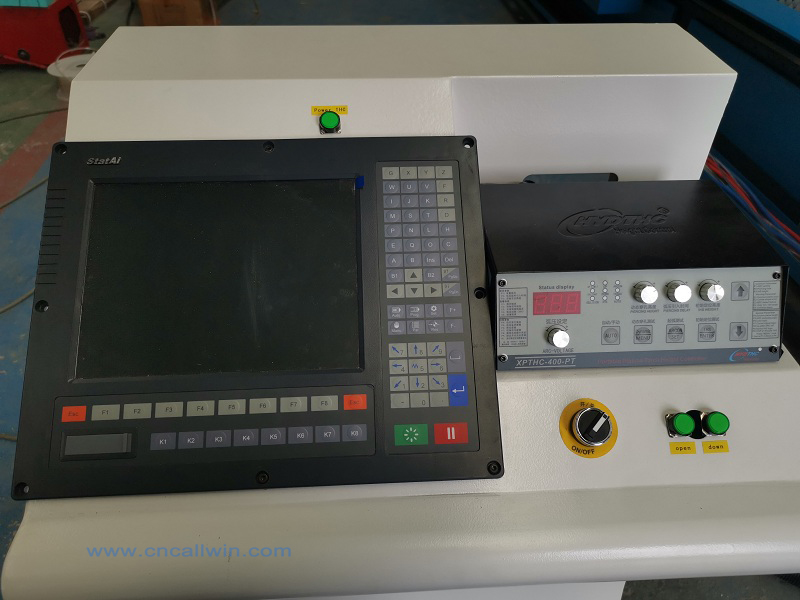

6. The control is easy to learn. The desktop plasma cutting machine is equipped with Starfire control system, which is simple to operate and easy to use. The system provides a large number of cutting graphics, and it can also read external graphics via USB.
7. The operation system comes with automatic typesetting software, which improves the typesetting speed, reduces the waste of materials, and saves the cost of materials.
8. Optional additional pipe cutting function.
CNC plasma metal cutting machine Technical specification
| Model | 1530 |
| Table Size | 1500 mmx 3000mm |
| Plasma Power | USA Hypertherm Power: 45A, 65A, 85A, 105A, 125A, 200AChinese Huayuan Power: 63A, 100A, 120A, 160A, 200A |
| Cutting Thickness | 0.3-30mm (According to different plasma power) |
| Minimum Cutting Diameter | Depend on cutting thickness |
| Max Cutting Speed | 12m/min |
| Transmission | Taiwan Hiwin Square rail and Rack transmission |
| Drive Motor | Leadshine stepper motor and driver |
| Control System | Starfire control system with THC |
| Table | Blade table or Sawtooth table |
| Machine Frame | General machine frame or Heavy duty frame |
| Working voltage | 220V for machine, 380V for power supply (63A with 220V i |
| Optional Parts | Rotary device, Flame head, Drilling head, Marking head, A |
| Consumable Parts | Cutting nozzle and electrode |
CNC plasma metal cutting machine Applications
Allwin table plasma cutting machine is suitable for boiler manufacturing, power equipment, three-dimensional storage, shipbuilding enterprises, automobile manufacturing, steel structures and other metal processing industries.
View More Information Click Here
Plasma Cutting Capacity of portable Plasma cutter
| China Huayuan Power | USA Hypertherm Power | ||
| Power supply | Cutting thickness | Power supply | Cutting thickness |
| 63A | 8mm | 45A | 8mm |
| 100A | 15mm | 65A | 10mm |
| 120A | 20mm | 85A | 12mm |
| 160A | 30mm | 105A | 18mm |
| 200A | 40mm | 125A | 25mm |
| 200A | 30mm | ||
Portable cnc Plasma cutter Details
| Contact Name: | Mrs Amy Zhang | Contact Email: | ad****n@cncallwin.com |
| Contact Job Title: | Manager | Contact Mob: | 185***338 |
| Contact Tel: | Contact Fax: | ||
| Address: | Website: |
Jinan allwin cnc machinery co.,ltd. is located in Tianqiao District, Jinan City, Shandong Province. Our company is mainly engaged in the design and manufacturing of CNC plasma cutting machines and laser cutting machines. We have more than 10 years of manufacturing and design experience in the CNC metal cutting machinery industry. Our products are sold in dozens of countries and regions around the world, and we have obtained Unanimous praise from customers.
Our goal is to provide customers with the best service and high-quality products, create value for customers, and achieve mutual benefit and win-win results for customers, suppliers, and the company.
