EPS cement sandwich lightweight wall panel machine
Manufacturing & Processing Machinery Industrial Processing Machinery
MOQ:1 Set(s)
Payment Method : L/C T/T
Keywords:lightweight panel machine hollow panel machine EPS cement panel machine EPS sandwich panel machine eps concrete panel machine EPS panel production line sandwich panel machine panel making machine precast concrete panel machine ceramsite panel machine
| Product Category: | Manufacturing & Processing Machinery > Industrial Processing Machinery | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | Qinzhou |
HFP530A Eps Cement Panel Making Machinery Precast Concrete Products Eps Sandwich Wall Panel Production Line Machine for Concrete Precast Houses:
Patent protected product
2. Labor-saving and Advanced Technology
3. Double side opening and higher capacity
4. ISO9001-2015
5.Adopts touch screen control, automatic filling, electronic weighing, temperature control,
material level control to realize automatic production.
| New double side opening automatic wall panel making machine | Power/kw | Output/pcs per mould | |||||
| Overall dimension (mm) | 4 | 60mm | 75mm | 90mm | 100mm | 120mm | 150mm |
| 3380*3200*2680mm | 40pcs | 36pcs | 32pcs | 30pcs | 26pcs | 22pcs | |
| Capacity range | 50000sqm to 1 million sqm or more. | ||||||
| Hydraulic system | Hydaulic system for material filling and forming machine. | ||||||
| Worker need | 1 worker can run 3 machines, the fastest now in China. | ||||||
The Advantage of Automatic Double-side Opening Wall Panel Making Machine
By running the machine, we have update wall panel making machine to 3rd generation, welcome to visit us to see machine running!
1. The workers can fix boards and moulds easily at the same time for both sides, the height is 1.2meters . (When it is double opening type ).
2. Workers can demold panels while another one can fix the mould and boards, no need wait for any forming machine, time-saving and faster operation for the whole line.
3. Can have natural or hydaulic filling for solid, hollow panels.
Hongfa Eps Cement Panel Making Machinery Precast Concrete Products Eps Sandwich Wall Panel Production Line Machine Suggested Workers' Table:
| EPS Expander Operation/raw materials | 1 |
| Moulding/pouring | 2 |
| Demoulding | 1 |
| Transportation | 1 |
| Total workers for wall panel production line | 5 |
Lightweight Cement Foam EPS Sandwich Panel Production Line , Concrete Wall Panel Making Machine, Eps Sandwich Panel Machine Main Machine Parts

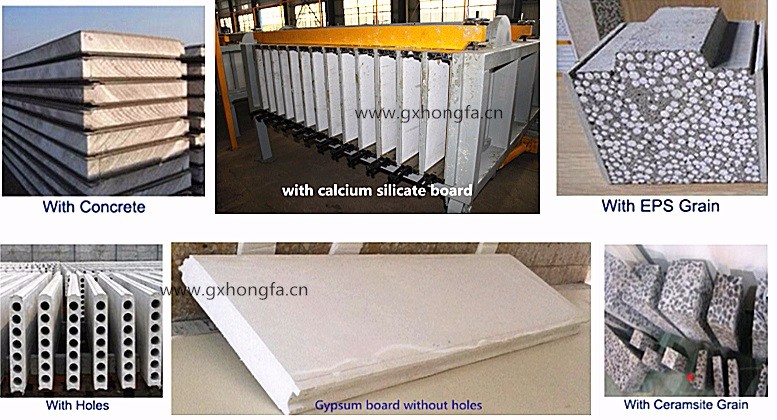

2. Finished Product Features:
Lightweight composite wallboard is a new type of high-grade lightweight Panel
material composed of EPS mortar as the core material, calcium silicate
board as the surface material, and appropriate admixture of Aggregate.
1. Materials of Hongfa Brand EPS Wall Panel
1) Outside (with side board or without)
- Calcium silicate board, or Cement fiberboard, MGO board.
- Also can be without the side board and adjustable.
2) Inside (core material)
- Cement, Foam EPS , Fly Ash, Sand , Saw dust, Perlite, Stone, Additives, etc.
2. Common Specifications of EPS cement wall sandwich panel
L*W*T: 2440mm*610mm*50mm/60mm/75mm/90mm/100mm/120mm/150mm.
2270mm* 610mm*50mm/60mm/75mm/90mm/100mm/120mm/150mm/180mm/200/250mm.
Other size such as length 3000mm, 3200mm, 3500mm, 4000mm can be customized .
3. Applied range of light weight EPS wall panel
For interior and exterior wall partition on steel or concrete structure building, new construction or renovations. It can be widely applied to wall materials of various high and low buildings such as bank, office building, hospital, school, hotel, shopping mall, amusement, old house reconstruction, residence and workshop.
4. Advantages of Hongfa wall sandwich panel
*Light weight----Excellent sound insulation----- Heat Insulation
*Waterproof Fire proof--------- Energy Efficient Environmental
*Convenient construction-----High Intensity without deformation.
Hongfa Group Produce several types of Eps Cement Panel Making Machinery Precast Concrete Products Eps Sandwich Wall Panel Production Line Machine :
1: Automatic vertical type: automatic operation,high output,fewer workers required.
The most advanced patent protected wall panel making machine in China. Double capacity Higher working-efficiency.
2: Horizontal type EPS wall panel making machine: high level of automatic operation,fewer workers required.
3: Manual vertical type partition wall board making machine: Manual operation,the highest output amount the three types, but requires more workers.

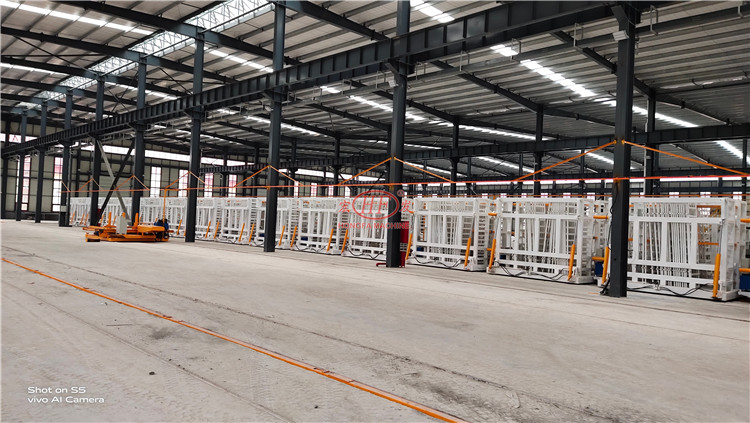

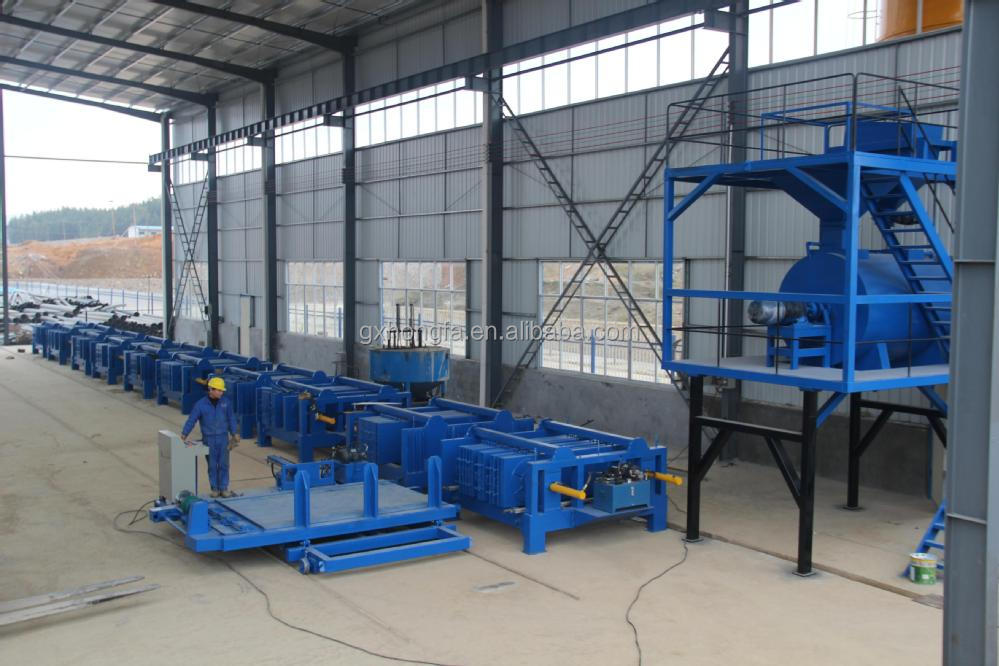

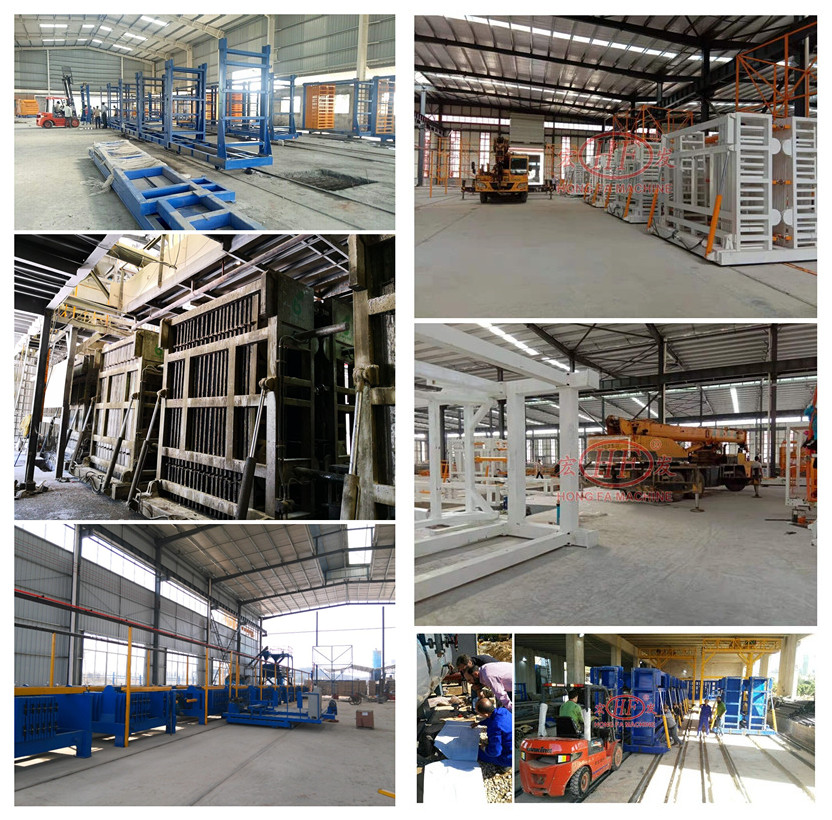

Eps Cement Panel Making Machinery Precast Concrete Products Eps Sandwich Wall Panel Production Line Machine Around the World.
Q: How can you guarantee the production quality ?
A: Our production quality follow China construction machinery standard JGJ33-2012. We have 30 years experience on producing the machines and will be inspected by QC team for each shipment. We have strictly quality control system in our production process. We have 4 times inspection for each finished product before package Third part inspection acceptable.

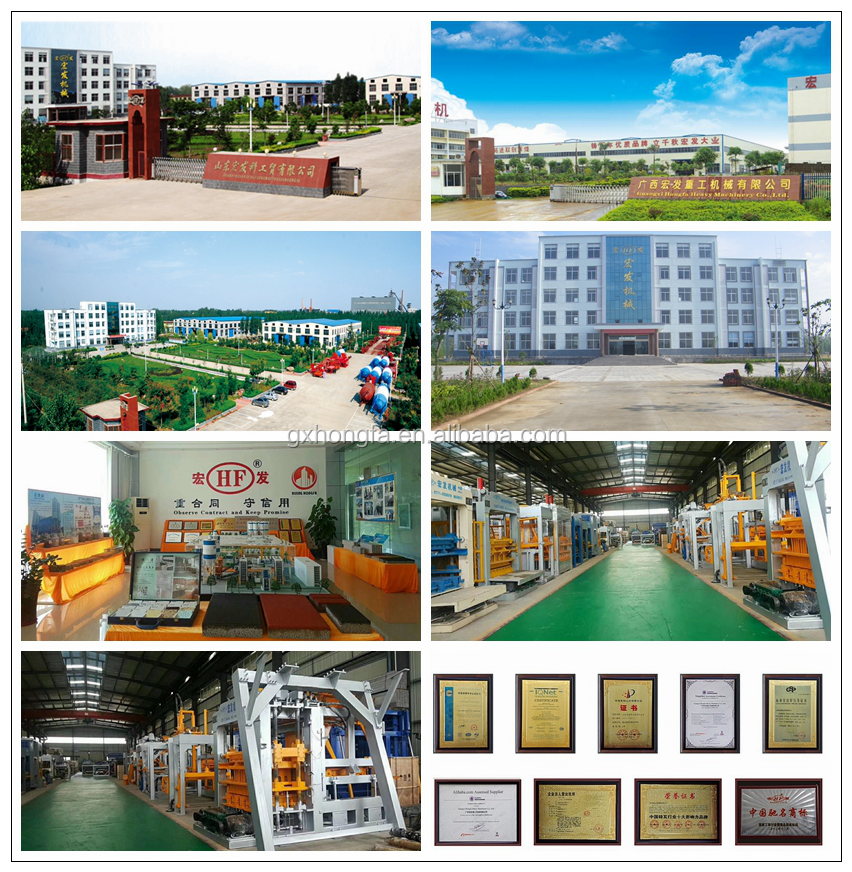

Hongfa Group Established in 1990.
