Passive Fire Protection Fire-resistent Partition Board

Construction & Decoration Building Decoration Products

EXW Price:US$ 7.50 / Piece(s)

MOQ:270 Piece(s)

Payment Method : L/C T/T D/P Western Union Paypal Money Gram

Keywords:Fire-resistent Partition passive fire protection Partition Board Fire-resistent Partition Board

Add to Favorites

Product Category: Construction & Decoration > Building Decoration Products Trademark:
Product Package: wooden pallet + PE covering + corner protector + strong tape Specifications: 2440*1220*4-25mm
Place of Origin: guangxi of china Port: Fangcheng Port
Detail information of products

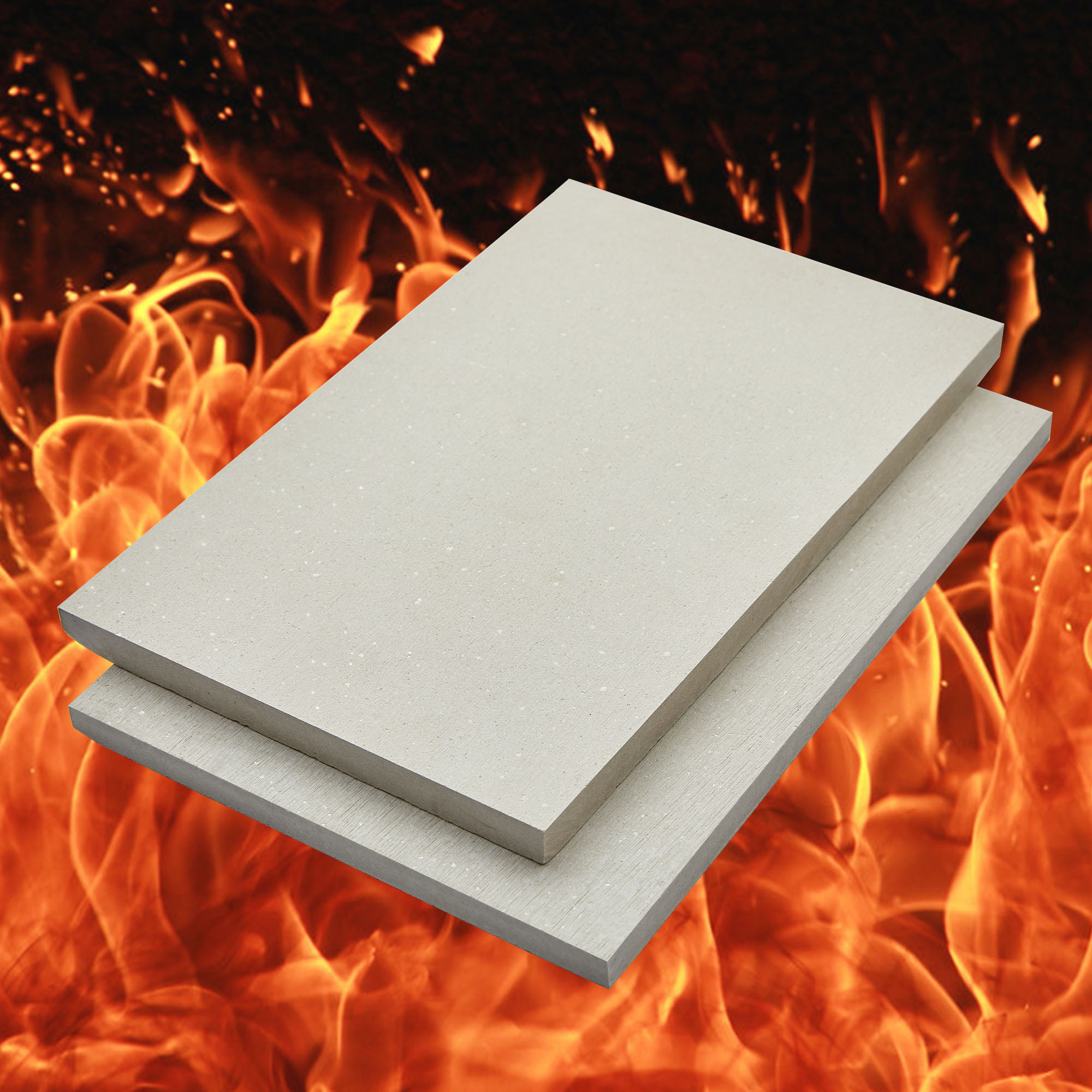

Passive Fire Protection Partition Board Description:


Peakon-950-1200  autoclaved calcium silicate board is made of cement, quartz, hydrated lime, mica & fiber,

Peakon-950-1200 is an easy to install, non-combustible board, combining fire, moisture and impact resistance

with thermal insulation properties. It provides up to 120 mins - 240 mins fire resistance, density 950-1200kg/m3.



Peakon-950-1200 is off-white in color. One face is smooth, the other face is natural. If need, we can produce a sanded surface to meet the requirement. It is a versatile and lightweight board but has the required strength for a wide range of fire passive fire protection projects, Firewall is one of the more widely used applications.


Features:

● High strength                                      ● EN13501-1 Fire-resistant (A1)

● Blast resistant                                      ● BS 476 /EN 1364 fire resistance

● Vermin resistant                                  ● Acoustic insulation

● Chemical stability                                ● Easy to install

● Smooth surface                                   ● Durability for more than 20 years

● Impact-resistant                                  ● Flexibility

● Asbestos-free                                      ● Moisture-proof

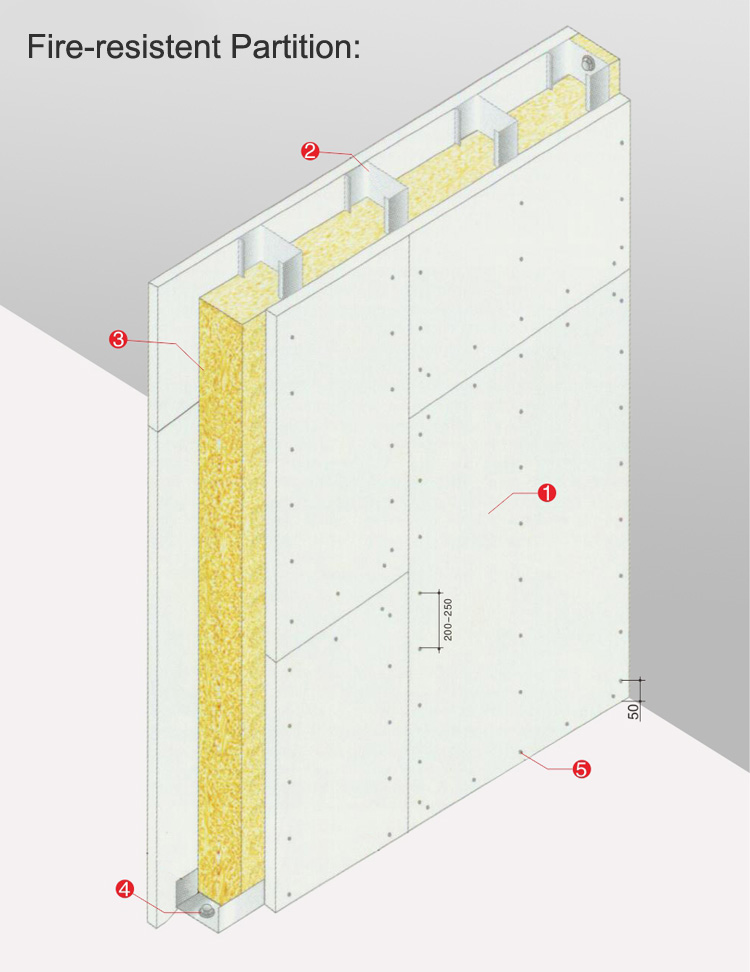

Fire Protection Time Limit
Structure Description
3h
1.Fire-proof Board,8mm thick
2.Light steel keel,100mm
3.Rock wool,Capacity 1000 kg/m3
4.Bolt/expansion bolt,Φ6mm,800mm spacing
5.Self-tapping screws,Φ3.5*25mm,200-250mm spacing


Fire Protection Time Limit
Structure Description
4h

1.Fire-proof Board,12mm thick

2.Light steel keel,100mm

3.Rock wool,Capacity 1000 kg/m3
4.Bolt/expansion bolt,Φ6mm,800mm spacing
5.Self-tapping screws,Φ3.5*25mm,200-250mm spacing






Contact Name: Miss Miya Huang Contact Email: in****o@tkdiatomitemat.com
Contact Job Title: GM(General Manager) Contact Mob: 180***951
Contact Tel: Contact Fax:
Address: 广西防城港市东兴市江平工业园 Website: https://www.peakonboard.com/

Peakon is a professional manufacturer of building boards for more than 10 years in Dongxing City, China. Our main product focus on 100% non-asbestos fiber cement board and calcium silicate board. And they application for Interior and exterior decoration, wall panel, floor, partition wall system, passive fire protection systems partition, ceiling.

Environmental-friendly fireproof boards are green, environmental -friendly, fire and mildew proof building ideal products for the modem decoration, featuring at the flame retardance, thermal and noise insulation, fire, moth and mildew proof without smoke, poison, and deformation. They are able to be drilled, planed, nailed and sawed under easy operation and high efficiency.
