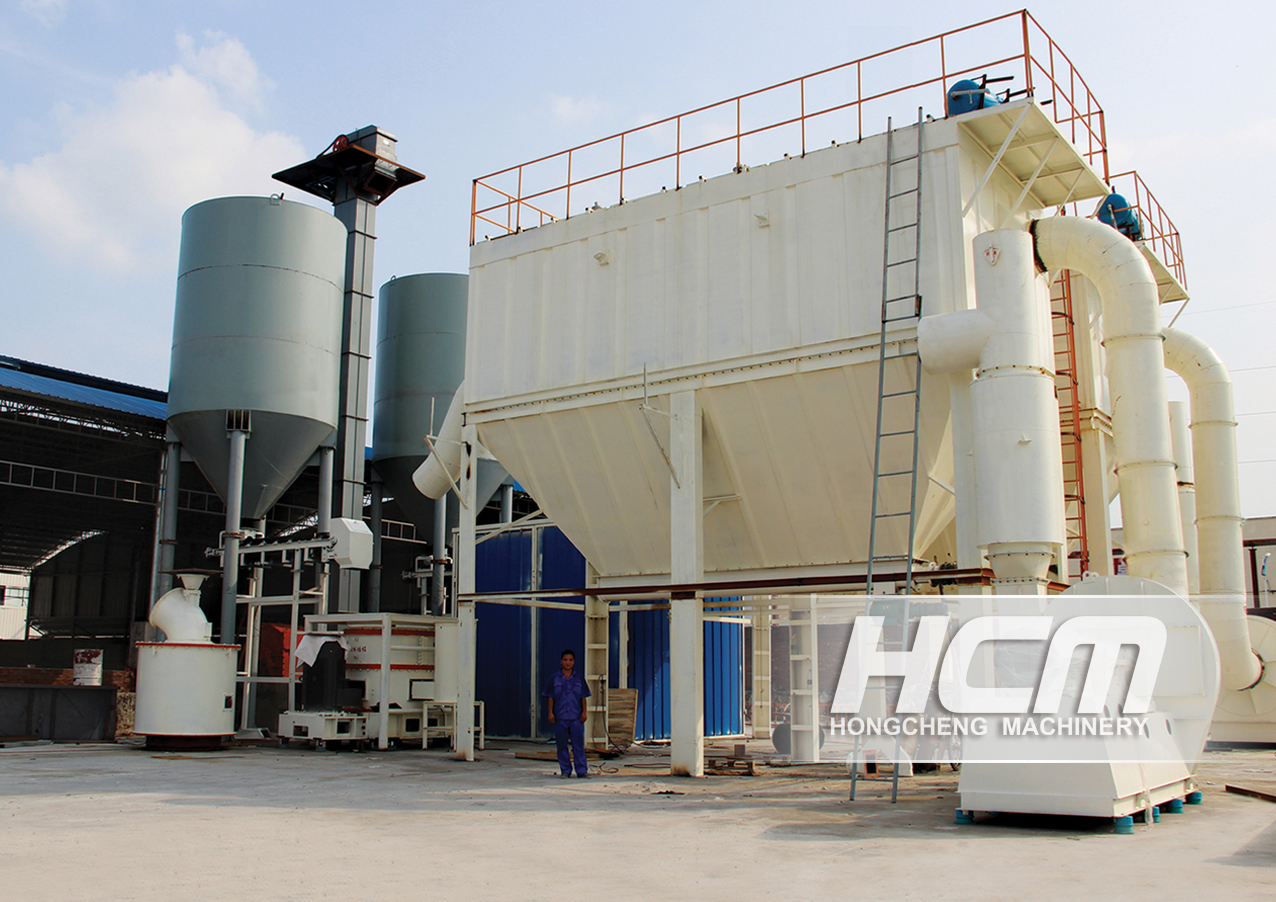

HCH Ultra-fine Grinding Mill

Max feeding size: ≤10mm

Capacity: 0.7-22t/h

Fineness: 400-2500mesh, (0.04-0.005mm)

HCH ultra-fine grinding mill can process other non-metallic ores, it is widely used in the fields of metallurgy, cement, chemical industry, non-metallic mineral powder, food, medicine and other fields. Featuring small footprint, strong complete set, wide use, simple operation, convenient maintenance, stable performance and high efficiency Notable features such as energy saving. HCH1395 and HCH2395 ultra-fine grinding roller mills are outstanding large-scale, energy-saving and consumption-reduction new ultra-fine ring roller mills.

The Working Principle:

the main motor drives the main shaft and the turntable to rotate through the reducer, and the roller pins on the edge of the dial drive the grinding rollers to roll in the grinding ring raceway. The large pieces of material are crushed into small particles by the hammer crusher and then sent to the storage bin by the elevator, and then sent to the bulk material tray on the upper part of the turntable through the vibrating feeder and the inclined feeding pipe.

The material is scattered to the periphery of the circle under the action of centrifugal force, and falls into the raceway of the grinding ring, and is impacted, rolled, and ground by the ring roller. After three-layer ring processing, it becomes fine powder. The high-pressure blower removes the external air through suction. Inhale into the machine, and bring the crushed material into the powder concentrator. The rotating impeller in the powder classifier makes the coarse materials fall back and regrind. The fine powder that meets the requirements enters the cyclone powder collector with the airflow and is discharged from the discharge valve at the lower part of the cyclone as the finished product. The airflow with a small amount of fine dust passes through After the pulse dust collector is purified, it is discharged through a blower and a muffler.

Performance Advantages

Manageable fineness

The grinding fineness can be controlled and adjusted. HCH ultra-fine grinding mill can grind 325-2500 mesh powder, and the fineness can be controlled. Moreover, the HCH1395 model equipment is certified as energy-saving and consumption-reducing equipment in calcium carbonate ultra-fine processing.

Advanced classification system

Using a forced turbine classification system, the particle size is more uniform and fine, and different fineness products are produced, which can enhance the market competitiveness of powders and enterprises.

Dust-free

The full pulse dust collection system realizes 99% efficient dust collection, ensuring dust-free operation and cleaner dust.

Diverse applications

The equipment can grind various non-metallic ores with Mohs hardness below 7 and humidity within 6%, such as Barite, calcite, calcium carbonate, dolomite, potash feldspar, bentonite, kaolin, graphite, etc.

Technical assurance

This equipment is a new type of fine powder deep-processing equipment that Hongcheng has accumulated many years of experience in production research and development. It has withstood the test of the market and users, and has received strong support from new and old customers and friends.
