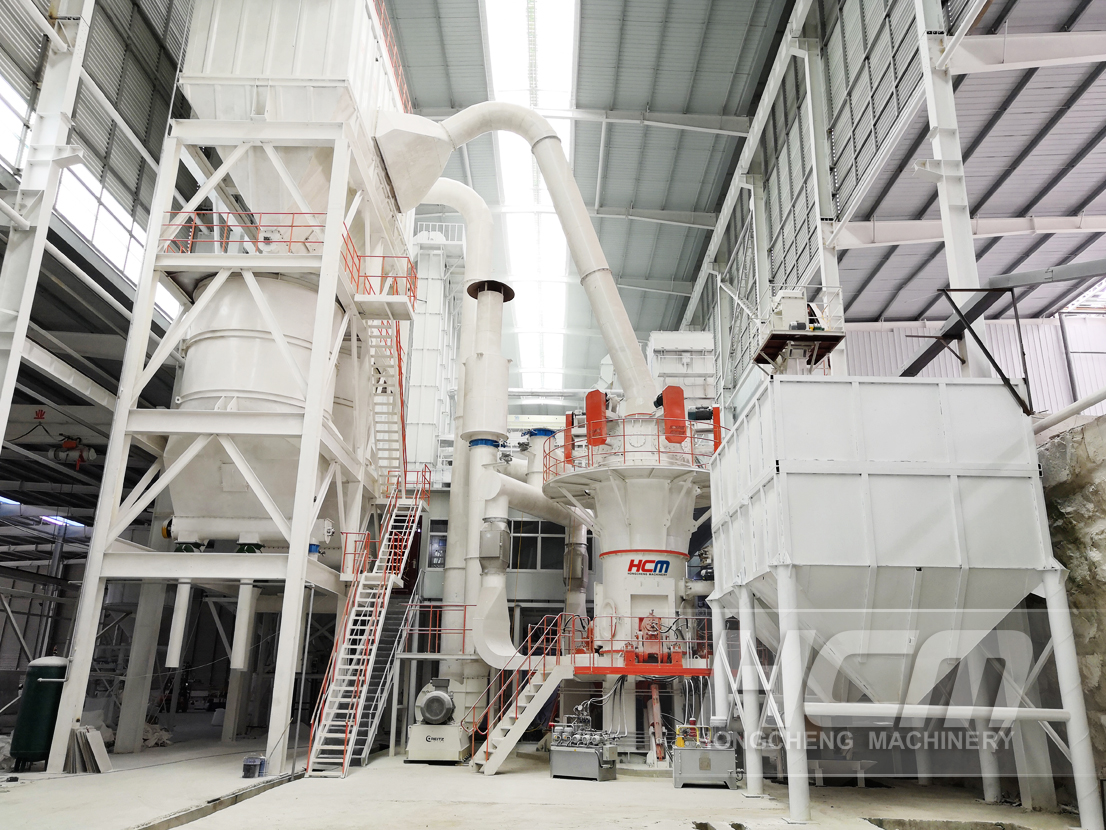

HLM Vertical Roller Mill

Max feeding size: 50mm

Capacity: 5-200t/h

Fineness: 200-325 mesh (75-44μm)

HLM vertical roller mill has high-efficiency and energy-saving, this compact milling machine is integrated several functions simultaneously: grinding and drying, accurately classifying, and conveying materials. The fineness of the product ranges from coarse to fine. The mill adopts round grinding disc, tire-shaped grinding roller, integral roller sleeve, and grinding roller to individually pressurize, and the roller can be lifted or turned out of the mill for ease of maintenance and long service life time. The powder classifier using dynamic and static separator with adjustable speed.

Working Principle

The main motor drives the grinding disc to rotate through the reducer. At the same time, the wind enters the mill from the air inlet. The material falls on the grinding disc through the discharge port of the screw feeder. Under the action of centrifugal force, the material moves evenly from the grinding disc to the edge and passes through the powder on the grinding disc. When grinding the roller track area, it is crushed by the grinding rollers, and the large pieces of materials are directly crushed, and the fine-grained materials are squeezed to form a bed for inter-particle crushing.

The crushed materials continue to move to the edge of the grinding disc until they are taken away by the strong air flow at the wind ring, and the larger particulate materials fall back to the grinding disc and continue to be crushed. When the materials in the air flow pass through the upper separator, they are separated Under the action of the blade, the coarse particles return to the grinding disc for grinding, and the qualified fine powder is discharged out of the mill along with the airflow and collected by the powder collector of the system. The collected powder is the product of the ultra-fine vertical mill. When the iron and other sundries mixed into the material move to the edge of the grinding disc with the material, they cannot be blown up by the wind due to their own weight. They fall to the lower cavity of the grinding machine and are scraped into the slag discharge port by the scraper installed at the bottom of the grinding disc.

Performance Advantages

Energy-saving

The unit electricity consumption of the mill has greatly reduced. lower specific energy consumption per unit ( kWh/t ) for high production (t/h) values, resulting in a lower specific cost

Higher production values

Vertical mills are able to reach production values which are significantly higher than the ones achievable with conventional ball mills.

High availability

Our comprehensive line of grinding mills, spare and wear parts as well as maintenance and optimization services provide reliable and energy efficient technology and solutions. With customer needs and operational risk at the core of their design, Hcmilling (Guilin Hongcheng)’s grinding mills, engineered mill liners, and robust trommels ensure the highest availability.

Efficiency through automatized operation

We offer professional customized service, our experts will assist you in model selection of grinding mill, from fineness, final product quality, throughput to after sale service, to ensure you get your desired grinding results.

Professional mill model selection

Our management team has over two decades of experience in the mineral ore milling industries. Our continuous innovation is one of the key factor to our rapid growth. We have been able to provide advanced vertical mill solutions to the market by tailoring our R & D, applications, and technical service capabilities to the needs of our customers.
